Recommended chip for USB expansion of car entertainment system: USB2514BI-AEZG
The Embedded motherboard industrial control vehicle USB2514BI-AEZG multi-port hub controller is an excellent choice for car USB expansion. It operates efficiently and is highly reliable, making it ideal for vehicles and various systems. This chip connects seamlessly to multiple USB devices, ensuring smooth data sharing. Its multi-port design facilitates additional connections, which is crucial for cars and smart devices. The USB2514BI-AEZG also conserves energy while maintaining strong performance. Built to last, it withstands the challenging conditions found in vehicles without any issues.
Key Takeaways
The USB2514BI-AEZG chip moves data quickly, up to 480 Mbps. This makes it great for playing music and sharing files in car systems.
Its hub design lets you connect many USB devices at once. This makes it easier to use and avoids delays.
The chip saves energy, helping your car's battery last longer. It also creates less heat.
Made for tough conditions, it works well in extreme temperatures. It can handle -40°C to 85°C, even on bumpy roads.
This chip works with many devices and systems. It is a smart and long-lasting choice for cars and other uses.

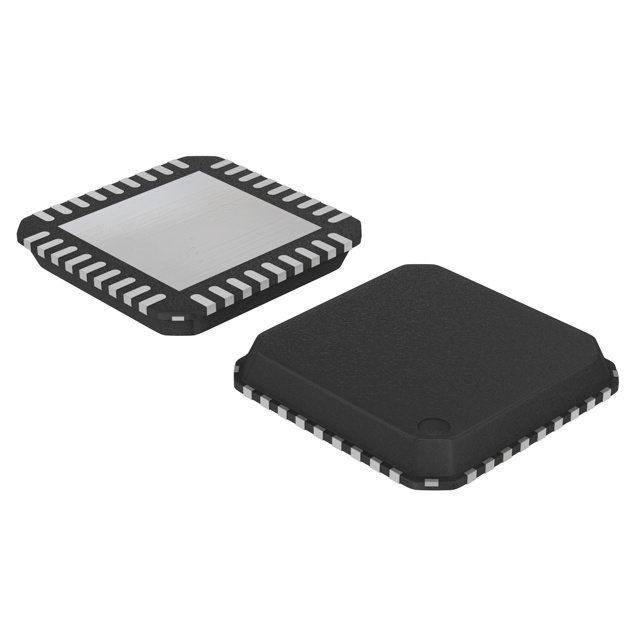

Key Features of the USB2514BI-AEZG
USB 2.0 compliance and high-speed performance
The USB2514BI-AEZG fully follows USB 2.0 rules. It allows fast data transfers up to 480 Mbps. You can stream music, move files, or connect devices easily. This chip works quickly and reliably, perfect for car entertainment systems.
Tip: USB 2.0 works with older USB gadgets too. This means you can use many different devices without trouble.
This feature makes the USB2514BI-AEZG a dependable choice for cars and smart systems.
Multi-port hub controller for enhanced connectivity
The USB2514BI-AEZG has a multi-port hub controller. This lets you connect several devices at once. It has four ports for USB drives, phones, controllers, and more. You won’t run out of ports for your gadgets.
The hub ensures smooth communication between devices. It reduces delays and boosts performance. This makes it great for smart systems and embedded uses.
Key advantages of the multi-port hub controller:
Connects many USB devices at the same time.
Keeps connections stable for smooth use.
Built for cars and tough environments.
With this hub, your car system becomes more useful and easy to use.
Low power consumption and energy efficiency
Saving energy is important in cars, and the USB2514BI-AEZG does this well. It uses little power but still works strongly. This helps your car’s electrical system last longer.
Note: Using less power also means less heat. This helps the chip stay strong in tough conditions.
The USB2514BI-AEZG is made for cars and smart systems. Its energy-saving design keeps your car system running well without losing performance.
Industrial-grade reliability and wide temperature range
Picking a chip for your car system needs reliability. The USB2514BI-AEZG is built to handle tough conditions. It works well in both hot and cold weather. Its temperature range is from -40°C to 85°C. This makes it great for daily use and extreme climates.
The chip is strong and lasts a long time. It can handle bumps and shakes that happen in cars. This means your car system will work smoothly on long trips or rough roads.
Tip: Using a reliable chip like the USB2514BI-AEZG saves money. You won’t need to replace it often.
With this chip, your car system stays dependable wherever you go.
Compatibility with embedded motherboard industrial control vehicles
The USB2514BI-AEZG works well with embedded systems. It’s perfect for industrial control vehicles and modern setups. It fits easily with your car’s motherboard, improving its features.
One special feature is its smart power management. It has a suspend indicator to show if it’s active or saving power. This helps save energy in embedded systems. Another feature is remote wakeup, which alerts the host when a device needs attention. This keeps devices working together without extra effort.
Here’s a table of key features:
Feature | Description |
|---|---|
Suspend Indicator | Shows if the hub is active or saving power. |
Remote Wakeup | Alerts the host when a device needs to wake up. |
SOC Suspend Indication | Tells when an embedded SOC is sleeping or active. |
These features make the USB2514BI-AEZG great for IoT in vehicles. It keeps your car system fast and efficient, even in complex setups.
Note: Its compatibility also makes it easier for developers to design systems. This saves time and effort during setup.
Adding the USB2514BI-AEZG to your car system prepares it for future IoT and industrial uses.
Benefits of Using the USB2514BI-AEZG in Car Entertainment Systems
Easy connection with multiple USB devices
The USB2514BI-AEZG lets you connect many USB devices easily. Its smart hub design helps devices work together smoothly. You can use USB drives, phones, and controllers without problems. This chip supports several connections, keeping your setup neat and simple.
Tip: You can charge devices and transfer files at the same time. This makes your car system more useful and flexible.
This easy connection improves your car's features, giving you more ways to enjoy and use it.
Better experience with fast and steady data transfer
Fast and steady data transfer makes using devices easier. The USB2514BI-AEZG moves files, music, and videos quickly without mistakes. Whether streaming songs or opening files, this hub works reliably every time.
Its high speed reduces waiting, so your entertainment is never interrupted. The strong design also protects your data from getting lost during transfers.
Note: A good USB hub like this one saves time by speeding up transfers. It also makes your system work better overall.
With the USB2514BI-AEZG, your car system will always give you a smooth and easy experience.
Strong performance for tough car conditions
Cars face tough conditions, but the USB2514BI-AEZG handles them well. Its industrial design works even in extreme heat or cold. It resists bumps and shakes, perfect for rough roads.
This chip lasts a long time, so you won’t need to replace it often. It keeps your car system working well wherever you go.
Callout: Choosing a strong USB hub like the USB2514BI-AEZG gives you peace of mind. It’s reliable and built to last.
By picking this chip, you make your car system tough and dependable for any trip.
Affordable and adaptable USB expansion
The USB2514BI-AEZG is a cost-friendly way to add USB ports to car systems. Its multi-port hub replaces the need for extra chips, cutting costs. You can connect four devices at once without losing speed or quality. This makes it great for both small and big car projects.
Tip: Using one chip for many connections saves money and simplifies design.
This chip grows with your needs. Add more USB ports or new devices easily. Its small size also saves space on your car’s motherboard, leaving room for upgrades.
Why it’s affordable and adaptable:
Fewer parts needed: One chip handles many devices.
Saves energy: Uses less power, lowering costs.
Compact size: Takes up less space, saving materials.
Ready for the future: Works with new technologies.
Choosing the USB2514BI-AEZG gives you a budget-friendly option with great performance.
Preparing systems for future technology
The USB2514BI-AEZG gets your car system ready for new tech. It works well with embedded systems and fits with modern devices. Its strong design supports future USB gadgets and updates.
Callout: Preparing your system for the future means fewer upgrades and lower costs later.
This chip handles tough conditions, like extreme temperatures, while staying reliable. It’s perfect for changing car and industrial needs.
Features that prepare your system for the future:
USB 2.0 support: Works with today’s and future devices.
Remote wakeup: Keeps the system ready for new tasks.
Smart energy use: Matches trends in saving power for cars.
Adding the USB2514BI-AEZG makes your car system ready for the future while staying strong and efficient.
How to Integrate the USB2514BI-AEZG into Embedded Systems
Understanding the chip's pin configuration and layout
Before using the USB2514BI-AEZG, learn its pin setup and layout. This chip is small, making it great for embedded systems. Each pin has a job, like handling power, data, or control signals. Check the datasheet to know what each pin does.
Start by planning the pin connections. For example, the VBUS pin gives power, while D+ and D- pins send data. The RESET pin helps the chip start correctly. Wrong connections can cause problems or damage the chip.
Tip: Look at a clear pinout diagram to avoid mistakes. This helps you connect everything correctly.
Knowing the layout also helps you place other parts better. Good placement reduces interference and boosts performance.
Designing a PCB for optimal performance
Making a printed circuit board (PCB) for the USB2514BI-AEZG needs careful design. Put the chip in the center to keep trace lines short. Shorter lines make signals stronger and prevent data loss.
Focus on grounding next. A solid ground layer under the chip keeps it stable and reduces noise. Make sure all ground connections are strong and uninterrupted.
Keep D+ and D- trace lines the same length. This avoids timing problems that can mess up data transfer. Don’t use sharp angles in the traces, as they can cause signal issues.
Callout: Use good PCB software to test your design before making it. This helps catch problems early.
Add decoupling capacitors near the chip’s power pins. These parts reduce noise and keep the power steady. Place them close for the best results.
Power supply considerations for automotive systems
Cars need a steady power supply. The USB2514BI-AEZG works within a set voltage range, so keep the input stable. Use a voltage regulator to handle changes in the car’s electrical system.
Check the chip’s power use. It saves energy, but adding USB devices increases the load. Calculate the total power needed and pick a source that can handle it.
Note: Add a fuse to the power line to protect the chip. This simple step prevents damage from too much current.
Heat management is also important. The chip gets warm when working, especially in hot places. Use heat sinks or thermal vias to cool it down. This keeps the chip safe and makes it last longer.
By solving these power issues, the USB2514BI-AEZG will work well in cars and embedded systems.
Firmware and software setup for USB use
Adding the USB2514BI-AEZG to your system needs careful setup. Both firmware and software are important for smooth communication between the chip, the system, and connected devices. Following clear steps will help you get the USB working properly.
1. Setting up the Firmware
Firmware is like the chip's brain. It controls how the USB2514BI-AEZG works with your system. First, download the firmware development kit (FDK) from the maker’s website. This kit has tools and guides you’ll need.
Steps to set up firmware:
Start with the default firmware from the FDK.
Adjust the settings to match your system’s needs. For example, turn USB ports on or off.
Use the provided tool to load the firmware onto the chip.
Tip: Save a copy of the original firmware before changing anything. This way, you can go back if needed.
2. Creating Software Drivers
Drivers help your computer recognize and use the USB2514BI-AEZG. Many systems, like Windows or Linux, already have basic USB drivers. But for special uses, you might need to make custom drivers.
Things to keep in mind for drivers:
Make sure they work with your operating system.
Design them for fast and smooth data transfers.
Test them with different USB devices to ensure they work well.
Note: Check if your system already supports the USB2514BI-AEZG. This can save time.
3. Testing Everything Together
Once the firmware and drivers are ready, test the setup. Plug in different USB devices and check if they work. Look for problems like slow transfers or devices not being recognized.
Testing steps:
Make sure all USB ports work.
Test how fast files transfer with small and large files.
Check if connected devices get enough power.
By following these steps, you can make sure the USB2514BI-AEZG works well in your system.
Testing for tough environments
Testing is very important to make sure the USB2514BI-AEZG works in hard conditions. Industrial and car systems often face extreme heat, cold, and movement. Careful testing ensures the chip stays reliable.
1. Testing for Environment
Car and industrial systems deal with temperature changes, shaking, and electronic noise. Test the chip in these conditions to see if it meets standards.
Tests to try:
Temperature tests: Check if the chip works from -40°C to 85°C.
Vibration tests: Mimic the shaking cars experience.
Noise tests: Ensure the chip isn’t affected by other electronics.
Callout: Use professional labs for accurate results. This helps meet industry rules.
2. Testing How It Works
This test checks if the chip performs well in real-life situations. Connect different USB devices and see if they work without issues like slow speeds or disconnecting.
Tips for testing:
Use both USB 2.0 and older devices to check compatibility.
Try the chip with different operating systems.
Test heavy use by connecting many devices at once.
3. Testing for Long-Term Use
Long-term tests check if the chip stays reliable over time. Run the system for days and watch for problems like overheating or slowing down.
Tip: Use automated tools to test long-term use. This saves time and gives consistent results.
By doing these tests, you can make sure the USB2514BI-AEZG works well in tough environments. This keeps your system strong and efficient.
Considerations for Industrial Vehicles
Strong and reliable in tough conditions
Industrial vehicles work in hard places with heat, cold, and dust. The USB2514BI-AEZG chip is built to handle these challenges well. It works perfectly in temperatures from -40°C to 85°C. This makes it a great choice for vehicles on rough roads or long jobs.
This chip can take constant shaking and bumps without breaking. Its tough design keeps your car’s USB system working, even on uneven roads or during heavy use.
Tip: Secure the USB2514BI-AEZG tightly when installing. This stops damage from shaking.
Choosing a strong chip like this lowers the chance of breakdowns. It also helps your USB system last longer in your vehicle.
Follows important vehicle and industry rules
Parts in industrial vehicles must meet strict rules. The USB2514BI-AEZG follows key safety and performance standards. This ensures it fits into your vehicle’s system without problems.
For instance, it follows USB 2.0 rules, so it works with many devices. It also meets EMC standards, which stop it from interfering with other electronics in the vehicle.
Callout: Always check if parts meet the right rules for your needs.
Using a certified chip like the USB2514BI-AEZG keeps your system safe and working well, even in tough jobs.
Solving electromagnetic interference (EMI) problems
EMI can mess up electronics in industrial vehicles. The USB2514BI-AEZG is made to reduce EMI, keeping data moving smoothly. Its special shielding and noise-blocking features help devices talk clearly.
To cut EMI even more, follow good setup steps. Use shielded USB cables and make sure the chip is grounded well. Keep it away from high-power parts to avoid extra noise.
Note: Fixing EMI problems not only improves performance but also protects devices from harm.
By managing EMI, the USB2514BI-AEZG keeps your car’s USB system and devices running smoothly, even in noisy electronic areas.
Customization for specific industrial vehicle needs
Each industrial vehicle has different needs, and the USB2514BI-AEZG chip can adapt to them. You can change its settings to fit your vehicle’s system. This makes sure your USB setup works perfectly for any task.
1. Changing Port Settings
The USB2514BI-AEZG lets you control how many ports are active. If your vehicle only needs two ports, you can turn off the others. This saves power and keeps unused ports clean in tough conditions.
Tip: Use the chip’s firmware tools to turn ports on or off as needed.
2. Managing Power Use
Industrial vehicles often need to save energy. The USB2514BI-AEZG has smart power-saving options. You can set it to use less energy by enabling low-power modes or selective suspend.
Main power-saving features:
Suspend mode for devices not in use.
Remote wakeup to turn on devices only when needed.
Smart power sharing for connected gadgets.
3. Making It Stronger
You can protect the chip to handle rough conditions. Adding covers or mounts that absorb shocks keeps it safe during heavy use.
Callout: Securing the chip well stops damage from bumps or shaking.
4. Using Special Devices
Some vehicles need unique USB tools like diagnostic devices or custom controllers. The USB2514BI-AEZG works with many USB gadgets, making it easy to add these tools.
By customizing the USB2514BI-AEZG, you can build a strong and efficient system for your vehicle. This flexibility ensures it works well and lasts a long time.
The USB2514BI-AEZG is a dependable choice for adding USB ports to car entertainment systems. Its strong build keeps it working well, even in tough conditions. It fits easily into embedded systems, making it great for industrial vehicles. This chip improves connections while saving energy, offering an affordable and future-proof solution.
Check out the USB2514BI-AEZG now at trusted sellers like deirchip.com to confidently upgrade your systems.
FAQ
Why is the USB2514BI-AEZG good for car entertainment systems?
The USB2514BI-AEZG adds more USB ports and transfers data fast. It saves energy and is tough enough for cars. You can connect many devices, and it works well in hot or cold weather.
Can the USB2514BI-AEZG work in extreme weather?
Yes, this chip works between -40°C and 85°C. Its strong design keeps it running in both heat and cold. It stays reliable on long trips or rough roads.
How does the USB2514BI-AEZG save power in cars?
The chip has smart features like suspend mode and turning off unused ports. These help save power. It keeps your car system efficient and protects its electrical parts.
Does the USB2514BI-AEZG work with older USB devices?
Yes! The USB2514BI-AEZG follows USB 2.0 rules, so it works with older devices. You can use it with many gadgets without problems.
Where can I buy the USB2514BI-AEZG?
You can get the USB2514BI-AEZG from trusted sellers like deirchip.com. Always buy from official stores to ensure it’s real and high quality.
