Smart Sensor Control Using Wide Voltage Logic SN74LVC1G08DBVR
Wide voltage range logic chips like the Logic control wide voltage compatible MCU control sensor signal SN74LVC1G08DBVR are very important. They help control sensor signals and work with different voltages. These chips can handle voltages from 1.65 V to 5.5 V easily. They are strong and can output ±24 mA at 3.3 V, making them great for busy environments. The SN74LVC1G08DBVR uses very little power, only up to 10 µA, which helps save energy. It is also very reliable with features like ESD protection over 2000 V. Additionally, it can resist latch-up over 100 mA, ensuring it lasts longer in tough situations.
Key Takeaways
The SN74LVC1G08DBVR chip works with voltages from 1.65 V to 5.5 V.
It uses very little power, only 10 µA, saving energy and battery life.
This chip is durable with ESD protection and handles tough conditions well.
It makes circuit design easier by removing the need for extra parts.
The chip reacts fast, in just 4 nanoseconds, for quick signal tasks.
The Role of Logic Control in Wide Voltage Compatible Sensor Signal Systems
What Are Logic ICs and Their Purpose in Sensor Systems?
Logic ICs are tiny chips used in electronics. They help devices like sensors and controllers talk to each other. In sensor systems, they read and send signals correctly. For example, if a sensor notices a temperature change, the logic IC sends this information to the control unit. This helps devices work fast and stay efficient.
Logic control has improved to work with different voltage levels. Rules like IEC 61131-2 set voltage standards for machines. These rules help logic ICs fit into many systems. This makes them very useful in industries like cars and factories.
Challenges in Sensor Signal Control
Controlling sensor signals can be tricky. Problems include making sure parts work together and keeping signals clear. For example, if voltages don’t match, signals can get messed up. Following rules like IEC 61131-2 is also important for safety and reliability.
Other problems are:
Sensors need to give accurate data.
Signals must be converted without losing information.
Following strict safety rules in factories is hard.
These challenges show why strong logic control systems are needed.
How Wide Voltage Range Logic ICs Address These Challenges
Wide voltage range logic ICs, like the SN74LVC1G08DBVR, solve these problems. They connect parts with different voltages easily. For example, they can switch between 5V and 24V without messing up signals. This is important in factories where accuracy matters.
These chips also use very little power, saving energy while working well. They can handle tough conditions, making them great for busy places. By fixing voltage issues and keeping signals steady, these ICs make sensor systems work better.
Advantages of Wide Voltage Range Logic ICs for Sensors
Voltage Compatibility and Flexibility in Mixed-Signal Environments
Wide voltage logic chips work well with mixed-signal systems. These systems often have parts using different voltages, which can cause problems. These chips help connect devices with different voltage levels. For example, the SN74LVC1G08DBVR works with voltages from 1.65 V to 5.5 V. This makes it useful for many types of projects. It helps sensors and controllers talk to each other easily, even in tricky setups.
Using these chips makes circuit design simpler. You won’t need extra parts like level shifters. This saves space and makes your system more efficient. Whether you’re building factory machines or home gadgets, these chips keep everything running smoothly.
Low Power Consumption and Energy Efficiency
Saving energy is very important in modern electronics. Wide voltage chips use very little power but still work well. For example, the SN74LVC1G08DBVR uses only 10 µA of power. This makes it great for devices that run on batteries or need to save energy.
These chips help devices last longer and lower energy costs. This is especially helpful for sensors that work all the time, like in smart homes or nature trackers. They combine low power use with fast performance, keeping devices reliable and efficient.
Enhanced Reliability in Varying Operational Conditions
Reliability is key for sensor systems, especially in tough places. Wide voltage chips are built to handle hard conditions and still work well. The SN74LVC1G08DBVR has features like ESD protection and latch-up resistance. This makes it strong enough for demanding jobs.
Manufacturers test these chips carefully to ensure they’re dependable. Below is a table showing common tests and their purposes:
Testing Method | Purpose | Characteristics |
|---|---|---|
Functional Testing | Checks if the chip works correctly | Simulates real-world use, often automated |
Environmental Stress Screening (ESS) | Finds problems under tough conditions | Includes temperature changes, shaking, and moisture tests |
Statistical Process Control (SPC) | Tracks and improves production quality | Uses data and charts to spot issues and make fixes |
These tests prove the chips can handle heat, shaking, and other challenges. Choosing a chip like the SN74LVC1G08DBVR means you get reliable performance in tough situations. This makes it a smart pick for factories, cars, and other important systems.
Why Pick SN74LVC1G08DBVR for MCU Control and Sensor Signals?
Main Features of SN74LVC1G08DBVR
The SN74LVC1G08DBVR is a strong and efficient chip. It works well for controlling MCUs and sensor signals. This chip can handle voltages from 1.65 V to 5.5 V. It uses very little power, only 10 µA, making it great for battery devices.
Here’s a simple look at its features:
Feature | Specification |
|---|---|
Logic Type | AND Gate |
Number of Circuits | 1 |
Number of Inputs | 2 |
Voltage - Supply | 1.65 V ~ 5.5 V |
Current - Quiescent (Max) | 10µA |
Current - Output High, Low | 32mA, 32mA |
Max Propagation Delay | 4ns @ 5V, 50pF |
Operating Temperature | -40°C ~ 125°C |

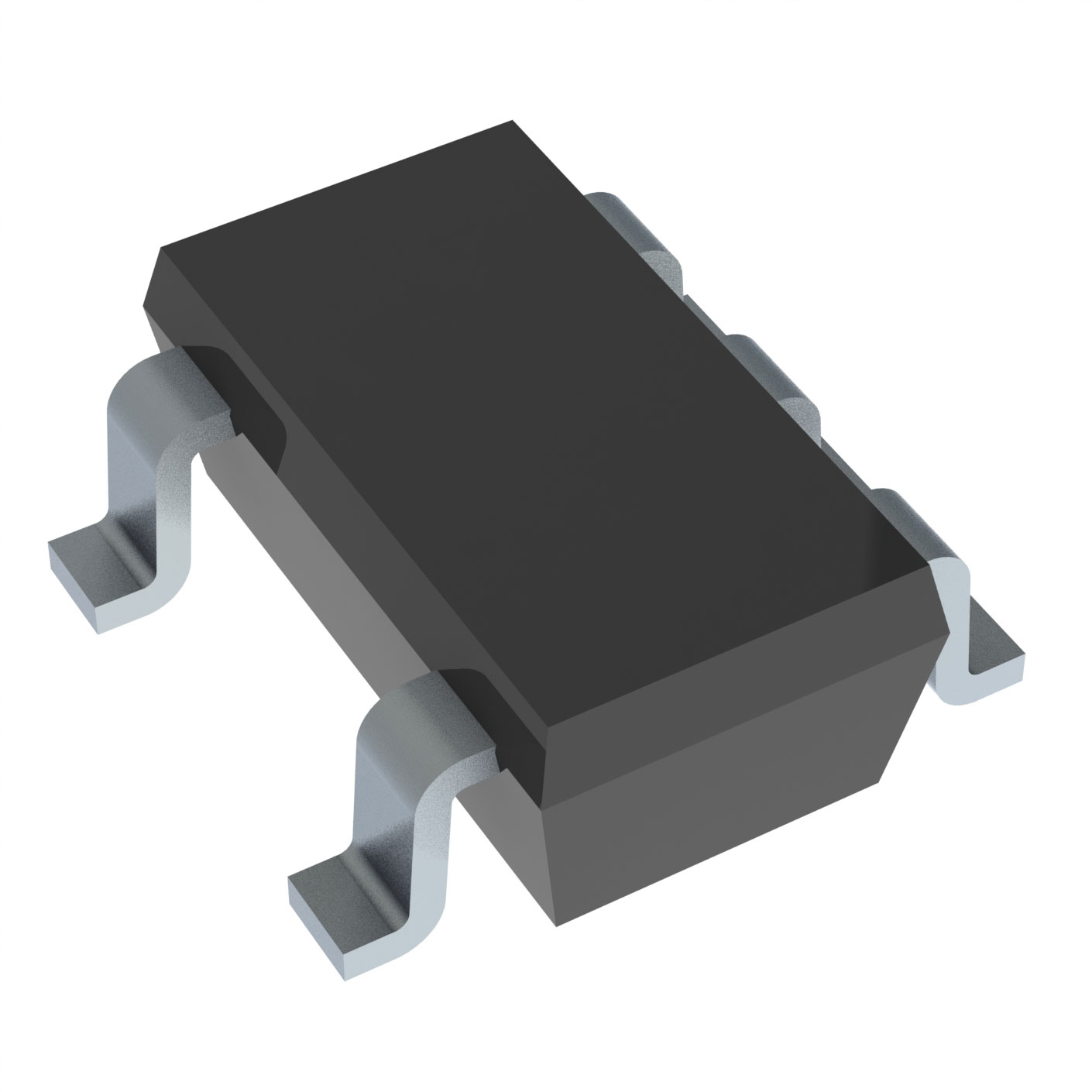

Supplier Device Package | SOT-23-5 |
Package / Case | SC-74A, SOT-753 |
This chip is fast, with a delay of just 4 nanoseconds. It works in extreme temperatures from -40°C to 125°C. These features make it useful for many projects.
Real-Life Uses and Benefits
The SN74LVC1G08DBVR is great for many real-life uses. Its wide voltage range and low power use are perfect for battery devices. Examples include medical tools and wearable gadgets.
It also works well in factory systems where reliability matters. In smart homes, it helps sensors and controllers work together. For instance, it can manage temperature sensors in HVAC systems or motion sensors for security. Its strong design keeps signals clear and reliable.
In cars, this chip helps with sensor signals for brakes and airbags. It works well even in tough conditions, making it a trusted choice for important systems.
How It Compares to Other Logic Chips
The SN74LVC1G08DBVR stands out from other logic chips. Many chips need extra parts to handle different voltages. This chip doesn’t, which makes designs simpler and cheaper.
It also uses less power than most other chips. While others waste energy, this one saves it without losing speed. Its fast 4-nanosecond delay beats many competitors.
The chip is built to last, with features like ESD protection and latch-up resistance. This makes it a top pick for factories, cars, and home gadgets.
Choosing the SN74LVC1G08DBVR gives you a reliable and efficient solution for your projects.
Wide voltage range logic ICs give great flexibility, save energy, and are very reliable for controlling sensor signals. These qualities make them important for today’s electronics. The SN74LVC1G08DBVR is special because it works with many voltages, uses little power, and is built to last.
Why pick the SN74LVC1G08DBVR?
It makes designs easier, saves power, and works well in tough places. Whether you’re building factory machines, smart home devices, or car systems, this chip performs amazingly.
Try it out. Check out the SN74LVC1G08DBVR and see how it can improve your projects.
FAQ
What is CMOS, and why does it matter in logic ICs?
CMOS means Complementary Metal-Oxide-Semiconductor. It’s a method for making logic ICs. It uses little power and works efficiently. This makes CMOS perfect for chips like the SN74LVC1G08DBVR, which must work well in mixed-signal setups.
How does the SN74LVC1G08DBVR manage wide voltage ranges?
The SN74LVC1G08DBVR uses CMOS to handle voltages from 1.65 V to 5.5 V. It connects parts with different voltages without extra components. This makes designing circuits easier and faster.
Can CMOS-based ICs like SN74LVC1G08DBVR work in tough conditions?
Yes, CMOS ICs are built to last. The SN74LVC1G08DBVR works in temperatures from -40°C to 125°C. It also has ESD protection and latch-up resistance, making it strong for harsh places.
Why is low power use important for CMOS logic ICs?
Using less power helps devices last longer and saves energy. CMOS keeps power use low, making chips like the SN74LVC1G08DBVR great for battery-powered gadgets and energy-saving tools.
How does CMOS technology keep signals clear in sensor systems?
CMOS keeps signals steady and reduces noise or interference. This makes chips like the SN74LVC1G08DBVR great for sensor systems where clear data is very important.
