Improving Display Performance of the ADV7391BCPZ Chip

ymn@deirchip.com

·April 23, 2025

·17 min read

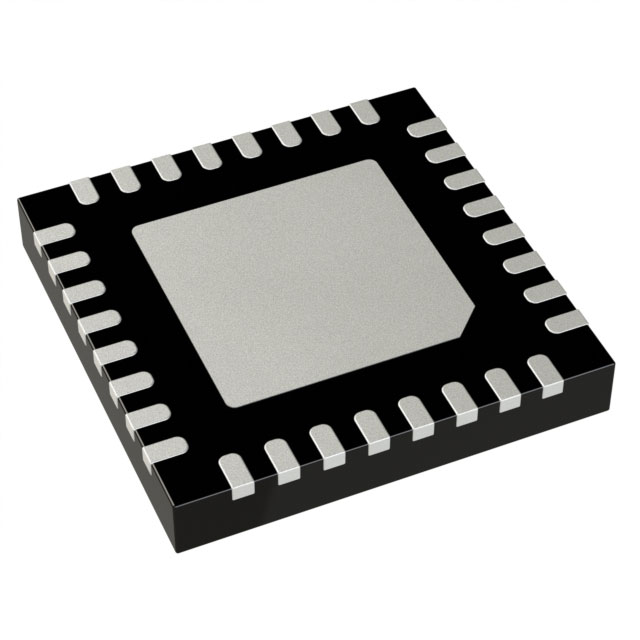

Improving Display Performance of the ADV7391BCPZ Chip — Image Source: deirchip

Enhancing display performance ensures you achieve optimal results with the ADV7391BCPZ. The ADV7391BCPZ chip, which supports multi-format output, is highly suitable for video interface conversion. Its ability to work with various output types makes it versatile for different display applications. However, issues such as delays or glitches can negatively impact performance. Addressing these problems by identifying and resolving the root causes can significantly enhance the chip's functionality and improve the viewing experience.

Resolving display issues not only boosts performance but also extends the lifespan of your hardware.

Key Takeaways

Check and secure all wires to stop screen delays. Regular checks help keep it working well.
Make sure the power is steady to avoid screen problems. Use a good charger and check power often for clear pictures.
Find and remove anything causing signal problems. Use protected wires and keep gadgets away from the chip for better signals.
Watch the chip's heat to stop it from getting too hot. Add fans or cooling tools to make it last longer.
Change timing settings to fit your screen. Right settings make the video look better.

Diagnosing Common Issues with the ADV7391BCPZ Chip

Checking Connections and Cables for Display Lag

Loose or bad cables often cause display lag in the ADV7391BCPZ chip. Check the connection between the chip and the display. Make sure all cables are tightly connected and not damaged. A broken cable can mess up the signal, causing delays or glitches.

To fix this, follow these steps:

Look at all cables for damage or wear.
Replace cables that are broken or frayed.
Make sure connectors are plugged in tightly.
Try a different cable to check for compatibility problems.

The input source also matters for avoiding lag. If the source sends signals the chip doesn’t support, delays can happen. Fix this by using input formats the chip supports.

Tip: Check cables and connections often to keep performance smooth and avoid lag.

Ensuring Power Supply Stability to Prevent Artifacts

A steady power supply is key for the ADV7391BCPZ chip to work well. Power problems can cause pixel errors, making the display look bad. Watch the power supply to ensure it gives steady voltage and current.

Here’s how to keep the power stable:

Use a good power adapter made for the chip.
Don’t share the power source with other big devices.
Add a voltage regulator to stop power changes.
Test the power supply with a multimeter regularly.

When the power stays steady, the chip sends video signals without errors. This makes the display look better and stops pixel problems.

Note: A good power supply not only stops errors but also helps your hardware last longer.

Identifying Signal Interference and Noise

Signal problems and noise can hurt the ADV7391BCPZ chip’s performance. This can make the display look worse. Find and remove interference sources to keep signals smooth.

Common interference causes include:

Nearby devices giving off electromagnetic signals.
Cables without shielding letting in outside noise.
Grounding problems in the circuit setup.

To reduce interference, try these steps:

Keep the chip and cables away from devices like routers.
Use shielded cables to block noise.
Check your setup’s grounding for proper electrical flow.

Testing the chip in a quiet environment can help find interference sources. Once found, you can fix them to improve display performance.

Tip: Regular testing and maintenance can catch interference early and stop bigger problems later.

Recognizing and Fixing Overheating Problems

Overheating can harm how the ADV7391BCPZ chip works. High temperatures can cause problems that show the chip is stressed. Spotting these signs early helps avoid damage and keeps it working well.

Signs of Overheating

Look for these signs to know if the chip is overheating:

The chip feels very hot when touched.
The display processor (DSP) freezes or stops working often.

These signs mean the chip isn’t cooling properly. Ignoring them can break the chip or shorten its life.

Tip: Watch the chip’s temperature while it’s running to catch overheating early.

Fixing Overheating Issues

To fix overheating, focus on keeping the chip cool. Try these steps:

Improve airflow: Put the chip in a place with good air circulation. Don’t block airflow by putting it in tight spaces.
Use cooling tools: Add heatsinks or fans to help cool the chip. These tools keep the temperature steady during long use.
Check the PCB design: Look at the printed circuit board (PCB) for heat problems. A bad design can trap heat and cause overheating.

Note: If you’ve made a custom setup, ask a thermal expert for advice on better cooling.

Stopping Overheating in the Future

Preventing overheating saves time and money. Regular checks and cleaning are important.

Clean fans or heatsinks to remove dust that blocks cooling.
Use thermal paste or pads to help move heat away from the chip.
Test the chip in different conditions to make sure it stays cool.

These steps protect the ADV7391BCPZ chip from overheating and keep it working well. Good cooling not only avoids display problems but also makes your hardware last longer.

Reminder: Overheating is common but easy to manage with the right care. Stay ahead to avoid expensive fixes or replacements.

Optimizing the ADV7391BCPZ Chip Configurations

Adjusting Timing Parameters for Better Display Performance

Timing settings are important for smooth and clear video output. Wrong settings can cause flickering, bad frames, or poor syncing. Fixing these settings helps the ADV7391BCPZ chip work better with your display.

First, check your display's timing details. These include horizontal sync, vertical sync, and pixel clock rates. Use the chip's datasheet to adjust these values correctly.

Steps to adjust timing:

Open the chip's settings using the right tools.
Find timing options in the register map.
Match sync values to your display's needs.
Change the pixel clock rate for better frame quality.

Tip: Test the display after each change. Small tweaks can improve performance a lot.

Good timing settings make the ADV7391BCPZ chip give steady and clear video. This is key for great results, especially with multi-format outputs.

Configuring the Frame Buffer for Multi-Format Output

The frame buffer stores video data before sending it to the screen. Setting it up right stops problems like stuttering or dropped frames. It also helps the ADV7391BCPZ chip switch formats smoothly.

How to set up the frame buffer:

Check the input and output resolution and format.
Make sure there’s enough memory for the highest resolution.
Set the buffer size to match your display’s needs.

For example, switching between NTSC and PAL formats needs a buffer that fits both. This avoids glitches or delays during changes.

Note: A good frame buffer setup makes multi-format video conversion easier.

Test the buffer in different situations to find issues. Fix them to keep performance steady across formats.

Setting Registers to Match Display Requirements

The ADV7391BCPZ chip uses registers to control its features. Correct register settings are needed for your display to work well. Bad settings can cause blurry images or no display at all.

Steps to set registers:

Find your display’s resolution, refresh rate, and color depth.
Look at the chip’s guide for matching register settings.
Use a tool to program the right values into the registers.
Save the settings so they stay after turning off the chip.

Reminder: Check your settings carefully before applying them to avoid mistakes.

Advanced users can try custom register settings for extra features or better performance. Always write down changes to make fixing problems easier.

Matching register settings to your display ensures the ADV7391BCPZ chip gives the best video output. This is especially useful for high-resolution or special displays.

Ensuring Output Format Compatibility with Display Devices

Making sure the ADV7391BCPZ chip works well with your display is important. The chip supports many video formats, but wrong settings can cause problems. These include blurry images or no picture at all. Matching the chip's output to your display's needs ensures it works its best.

Steps to Ensure Compatibility

Find Out Your Display's Formats
Check your display's specs for details like resolution and refresh rate. Most displays use common formats like NTSC, PAL, or HDMI. Some may need special settings. Knowing this helps you set up the chip correctly.
Adjust the Chip's Settings
Look at the ADV7391BCPZ datasheet for matching settings. Change the registers to fit your display's resolution and refresh rate. For example, if your display uses 1080p at 60Hz, set the chip to match.
Try Different Formats
If you're unsure what your display supports, test different formats. Start with popular ones like 720p or 1080i. Watch how the display reacts to find the best fit. Testing avoids wasting time later.
Use Tools to Check Signals
Tools like oscilloscopes can check the chip's output signal. These tools show if the output matches the right format. They also help find problems like bad signals or timing errors.

Tip: Always use the chip's datasheet and your display's manual for setup details.

Common Problems and Fixes

Old Displays: Older screens might not support new formats. Use a converter to fix this.
Weak Signals: Long or bad cables can weaken signals. Use strong, shielded cables to avoid this.
Outdated Firmware: Old firmware can cause problems. Update the chip's firmware to fix compatibility issues.

Why Compatibility is Important

The ADV7391BCPZ chip works with many formats and is great for video conversion. But wrong settings can hurt display quality. Proper setup improves performance and helps your hardware last longer. It ensures clear, steady video on different devices.

Follow these steps to get the most out of the ADV7391BCPZ chip and enjoy smooth video performance.

Addressing Hardware and Software Factors

Keeping the Chip Cool for Better Performance

The ADV7391BCPZ chip can get too hot and cause problems. This might lead to slow or glitchy displays. To fix this, make sure air can flow around the chip. If it feels very hot, add cooling tools like fans or heat sinks.

Steps to keep the chip cool:

Put the chip in a spot with good airflow. Avoid tight spaces.
Add heat sinks to help remove heat faster.
Use fans to keep the chip’s temperature steady during long use.

Check the chip’s temperature often while it’s working. Dust can block airflow, so clean fans and heat sinks regularly. These steps stop overheating and keep the display working smoothly.

Tip: A cooler chip works better and lasts longer.

Updating Firmware to Fix Display Problems

Old firmware can make the ADV7391BCPZ chip lag or glitch. Updating it adds new fixes and makes the chip work better.

Steps to update firmware:

Visit the manufacturer’s website to find the latest version.
Download the firmware that matches your chip.
Use the right tool to install the update.
Restart the chip and test the display to see improvements.

Firmware updates fix bugs and improve compatibility. Keeping it updated helps the chip give smoother video and better performance.

Reminder: Save your settings before updating to avoid losing them.

Matching the Chip to Different Displays

The ADV7391BCPZ chip works with many formats, but wrong settings can cause problems. To avoid this, check if the chip matches your display’s needs.

Steps to check compatibility:

Find out your display’s resolution, refresh rate, and format.
Change the chip’s settings to match these details.
Test the chip with different displays to make sure it works.

Use shielded cables to stop signal loss during testing. If your display is old, try using a converter to fix format issues.

Note: Checking compatibility helps reduce lag and improves performance across devices.

Using the Right Parts and Tools

Picking good parts and tools helps the ADV7391BCPZ chip work better. High-quality items keep it stable and lower the chance of display problems.

Best Cables and Connectors

The cables and connectors you pick affect signal quality a lot. Bad cables can cause noise or weak signals. Follow these tips to avoid issues:

Pick shielded cables: These block outside noise and keep signals clear.
Use gold-plated connectors: They don’t rust and carry signals better.
Keep cables short: Shorter ones lose less signal and work better.

Tip: Try different cables to see which works best for your setup.

Power Supplies (PSUs)

A good power supply is very important for the ADV7391BCPZ chip. Bad power can cause errors or even harm the chip. Look for these in a PSU:

Steady voltage: It should give a constant power flow.
Overload safety: This stops damage from sudden power spikes.
Right match: Make sure the PSU fits the chip’s needs.

Cooling Tools

Too much heat can hurt performance. Cooling tools help keep the chip at a safe temperature. Use these options:

Heatsinks: They pull heat away from the chip.
Fans: These move air to cool the chip.
Thermal paste: It helps heat move from the chip to the heatsink.

Tool Type	Best Features	Why It Helps
Cables	Shielded, gold-plated	Blocks noise, no rust
PSU	Steady, safe	Stops errors and damage
Cooling tools	Heatsinks, fans, paste	Keeps chip cool

Using good parts and tools helps the ADV7391BCPZ chip work its best. Check and replace old parts often to keep it running well.

Reminder: Always check the chip’s guide to make sure parts fit before buying.

Testing and Validating the ADV7391BCPZ Display Performance

Trying Different Display Devices

Testing the ADV7391BCPZ chip with different displays finds compatibility problems. Each display has its own needs, like resolution or refresh rate. Testing makes sure the chip works well in various setups.

Connect the chip to displays like TVs, monitors, or projectors. Watch how each device shows the video output. Look for issues like lag or glitches. If problems appear, change the chip's settings to match the display's needs.

Testing with many devices also shows format-related problems. Some displays may not handle NTSC or PAL signals well. Switching formats during tests can uncover these issues.

Tip: Write down test results. This helps you remember which settings work best for each display.

Using Tools to Check Signals

Diagnostic tools help you understand how the chip performs. Tools like oscilloscopes or analyzers measure video signal quality. They also find problems like noise or timing errors.

Connect the tool to the chip’s output and check the signal. Look for irregularities like wrong resolution or refresh rate. If issues are found, adjust the chip’s settings to fix them.

These tools also help find causes of lag, like weak signals or interference. Fixing these problems improves performance.

Reminder: Regular signal checks keep the chip working smoothly.

Testing Output Quality in Different Conditions

Testing the chip in various conditions ensures it works reliably. Things like temperature, power supply, or cables can affect performance. Checking output quality helps find and fix issues.

Test the chip in hot and cold environments. Watch for lag or glitches on the display. If problems happen, add cooling tools or improve airflow.

Next, test with different power supplies. Unsteady power can cause lag or pixel errors. Use a multimeter to check for stable voltage.

Finally, try different cables. Bad cables can weaken signals and cause delays. Use shielded cables to reduce interference and improve signal strength.

Note: Testing in real-world conditions ensures the chip performs well everywhere.

Keeping Track of Results and Making Improvements

Writing down test results is important for improving the ADV7391BCPZ chip. Keeping records helps you find problems, fix them, and make better settings. A clear plan helps you make smart choices during testing.

Steps to Record Results

Make a Testing Log
Use a notebook or computer file to write down what you see. Include details like the display used, settings tried, and any problems noticed.
Organize Your Notes
Sort your findings into groups like signal issues, timing errors, or heat problems. This makes it easier to find patterns and decide what to fix first.
Add Pictures
Take photos or screenshots of the display. These help you compare changes and see if things got better.
Write Down Conditions
Note things like room temperature, power supply, or cable type. These can affect how the chip works.

Tip: Good records save time and stop you from repeating tests.

Making Improvements

After writing down your results, use them to adjust the chip’s settings and setup.

Find Patterns
Look for problems that happen often. For example, if overheating is common, focus on cooling the chip better.
Try Small Changes
Adjust settings like timing or registers a little at a time. Test each change to see how it affects the display.
Compare Before and After
Use your notes to check if the changes improved the display. This shows how well your fixes worked.

Change Made	What It Improves	How to Test
Timing Settings	Less flickering	Watch for steady frames
Cooling Tools	Lower chip heat	Check with a thermometer
Register Adjustments	Clearer video	Look at display quality

Reminder: Keep testing and tweaking. Regular checks help the chip work its best over time.

By keeping records and testing often, you create a plan for steady improvements. This not only makes the display better but also helps the chip last longer.

To make the ADV7391BCPZ chip work better, follow clear steps. First, find problems like overheating or signal noise. Fix these issues to improve performance. Change settings like timing and frame buffers to match your display. Test the chip in different conditions to keep it working well.

Good settings and regular updates are key for best results. Test the chip with many devices to check compatibility. If problems continue, ask experts or visit deirchip.com for help and parts. These steps will give you a smooth and clear display experience.

FAQ

What does the ADV7391BCPZ chip do?

The ADV7391BCPZ chip changes video signals into different formats. It works with TVs, monitors, and projectors. Its flexibility makes it great for switching between video formats.

How do you fix display lag with the ADV7391BCPZ chip?

Look at the cables and connections. Replace broken cables and tighten loose ones. Use formats the chip supports to stop delays. Check cables often to keep performance smooth.

Why does the chip get too hot, and how can you stop it?

The chip overheats because of bad airflow or heavy use. Add fans or heatsinks to cool it down. Clean dust from cooling tools and use thermal paste to move heat away.

How do you update the ADV7391BCPZ chip’s firmware?

Go to the maker’s website and download the newest firmware. Use the right tool to install it. Restart the chip and test the display to see if it’s better.

What tools help find signal problems with the chip?

Use oscilloscopes or analyzers to check video signals. These tools find issues like noise or timing mistakes. Change the chip’s settings based on what the tools show.
