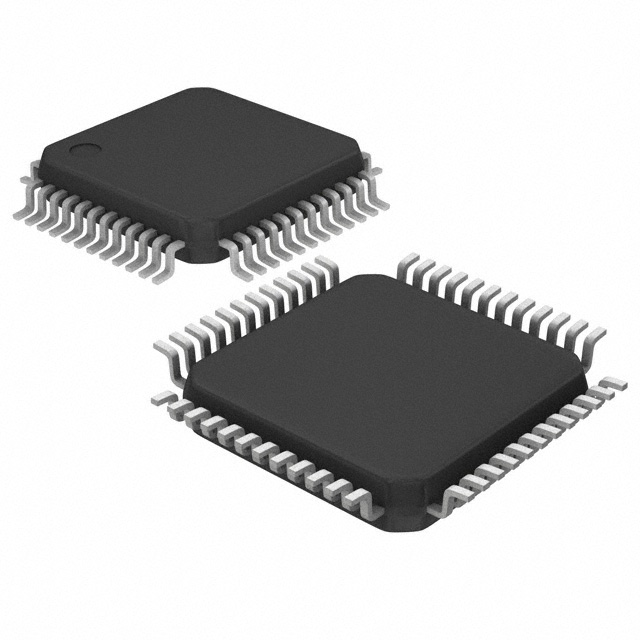

The W5500 is a high-performance Ethernet communication chip designed to simplify network connectivity for embedded systems. It integrates a hardwired TCP/IP stack with 10/100 Ethernet MAC and PHY capabilities, making it a reliable solution for industrial automation and IoT applications. You can use the W5500 to ensure uninterrupted data flow, which is critical for real-time monitoring and control. Its 32Kbyte internal buffer enhances data exchange reliability, reducing packet loss and improving throughput.

This chip plays a vital role in modern industrial automation by supporting multiple protocols like TCP, UDP, and IPv4. Its plug-and-play nature accelerates the development of network communication modules, making it ideal for smart homes, factories, and other connected environments. The module ethernet w5500 offers a stable and efficient networking solution, meeting the growing demands of today’s digital landscape.

Key Takeaways

The W5500 makes it easy to connect devices to networks. It is great for factory systems and IoT projects.
Its built-in TCP/IP system and 32KB memory make data safer. This lowers data loss and speeds up communication.
The chip works with protocols like TCP and UDP. This helps it connect with many devices and systems.
The W5500's simple design helps build network tools faster for smart homes and factories.
You can use the W5500 with microcontrollers like Arduino and ESP32. This makes Ethernet communication easy in your projects.

Practical Applications of the W5500

Industrial Automation

Real-time monitoring and control of industrial processes

The W5500 plays a crucial role in industrial automation by enabling real-time monitoring and control of processes. You can use it to connect programmable logic controllers (PLCs), sensors, and machinery, ensuring seamless communication between devices. This connectivity allows you to collect data efficiently and monitor operations live, which is essential for maintaining productivity and reducing downtime. The W5500’s ability to handle multiple protocols like TCP and UDP ensures compatibility with various industrial systems, making it a versatile choice for automation.

Integration with PLCs and SCADA systems

The W5500 simplifies the integration of PLCs and SCADA systems by providing a stable and reliable Ethernet connection. Its plug-and-play nature accelerates the setup process, allowing you to focus on optimizing system performance. By using the W5500, you can enhance data acquisition and improve the responsiveness of SCADA systems. This chip ensures that your industrial network remains robust, even in demanding environments.

IoT and Smart Devices

Enabling Ethernet connectivity for IoT devices

The W5500 is a game-changer for IoT applications. It provides Ethernet connectivity to IoT devices, ensuring fast and reliable data transmission. With support for up to eight concurrent sockets, the W5500 allows you to manage multiple data streams efficiently. Its high-speed SPI communication and 32KB memory buffer further enhance data processing, making it ideal for smart devices that require rapid and consistent network performance.

Applications in smart homes and factories

In smart homes and factories, the W5500 enables seamless communication between devices. Its energy-efficient design, including a power-down mode, reduces energy consumption during idle periods. You can use the W5500 to connect sensors, controllers, and other devices in a smart factory, creating a cohesive and efficient network. Its flexible Ethernet mode options, supporting both full and half-duplex operations, make it adaptable to various network designs.

Networking and Communication

Use in routers, switches, and networked devices

The W5500 is widely used in networking equipment like routers and switches. Its hardwired TCP/IP stack ensures reliable communication, while its 10/100 Ethernet MAC/PHY capabilities provide high-speed data transfer. You can integrate the W5500 into networked devices to enhance their connectivity and performance. This chip’s robust design makes it suitable for both consumer and industrial networking applications.

Enhancing communication reliability in embedded systems

Embedded systems benefit greatly from the W5500’s reliable communication features. Its 32KB internal buffer minimizes packet loss, ensuring smooth data exchange. You can use the W5500 to improve the reliability of communication in embedded systems, making it a preferred choice for developers. Its compatibility with popular microcontrollers like Arduino and ESP32 further simplifies the development process.

Technical Specifications of the W5500

Key Features

Hardwired TCP/IP stack and 10/100 Ethernet MAC/PHY

The W5500 stands out with its hardwired TCP/IP stack, which simplifies networking operations for embedded systems. This feature ensures reliable and efficient data exchange, making it ideal for applications requiring stability and speed. The chip supports multiple protocols, including TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, offering versatility for diverse projects. Its integrated 10/100 Ethernet MAC/PHY enables high-speed communication, ensuring seamless connectivity in industrial and IoT environments.

Support for eight simultaneous sockets and 32KB memory

The W5500 supports up to eight concurrent sockets, allowing you to manage multiple data streams simultaneously. This capability enhances multitasking and ensures smooth communication between devices. Its 32KB internal buffer further improves data reliability by reducing packet loss and increasing throughput. These features make the W5500 a robust choice for applications requiring consistent and efficient data transfers.

Pin Configuration and Hardware Details

Overview of pin layout and SPI interface

The W5500 uses an SPI interface for communication, which simplifies integration with microcontrollers. The pin layout includes essential connections such as MISO, MOSI, SCLK, and CS, ensuring compatibility with popular platforms like Arduino and ESP32. This straightforward design makes it easy for you to incorporate the W5500 into your projects.

Power requirements and operating conditions

The W5500 operates efficiently within a wide temperature range of -40°C to 85°C, making it suitable for industrial environments. It includes a power-down mode to reduce energy consumption during idle periods, which is particularly beneficial for IoT devices. Additionally, the chip supports Wake on LAN over UDP, allowing it to remain responsive while conserving power.

Performance and Compatibility

Data transfer rates and SPI speed

The W5500 delivers data transfer speeds of up to 100 Mbps, ensuring fast and stable communication. Its SPI interface supports speeds up to 80 MHz, enabling high-speed data exchanges. These specifications make the W5500 competitive among embedded Ethernet controllers in its class.

Compatibility with microcontrollers like Arduino and ESP32

The W5500 is compatible with popular microcontrollers, including Arduino and ESP32. For example, when connecting the W5500 to an ESP32, you can use the following pin mapping:

ESP32 Pin	W5500 Pin
GPIO13	MISO
GPIO12	SCLK
GPIO11	MOSI
GPIO10	CS
GPIO9 (optional)	INT
GPIO3 (optional)	RST
3v3	3v3
GND	GND

This compatibility simplifies development and ensures seamless integration into your projects.

Integration and Usage of the Module Ethernet W5500

Circuit Integration

Connecting the W5500 to a microcontroller

To integrate the W5500 into your circuit, start by configuring it through the Serial Peripheral Interface (SPI). Set the transmission rates and clock parameters to ensure efficient communication. Once configured, send data to the W5500's data buffer byte by byte, with each frame accommodating up to 128 bytes. Use Direct Memory Access (DMA) to read the transmitted data into the W5500's internal RAM, which supports high-speed network communication at up to 100 Mbps. Finally, retrieve and process the data using SPI, employing timers for periodic data acquisition to maintain consistent performance.

Recommended components and wiring tips

For a stable connection, use a regulated 3.3V power supply and ensure all connections are secure. Double-check the SPI settings in your microcontroller code to avoid communication errors. When wiring, connect the SPI pins (MISO, MOSI, SCLK, and CS) of the W5500 to the corresponding pins on your microcontroller. Include decoupling capacitors near the power pins to reduce noise and improve stability.

Software Setup

Installing libraries and drivers

To simplify programming with the W5500, use the Ethernet.h library. This library provides pre-written functions for managing Ethernet communication, making it easier to set up and control the W5500. Install the library through your development environment’s library manager, ensuring compatibility with your microcontroller.

Configuring the W5500 for network communication

After installing the library, configure the W5500 for your specific Ethernet application. Assign a unique MAC address and IP address to the module. Use the library functions to initialize the Ethernet connection and define the communication parameters, such as port numbers and protocols. Test the setup by sending and receiving data packets to verify the network connection.

Best Practices

Ensuring stable power supply and grounding

A stable power supply is crucial for reliable operation. Use a regulated 3.3V power source and ensure proper grounding to prevent voltage fluctuations. Secure all connections and verify the wiring to avoid interruptions in the network connection.

Tips for optimizing performance and reliability

To enhance performance, take advantage of the W5500's multi-socket capability, which supports up to eight concurrent sockets for efficient multitasking. Utilize its power-down mode to reduce energy consumption during idle times, especially in IoT applications. Configure the SPI interface for high-speed data transmission and leverage the 32KB memory buffer for smooth data processing. Additionally, select the appropriate Ethernet mode (full or half duplex) based on your network requirements.

Example Code for the W5500 Ethernet Shield

Using the W5500 with Arduino

Example code for basic Ethernet communication

To get started with the W5500 Ethernet Shield and Arduino, you can use the Ethernet.h library. This library simplifies Ethernet communication by providing pre-written functions. Below is an example code snippet to establish a basic Ethernet connection and send data:

#include <SPI.h>
#include <Ethernet.h>

// MAC address and IP address for the W5500
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };
IPAddress ip(192, 168, 1, 177);

// Initialize the Ethernet server
EthernetServer server(80);

void setup() {
  Ethernet.begin(mac, ip);
  server.begin();
  Serial.begin(9600);
  Serial.println("Ethernet server is up and running!");
}

void loop() {
  EthernetClient client = server.available();
  if (client) {
    Serial.println("Client connected");
    client.println("Hello from W5500 Ethernet Shield!");
    client.stop();
  }
}

This code initializes the W5500 with a MAC and IP address, starts an Ethernet server, and sends a message to any connected client.

Libraries and resources for Arduino integration

The W5500 Ethernet Shield offers several features that enhance its compatibility with Arduino:

Supports TCP, UDP, and other protocols.
Operates with 3.3V but tolerates 5V I/O signals.
Includes a micro-SD card socket for additional storage.
Provides Grove connectors for I2C and UART communication.

You can find the Ethernet.h library in the Arduino IDE’s Library Manager. Additionally, online forums and tutorials provide valuable insights for troubleshooting and advanced configurations.

Using the W5500 with ESP32

Example code for ESP32-based projects

The W5500 pairs seamlessly with ESP32, enabling high-speed Ethernet communication. Below is an example code snippet for ESP32:

#include <SPI.h>
#include <Ethernet.h>

byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };
IPAddress ip(192, 168, 1, 50);

void setup() {
  Ethernet.begin(mac, ip);
  Serial.begin(115200);
  Serial.println("W5500 with ESP32 is ready!");
}

void loop() {
  // Add your application logic here
}

This code initializes the W5500 with an ESP32, setting up Ethernet communication with a static IP address.

Troubleshooting common issues with ESP32 integration

When using the W5500 with ESP32, ensure proper SPI pin connections. Double-check the pin mapping in your code to match your hardware setup. If you encounter connection issues, verify the power supply and grounding. Using decoupling capacitors near the power pins can help stabilize the circuit.

Additional Resources

Links to official documentation and community forums

For detailed technical specifications and usage guidelines, refer to the official WIZnet documentation. Community forums like Arduino and ESP32 discussion boards are excellent places to find solutions to common challenges.

Tutorials and guides for advanced projects

Explore online tutorials for advanced projects, such as integrating the W5500 with cloud platforms or creating IoT dashboards. These guides often include step-by-step instructions and example code to help you expand your project’s capabilities.

Troubleshooting the W5500

Common Problems

Connection failures and debugging tips

Connection issues can arise when integrating the W5500 into your system. Start by verifying the SPI connections between the microcontroller and the W5500. Ensure the MISO, MOSI, SCLK, and CS pins are correctly wired. Check the SPI clock speed in your code; it should not exceed 80 MHz. If the issue persists, inspect the Ethernet cable and confirm it is securely connected to the network. Use a multimeter to test for continuity in the wiring. Additionally, ensure the assigned IP address does not conflict with other devices on the local networks.

Resolving power and grounding issues

A stable power supply is essential for the W5500 to function correctly. Use a regulated 3.3V power source and include decoupling capacitors near the power pins to minimize noise. Improper grounding can lead to unstable internet connectivity. Connect all ground pins securely and avoid long ground loops. If you notice intermittent failures, double-check the power supply voltage and ensure it meets the controller's requirements.

Firmware and Software Issues

Updating firmware for improved performance

Firmware updates can enhance the W5500's performance and compatibility. Visit the manufacturer's website to download the latest firmware version. Follow the provided instructions to flash the firmware onto the chip. Always back up your current configuration before updating. This ensures you can restore settings if needed.

Debugging software configuration errors

Software misconfigurations often cause communication failures. Verify the MAC and IP addresses assigned to the W5500. Ensure they match the network's requirements. Use debugging tools like serial monitors to check for error messages. If the Ethernet library is not functioning as expected, reinstall it and test with example code. This helps identify whether the issue lies in your custom code or the library itself.

FAQs and Quick Fixes

Addressing frequently asked questions

What is W5500? It is a TCP/IP Ethernet controller designed to simplify internet connectivity for embedded systems.
What is the operating temperature range of W5500? It operates between -40°C and 85°C, ensuring reliability in various environments.
What is the use of W5500? It facilitates efficient data communication using a 32K byte internal buffer.
What is the speed of the W5500 module? The SPI interface supports speeds up to 80 MHz, enabling high-speed communication.

Quick solutions for common challenges

If the W5500 fails to connect, check the Ethernet cable and ensure the router is operational.
For unstable internet connectivity, verify the power supply and grounding.
If data transfer is slow, optimize the SPI clock speed and reduce unnecessary delays in your code.

The W5500 plays a vital role in industrial automation and networking by enhancing IoT connectivity. It integrates seamlessly with various network protocols, enabling interactions among sensors, actuators, and controllers. This improves production line flexibility, ensures better process control, and supports predictive maintenance to reduce downtime and extend equipment lifespan.

To successfully integrate the W5500 into your projects, follow these tips:

Ensure proper wiring for reliable connectivity.
Use the native Ethernet protocol for enhanced functionality.
Leverage SSL/TLS features for secure data transmission.

Experiment with example projects to unlock the full potential of the W5500. Its embedded TCP/IP stack and 32Kbyte buffer simplify networking tasks, making it ideal for applications requiring stable and fast internet connectivity.

FAQ

What makes the W5500 suitable for industrial automation?

The W5500 offers real-time data transmission and supports multiple protocols like TCP and UDP. Its plug-and-play design simplifies integration with PLCs and SCADA systems. You can rely on its stable Ethernet connectivity to monitor and control industrial processes efficiently.

Can the W5500 work with IoT devices?

Yes, the W5500 enables Ethernet connectivity for IoT devices. Its low power consumption and multi-socket support make it ideal for smart homes and factories. You can use it to connect sensors, controllers, and other devices for seamless communication.

How does the W5500 ensure reliable data transfer?

The W5500 includes a 32KB internal buffer that minimizes packet loss. Its hardwired TCP/IP stack ensures stable communication. You can achieve high-speed data transfer rates of up to 100 Mbps, making it a dependable choice for embedded systems.

Is the W5500 compatible with Arduino and ESP32?

The W5500 works seamlessly with Arduino and ESP32. Its SPI interface simplifies integration, and libraries like Ethernet.h provide pre-written functions. You can easily set up Ethernet communication for your projects using these platforms.

What are the power requirements for the W5500?

The W5500 operates on a regulated 3.3V power supply. It includes a power-down mode to save energy during idle periods. You can use it in environments with temperatures ranging from -40°C to 85°C, ensuring reliability in various conditions.
