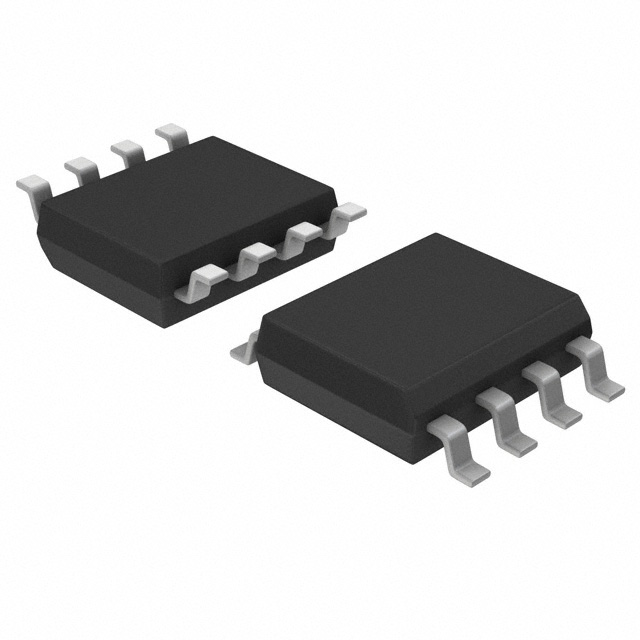

W25Q128JVSIQ,WINBOND,Embedded Development High Speed SPI Flash Chip
The W25Q128JVSIQ is a high-performance SPI flash memory chip designed for embedded systems and high-speed data storage. This flash memory chip offers 128Mb capacity, ensuring efficient program loading and reliable data retention. Its SPI serial flash memory module reduces pin count, simplifying circuit design while enhancing bandwidth and data transfer rates. With low access latency, it supports faster boot-up and runtime operations. The chip’s compatibility with various chipsets makes it a versatile solution for modern applications requiring high responsiveness and efficient data storage.
Key Takeaways
The W25Q128JVSIQ moves data quickly using Quad SPI mode. It works well for tasks needing fast reading and writing.
It uses little power and has sleep modes to save energy. This helps batteries last longer in portable devices.
Strong security features like Write Protection keep data safe. One-Time Programmable memory stops others from changing your data.
Its 4KB sector design makes memory easy to manage. This helps store and find data quickly in small systems.
It works with many voltages and handles hot or cold places. This makes it good for cars and factories.
Key Features of the W25Q128JVSIQ
High-Speed SPI Interface
The W25Q128JVSIQ offers a high-speed SPI interface that significantly enhances data transfer efficiency. Its Quad SPI Mode utilizes four data lines simultaneously, boosting throughput compared to standard SPI configurations. With support for high clock frequencies of up to 133 MHz, this high-speed flash memory ensures rapid data access and seamless performance. The chip also features Continuous Read Mode, which allows uninterrupted data streaming, reducing latency during operations. Additionally, its XIP (Execution in Place) capability enables direct code execution from the flash memory, eliminating the need for data transfers to RAM. These features make the W25Q128JVSIQ an ideal choice for applications requiring fast reading and writing speed.
Low Power Consumption
The W25Q128JVSIQ is designed with low power consumption in mind, making it a reliable and high-performance NAND flash memory solution for energy-sensitive applications. It operates efficiently across a wide voltage range of 2.7 to 3.6V and maintains performance even in temperatures ranging from -40°C to 85°C. The chip includes multiple power-saving modes, such as standby and deep power-down, which help reduce overall system power usage. This compact form factor chip ensures extended system service life, making it a drop-in replacement for other SPI NAND flash memory chips in embedded systems and IoT devices.
Security and Reliability
The W25Q128JVSIQ incorporates advanced security features to protect data integrity and prevent unauthorized access. It includes Write Protection, which safeguards against accidental or malicious data overwrites. The Power Supply Lockdown feature secures the device from power-related attacks, while the One-Time Programmable (OTP) Memory ensures critical data can only be written once. Additionally, the chip supports Specific Block Protection, allowing users to restrict access to designated memory blocks. A unique 64-bit ID enhances device authentication, ensuring secure operations. These features, combined with its high reliability and stability, make the W25Q128JVSIQ a trusted choice for long-term applications.
Uniform 4KB Sectors
The W25Q128JVSIQ SPI flash memory chip features a uniform 4KB sector architecture, which simplifies memory management and enhances performance. Each sector is divided into fixed 4KB blocks, ensuring consistent and predictable behavior during read, write, and erase operations. This uniformity eliminates the need for complex memory mapping, making it easier for developers to integrate the chip into embedded systems.
Why are uniform 4KB sectors important?
They allow efficient data storage and retrieval. Applications can store data in smaller, manageable chunks, reducing wasted space and improving overall memory utilization.
The 4KB sector size aligns with the memory requirements of most modern applications. For instance, firmware updates, configuration files, and small data logs can fit neatly into these sectors. This reduces the need for larger memory blocks, which often lead to unnecessary data overwrites and increased wear on the chip.
The uniform sector design also enhances the chip's reliability. Smaller sectors mean fewer write and erase cycles are required for data updates. This extends the lifespan of the memory chip, making it a durable choice for long-term applications. Additionally, the 4KB sectors support faster erase times, which improves system responsiveness during critical operations.
Developers benefit from the flexibility offered by this architecture. The consistent sector size simplifies partitioning and allows for precise control over memory allocation. This makes the W25Q128JVSIQ an excellent choice for applications requiring efficient and reliable data storage, such as IoT devices, industrial systems, and consumer electronics.
Technical Specifications of the W25Q128JV SPI Flash Memory
Memory Capacity and Density
The W25Q128JVSIQ offers a memory capacity of 128 megabits (Mb), equivalent to 16 megabytes (MB). While this capacity may seem modest compared to newer flash memory standards, it is well-suited for applications requiring reliable non-volatile storage. The chip's density ensures efficient data handling, making it ideal for embedded systems, IoT devices, and consumer electronics. Its compact design allows developers to integrate it seamlessly into space-constrained environments, ensuring optimal performance without compromising on storage needs.
Operating Voltage and Temperature Range
The W25Q128JVSIQ operates within a wide operating voltage range of 2.7V to 3.6V. This range ensures the chip maintains reliable and efficient performance under varying conditions. Operating outside this range can lead to malfunctions or even permanent damage. The following table highlights the importance of this voltage range:
Operating Voltage Range | Performance Implications |
|---|---|
2.7V to 3.6V | Ensures reliable and efficient operation within specified parameters. Operating outside this range can lead to malfunction or damage. |
The chip also supports a broad temperature range, functioning effectively between -40°C and 85°C. This feature makes it suitable for industrial and automotive applications where extreme temperatures are common. The combination of a wide operating voltage range and temperature tolerance enhances the chip's versatility and reliability in diverse environments.
Data Transfer Speeds and Clock Frequencies
The W25Q128JVSIQ excels in high-speed data transfer, supporting SPI clock frequencies up to 133MHz. In Dual I/O mode, it achieves clock rates of 266MHz, while Quad I/O mode pushes the performance further to 532MHz. These speeds enable rapid reading and writing operations, ensuring seamless performance in data-intensive applications. The chip's ability to handle high clock frequencies makes it a preferred choice for systems requiring fast and efficient data access. Its advanced features, such as Continuous Read Mode and XIP (Execution in Place), further enhance its reading capabilities, reducing latency and improving overall system responsiveness.
Program-Erase Cycles and Data Retention
The W25Q128JVSIQ SPI flash memory chip demonstrates exceptional durability and reliability through its program-erase cycles and data retention capabilities. These features ensure the chip performs consistently in demanding applications, such as automotive systems and industrial control.
Program-Erase Cycles
The W25Q128JVSIQ supports up to 100,000 program-erase cycles, which exceeds the lower range of industry standards. This durability allows the chip to handle multiple erase and program operations without compromising performance. The following table highlights how the W25Q128JVSIQ compares to industry benchmarks:
Specification | Value |
|---|---|
Program-Erase Cycles | Minimum of 100,000 cycles |
Industry Standard Range | 10,000 to 100,000 cycles |
This high endurance makes the chip suitable for applications requiring frequent data updates. For example, embedded systems often rely on multiple erase and program operations to store and retrieve critical information. The W25Q128JVSIQ ensures these operations occur efficiently, even under heavy usage.
Data Retention
The W25Q128JVSIQ also excels in data retention, securing stored information for up to 20 years under typical operating conditions. This long retention period ensures reliability in applications where data integrity is crucial. The table below summarizes the chip's data retention capability:
Specification | Value |
|---|---|
Data Retention | Up to 20 years |
This extended retention period, combined with the chip's ability to endure multiple erase and program operations, makes it a dependable choice for long-term storage. Developers can trust the W25Q128JVSIQ to maintain data accuracy over time, even in challenging environments.
The combination of high program-erase cycle endurance and long data retention ensures the W25Q128JVSIQ remains a reliable solution for embedded systems, IoT devices, and industrial applications. Its ability to withstand multiple erase and program operations enhances its value in scenarios requiring frequent data updates and long-term stability.
Tip: For applications requiring frequent data modifications, the W25Q128JVSIQ's high endurance and retention capabilities provide a robust and efficient solution.
Pin Configuration and Functionality
SOIC-8 Pin Layout Overview
The W25Q128JVSIQ uses an SOIC-8 (Small Outline Integrated Circuit) package, which features eight pins arranged in a compact layout. This design minimizes space requirements, making it suitable for embedded systems with limited board space. The SOIC-8 package ensures easy soldering and integration into circuit boards, simplifying the development process for engineers. Its standardized pin arrangement allows compatibility with a wide range of microcontrollers and processors, enhancing its versatility in various applications.
Pin Functions and Descriptions
The W25Q128JVSIQ's pin configuration supports efficient communication and operation. Each pin serves a specific purpose, contributing to the chip's overall functionality. The table below provides a detailed overview of the pin names, descriptions, and their respective functions:
Pin Name | Description | Function |
|---|---|---|
CS | Chip Select | Enables communication with the memory chip |
DI | Data Input | Input line for sending data to the memory chip |
DO | Data Output | Output line for receiving data from the memory chip |
CLK | Clock | Provides the clock signal for synchronization |
VCC | Power Supply Voltage | Supplies power to the memory chip |
GND | Ground | Ground connection |
Hold | Hold Input | Input for suspending a serial sequence |
WP | Write Protect | Write protection input |
This configuration ensures seamless integration into embedded systems. The chip's compatibility with SPI interfaces allows developers to implement it in diverse applications, including automotive, industrial, and IoT devices.
Common Pin Configurations for Embedded Systems
In embedded systems, the W25Q128JVSIQ's pins are typically configured to optimize performance and reliability. For example, the CS (Chip Select) pin connects to the microcontroller's GPIO (General Purpose Input/Output) pin to enable or disable communication. The CLK (Clock) pin synchronizes data transfer between the chip and the microcontroller. The DI (Data Input) and DO (Data Output) pins handle bidirectional data flow, ensuring efficient read and write operations.
The WP (Write Protect) and Hold pins provide additional functionality. Developers often use the WP pin to prevent accidental data overwrites, while the Hold pin temporarily pauses communication without disrupting the ongoing process. These features enhance the chip's reliability in critical applications.
The W25Q128JVSIQ's pin configuration supports a compact design and low power consumption, making it ideal for embedded systems. Its straightforward layout simplifies integration, enabling developers to focus on optimizing system performance.
Advantages and Disadvantages of the W25Q128JVSIQ
Advantages
High-Speed Performance
The W25Q128JVSIQ excels in high-speed operations, making it a preferred choice for applications requiring rapid data processing. Its ability to support clock frequencies up to 133 MHz ensures efficient data transfer. The chip's fast reading and writing speed enhances system responsiveness, particularly in embedded systems and IoT devices. This performance capability allows developers to optimize their designs for speed-critical tasks.
Low Power Usage
The chip's low power consumption is a standout feature. It includes automatic sleep and wake-up functions, which optimize energy usage and extend system service life. The W25Q128JVSIQ operates efficiently within a voltage range of 2.7V to 3.6V, making it suitable for energy-sensitive applications. These features make it an excellent choice for systems where power efficiency is a priority.
Compact Design and Versatility
The W25Q128JVSIQ's compact SOIC-8 package design ensures easy integration into space-constrained systems. Its precise footprint optimizes space usage, making it ideal for embedded systems and portable devices. Developers benefit from its versatility, as the chip supports a wide range of applications, from consumer electronics to industrial control systems. Regular verification against the manufacturer's datasheet ensures seamless integration into PCB layouts.
Advantage | Description |
|---|---|
Automatic sleep and wake-up | Optimizes system power consumption and enhances energy-saving performance. |
Low power consumption | Reduces overall system power usage, extending the service life of the system. |
High reliability | Utilizes advanced flash memory technology for superior reliability and data integrity. |
High storage density | Offers a storage capacity of 128Mb (16MB), accommodating large data storage needs. |
Fast reading and writing speed | Supports high-speed operations with a maximum clock frequency of up to 104MHz for efficient data processing. |
Disadvantages
Limited Write Cycles
The W25Q128JVSIQ has a finite number of program-erase cycles, which is a common limitation in flash memory technology. It supports up to 100,000 cycles, which is sufficient for most applications but may not suit systems requiring constant data rewriting. This limitation highlights the importance of considering the chip's endurance during system design.
Compatibility Considerations
The chip requires an SPI interface for communication, which may limit its compatibility with certain systems. Developers must adhere to its specific pin configuration to ensure proper functionality. Each pin serves a distinct purpose, such as power supply or signal interface, making accurate integration essential. These considerations emphasize the need for careful planning when incorporating the W25Q128JVSIQ into a system.
Tip: Regularly consult the manufacturer's datasheet to avoid alignment issues during integration and ensure optimal performance.
Applications of the W25Q128JVSIQ SPI Flash Memory
Consumer Electronics
The W25Q128JVSIQ plays a vital role in modern consumer electronics by providing reliable and efficient data storage. Its compact design and high-speed performance make it suitable for a variety of devices. Common applications include:
Storage expansion for smartphones, tablets, and laptops.
High-definition video and audio storage for multimedia devices.
Embedded systems in smart appliances and communication modules.
The chip's ability to handle high-speed data transfer ensures smooth operation in devices requiring rapid access to stored information. Its low power consumption also makes it ideal for portable electronics, where battery life is critical. By integrating the W25Q128JVSIQ, manufacturers can enhance the performance and reliability of their products.
IoT Devices and Smart Systems
The W25Q128JVSIQ is a preferred choice for IoT devices and smart systems due to its low power consumption and advanced flash memory technology. It supports efficient data storage and retrieval, which is essential for IoT applications. Key features include:
Feature | Description |
|---|---|
Low Power Consumption | Ideal for battery-operated IoT devices |
Fast Data Access | Enables quick retrieval of sensor data |
Ample Storage Capacity | Sufficient space for storing configurations and protocols |
This chip is commonly used in smart home devices, such as thermostats and lighting systems, where it stores temperature settings, schedules, and control data. It also supports configuration settings and vital network details, ensuring seamless operation within smart networks. The W25Q128JVSIQ's reliability and efficiency make it a cornerstone in the development of IoT ecosystems.
Automotive and Industrial Control
In automotive and industrial control systems, the W25Q128JVSIQ provides secure and durable storage for critical data. It is widely used in automotive electronic control units (ECUs) to store vehicle control logic, sensor data, and diagnostic information. Its high-speed data processing capabilities enhance performance in navigation devices and advanced driver assistance systems.
Application Type | Description |
|---|---|
Infotainment Systems | Stores firmware and event logs for quick access |
Engine Controllers | Holds calibration data for optimal performance |
Advanced Driver Assistance Systems | Provides reliable storage for critical data |
In industrial control systems, the chip is used for program storage, data logging, and parameter storage. Its ability to handle multiple erase cycles and operate across a wide voltage range ensures reliability in demanding environments. The W25Q128JVSIQ's robust design and performance benchmarks make it indispensable in both automotive and industrial applications.
Data-Intensive Applications
The W25Q128JVSIQ excels in data-intensive applications due to its high-speed performance and reliability. These applications often demand rapid data processing, efficient storage, and consistent performance. The chip's advanced features make it a preferred choice for developers working on systems that handle large volumes of data.
The W25Q128JVSIQ is widely used in embedded systems, IoT devices, communication modules, and industrial control systems. Its fast read and write speeds ensure smooth operation in environments where quick data access is critical. The chip's low power consumption and compact design further enhance its suitability for modern electronic designs. These qualities make it an ideal solution for applications requiring high-speed data transmission and long-term reliability.
Benefits of Using the W25Q128JVSIQ in Data-Intensive Applications
High-performance serial flash memory ensures efficient data handling.
Superior speed and reliability support demanding tasks.
Widely applicable in embedded systems, consumer electronics, and automotive systems.
Application Area | Benefits |
|---|---|
Consumer electronic devices | High reliability and durability |
Communication equipment | High-speed data transmission |
Automotive electronics | Ideal for high-end applications |
The chip's uniform 4KB sector architecture simplifies memory management in data-intensive applications. Developers can store data in smaller, manageable chunks, reducing wasted space and improving memory utilization. This feature is particularly beneficial for firmware updates, configuration files, and real-time data logs. The W25Q128JVSIQ's ability to handle frequent program-erase cycles ensures durability, even in systems requiring constant data updates.
In communication equipment, the chip supports high-speed data transfer, enabling seamless operation in devices like routers and modems. Automotive electronics benefit from its reliability and ability to store critical data, such as navigation maps and diagnostic logs. These examples highlight the versatility of the W25Q128JVSIQ in addressing the needs of various data-intensive applications.
Tip: For systems requiring frequent data updates, the W25Q128JVSIQ offers a robust solution with its high endurance and efficient memory architecture.
The W25Q128JVSIQ stands out as a high-performance SPI flash memory chip, offering features like fast read speeds, low power consumption, and industrial-grade reliability. Its 128Mb capacity, uniform 4KB sectors, and support for JEDEC standards ensure efficient data storage and seamless integration into embedded systems. With applications ranging from automotive electronics to IoT devices, it addresses the growing demand for high-speed, dependable memory solutions. By aligning with future trends in flash memory, such as energy efficiency and high throughput, the W25Q128JVSIQ proves to be a versatile and reliable choice for modern technological advancements.
FAQ
What is the primary use of the W25Q128JVSIQ chip?
The W25Q128JVSIQ chip is primarily used for high-speed data storage and retrieval in embedded systems. It supports applications like IoT devices, consumer electronics, and industrial control systems, where reliable and efficient memory solutions are essential.
How does the W25Q128JVSIQ ensure data security?
The chip includes advanced security features like Write Protection, Specific Block Protection, and One-Time Programmable (OTP) memory. These features prevent unauthorized access and accidental overwrites, ensuring data integrity and secure operations.
Can the W25Q128JVSIQ operate in extreme environments?
Yes, the W25Q128JVSIQ operates reliably in temperatures ranging from -40°C to 85°C. Its wide operating voltage range of 2.7V to 3.6V further enhances its performance in challenging industrial and automotive environments.
What makes the W25Q128JVSIQ suitable for IoT devices?
The chip’s low power consumption, compact SOIC-8 design, and high-speed SPI interface make it ideal for IoT devices. It efficiently stores configurations, protocols, and sensor data, ensuring seamless operation in energy-sensitive applications.
How does the uniform 4KB sector architecture benefit developers?
The uniform 4KB sector architecture simplifies memory management by dividing storage into manageable blocks. This design reduces wasted space, improves memory utilization, and enhances the chip’s reliability by minimizing unnecessary write and erase cycles.
