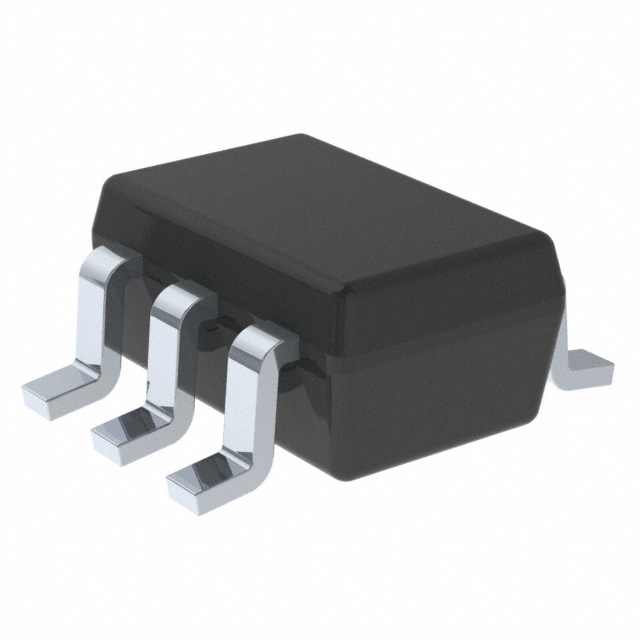

TPS61221DCKR,TI,High Efficiency Miniaturized Boost Converter Power Management ICs
The TPS61221DCKR stands out as a cutting-edge boost converter tailored for energy-sensitive applications. Its design ensures high efficiency, making it an ideal choice for battery-powered devices where power conservation is critical. With its compact size, this converter seamlessly integrates into portable electronics and miniaturized systems. You can rely on its ability to deliver consistent performance while maintaining low power consumption. Whether you're working on IoT devices, wearable technology, or other portable solutions, the TPS61221DCKR offers the perfect balance of efficiency and functionality.
Key Takeaways
The TPS61221DCKR achieves up to 95% efficiency, significantly reducing energy waste and extending battery life in portable devices.
Its compact SOT23 (6-Pin) - SC70-6 package allows for seamless integration into space-constrained designs, making it ideal for IoT and wearable technology.
With a low quiescent current of just 5.5 µA, this boost converter minimizes power consumption, ensuring devices operate efficiently even at low battery levels.
The TPS61221DCKR supports a wide input voltage range, starting from as low as 0.3 V, making it versatile for various applications, including energy-harvesting systems.
Its dynamically adjustable output voltage range of 1.8 V to 5.5 V provides flexibility, allowing engineers to use the same converter across multiple projects.
The integrated MOSFETs simplify the design process by reducing the need for external components, saving both space and production costs.
Choosing the TPS61221DCKR means benefiting from Texas Instruments' extensive support network, including detailed documentation and design tools.
What is the TPS61221DCKR and Its Role in Power Management?
Overview of Boost Converters
Boost converters play a vital role in modern electronics by stepping up lower input voltages to higher output voltages. These devices are essential for applications where the input power source, such as a battery, cannot directly meet the voltage requirements of the system. By efficiently converting energy, boost converters ensure that your devices operate reliably without draining the power source too quickly.
In recent years, advancements in dc-dc converter technology have revolutionized power management. Studies highlight how these converters enhance system reliability and reduce heat generation, making them indispensable in portable and battery-powered devices. Their compact design and high efficiency make them a preferred choice for engineers working on space-constrained projects. Whether you're designing IoT gadgets or wearable electronics, boost converters provide the flexibility and performance you need.
Introduction to the TPS61221DCKR
The TPS61221DCKR stands out as a high-performance boost converter designed to meet the demands of energy-sensitive applications. It operates with a minimum input voltage of 0.7 V and delivers a fixed output voltage of 3.3 V, making it ideal for low-voltage systems. This capability allows you to power devices even when the battery voltage drops significantly, ensuring uninterrupted performance.
One of the key features of the TPS61221DCKR is its low quiescent current of 5.5 µA. This feature minimizes energy loss, which is crucial for extending battery life in portable devices. With an efficiency of up to 95%, this converter ensures that most of the input power is effectively utilized, reducing waste and heat generation. The integrated MOSFETs further simplify the design process by reducing the need for external components, saving both space and cost.
The TPS61221DCKR is part of the broader TPS6122x family, known for providing reliable power solutions for battery-powered systems. Its ability to start up at a low input voltage of 0.7 V makes it suitable for a wide range of applications, from IoT devices to consumer electronics. If you're looking for a compact, efficient, and versatile solution, the TPS61221DCKR offers the perfect balance of performance and design flexibility.
Key Features of the TPS61221DCKR
High Efficiency
The TPS61221DCKR delivers exceptional performance with its high efficiency, making it a standout choice for energy-sensitive applications. This boost converter achieves up to 95% efficiency under typical operating conditions. Such efficiency ensures that your devices utilize most of the input power effectively, reducing energy waste and heat generation. The low quiescent current of 5.5 µA further enhances its energy-saving capabilities, especially in battery-powered systems. Whether you're designing wearable electronics or IoT devices, this high-efficiency feature helps extend battery life and ensures reliable operation.
Compact Size
Space constraints often pose challenges in modern electronic designs. The TPS61221DCKR addresses this issue with its compact SOT23 (6-Pin) - SC70-6 package. Its small form factor allows seamless integration into miniaturized systems, such as portable devices and wireless sensor networks. Despite its size, this boost converter maintains robust performance, making it ideal for applications where space optimization is critical. You can rely on its compact design to simplify your layout while maintaining the functionality and reliability of your project.
Low Power Consumption
Low power consumption is a defining characteristic of the TPS61221DCKR. It operates efficiently even at a low input voltage of 0.3 V, making it suitable for energy-harvesting devices and low-voltage systems. The dynamically adjustable output voltage, ranging from 1.8 V to 5.5 V, provides flexibility for various applications. This feature ensures that your devices consume minimal power while delivering consistent performance. By incorporating this boost converter into your design, you can achieve significant energy savings and enhance the overall sustainability of your product.
Benefits of Using the TPS61221DCKR
Enhanced Device Performance
The TPS61221DCKR significantly enhances the performance of your devices by ensuring a stable and reliable power supply. Its ability to operate from an input voltage as low as 0.3 V allows your devices to function even when battery levels are critically low. This feature ensures uninterrupted operation, especially in energy-sensitive applications. The fixed switching frequency of 1.4 MHz minimizes noise interference, which is crucial for maintaining the integrity of sensitive electronic systems. By integrating this boost converter into your design, you can achieve consistent performance across various operating conditions.
Energy Efficiency and Cost Savings
Energy efficiency is one of the standout advantages of the TPS61221DCKR. With up to 95% efficiency, this boost converter ensures that most of the input power is effectively utilized, reducing energy waste. The low quiescent current of 5.5 µA further contributes to extending battery life, making it ideal for portable and battery-powered applications. Additionally, the integrated MOSFETs simplify the design process by reducing the need for external components. This not only saves space but also lowers production costs, making the TPS61221DCKR a cost-effective solution for your projects.
Design Flexibility
The TPS61221DCKR offers exceptional design flexibility, thanks to its dynamically adjustable output voltage range of 1.8 V to 5.5 V. This adaptability allows you to use the same boost converter across multiple applications, simplifying your design process. Its compact SOT23 (6-Pin) - SC70-6 package ensures seamless integration into space-constrained devices, such as IoT gadgets and wearable electronics. Whether you're working on miniaturized systems or energy-harvesting devices, the TPS61221DCKR provides the versatility needed to meet diverse design requirements.
Comparison with Other Boost Converter ICs
Efficiency Metrics
When comparing the TPS61221DCKR to other boost converter ICs, its efficiency stands out as a key advantage. This boost converter achieves up to 95% efficiency under typical operating conditions, ensuring minimal energy loss. Competing converters often fall short in this regard, especially when operating at low input voltages. The TPS61221DCKR operates from an input voltage as low as 0.3V, which is significantly lower than many alternatives. This capability allows you to power devices even when battery levels are critically low, making it ideal for energy-sensitive applications. Its fixed switching frequency of 1.4MHz also contributes to consistent performance and reduced noise interference, which are critical factors in modern electronic designs.
Size and Form Factor
The compact size of the TPS61221DCKR gives it a distinct edge over other boost converters. Its SOT23 (6-Pin) - SC70-6 package ensures seamless integration into space-constrained devices. Competing converters often require larger footprints or additional external components, which can complicate your design process. The TPS61221DCKR simplifies this by integrating MOSFETs, reducing the need for extra components. This compact form factor makes it an excellent choice for miniaturized systems like IoT devices, wearable electronics, and portable gadgets. If your project demands a small yet powerful solution, the TPS61221DCKR delivers unmatched versatility.
Performance Under Load
The TPS61221DCKR excels in maintaining stable performance under varying load conditions. Its dynamically adjustable output voltage range of 1.8V to 5.5V provides flexibility for diverse applications. Many competing converters struggle to maintain consistent output when subjected to fluctuating loads, which can compromise device reliability. The TPS61221DCKR’s ability to deliver a steady output voltage ensures that your devices operate smoothly, even during demanding tasks. With an operating current of 1.2A, this boost converter supports a wide range of power requirements, making it suitable for both low-power and high-performance applications.
By choosing the TPS61221DCKR, you gain access to a boost converter that combines high efficiency, compact size, and reliable performance. Its advanced features set it apart from other options, ensuring that your designs meet the highest standards of quality and functionality.
Boost Converter Applications of the TPS61221DCKR
The TPS61221DCKR excels in various fields due to its high efficiency and compact design. Its ability to operate at low input voltages and deliver consistent output makes it a versatile choice for modern electronic systems. Below are some key areas where this boost mode converter proves invaluable.
IoT Devices
IoT devices demand efficient power management to ensure long-lasting performance. The TPS61221DCKR addresses this need by providing a reliable boost in voltage, even when battery levels are critically low. Its low quiescent current of 5.5 µA minimizes energy consumption, which is essential for IoT sensors and devices that operate on limited power sources.
An IoT developer shared their experience, stating,
"I integrated the TPS61221DCKR into our IoT device and noticed a significant improvement in power efficiency."
This boost converter's compact size also allows seamless integration into space-constrained IoT designs. Whether you're working on smart home devices or industrial IoT systems, the TPS61221DCKR ensures your devices remain operational for extended periods without frequent battery replacements.
Consumer Electronics
Consumer electronics, such as wearable devices and portable gadgets, benefit greatly from the TPS61221DCKR. Its ability to step up low input voltages to a stable output ensures consistent performance in devices like fitness trackers, wireless earbuds, and handheld gaming consoles. The integrated MOSFETs reduce the need for external components, simplifying the design process and saving valuable space.
The high efficiency of up to 95% ensures that your devices utilize most of the input power effectively, reducing heat generation and extending battery life. This makes the TPS61221DCKR an ideal choice for products where user experience and reliability are paramount. By incorporating this converter, you can enhance the functionality of your consumer electronics while maintaining a compact form factor.
Automotive Applications
In the automotive industry, energy harvesting systems rely on efficient power management solutions. The TPS61221DCKR plays a crucial role in these systems by delivering a stable voltage output, even under challenging conditions. Its ability to start up at a low input voltage of 0.7 V makes it suitable for applications like tire pressure monitoring systems (TPMS) and other low-power automotive sensors.
A car enthusiast highlighted its utility, saying,
"I researched the TPS61221DCKR for automotive applications and found it ideal for energy harvesting systems in vehicles."
The compact design of this boost mode converter allows it to fit into tight spaces within vehicles, ensuring seamless integration. Its high efficiency and low power consumption make it a reliable choice for modern automotive designs, where energy optimization is critical.
The TPS61221DCKR demonstrates its versatility across diverse applications, from IoT devices to automotive systems. Its ability to deliver consistent performance, even in energy-sensitive scenarios, makes it a valuable asset for engineers and designers.
Why Choose the TPS61221DCKR for Your Next Project?
Proven Performance
The TPS61221DCKR delivers reliable and consistent performance, making it a dependable choice for your projects. Its ability to operate with an input voltage as low as 0.7 V ensures that your devices remain functional even when battery levels drop significantly. This feature proves essential in energy-sensitive applications where uninterrupted operation is critical. The fixed output voltage of 3.3 V provides stability, ensuring your devices perform optimally under various conditions.
This converter achieves up to 95% efficiency, which minimizes energy loss and heat generation. You can rely on its low quiescent current of 5.5 µA to extend battery life in portable devices. The integrated MOSFETs simplify your design process by reducing the need for external components, saving both space and cost. Whether you are working on IoT devices, wearable electronics, or other miniaturized systems, the TPS61221DCKR ensures your designs meet high standards of efficiency and reliability.
Support from Texas Instruments
When you choose the TPS61221DCKR, you gain access to the extensive support network of Texas Instruments. The company provides detailed documentation, including datasheets and application notes, to guide you through the design and implementation process. These resources help you understand the converter’s features and optimize its performance in your applications.
Texas Instruments also offers online tools, such as simulation software and design calculators, to assist you in creating efficient power management solutions. Their technical support team is available to address your queries, ensuring you have the guidance needed to overcome design challenges. By choosing the TPS61221DCKR, you benefit from the expertise and resources of a trusted industry leader, enabling you to achieve success in your projects.
The TPS61221DCKR combines high efficiency, compact size, and low power consumption to deliver exceptional performance in energy-sensitive applications. Its ability to optimize power management makes it a valuable asset for IoT devices, consumer electronics, and automotive systems. You can rely on its versatility to meet the demands of modern, space-constrained designs while ensuring energy savings. By choosing the TPS61221DCKR, you gain a reliable solution that enhances device performance and simplifies your design process. Consider this boost converter for your next project to achieve efficiency and flexibility in one compact package.
FAQ
What makes the TPS61221DCKR ideal for battery-powered devices?
The TPS61221DCKR operates with a low quiescent current of 5.5 µA, which minimizes energy loss and extends battery life. Its ability to function with an input voltage as low as 0.7 V ensures your devices remain operational even when battery levels drop significantly. This efficiency makes it perfect for portable and energy-sensitive applications.
Can the TPS61221DCKR handle space-constrained designs?
Yes, the TPS61221DCKR features a compact SOT23 (6-Pin) - SC70-6 package. This small form factor allows seamless integration into miniaturized systems like IoT devices, wearable electronics, and other portable gadgets. Its design simplifies layouts without compromising performance.
How efficient is the TPS61221DCKR compared to other boost converters?
The TPS61221DCKR achieves up to 95% efficiency under typical operating conditions. This high efficiency ensures most of the input power is effectively utilized, reducing energy waste and heat generation. Many competing converters struggle to match this level of performance, especially in low-voltage scenarios.
What output voltage does the TPS61221DCKR provide?
The TPS61221DCKR delivers a fixed output voltage of 3.3 V. This stable output ensures reliable performance across various applications, from IoT devices to consumer electronics. Its dynamically adjustable output voltage range of 1.8 V to 5.5 V also provides flexibility for diverse design needs.
Is the TPS61221DCKR suitable for IoT applications?
Absolutely. The TPS61221DCKR’s low power consumption and compact size make it an excellent choice for IoT devices. Its ability to operate at low input voltages ensures uninterrupted functionality for sensors and devices that rely on limited power sources. This feature enhances the longevity and reliability of IoT systems.
How does the TPS61221DCKR simplify the design process?
The TPS61221DCKR integrates MOSFETs, reducing the need for external components. This integration saves space and lowers production costs. Its fixed switching frequency of 1.4 MHz also minimizes noise interference, making it easier to design stable and efficient systems.
Can the TPS61221DCKR support energy-harvesting devices?
Yes, the TPS61221DCKR operates efficiently at input voltages as low as 0.3 V, making it suitable for energy-harvesting applications. Its low power consumption and high efficiency ensure optimal performance in systems that rely on harvested energy, such as environmental sensors and wearable devices.
What industries benefit most from the TPS61221DCKR?
The TPS61221DCKR serves a wide range of industries, including consumer electronics, automotive, and IoT. It powers wearable devices, portable gadgets, automotive sensors, and energy-harvesting systems. Its versatility makes it a valuable component for engineers across various fields.
How does the TPS61221DCKR enhance device performance?
The TPS61221DCKR ensures a stable power supply, even at low input voltages. This stability improves the reliability and performance of your devices. Its high efficiency reduces energy waste, while its compact design allows integration into space-constrained systems without sacrificing functionality.
Why should I choose the TPS61221DCKR for my project?
The TPS61221DCKR combines high efficiency, low power consumption, and a compact design. It simplifies your design process, reduces costs, and ensures reliable performance. Backed by Texas Instruments’ extensive support network, this boost converter provides the tools and resources you need to succeed in your project.
