Why TPS56121DQPR is Essential for Server Power Management

ymn@deirchip.com

·November 4, 2024

·10 min read

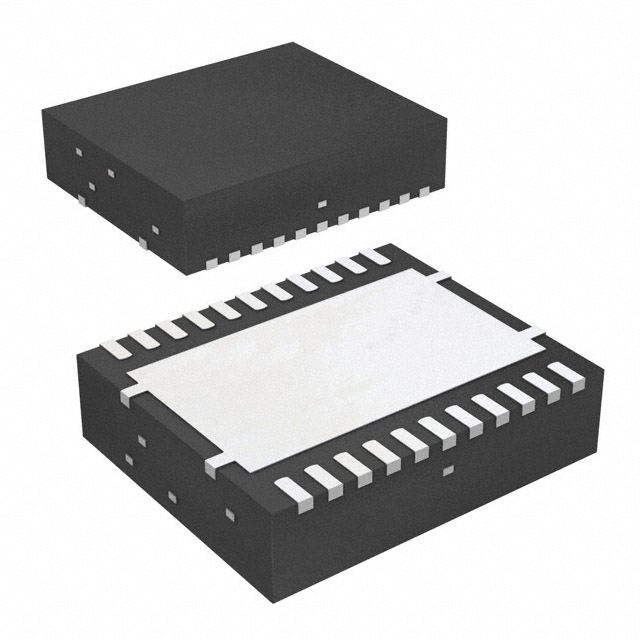

Why TPS56121DQPR is Essential for Server Power Management — Image Source: https://deirchip.com/

The TPS56121DQPR by TI is essential for power management in server systems. Its distinctive features make it a vital component in any server system. This high-efficiency synchronous buck converter functions within an input range of 4.5 V to 14 V, providing up to 15 A of output current. These attributes ensure dependable performance in challenging environments. The TPS56121DQPR's compact design and advanced thermal management address the increasing need for efficient power solutions. For more detailed specifications, visit https://www.alldatasheet.com/datasheet-pdf/pdf/412.

Unique Features of the TPS56121DQPR

High Efficiency and Low Power Consumption

The TPS56121DQPR stands out for its high efficiency and low power consumption. This synchronous step-down DC-DC converter IC efficiently manages power, reducing energy waste. It operates with a wide input voltage range, making it adaptable to various power supply needs. By minimizing power loss, it ensures that server systems run smoothly and reliably, even under heavy loads. This efficiency not only conserves energy but also contributes to lower operational costs.

Advanced Thermal Management

Advanced thermal management is another key feature of the TPS56121DQPR. Servers often operate in environments where temperature control is crucial. This device incorporates technology that effectively dissipates heat, maintaining optimal performance levels. Its design allows it to function within a broad temperature range, from -40°C to 125°C. This capability ensures that the converter remains reliable, even in demanding conditions, preventing overheating and potential damage to server components.

Compact Design and Versatility

The compact design of the TPS56121DQPR enhances its versatility. Its small footprint makes it ideal for space-constrained server systems, where every inch counts. Despite its size, it delivers robust performance, supporting high-current applications with ease. The adjustable output voltage feature further adds to its flexibility, allowing it to meet diverse system requirements. This versatility makes it suitable for a wide range of applications, from portable devices to industrial equipment and embedded systems.

Technical Specifications of the TPS56121DQPR

Voltage and Current Ratings

The TPS56121DQPR operates within a broad input voltage range of 4.5 V to 14 V. This flexibility allows it to adapt to various power supply conditions in server environments. It delivers a maximum output current of 15 A, making it suitable for high-current applications. This capability ensures that server systems receive the necessary power to function efficiently, even under demanding workloads.

Switching Frequency and Control Features

The TPS56121DQPR offers adjustable switching frequencies of 300 kHz, 500 kHz, or 950 kHz. These options enable users to optimize the converter's performance based on specific application needs. The device incorporates advanced control features that enhance its efficiency and reliability. By providing precise control over power delivery, it helps maintain stable operation in server systems, reducing the risk of power-related issues.

Compatibility with Various Server Architectures

The TPS56121DQPR demonstrates compatibility with a wide range of server architectures. Its design accommodates different system requirements, making it a versatile choice for diverse server configurations. This adaptability ensures seamless integration into existing infrastructures, minimizing the need for extensive modifications. As a result, it supports efficient power management across various server platforms, contributing to improved overall system performance.

Integration into Server Systems

Installation and Configuration Process

The installation of the TPS56121DQPR in a server system involves several straightforward steps. Technicians begin by identifying the appropriate location within the server's power management unit. They ensure that the device's input voltage range of 4.5 V to 14 V aligns with the server's power supply specifications. Once positioned, they connect the TPS56121DQPR to the server's power lines, taking care to secure all connections for optimal performance. Configuration follows, where technicians adjust the output voltage to meet the server's specific requirements. This process ensures that the server system operates efficiently and reliably.

Compatibility with Existing Infrastructure

The TPS56121DQPR by TI demonstrates remarkable compatibility with existing server infrastructures. Its design accommodates various server architectures, allowing seamless integration without extensive modifications. This adaptability proves beneficial for server systems that require upgrades or replacements of power management components. By aligning with the server's existing setup, the TPS56121DQPR minimizes downtime and ensures a smooth transition. This compatibility not only enhances the server's performance but also extends its operational lifespan.

Maintenance and Troubleshooting

Maintaining the TPS56121DQPR within a server system involves routine checks and timely interventions. Technicians regularly inspect the device for signs of wear or damage, ensuring that it continues to function optimally. They monitor the output voltage and current levels, making adjustments as necessary to maintain efficiency. In the event of a malfunction, troubleshooting begins with a thorough examination of the connections and settings. Technicians utilize diagnostic tools to identify issues, allowing for quick resolutions. This proactive approach to maintenance and troubleshooting ensures that the server system remains reliable and efficient.

For more detailed specifications and guidance, visit https://www.alldatasheet.com/datasheet-pdf/pdf/412.

Real-World Applications

Use in Data Centers

Data centers rely heavily on efficient power management to maintain optimal performance. The TPS56121DQPR plays a crucial role in these environments by providing reliable power delivery. Its high efficiency ensures that servers operate smoothly, even under heavy workloads. By minimizing energy waste, it helps data centers reduce their overall power consumption. This efficiency not only supports the operational demands of data centers but also contributes to their sustainability goals.

Role in Cloud Computing Environments

Cloud computing environments demand robust and adaptable power solutions. The TPS56121DQPR meets these requirements with its versatile design and advanced features. It supports various server architectures, making it an ideal choice for cloud service providers. By delivering consistent power, it ensures that cloud servers remain responsive and reliable. This reliability is essential for maintaining the performance and availability of cloud-based applications and services.

Impact on Energy Efficiency and Cost Savings

The TPS56121DQPR significantly impacts energy efficiency and cost savings in server systems. Its high-efficiency design reduces power loss, leading to lower energy consumption. This reduction translates into cost savings for organizations, as they spend less on electricity. Additionally, the device's advanced thermal management minimizes the risk of overheating, reducing maintenance costs. By enhancing energy efficiency and lowering operational expenses, the TPS56121DQPR offers long-term financial benefits for businesses.

Comparison with Alternative Solutions

Performance Metrics

When evaluating power management solutions, performance metrics play a crucial role. The TPS56121DQPR excels in delivering high efficiency and reliability. It operates within a broad input voltage range of 4.5 V to 14 V and provides a maximum output current of 15 A. This capability ensures robust performance in demanding server environments. In comparison, the LMR23630 offers adjustable output voltage features, which can be beneficial for specific applications. However, it may not match the TPS56121DQPR's high current delivery. The ADP2384 also provides high efficiency and includes overcurrent protection, making it a strong contender. Yet, the TPS56121DQPR's advanced thermal management and compact design give it an edge in maintaining optimal performance under various conditions.

Cost-Effectiveness

Cost-effectiveness is another critical factor when choosing a power management solution. The TPS56121DQPR offers significant long-term savings due to its high efficiency and low power consumption. By minimizing energy waste, it reduces operational costs for server systems. The LMR23630 and ADP2384 also present cost-effective options, particularly for applications requiring specific features like adjustable output voltage or overcurrent protection. However, the TPS56121DQPR's ability to deliver consistent power with minimal energy loss makes it a more economical choice for many server environments. Its advanced features contribute to lower maintenance costs, further enhancing its cost-effectiveness.

Scalability and Flexibility

Scalability and flexibility are essential for adapting to evolving server needs. The TPS56121DQPR demonstrates remarkable versatility with its compact design and adjustable output voltage. This flexibility allows it to integrate seamlessly into various server architectures, supporting diverse system requirements. The LMR23630 also offers scalability with its adjustable output voltage, making it suitable for different applications. The ADP2384 provides flexibility through its high efficiency and overcurrent protection, catering to specific power management needs. However, the TPS56121DQPR's compatibility with a wide range of server systems and its ability to maintain performance across different conditions make it a superior choice for scalable and flexible power management solutions.

Future Potential and Developments

Innovations in Power Management Technology

Power management technology continues to evolve, driven by the need for more efficient and reliable solutions. The TPS56121DQPR represents a significant advancement in this field. It incorporates cutting-edge features that enhance its performance in server systems. One notable innovation is the integration of Power Block Technology, which improves efficiency and reduces energy waste. This technology ensures that servers operate smoothly, even under heavy workloads.

In addition to these advancements, the industry is witnessing improvements in low quiescent current management. Devices like the TPS61094 buck/boost converter achieve the industry's lowest quiescent current. This feature is crucial for extending battery life in various applications, including industrial settings. By integrating supercapacitor charging, these converters enable longer battery life, contributing to more sustainable power management solutions.

Potential Upgrades and Enhancements

The TPS56121DQPR offers several opportunities for upgrades and enhancements. Manufacturers can explore ways to further optimize its efficiency and performance. One potential area for improvement is the expansion of its input voltage range. By accommodating a broader range of voltages, the device could support even more diverse server architectures.

Another area for enhancement is the development of more advanced thermal management solutions. While the TPS56121DQPR already excels in this regard, ongoing research could lead to even more effective heat dissipation techniques. These improvements would ensure that the device remains reliable in increasingly demanding environments.

Long-Term Benefits for Server Systems

The long-term benefits of the TPS56121DQPR for server systems are substantial. Its high efficiency and low power consumption contribute to significant energy savings. These savings translate into reduced operational costs for businesses, making the device a cost-effective choice for power management.

Moreover, the TPS56121DQPR's advanced thermal management minimizes the risk of overheating. This feature reduces maintenance costs and extends the lifespan of server components. By ensuring reliable performance, the device supports the continuous operation of critical server systems.

In conclusion, the TPS56121DQPR's innovations and potential enhancements position it as a vital component in the future of server power management. Its long-term benefits make it an attractive choice for organizations seeking efficient and sustainable solutions.

The TPS56121DQPR by TI plays a crucial role in server power management. It offers high efficiency and low power consumption, making it indispensable for any server system. Compared to alternative solutions, the TPS56121DQPR provides superior performance and reliability. Its advanced thermal management and compact design set it apart. As server technology evolves, the TPS56121DQPR will continue to impact energy efficiency positively. For more detailed specifications, visit https://www.alldatasheet.com/datasheet-pdf/pdf/412.
