How to Use TPS5450DDAR for Precise Voltage Conversion in Communication Devices

The TPS5450DDAR is an excellent solution for achieving efficient voltage conversion in communications equipment. It ensures your devices receive stable power, even during rapid load changes, which is critical for modern communication systems to prevent data loss or system crashes. For example, when the load current increases suddenly, the TPS5450DDAR adjusts the voltage within 60 µs. This swift response minimizes issues and maintains optimal device performance. Understanding how to use the TPS5450DDAR to achieve efficient voltage conversion in communications equipment can significantly enhance the reliability and functionality of your devices.

Key Takeaways

• The TPS5450DDAR changes voltage efficiently, giving steady power to devices.

• It has safety features like overcurrent and overheating protection for reliability.

• Good circuit design, like placing capacitors well, improves performance and lowers noise.

• Using heat sinks and keeping airflow helps the device stay cool and last longer.

• The TPS5450DDAR follows industry rules, making it safe and eco-friendly for devices.

Understanding How to Use the TPS5450DDAR for Efficient Voltage Conversion in Communication Devices

Key Features of the TPS5450DDAR

The TPS5450DDAR is a DC-DC converter that saves energy and works well. It has special features that make it great for communication devices. A strong voltage amplifier keeps the voltage steady, even when the load changes quickly. The undervoltage-lockout stops the device from starting until the input voltage is at least 5.5 V. This keeps your system safe and stable.

It also has a slow-start circuit to control power surges when turning on. A voltage feed-forward circuit helps it respond quickly to changes. Built-in protections like overcurrent limiting, overvoltage protection, and thermal shutdown make it reliable. These features make the TPS5450DDAR a strong choice for managing power in communication systems.

Input Voltage Range and Output Current Capabilities

The TPS5450DDAR works with input voltages from 5.5 V to 36 V. This wide range makes it useful for many devices. You can adjust the output voltage to fit your device's needs for better performance.

It can provide up to 5 A of current all the time and 6 A during short bursts. This makes it good for devices that need a lot of power, like communication systems or base stations. The TPS5450DDAR gives steady and reliable power.

Efficiency and Power Ratings

Efficiency is very important in power systems, and the TPS5450DDAR does a great job. It works at over 90% efficiency, wasting less energy as heat. This means less cooling is needed, saving space and money.

Here’s a table showing its key features:

With high efficiency and strong power management, the TPS5450DDAR is perfect for communication devices.

Pin Layout and Configuration for Best Performance

Pin Functions Overview

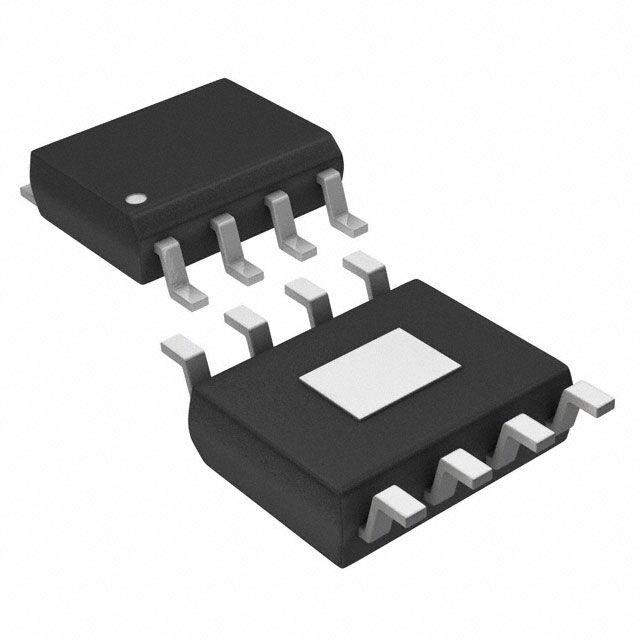

The TPS5450DDAR has eight pins, each with a job. The VIN pin takes in the input voltage. The EN pin turns the device on or off. The GND pin connects to the ground to complete the circuit. The BOOT pin powers the high-side MOSFET driver. The PH pin links to the inductor to move energy. The VSENSE pin checks the output voltage to keep it steady. The COMP pin lets you adjust the control network for better performance. The RT/CLK pin sets the switching speed, which affects efficiency.

Knowing what each pin does helps you build a strong circuit for your device's power needs.

Tips for Circuit Design

When making your circuit, keep capacitors near the VIN and GND pins. This lowers noise and boosts efficiency. Use a low-resistance path for the PH pin to save power. Connect the VSENSE pin straight to the output voltage for accurate checks.

For the BOOT pin, pick a good capacitor for stable work. Place the COMP pin's parts close to the chip to avoid problems. Good layout and part placement improve how your circuit works.

Avoiding Common Mistakes

To avoid errors, follow these tips:

• Keep input voltage and enable pin values in the right range. Wrong values can mess up the output voltage.

• Design the board to handle heat well to stop overheating.

• Choose the right capacitors to cut down ripple and noise, which can hurt performance.

• Check the control network setup to keep things steady under changing loads.

By fixing these issues, you can make the TPS5450DDAR work better and last longer.

Electrical Characteristics and Thermal Management

Voltage and Current Ratings

The TPS5450DDAR works with input voltages from 5.5V to 36V. This makes it useful for many communication devices. You can adjust the output voltage between 1.22V and 31V. This lets you match it to your device's needs. It helps your device work better in different situations.

The device gives a steady output current of up to 5A. It can also handle short bursts of 6A. This makes it great for systems like routers and base stations that need more power. Even under a 5A load, the voltage drop is only 22mV. This keeps power delivery stable during heavy use.

Thermal Dissipation and Heat Sink Recommendations

Good heat management is important for the TPS5450DDAR to work well. It runs at over 90% efficiency, so it wastes less energy as heat. But you still need to manage heat to stop overheating.

Use a heat sink or thermal pad to remove heat from the device. Place it on a PCB with a large copper area to spread heat better. Make sure there is enough airflow around it to keep it cool. These steps help keep the device stable and prevent overheating during heavy use.

Ensuring Long-Term Reliability

The TPS5450DDAR has features that make it last longer. It shuts down automatically if it gets too hot, avoiding damage. Overcurrent protection keeps your equipment safe from harm.

It also monitors temperature to avoid long exposure to high heat. The low-resistance MOSFET handles high currents efficiently. The voltage error amplifier keeps the voltage steady. These features make the device reliable for a long time.

By using these tips and the TPS5450DDAR's features, you can deliver reliable power to your communication devices.

Applications of the TPS5450DDAR in Communication Devices

Use Cases in High-Frequency Systems

The TPS5450DDAR works well in systems needing steady power. It keeps voltage stable, even with quick load changes. Placing parts correctly helps it work better and waste less energy.

Here’s a table showing tips for high-frequency systems and their benefits:

Following these tips improves performance and saves energy in high-frequency systems.

Benefits in Routers, Modems, and Base Stations

The TPS5450DDAR is great for routers, modems, and base stations. These devices need steady power to handle lots of data. It provides up to 5A of power, even during busy times.

Its high efficiency means less heat is made, so cooling is easier. This saves space and money. Built-in safety features protect devices from overheating and power surges, keeping them reliable.

Real-World Examples of Implementation

The TPS5450DDAR is used in many communication devices. In routers, it keeps voltage steady for smooth data flow. In base stations, it handles high power needs while saving energy.

In modems, its small size and efficiency make devices smaller and better. These examples show how useful it is for modern communication systems.

Using the TPS5450DDAR helps you build reliable and efficient devices for real-world use.

Troubleshooting and Best Practices for Efficiency

Fixing Common Problems

Using the TPS5450DDAR may cause issues like unstable voltage or overheating. These problems often happen because of wrong setups or bad heat control. First, check the input voltage. Make sure it stays between 5.5V and 36V. Wrong input voltage can make the device work poorly.

Look at the PCB layout for mistakes. A bad layout can cause more noise and lower efficiency. Put the input capacitor near the VIN pin to reduce noise. Use a ground plane under the chip to help with cooling and cut down noise.

If the device gets too hot, check the heat sink or thermal pad. Make sure there’s good airflow to cool it down. These steps will help keep the power steady and make the device last longer.

Ways to Improve Performance

To get the best from the TPS5450DDAR, try these tips. Change the switching speed to fit your system’s needs. This can make it work better and waste less energy. Check how well it works often to find ways to improve.

Fix the PCB layout to handle quick changes and lower noise. Keep the PH pin paths short and wide to save power. Good heat control is also important. Use a big copper area on the PCB to spread heat and keep it cool.

Here’s a table of these tips:

By following these tips, you can save energy and keep power steady.

Meeting Industry Rules

To follow industry rules, place and connect parts carefully. Put the input capacitor close to the VIN pin to lower noise. Use short, wide paths for the PH pin to keep signals strong. Place important parts close together to avoid extra resistance and noise.

The TPS5450DDAR meets rules like REACH, RoHS, and WEEE. These rules support safe and eco-friendly designs. Following them makes your design efficient and good for the environment.

Setting up the TPS5450DDAR correctly helps it convert voltage well. This is important for keeping communication devices stable and working reliably. Its smart features make sure power stays steady, even in tough conditions.

Tip: Follow the shared tips like improving PCB layout and controlling heat. These steps will boost how well your devices work and help them last longer.

Using the TPS5450DDAR saves energy and meets industry rules. Start using these ideas now to create better and more dependable communication systems.

FAQ

Why is the TPS5450DDAR good for communication devices?

The TPS5450DDAR keeps voltage steady, even with quick load changes. It works efficiently and has safety features, making it great for routers and modems.

How do you manage heat for the TPS5450DDAR?

Use a heat sink or thermal pad to remove heat. Place it on a PCB with a big copper area and allow airflow. This helps keep it cool and stops overheating.

What should you do when designing a PCB for the TPS5450DDAR?

Put capacitors close to the VIN and GND pins to cut noise. Use short, wide paths for the PH pin and add a ground plane under the chip. These steps improve power use and efficiency.

Can the TPS5450DDAR handle high power needs?

Yes, it gives 5A all the time and 6A for short bursts. This makes it reliable for base stations and other high-power devices.

What safety features does the TPS5450DDAR have?

It has overcurrent protection, thermal shutdown, and undervoltage lockout. These features protect your devices and improve power control.
