TPS54331DR, TI, Buck Converter High Efficiency Power Management Chip

The TPS54331DR from Texas Instruments is a high-efficiency DC-DC buck converter designed for modern power management needs. It supports input voltages from 4.5V to 28V and delivers up to 3A of output current, making it versatile for various applications. With up to 95% efficiency, it minimizes energy loss and enhances system performance. Its compact design suits space-constrained devices, while its wide temperature range ensures reliability in diverse environments.

The TPS54331DR combines flexibility, efficiency, and reliability, making it an essential component for power management in modern electronics.

Key Takeaways

• The TPS54331DR works with up to 95% efficiency. It saves energy and improves performance, great for power-saving uses.

• It handles input voltages from 4.5V to 28V. The output voltage can be adjusted between 0.8V and 15V, fitting many power needs.

• Its small SOIC-8 design uses less space. This makes it good for portable gadgets and tight spaces.

• The chip has strong safety features. It protects against too much current, heat, and sudden voltage changes, keeping it reliable.

• With a 3A maximum output, the TPS54331DR works well in many devices, like factory machines and home electronics.

Key Features and Benefits of the TPS54331DR

High Efficiency and Low Power Loss

The TPS54331DR stands out for its exceptional efficiency, reaching up to 95%. This high efficiency minimizes energy loss, making it ideal for applications that prioritize energy conservation, such as renewable energy systems and battery-powered devices. Unlike many competing products, this chip uses constant-frequency current-mode control to achieve superior performance. This design reduces energy wastage and lowers heat generation, ensuring reliable operation even in demanding environments.

With its ability to deliver high efficiency, the TPS54331DR helps you optimize power usage while maintaining system performance.

Wide Input Voltage Range and Output Capabilities

The TPS54331DR supports a broad input voltage range of 4.5V to 28V. This versatility allows it to handle various power sources, from battery-powered devices to industrial power supplies. Engineers often prefer components with such adaptability, as it simplifies design and ensures compatibility with different systems. Additionally, the chip offers adjustable output voltage from 0.8V to 15V and delivers up to 3A of output current. These features make it suitable for a wide range of applications.

Compact Size for Space-Constrained Designs

The compact design of the TPS54331DR makes it a perfect choice for space-constrained applications. Its small SOIC-8 package allows for easy integration into portable devices and small industrial equipment. This compact size not only saves valuable board space but also ensures effective heat management. As a result, the chip performs reliably even in environments with limited cooling options.

The TPS54331DR’s small footprint helps you maximize available space without compromising performance.

Thermal Performance and Reliability

Thermal performance plays a critical role in ensuring the reliability of power management systems. The TPS54331DR excels in this area, making it a dependable choice for demanding applications. Its internal package design optimizes heat dissipation, allowing the chip to operate stably even in high-temperature environments. This feature ensures consistent performance, especially in industrial and automotive systems where temperature fluctuations are common.

You will appreciate the TPS54331DR's compatibility with ceramic capacitors. These components maintain stability across varying temperatures and frequencies, which is essential for reliable operation. By supporting ceramic capacitors, the chip ensures smooth power delivery and reduces the risk of system failures caused by thermal stress.

The compact SOIC-8 package of the TPS54331DR further enhances its thermal performance. Its small size minimizes board space while providing efficient heat management. This design makes it ideal for space-constrained environments, such as portable devices or compact industrial equipment. Despite its size, the chip handles thermal challenges effectively, ensuring long-term reliability.

Voltage spikes can pose a significant threat to electronic systems. The TPS54331DR includes built-in protection against these spikes, safeguarding your devices from potential damage. This feature is particularly valuable in industrial systems, where smooth power management is crucial for uninterrupted operation.

With its robust thermal performance and reliable design, the TPS54331DR ensures your systems remain stable and efficient, even under challenging conditions.

Applications of the TPS54331DR

Industrial Equipment

The TPS54331DR plays a vital role in industrial applications by ensuring reliable power management. Its ability to provide a steady power supply makes it indispensable for sensors and control systems in industrial automation. This stability enhances precision and reliability, which are critical in factory operations. The chip’s compact size and high efficiency also benefit embedded systems used in home appliances and industrial equipment. These systems rely on efficient power management to maintain consistent performance. Additionally, the TPS54331DR adjusts 12V power from vehicle batteries for control units and sensors, supporting features like infotainment and driver-assistance systems. In communication devices, it stabilizes voltage for critical components, protecting them from fluctuations and ensuring smooth operation.

With its versatility and robust performance, the TPS54331DR meets the demanding requirements of industrial environments.

Consumer Electronics

In consumer electronics, the TPS54331DR enhances performance and efficiency. Its high efficiency of up to 95% reduces energy loss, improving the overall system performance. The chip’s flexibility in output voltage adjustment, ranging from 0.8V to 15V, allows you to optimize it for various circuits. Its compact design makes it ideal for space-constrained applications, such as portable devices. The ability to handle input voltages from 4.5V to 28V ensures adaptability across diverse electronic applications. Furthermore, the Eco mode improves efficiency during low-power use, extending battery life in portable devices. The constant-frequency current-mode control ensures stable operation, reducing the need for additional components in your designs.

Whether you’re designing portable gadgets or home electronics, the TPS54331DR provides the efficiency and adaptability you need.

Automotive Systems

The TPS54331DR is a reliable choice for automotive systems. It supports critical components like infotainment systems, driver-assistance systems, and control units. Its ability to regulate voltage ensures stable power delivery to these systems, even in fluctuating conditions. The chip’s compact size and thermal performance make it suitable for the confined spaces of automotive designs. By providing consistent power to sensors and control units, it enhances the functionality of advanced automotive features. This makes it an excellent option for modern vehicles that demand efficient and reliable power management.

The TPS54331DR ensures your automotive systems operate smoothly, delivering the performance and reliability you expect.

Why the TPS54331DR is Ideal for These Applications

The TPS54331DR excels in industrial, consumer, and automotive applications due to its versatile features and robust performance. Its design ensures reliable power management across diverse environments, making it a preferred choice for engineers and designers.

One of the key reasons for its suitability is its wide input voltage range. Supporting voltages from 4.5V to 28V, the TPS54331DR adapts to various power sources, whether from batteries or industrial power supplies. This flexibility simplifies integration into different systems. Additionally, its adjustable output voltage, ranging from 0.8V to 15V, allows you to customize it for specific circuit requirements. This feature proves invaluable in applications where precision is critical.

The chip’s compact design further enhances its appeal. Its small size makes it ideal for space-constrained devices, such as portable electronics or automotive control units. Despite its compactness, the TPS54331DR delivers high power efficiency, achieving up to 95%. This efficiency reduces energy loss, improves system performance, and minimizes heat generation, which is essential for long-term reliability.

Another standout feature is its ability to provide up to 3A of output current. This capability supports a wide range of devices, from industrial sensors to automotive infotainment systems. Moreover, the chip operates effectively in temperatures ranging from -40°C to 125°C. This wide temperature range ensures stable performance in demanding environments, such as factories or vehicles.

The TPS54331DR combines these features to deliver unmatched versatility and reliability. Whether you’re designing for industrial automation, consumer electronics, or automotive systems, this chip ensures efficient and stable power management.

Technical Specifications of the TPS54331DR

Input Voltage Range

The TPS54331DR supports an input voltage range of 4.5V to 28V, making it highly adaptable for various applications. This wide range allows you to use it with different power sources, including battery-powered devices and industrial power supplies. Its flexibility ensures compatibility with diverse systems, simplifying your design process.

• The input voltage range of 4.5V to 28V makes it versatile for many power sources.

• This range aligns with industry standards, offering both efficiency and adaptability.

Whether you're working on a portable device or an industrial system, this input voltage range provides the reliability you need for consistent performance.

Output Current

The TPS54331DR delivers a maximum output current of 3A, which is crucial for high-performance applications. This capability supports a wide range of devices, from industrial sensors to automotive control units. You can rely on this chip to handle demanding power requirements without compromising efficiency.

Its high efficiency of up to 95% ensures minimal energy loss, which is especially important for battery-powered devices. By conserving power and reducing heat generation, the TPS54331DR enhances the longevity and reliability of your designs.

Switching Frequency

The TPS54331DR operates at a switching frequency of 500kHz, which offers several advantages for your designs. This frequency allows you to use smaller external components, such as inductors and capacitors. As a result, you can create more compact and space-efficient designs, ideal for applications with limited board space.

• The 500kHz switching frequency minimizes the size of external components.

• It supports compact designs, making it suitable for space-constrained environments.

Additionally, this frequency contributes to the chip's high efficiency, achieving up to 95%. This efficiency reduces energy loss and enhances overall system performance, especially in energy-sensitive applications.

With its wide input voltage range, robust output current, and efficient switching frequency, the TPS54331DR provides the technical foundation for reliable and high-performance power management.

Package Type

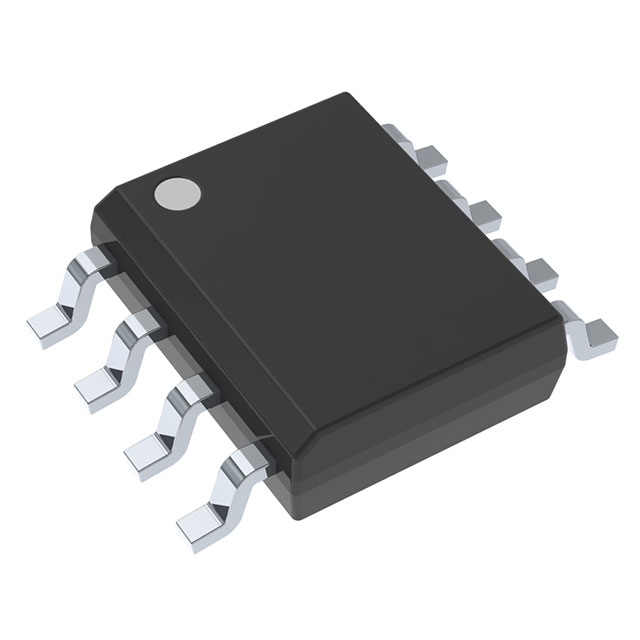

The TPS54331DR is available in an 8-pin SOIC (Small Outline Integrated Circuit) package. This package type is specifically designed for surface-mount technology, making it ideal for modern electronic designs. Its compact form factor allows you to save valuable board space, which is crucial for applications with limited room, such as portable devices or automotive systems.

The SOIC-8 package also simplifies the integration process. Its design ensures straightforward soldering onto printed circuit boards (PCBs), reducing assembly time and effort. Additionally, the small size of the package contributes to better thermal management. By minimizing the footprint, it allows for efficient heat dissipation, ensuring reliable performance even in high-temperature environments.

The compact and efficient SOIC-8 package makes the TPS54331DR a versatile choice for engineers working on space-constrained designs.

How These Specifications Enhance Performance

The technical specifications of the TPS54331DR are carefully designed to optimize its performance across various applications. Each feature contributes to its efficiency, reliability, and adaptability, making it a standout choice for power management.

The high power efficiency of up to 95% ensures minimal energy loss, which is critical for battery-powered devices and energy-sensitive applications. The wide input voltage range (4.5V to 28V) and adjustable output voltage (0.8V to 22V) provide flexibility, allowing you to use the chip in diverse systems. Its ability to handle up to 3A of output current supports high-performance devices, while the 500kHz switching frequency reduces the size of external components, enabling compact designs.

The SOIC-8 package further enhances performance by improving heat dissipation and ensuring stable operation in temperatures ranging from -40°C to 125°C. These features make the TPS54331DR a reliable and efficient solution for power management in industrial, consumer, and automotive applications.

With its robust specifications, the TPS54331DR delivers exceptional performance, ensuring your designs meet the highest standards of efficiency and reliability.

Advantages of the TPS54331DR Over Competitors

Comparison to Similar Chips

When comparing the TPS54331DR to similar power management chips, its efficiency and performance stand out. This chip achieves up to 95% efficiency, which is higher than many competitors. Such high efficiency minimizes energy loss, reduces heat generation, and enhances overall system performance. It employs constant-frequency current-mode control, a design that ensures stable operation and superior energy management.

Key advantages include:

• Wide input voltage range: The TPS54331DR supports 4.5V to 28V, making it adaptable to various power sources.

• High efficiency with internal synchronous rectification: This feature reduces energy loss and improves thermal performance.

• Adjustable switching frequency: The 500kHz frequency allows for smaller external components, saving space in your designs.

• Comprehensive protection features: These safeguards protect your devices from voltage spikes and other potential issues.

By combining these features, the TPS54331DR delivers unmatched reliability and efficiency, making it a preferred choice for engineers seeking high-performance solutions.

Unique Features and Benefits

The TPS54331DR offers several unique features that set it apart from competitors. Its compact design, high efficiency, and robust capabilities make it ideal for a wide range of applications.

These features make the TPS54331DR a versatile and reliable choice for power management. Whether you're designing for industrial automation, consumer electronics, or automotive systems, this chip provides the performance and adaptability you need.

Design and Implementation Tips for the TPS54331DR

Integrating the TPS54331DR into a Circuit

When integrating the TPS54331DR into your circuit, following best practices ensures optimal performance and reliability. Start by placing decoupling capacitors close to the VIN pin. This minimizes voltage ripple and stabilizes the input voltage. Use two resistors on the EN pin to set an undervoltage lockout threshold. This prevents the chip from operating at low input voltages, which could compromise its performance.

To control the slow-start time, connect an external capacitor to the SS pin. This reduces inrush currents during startup, protecting your components. For stable output voltage regulation, position the VSENSE pin carefully to avoid noise interference. Additionally, use appropriate components on the COMP pin for frequency compensation. This step ensures stability and quick response to load changes.

Good grounding practices are essential. Implement a solid ground plane for the GND pin to reduce noise and improve overall system stability. Finally, design the layout of the PH pin with wide PCB traces. This improves efficiency and helps manage electromagnetic interference (EMI).

Following these tips will help you achieve a stable and efficient circuit design.

PCB Layout Considerations

A well-designed PCB layout is critical for optimizing the performance of the TPS54331DR. Place decoupling capacitors as close as possible to the VIN pin. This reduces voltage ripple and ensures a stable input voltage. Proper placement of feedback pins is equally important. Keep them away from noisy traces to maintain stable performance.

Use a solid ground plane to minimize noise and prevent instability. This practice also enhances thermal dissipation, which is vital for reliable operation. For the PH pin, use wide traces to handle high currents effectively and reduce EMI. These layout considerations not only improve efficiency but also ensure long-term reliability.

A thoughtful PCB layout can significantly enhance the performance of your power management system.

Thermal Management

Thermal management is crucial for maintaining the efficiency and longevity of the TPS54331DR. This chip operates efficiently across a wide temperature range, from -40°C to 125°C. However, implementing additional strategies can further enhance its performance. Over-current protection automatically adjusts the output current to prevent damage from excessive loads. Over-temperature protection reduces power consumption to avoid overheating, while short-circuit protection shuts down the output to prevent further damage.

To avoid overheating, ensure proper cooling practices. Use heat sinks or thermal vias to dissipate heat effectively. Regularly inspect your circuit for worn components, as these can contribute to thermal issues. By addressing these factors, you can maintain the chip's performance and reliability in demanding environments.

Effective thermal management ensures your design remains efficient and durable over time.

Component Selection

Selecting the right components to pair with the TPS54331DR ensures your design achieves maximum efficiency and reliability. Each component plays a critical role in the overall performance of your circuit. By carefully evaluating your requirements, you can avoid common pitfalls like excessive power losses or unstable operation.

When choosing components, consider the following factors:

• Input voltage tolerances: Ensure the components can handle the input voltage range of 4.5V to 28V. This prevents voltage instability and protects your circuit.

• Load requirements: Match the inductor and capacitor values to the load current and output voltage. This ensures smooth power delivery.

• Thermal management: Select components with good thermal properties to handle heat dissipation effectively.

• Protection features: Use components that safeguard against voltage spikes, short circuits, and overcurrent conditions.

• Decoupling capacitors: Place high-quality capacitors near the input and output pins to reduce noise and stabilize voltage.

Poor component choices can lead to excessive losses in your circuit. For example, using an incorrectly designed inductor or transformer may cause inefficiency. Similarly, inadequate decoupling capacitors can result in unstable feedback and voltage ripple. To avoid these issues, choose components that align with the TPS54331DR's specifications.

Tip: Always verify the compatibility of your components with the TPS54331DR's operating conditions. This ensures your design remains efficient and reliable under varying loads and temperatures.

By focusing on these factors, you can optimize your circuit for performance and longevity. Proper component selection not only enhances efficiency but also simplifies your design process.

The TPS54331DR offers a unique combination of high efficiency, compact design, and robust protection features, making it a standout choice for power management. Its wide input voltage range, adjustable output voltage, and ability to deliver up to 3A of current ensure compatibility with diverse applications. Features like over-current and thermal protection enhance reliability, even in demanding environments.

Explore the datasheet to uncover more details about its capabilities and how it can elevate your designs.

FAQ

1. What is the primary function of the TPS54331DR?

The TPS54331DR is a DC-DC buck converter. It steps down higher input voltages to lower output voltages efficiently. This makes it ideal for powering sensitive electronic components in various applications.

2. How does the TPS54331DR achieve high efficiency?

The chip uses constant-frequency current-mode control and synchronous rectification. These features minimize energy loss and heat generation, allowing the TPS54331DR to reach up to 95% efficiency.

Tip: High efficiency reduces power consumption, which is crucial for battery-powered devices.

3. Can the TPS54331DR handle temperature fluctuations?

Yes, the TPS54331DR operates reliably in temperatures ranging from -40°C to 125°C. Its robust thermal design ensures consistent performance in both industrial and automotive environments.

4. What makes the TPS54331DR suitable for compact designs?

Its small SOIC-8 package and 500kHz switching frequency allow the use of smaller external components. This compact design saves board space, making it perfect for portable devices.

5. Does the TPS54331DR include protection features?

Yes, the chip offers built-in protection against overcurrent, overtemperature, and short circuits. These features safeguard your devices and ensure long-term reliability.

Note: These protections make the TPS54331DR a dependable choice for critical applications.
