TPS22966DPUR,TI,Adjustable Current Limit Power Management Chip
The TPS22966DPUR by Texas Instruments delivers exceptional power management for modern electronic systems. You can rely on its adjustable current limit to safeguard circuits from overloads and short circuits. This chip ensures stable performance with its advanced overcurrent protection. Its compact design makes it ideal for space-constrained devices like smartphones, IoT gadgets, and industrial equipment. With low power consumption and fast response, it enhances reliability in critical applications. Whether you're designing consumer electronics or embedded systems, this chip offers precise control and robust safety features to meet your needs.
Key Takeaways
The TPS22966DPUR features an adjustable current limit, allowing precise control to prevent overloads and enhance circuit safety.
With a low on-resistance of 18 mOhm, this chip minimizes energy loss, making it ideal for battery-powered devices and improving overall efficiency.
Its compact 2-mm × 3-mm design saves space on circuit boards, making it suitable for portable electronics, IoT devices, and wearables.
Built-in overcurrent protection ensures quick response to excessive current, safeguarding sensitive components and enhancing system reliability.
The chip operates over a wide voltage range of 0.8 V to 5.5 V, providing versatility for various applications, from consumer electronics to industrial systems.
The TPS22966DPUR's integrated thermal pad supports efficient heat dissipation, ensuring reliable performance even in high-power applications.
By choosing the TPS22966DPUR, designers gain a robust power management solution that combines efficiency, reliability, and advanced safety features.
Overview of the TPS22966DPUR
The TPS22966DPUR stands out as a reliable load switch IC designed for efficient power management. Its advanced features and compact design make it a preferred choice for modern electronic systems. Whether you are working on portable devices or IoT applications, this chip ensures smooth operation and robust protection.
What is the TPS22966DPUR?
The TPS22966DPUR is a high-performance load switch integrated circuit developed by Texas Instruments. It operates over a wide input voltage range of 0.8 V to 5.5 V, making it suitable for various power management scenarios. This chip features low on-resistance, which minimizes power loss and enhances efficiency. Its built-in 220-Ω load resistor ensures fast output discharge, providing stable and reliable performance.
This device includes two N-channel MOSFETs and supports a maximum continuous current of 6 A per channel. Its compact 2-mm × 3-mm 14-SON package with an integrated thermal pad allows efficient heat dissipation, even in high-power applications. With an operating temperature range of -40°C to +105°C, the TPS22966DPUR performs well in demanding environments.
Key Applications of the TPS22966DPUR
You can use the TPS22966DPUR in a wide range of applications due to its versatility and efficiency. Some of its key applications include:
Portable Devices: Ideal for smartphones, tablets, and multimedia players, where space and power efficiency are critical.
Wearable Electronics: Perfect for fitness trackers and smartwatches, ensuring reliable power management in compact designs.
IoT Devices: Supports low-voltage, digitally-controlled scenarios, enhancing flexibility and performance in connected devices.
Industrial Systems: Provides robust protection and efficient power delivery for industrial equipment and embedded systems.
Its ability to handle overcurrent conditions and provide reverse current protection makes it a dependable choice for these applications.
Why Choose the TPS22966DPUR for Power Management?
The TPS22966DPUR offers several advantages that make it an excellent choice for power management:
Efficient Power Delivery: Low on-resistance reduces energy loss, ensuring optimal performance in power-sensitive devices.
Built-in Protection Features: Overcurrent protection and reverse current blocking safeguard your circuits from potential damage.
Compact Design: The small package size saves space, making it suitable for devices with limited board area.
Ease of Integration: A simple enable pin allows easy control, simplifying the design process for engineers.
High Reliability: Its wide operating temperature range and efficient thermal dissipation ensure consistent performance in challenging environments.
By choosing the TPS22966DPUR, you gain access to a power management solution that combines efficiency, reliability, and advanced safety features.
Key Features of the TPS22966DPUR
Adjustable Current Limit
The TPS22966DPUR offers an adjustable current limit, allowing you to set precise thresholds for your circuit's current flow. This feature helps prevent overloads and short circuits, ensuring stable and reliable operation. By tailoring the current limit to your specific application, you can protect sensitive components and enhance the overall safety of your design. This flexibility makes the chip suitable for a wide range of devices, from portable electronics to industrial systems.
The adjustable current limit also supports low-voltage, digitally-controlled scenarios. This capability improves design flexibility and performance, especially in IoT devices and embedded systems. With this feature, you can achieve optimal power management without compromising on efficiency or reliability.
Overcurrent Protection
Overcurrent protection is a critical feature of the TPS22966DPUR. It safeguards your circuits by detecting and responding to excessive current conditions. When an overcurrent event occurs, the chip acts quickly to limit the current flow, preventing potential damage to your components. This fast response ensures that your system remains operational and protected, even in challenging environments.
The built-in overcurrent protection also includes an auto-recovery function. This means the chip can restore normal operation automatically after resolving the overcurrent condition. This feature enhances system reliability and reduces downtime, making the TPS22966DPUR a dependable choice for power management.
Low On-Resistance for Efficient Power Delivery
The TPS22966DPUR features low on-resistance, which minimizes power loss during operation. With a typical on-resistance of just 18 mOhm, this chip ensures efficient power delivery to your devices. Lower resistance translates to reduced heat generation, improving the overall energy efficiency of your system.
Efficient power delivery is especially important in portable and battery-powered applications. By reducing energy loss, the TPS22966DPUR helps extend battery life and maintain consistent performance. Its compact 2-mm × 3-mm 14-SON package with an integrated thermal pad further supports efficient heat dissipation, making it ideal for high-power applications.
Compact Design and Ease of Integration

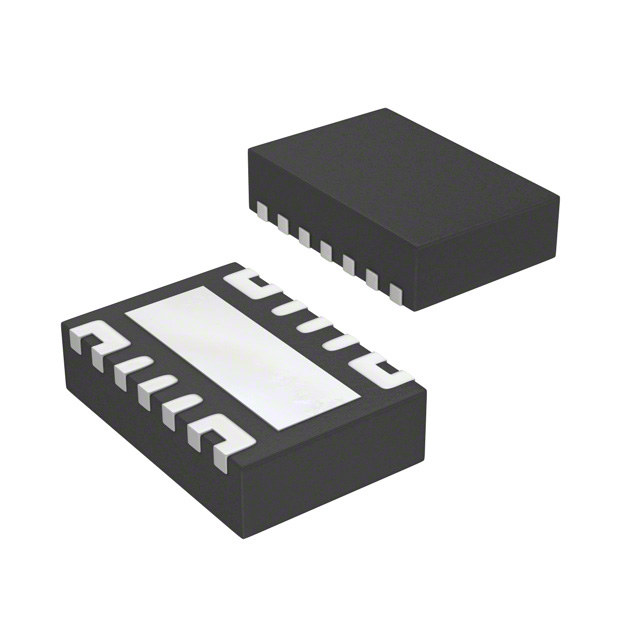

The TPS22966DPUR stands out with its compact 2-mm × 3-mm 14-SON package. This small footprint saves valuable space on your circuit board, making it an excellent choice for devices where size constraints are critical. Whether you're designing portable electronics or IoT gadgets, this chip fits seamlessly into your layout without compromising performance.
Efficient heat dissipation is another advantage of its design. The integrated thermal pad ensures that the chip remains cool even during high-power operations. This feature enhances reliability and allows you to use the TPS22966DPUR in demanding environments, such as industrial systems or automotive applications.
Integration into your projects is straightforward. The chip includes a simple enable pin, which makes controlling its operation easy. You can quickly incorporate it into your designs without the need for complex configurations. Its built-in 220-Ω load resistor for fast output discharge further simplifies the design process, ensuring smooth and reliable performance.
The TPS22966DPUR also supports a wide input voltage range of 0.8 V to 5.5 V. This flexibility allows you to use it across various power management scenarios, from low-voltage IoT devices to high-power industrial equipment. Its versatility ensures that you can adapt it to meet the specific requirements of your application.
By choosing the TPS22966DPUR, you gain a power management solution that combines space efficiency, thermal reliability, and ease of integration. This chip empowers you to create compact, efficient, and robust designs for modern electronic systems.
How the Adjustable Current Limit Works
The adjustable current limit in the TPS22966DPUR plays a vital role in ensuring the safety and reliability of your electronic designs. By allowing you to set precise current thresholds, this feature helps protect your circuit from potential damage caused by overloads or short circuits. Understanding how this functionality works can empower you to optimize your power management systems effectively.
Setting the Current Threshold
Setting the current threshold in the TPS22966DPUR is a straightforward process. The chip enables you to define the maximum current that can flow through your circuit. This threshold acts as a safeguard, ensuring that the current remains within safe limits. When the current exceeds the set value, the chip intervenes to prevent damage to sensitive components.
This feature is particularly useful in applications where precise control over current flow is essential. For example, in portable devices like smartphones or IoT gadgets, maintaining a stable current is critical to avoid overheating or performance issues. The TPS22966DPUR simplifies this task with its built-in capability to handle current adjustments efficiently.
Benefits of Adjustable Current Limit in Circuit Protection
The adjustable current limit offers several advantages for circuit protection:
Prevention of Overloads: By capping the current flow, the chip prevents excessive current from damaging your circuit.
Enhanced Component Safety: Sensitive components remain protected from sudden surges or short circuits.
Improved System Reliability: Consistent current regulation reduces the risk of system failures, ensuring stable operation.
Flexibility Across Applications: You can tailor the current limit to suit various devices, from low-power wearables to high-power industrial systems.
This feature not only safeguards your circuit but also enhances the overall performance of your design. It ensures that your devices operate smoothly, even under challenging conditions.
Examples of Adjustable Current Limit in Action
The practical applications of the adjustable current limit are vast. Here are a few examples:
Smartphones: In mobile devices, the chip regulates the current to prevent battery overheating during charging or heavy usage.
IoT Devices: For connected gadgets, it ensures stable current flow, improving performance in low-voltage, digitally-controlled environments.
Industrial Equipment: In machinery, the chip protects critical components from damage caused by unexpected current spikes.
Wearable Electronics: Fitness trackers and smartwatches benefit from precise current control, which extends battery life and enhances reliability.
These examples highlight how the TPS22966DPUR adapts to diverse scenarios, making it a versatile choice for modern electronic systems. Its ability to manage current effectively ensures that your designs remain safe and efficient.
Understanding Overcurrent Protection
Overcurrent protection is a vital feature in modern electronic systems. It ensures the safety and longevity of your devices by preventing excessive current from flowing through the circuit. The TPS22966DPUR incorporates advanced overcurrent protection mechanisms, making it a reliable choice for safeguarding your designs.
How Overcurrent Protection Prevents Circuit Damage
Overcurrent protection works by detecting abnormal current levels and responding immediately to mitigate potential damage. When the current exceeds the safe threshold, the TPS22966DPUR limits or halts the flow to protect sensitive components. This fast-response mechanism prevents overheating, short circuits, and permanent damage to your circuit.
The chip's ability to handle overcurrent conditions effectively stems from its integrated design. It combines precise current monitoring with rapid intervention, ensuring your circuit remains stable even during unexpected surges. This feature is particularly beneficial in applications like smartphones and IoT devices, where maintaining consistent performance is critical.
Scientific Research Findings: Studies on adjustable current limiting functions highlight the importance of fast-response mechanisms in preventing circuit damage. These mechanisms not only break the current flow but also supply a constant current to the load, avoiding disruptions caused by inrush currents.
Scenarios Where Overcurrent Protection is Essential
Overcurrent protection proves indispensable in various scenarios. Here are some common use cases:
Battery-Powered Devices: In portable electronics, overcurrent protection prevents battery overheating during charging or heavy usage.
Industrial Equipment: Machinery often faces sudden current spikes. The TPS22966DPUR ensures these spikes do not harm critical components.
IoT Applications: Connected devices require stable current flow to function reliably in low-voltage environments.
Wearable Electronics: Fitness trackers and smartwatches benefit from consistent current regulation, which enhances their durability and performance.
These scenarios demonstrate how overcurrent protection safeguards your devices across diverse applications. By integrating this feature, you can ensure the reliability and safety of your designs.
Advantages of Built-in Overcurrent Protection
The built-in overcurrent protection in the TPS22966DPUR offers several advantages:
Enhanced Reliability: The chip's auto-recovery function restores normal operation after resolving an overcurrent event. This reduces downtime and improves system reliability.
Simplified Design: With integrated protection features, you can eliminate the need for additional external components, streamlining your design process.
Improved Safety: By preventing excessive current flow, the chip protects your circuit from permanent damage, ensuring long-term performance.
Versatility: The overcurrent protection adapts to various applications, from low-power IoT devices to high-power industrial systems.
These benefits make the TPS22966DPUR a dependable solution for power management. Its ability to combine efficiency with robust protection ensures your designs remain safe and efficient.
Technical Specifications and Performance
Understanding the technical specifications of the TPS22966DPUR helps you evaluate its performance and suitability for your applications. This section explores its voltage and current ratings, thermal performance, and compatibility with other components.
Voltage and Current Ratings
The TPS22966DPUR operates across a wide input voltage range of 0.8 V to 5.5 V, making it versatile for various power management scenarios. This flexibility allows you to use it in low-voltage IoT devices or high-power industrial systems. The chip supports a maximum continuous current of 6 A per channel, ensuring efficient power delivery even in demanding applications.
Its low on-resistance of 18 mOhm minimizes energy loss, enhancing overall efficiency. This feature is particularly beneficial in battery-powered devices, where conserving energy is critical. The built-in 220-Ω load resistor ensures fast output discharge, maintaining stable performance during transitions.
Scientific Research Findings: Studies emphasize the importance of precise current limiting in power management applications. This functionality protects energy sources and loads from overcurrent conditions, ensuring safe and reliable operation.
By incorporating these robust voltage and current capabilities, the TPS22966DPUR provides a dependable solution for modern electronic systems.
Thermal Performance and Reliability
Thermal performance plays a crucial role in the reliability of power management chips. The TPS22966DPUR features an integrated thermal pad within its compact 2-mm × 3-mm 14-SON package. This design ensures efficient heat dissipation, preventing overheating during high-power operations.
The chip operates within a temperature range of -40°C to +105°C, making it suitable for harsh environments. Whether you are designing consumer electronics or industrial equipment, this wide operating range guarantees consistent performance.
Efficient thermal management also extends the lifespan of your devices. By maintaining optimal temperatures, the TPS22966DPUR reduces the risk of thermal stress on sensitive components. This reliability makes it a preferred choice for applications requiring long-term stability.
Scientific Research Findings: Fault current calculations are essential for safe operation in power distribution systems. Proper thermal management ensures that electrical equipment functions reliably under varying conditions.
Compatibility with Other Components
The TPS22966DPUR integrates seamlessly with a wide range of components, simplifying your design process. Its wide input voltage range and adjustable current limit make it adaptable to various circuit configurations. You can use it in low-voltage, digitally-controlled scenarios or high-power systems without compromising performance.
The chip’s simple enable pin allows easy control, reducing the complexity of your designs. Its built-in protection features, such as overcurrent and reverse current protection, eliminate the need for additional external components. This integration streamlines your circuit layout, saving both space and cost.
Scientific Research Findings: Reverse bias in diodes is effective for voltage clamping and overvoltage protection. Similarly, the TPS22966DPUR prevents current flow in reverse directions, protecting sensitive components from damage.
By ensuring compatibility with diverse components, the TPS22966DPUR empowers you to create efficient and reliable designs for modern electronic systems.
Use Cases and Applications
Consumer Electronics
The TPS22966DPUR excels in consumer electronics, where efficient power management is essential. Devices like smartphones, tablets, and multimedia players benefit from its compact design and reliable performance. Its low on-resistance ensures minimal energy loss, which helps extend battery life in portable devices. The built-in 220-Ω load resistor enables fast output discharge, ensuring smooth transitions during power cycles. This feature is particularly useful in gadgets that require consistent operation under varying loads.
The chip’s ability to handle a wide input voltage range of 0.8 V to 5.5 V makes it versatile for different electronic designs. Whether you are developing a high-performance gaming device or a lightweight e-reader, this load switch provides the stability and efficiency needed for optimal functionality. Its overcurrent protection safeguards sensitive components, ensuring your devices remain safe and operational even during unexpected current surges.
Industrial Equipment
In industrial systems, reliability and durability are critical. The TPS22966DPUR meets these demands with its robust design and advanced safety features. Its integrated thermal pad ensures efficient heat dissipation, allowing it to perform well in high-power applications. Operating within a temperature range of -40°C to +105°C, this chip maintains consistent performance even in harsh environments.
Industrial equipment often faces sudden current spikes that can damage critical components. The TPS22966DPUR prevents such issues with its precise current limiting and overcurrent protection. These features enhance system reliability and reduce downtime, making it an excellent choice for machinery and embedded systems. Its compact 2-mm × 3-mm package also saves valuable space on circuit boards, enabling more efficient designs in industrial applications.
Automotive Systems
Automotive systems demand high efficiency and reliability, especially in power management. The TPS22966DPUR delivers both, making it a valuable component in modern vehicles. Its ability to handle a maximum continuous current of 6 A per channel ensures efficient power delivery to various automotive subsystems. From infotainment systems to advanced driver-assistance systems (ADAS), this chip supports a wide range of applications.
The chip’s overcurrent protection and reverse current blocking features enhance safety in automotive designs. These mechanisms prevent damage to sensitive components, ensuring long-term reliability. Its compact size and efficient thermal management make it suitable for space-constrained environments within vehicles. Whether you are designing electric vehicles or traditional combustion engine systems, the TPS22966DPUR provides the power management capabilities needed for seamless operation.
IoT Devices and Wearables
The TPS22966DPUR excels in powering IoT devices and wearables, where compactness and efficiency are essential. You can rely on its advanced features to ensure stable performance in these innovative technologies. Its small 2-mm × 3-mm 14-SON package fits seamlessly into space-constrained designs, making it ideal for smartwatches, fitness trackers, and connected gadgets.
Efficient power management is critical for IoT devices. The TPS22966DPUR supports a wide input voltage range of 0.8 V to 5.5 V, allowing you to use it in low-voltage, digitally-controlled environments. This flexibility enhances the performance of IoT systems by ensuring consistent power delivery. Its low on-resistance of 18 mOhm minimizes energy loss, which helps extend battery life in portable devices.
Wearable electronics demand reliable operation under varying conditions. The TPS22966DPUR operates over a temperature range of -40°C to +105°C, ensuring durability in challenging environments. Its built-in 220-Ω load resistor enables fast output discharge, providing smooth transitions during power cycles. This feature ensures that your wearables maintain consistent functionality, even during heavy usage.
Key Insight: Studies highlight the importance of precise current limiting in wearables to prevent overheating and enhance safety. The TPS22966DPUR achieves this with its adjustable current limit and overcurrent protection.
You can also benefit from the chip’s auto-recovery function, which restores normal operation after resolving overcurrent events. This capability reduces downtime and enhances the reliability of your IoT devices. Whether you are designing a smart home system or a health-monitoring wearable, the TPS22966DPUR provides the robust power management needed to support your innovations.
By integrating the TPS22966DPUR into your IoT and wearable designs, you gain a solution that combines efficiency, reliability, and compactness. This chip empowers you to create cutting-edge devices that meet the demands of modern technology.
Comparison with Similar Chips
How the TPS22966DPUR Stands Out
The TPS22966DPUR distinguishes itself as a reliable and efficient power management solution. Its adjustable current limit provides precise control, ensuring your circuits remain protected from overloads and short circuits. This feature is particularly valuable in applications like smartphones and tablets, where stable current flow is critical for performance and safety. The chip’s low on-resistance of 18 mOhm minimizes energy loss, making it an excellent choice for battery-powered devices.
Another standout feature is its compact 2-mm × 3-mm package, which saves space on circuit boards. This design makes it ideal for portable devices and IoT gadgets. The integrated thermal pad ensures efficient heat dissipation, allowing the chip to perform well even in high-power applications. With a wide input voltage range of 0.8 V to 5.5 V, the TPS22966DPUR adapts to various scenarios, from low-voltage IoT systems to industrial equipment.
The built-in overcurrent protection and auto-recovery function enhance system reliability. These features reduce downtime and protect sensitive components, ensuring your designs remain operational under challenging conditions. By combining efficiency, safety, and versatility, the TPS22966DPUR stands out as a dependable choice for modern electronic systems.
Comparison with Other Texas Instruments Chips
Texas Instruments offers a range of power management chips, each tailored for specific applications. Compared to other TI chips, the TPS22966DPUR excels in its balance of features and compact design. For instance, while some TI chips focus solely on high-current applications, the TPS22966DPUR provides a versatile solution with its adjustable current limit and wide voltage range.
The TPS22966DPUR also integrates advanced safety mechanisms like reverse current protection and overcurrent protection. These features are not always present in other TI chips, making this model a more comprehensive option for circuit protection. Its low on-resistance further enhances energy efficiency, setting it apart from alternatives that may generate more heat or consume more power.
In addition, the TPS22966DPUR’s compact size and thermal management capabilities make it a better fit for space-constrained designs. Whether you are working on consumer electronics or industrial systems, this chip offers a unique combination of performance and reliability that outshines many other TI options.
Comparison with Competitor Products
When compared to competitor products, the TPS22966DPUR demonstrates clear advantages in efficiency and integration. Many competing chips lack the adjustable current limit feature, which gives the TPS22966DPUR an edge in providing precise control over current flow. This capability ensures better protection for your circuits, especially in devices like wearables and IoT gadgets.
The TPS22966DPUR’s low on-resistance and fast response time make it more energy-efficient than many alternatives. These attributes are crucial for battery-powered devices, where conserving energy directly impacts performance and longevity. Additionally, the chip’s auto-recovery function enhances reliability, a feature not commonly found in competitor products.
Its compact design also sets it apart. While some competing chips require additional external components for thermal management, the TPS22966DPUR includes an integrated thermal pad. This design simplifies your layout and reduces overall costs. By offering a robust combination of features, the TPS22966DPUR proves to be a superior choice over many competitor products in the market.
The TPS22966DPUR empowers you to design circuits with precision and reliability. Its adjustable current limit and overcurrent protection ensure your devices remain safe from overloads and short circuits. You can trust its compact design and efficient power delivery for applications ranging from consumer electronics to industrial systems. For instance, wearable fitness trackers integrate this chip to manage power consumption effectively while protecting sensitive components. By choosing the TPS22966DPUR, you gain a versatile solution that enhances circuit performance and safeguards your designs in diverse scenarios.
FAQ
What makes the TPS22966DPUR unique compared to other load switches?
The TPS22966DPUR stands out due to its adjustable current limit, which allows you to set precise thresholds for current flow. This feature ensures better circuit protection against overloads and short circuits. Its low on-resistance of 18 mOhm minimizes energy loss, making it highly efficient for battery-powered devices. Additionally, its compact 2-mm × 3-mm package with an integrated thermal pad supports efficient heat dissipation, which is not always available in similar products.
Can the TPS22966DPUR handle high-power applications?
Yes, the TPS22966DPUR supports a maximum continuous current of 6 A per channel, making it suitable for high-power applications. Its wide input voltage range of 0.8 V to 5.5 V and efficient thermal management ensure reliable performance even in demanding environments like industrial equipment or automotive systems.
How does the adjustable current limit benefit my design?
The adjustable current limit allows you to define the maximum current flow in your circuit. This feature prevents overloads and protects sensitive components from damage. It also enhances design flexibility, enabling you to tailor the chip for various applications, such as IoT devices, wearables, and portable electronics.
What is the difference between the TPS22966DPUR and equivalent products?
Equivalent products, such as TPS22966DST or TPS22966DSGR, share similar features like integrated FETs and controlled turn-on/off timing. However, the TPS22966DPUR offers unique advantages, including its adjustable current limit and compact design. These features provide greater flexibility and efficiency for modern electronic systems.
Is the TPS22966DPUR suitable for low-voltage applications?
Yes, the TPS22966DPUR operates within a voltage range of 0.8 V to 5.5 V, making it ideal for low-voltage applications. This versatility ensures compatibility with digitally-controlled scenarios, such as IoT devices and embedded systems, where precise power management is critical.
Does the TPS22966DPUR include overcurrent protection?
Yes, the TPS22966DPUR features built-in overcurrent protection. This mechanism detects excessive current and responds quickly to limit or halt the flow, preventing damage to your circuit. The chip also includes an auto-recovery function, which restores normal operation after resolving the overcurrent condition.
How does the TPS22966DPUR improve energy efficiency?
The TPS22966DPUR achieves energy efficiency through its low on-resistance of 18 mOhm. This minimizes power loss during operation, which is especially important for battery-powered devices. Efficient heat dissipation further enhances its performance, ensuring consistent operation without excessive energy consumption.
Can I use the TPS22966DPUR in space-constrained designs?
Yes, the TPS22966DPUR features a compact 2-mm × 3-mm 14-SON package. This small footprint saves valuable space on your circuit board, making it an excellent choice for portable devices, wearables, and IoT gadgets. Its integrated thermal pad also ensures reliable performance in tight spaces.
What types of applications benefit most from the TPS22966DPUR?
The TPS22966DPUR is versatile and supports a wide range of applications. It is ideal for consumer electronics like smartphones and tablets, industrial equipment, automotive systems, and IoT devices. Its adjustable current limit, overcurrent protection, and compact design make it suitable for both low-power and high-power scenarios.
How does the TPS22966DPUR compare to competitor products?
The TPS22966DPUR offers several advantages over competitor products. Its adjustable current limit provides precise control, which many alternatives lack. The chip’s low on-resistance and fast response time enhance energy efficiency, while its compact design simplifies integration. Features like overcurrent protection and auto-recovery further set it apart, ensuring reliability and safety in diverse applications.
