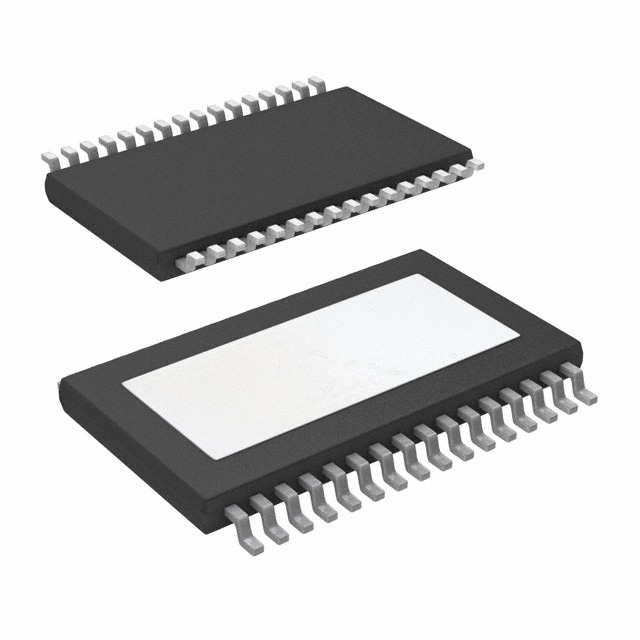

TPA3116D2DADR,TI,High-efficiency digital audio power amplifier sound system chip

ymn@deirchip.com

·February 21, 2025

·13 min read

TPA3116D2DADR,TI,High-efficiency digital audio power amplifier sound system chip — https://deirchip.com/

The TPA3116D2DADR chip is a high-efficiency digital audio power amplifier designed to deliver exceptional sound quality. Its advanced features make it a cornerstone in modern audio systems. With up to 90% efficiency, it minimizes heat generation, making it ideal for battery-powered devices. You can use it in stereo (2x50W) or mono (1x100W) configurations, ensuring flexibility for various applications.

This chip has gained popularity for its versatility. It powers home audio systems, portable speakers, and car audio setups with ease. Its compact size and reliable performance also make it a favorite for DIY audio projects and embedded systems. Whether you're enhancing a home theater or building a Bluetooth speaker, the TPA3116D2DADR ensures high-quality audio output with minimal distortion.

Feature	Description
High Efficiency	Up to 90% efficient operation, reducing heat generation for battery use.
Multiple Channels	Supports stereo (2x50W) and mono (1x100W) configurations.
Wide Supply Voltage Range	Operates efficiently within 4.5V to 26V.
Integrated Protection	Built-in protections for undervoltage, overload, short-circuit, and thermal.
Advanced Thermal Management	Efficient heat dissipation for reliable operation.
Durable Component Design	Long-term reliability and minimal maintenance.

The TPA3116D2DADR chip enhances modern sound systems by combining high performance with energy efficiency. Its ability to suppress noise and deliver high-fidelity audio ensures a superior listening experience. Whether you're an audio enthusiast or a professional, this chip provides the reliability and quality you need.

Key Takeaways

The TPA3116D2DADR chip works with 90% efficiency. This saves power and keeps devices cooler.
It can be used in stereo or mono setups. This makes it useful for many audio needs.
It has safety features like overcurrent and heat protection. These make your audio system last longer.
The chip gives great sound with very little distortion. This means you hear clear and enjoyable audio.
Its small size and flexibility are great for DIY projects. It’s also good for home theaters and portable speakers.

Key Features of the TPA3116D2DADR

High-Efficiency Performance

Power output and energy efficiency

The TPA3116D2DADR stands out as a highly efficient audio amplifier IC. Its Class-D operation achieves over 90% efficiency, significantly reducing heat generation. This feature makes it ideal for battery-powered devices and compact systems. You can enjoy powerful sound without worrying about excessive energy consumption. The chip also minimizes idle power loss, which helps reduce the size of heat sinks in your design.

Another key advantage is its multimode operation. This flexibility allows you to adapt the amplifier for various audio applications. Whether you need stereo (2x50W) or mono (1x100W) configurations, the TPA3116D2DADR delivers consistent and reliable output power.

Wide supply voltage range

The wide supply voltage range of 4.5V to 26V ensures compatibility with diverse power sources. This feature simplifies integration into different systems, from home theaters to portable speakers. The feedback power stage architecture enhances power supply rejection ratio (PSRR), reducing the need for complex power supply units. With this amplifier, you can achieve stable performance across a broad range of operating conditions.

Feature	Description
Wide Voltage Range	Operates efficiently between 4.5V and 26V.
Efficient Class-D Operation	>90% efficiency reduces heat and power loss.
Feedback Power Stage	High PSRR minimizes power supply requirements.

Sound Quality Enhancements

Low distortion and noise suppression

The TPA3116D2DADR ensures crystal-clear audio output by suppressing unwanted noise and distortion. Its low total harmonic distortion plus noise (THD+N) guarantees minimal interference, even at high output power levels. Differential inputs enhance noise rejection, while pop and click suppression eliminates transient noises during power-up or shutdown. These features ensure a seamless listening experience.

High-fidelity sound reproduction

This amplifier excels in delivering high-fidelity sound. Its efficient Class-D amplification reduces heat while maintaining exceptional audio quality. You can enjoy rich bass, clear midrange, and crisp treble in your audio system. The selectable gain settings and bass boost options allow you to customize the output to suit your preferences. Whether you're using it in a home theater or a car audio setup, the TPA3116D2DADR ensures an immersive sound experience.

Feature	Description
Low EMI	Reduces electromagnetic interference.
Low THD+N	Ensures minimal distortion for clear sound.
Pop and Click Suppression	Prevents unwanted transient noises.
Selectable Gain Settings	Allows customization of amplification levels.

Built-in Protection Mechanisms

Overcurrent and thermal protection

The TPA3116D2DADR includes robust protection mechanisms to ensure reliable operation. Overcurrent protection safeguards the amplifier from excessive current flow, while thermal protection prevents overheating. These features enhance the durability of your audio system, even under demanding conditions.

Stable operation for long-term use

Integrated self-protection circuits, such as over-voltage, under-voltage, and short-circuit protection, ensure stable operation over time. Fault reporting alerts you to potential issues, allowing you to address them before they cause damage. These mechanisms make the TPA3116D2DADR a dependable choice for long-term audio applications.

Protection Mechanism	Description
Overcurrent	Protects against excessive current flow.
Overtemperature	Prevents damage from overheating.
Short-Circuit	Shuts down the amplifier in case of a short.

Performance Analysis of the TPA3116D2DADR

Audio Output Quality

Clarity and detail in sound

The TPA3116D2DADR delivers exceptional clarity and detail in sound, making it a standout choice for audio enthusiasts. Its low Total Harmonic Distortion plus Noise (THD+N) of just 0.005% ensures minimal distortion, even at high power levels. This feature allows you to enjoy clean and precise audio output. The chip also boasts a high Signal-to-Noise Ratio (SNR) of 105 dB, which ensures that background noise remains virtually undetectable. These metrics highlight the chip's ability to reproduce sound with remarkable accuracy.

Metric	Abbreviation	Value	Unit	Conditions
Signal-to-Noise Ratio	SNR	105	dB	A-weighted, VDD = 12V
Total Harmonic Distortion + Noise	THD+N	0.005	%	1kHz, 1W, 8Ω, VDD = 12V
Input Sensitivity	VIN	200	mV	VDD = 12V, 1kHz, 1W into 8Ω
Input Impedance	ZIN	10	kΩ	-

Handling of bass, treble, and midrange

This amplifier excels in handling bass, treble, and midrange frequencies. Its wide frequency response ensures that every note is reproduced with precision. You can experience deep, rich bass without distortion, clear midrange tones, and crisp treble. The selectable gain settings allow you to fine-tune the output to match your preferences, making it suitable for various audio setups.

Efficiency and Heat Management

Power consumption and heat dissipation

The TPA3116D2DADR operates with up to 90% efficiency, significantly reducing power consumption. This high efficiency minimizes heat generation, making it ideal for battery-powered devices and compact systems. The chip also features low idle power loss, which reduces the need for large heat sinks. These characteristics ensure reliable performance while keeping your system cool.

Operates with up to 90% efficiency, reducing heat generation.
Features low idle power loss, minimizing heat sink requirements.

Comparison with other audio power amplifiers

Compared to other audio power amplifiers, the TPA3116D2DADR stands out for its advanced thermal management. Its Class-D operation ensures efficient heat dissipation, even in demanding environments. This design allows the amplifier to maintain reliable performance without overheating, making it a superior choice for high-performance audio systems.

Advanced thermal management for efficient heat dissipation.
Class-D operation reduces heat generation significantly.
Reliable operation in demanding environments.

Versatility in Audio Applications

Compatibility with different speaker impedances

The TPA3116D2DADR offers excellent compatibility with various speaker impedances. It can drive both 4-Ω and 8-Ω speakers with ease, ensuring flexibility for different audio setups. This feature makes it suitable for home theaters, portable speakers, and car audio systems.

Performance in mono and stereo configurations

This amplifier supports both mono and stereo configurations, providing versatility for diverse applications. In stereo mode, it delivers 2 × 50 W into a 4-Ω load, while in mono mode, it outputs 1 × 100 W. Its high efficiency allows it to operate without an external heat sink in certain configurations, making it a practical choice for compact designs.

Supports both mono and stereo configurations.
Outputs 2 × 50 W in stereo mode and 1 × 100 W in mono mode.
Operates efficiently without an external heat sink in specific setups.

Practical Applications of the TPA3116D2DADR

Common Use Cases

Home theater systems

The TPA3116D2DADR chip enhances home theater systems by driving multiple speakers with high efficiency. Its ability to deliver immersive audio makes it a perfect choice for creating a cinematic experience. You can integrate this chip into soundbars or surround sound setups to achieve rich, high-quality sound output. Its low distortion ensures that every dialogue and sound effect is crystal clear.

Portable and Bluetooth speakers

This chip is ideal for portable and Bluetooth speakers due to its compact size and high efficiency. It operates effectively in battery-powered devices, ensuring long-lasting performance. Whether you’re designing a small digital amplifier board or a powerful portable speaker, the TPA3116D2DADR provides excellent sound quality with minimal energy consumption.

Automotive audio setups

In automotive audio setups, the TPA3116D2DADR delivers robust performance. It efficiently powers car speakers and subwoofers, providing a rich audio experience even in demanding environments. Its advanced thermal management ensures reliable operation, making it a dependable choice for car amplifiers.

Setup and Integration Tips

Power supply and voltage considerations

To achieve optimal performance, you should use a power supply within the recommended range of 4.75V to 18V. Common options include 12V or 24V supplies. Proper voltage regulation ensures stable operation and prevents damage to the chip.

Specification	Value Range
Supply Voltage (VDD)	4.75V to 18V
Common Power Supply	12V or 24V

Circuit design and speaker connections

When designing circuits, focus on proper heat sinking to maintain thermal stability. A well-planned PCB layout minimizes noise and enhances performance. Adding LC filters to the output reduces switching noise, ensuring clean audio signals. For speaker connections, ensure compatibility with the chip’s output power and impedance range.

Scalability and Compatibility

Supported devices and systems

The TPA3116D2DADR works seamlessly with various devices, including home audio systems, portable speakers, car audio systems, televisions, and soundbars. Its versatility also makes it popular in DIY audio projects and embedded systems.

Expanding to larger audio setups

This chip supports both stereo and mono configurations, making it scalable for larger setups. You can use it in home theaters or public address systems to drive multiple speakers. Its wide supply voltage range and integrated protections ensure reliable performance in complex audio systems.

Tip: For larger setups, ensure proper speaker connections and use a stable power supply to maximize the chip’s potential.

Why Choose the TPA3116D2DADR Audio Power Amplifier?

Advantages Over Competitors

Cost-effectiveness and affordability

The TPA3116D2DADR offers exceptional value for its price, making it an attractive choice for both hobbyists and professionals. Its high efficiency, up to 90%, reduces energy consumption and minimizes heat generation. This efficiency lowers the need for additional cooling components, saving costs in system design. The chip’s integrated protection features, such as undervoltage, overload, and thermal safeguards, further enhance its reliability, reducing maintenance expenses over time.

Superior performance-to-price ratio

This audio power amplifier delivers outstanding performance metrics that set it apart from competitors. Its low Total Harmonic Distortion plus Noise (THD+N) of 0.005% ensures crystal-clear sound reproduction. The high Signal-to-Noise Ratio (SNR) of 105 dB guarantees minimal background noise, even in demanding environments. These specifications make it a top-tier choice for applications requiring high-fidelity audio output.

Specification	Value
Signal-to-Noise Ratio (SNR)	105 dB A-weighted
Total Harmonic Distortion + Noise	0.005%
Input Sensitivity	200 mV
Input Impedance	10 kΩ
Operating Temperature Range	-40 to 85 °C
Storage Temperature Range	-65 to 150 °C

The TPA3116D2DADR combines these advanced features with affordability, offering a superior performance-to-price ratio compared to other amplifiers in its class.

Ideal Scenarios for Use

DIY audio projects and enthusiasts

If you enjoy building your own audio systems, the TPA3116D2DADR is an excellent choice. Its ease of use and reliable performance make it a favorite among hobbyists. The chip’s compact size and high efficiency allow you to create portable and battery-powered devices with minimal effort. Whether you’re designing a Bluetooth speaker or a home audio system, this amplifier provides the flexibility and quality you need.

Professional audio installations

For professional setups, the TPA3116D2DADR offers unmatched versatility and reliability. Its high efficiency ensures consistent performance, even in large-scale installations. You can use it in home theaters, public address systems, or automotive audio setups. The integrated protection features safeguard your equipment, ensuring long-term stability and reducing the risk of system failures.

High Efficiency: Operates at up to 90% efficiency, reducing heat and energy costs.
Versatility: Suitable for various applications, including home audio, portable speakers, and public address systems.
Integrated Protection Features: Enhances reliability with built-in safeguards.

The TPA3116D2DADR stands out as a dependable and versatile solution for both DIY enthusiasts and professional audio engineers.

The TPA3116D2DADR stands out for its exceptional audio performance, high efficiency, and versatile applications. Its features include low power consumption, short-circuit protection, and a wide supply voltage range, making it a reliable choice for various audio systems.

Feature	Description
Exceptional Audio Performance	Delivers superior sound quality with high efficiency and low total harmonic distortion.
Dual-channel Class-D amplifier	Supports driving speakers with high output power and low noise operation.
Integrated power stage	Simplifies design and enhances performance in audio applications.
Thermal protection	Ensures reliability and safety during operation.
Wide supply voltage range	Compatible with various designs and applications.

You can use this chip in home audio systems, portable speakers, car audio setups, and even DIY projects. Its compact size and robust performance make it ideal for professionals and hobbyists alike. Whether you're designing a home theater or a Bluetooth speaker, the TPA3116D2DADR ensures high-quality sound output and long-term reliability.

Tip: For optimal results, pair the TPA3116D2DADR with compatible speakers and a stable power supply.

FAQ

What makes the TPA3116D2DADR chip ideal for audio applications?

The TPA3116D2DADR chip offers high efficiency, low power consumption, and excellent noise suppression. These features ensure high-fidelity sound output and stable operation. Its versatility makes it suitable for home theaters, portable speakers, and car audio systems.

Tip: Use this chip for applications requiring both high performance and reliability.

How do you connect the TPA3116D2DADR to speakers?

You can connect the chip to speakers by matching the speaker impedance (4Ω or 8Ω) with the amplifier's output. Ensure proper wiring and use LC filters to reduce switching noise for clean audio signals.

Speaker Impedance	Supported Configuration
4Ω	Stereo or Mono
8Ω	Stereo or Mono

Can the TPA3116D2DADR handle high power levels?

Yes, the chip supports up to 2 × 50W in stereo mode or 1 × 100W in mono mode. Its built-in thermal and overcurrent protection ensures safe operation even at high power levels.

Note: Always use a stable power supply to maximize performance.

Is the TPA3116D2DADR suitable for DIY projects?

Absolutely! Its compact size, high efficiency, and ease of integration make it perfect for DIY audio projects. You can use it to build Bluetooth speakers, home audio systems, or even custom car audio setups.

What power supply should you use with the TPA3116D2DADR?

The chip operates efficiently within a 4.5V to 26V range. A 12V or 24V power supply is commonly used. Ensure proper voltage regulation to avoid damage and maintain stable performance.

Reminder: Check the power supply's compatibility with your circuit design.
