TLC2543IDWR,TI,Analog to Digital Converter

The TLC2543IDWR stands out as a high-performance 12-bit analogue-to-digital converter designed by Texas Instruments. It offers exceptional precision and efficiency, making it a reliable choice for various applications. With its 14 input channels, this converter efficiently handles multiple analogue signals, ensuring accurate digital outputs. Its low power consumption enhances its suitability for energy-sensitive systems. The device integrates advanced features like a reference voltage generator and a serial interface, simplifying its use in complex designs. Its robust design and wide operating temperature range make it ideal for industrial automation, instrumentation, and data acquisition systems.

Key Takeaways

The TLC2543IDWR offers high-resolution 12-bit conversion, ensuring precise digital representation of analogue signals, making it ideal for applications requiring accuracy.
With 14 input channels, this ADC allows for simultaneous monitoring of multiple signals, simplifying system design and reducing hardware complexity.
Its low power consumption enhances battery life in portable devices, making it a perfect choice for energy-sensitive applications.
The integrated reference voltage generator and serial interface streamline the design process, eliminating the need for external components and ensuring easy integration.
The wide operating temperature range of -40°C to 85°C guarantees reliable performance in harsh environments, suitable for industrial and outdoor applications.
Built-in self-test modes enhance reliability by allowing engineers to verify functionality and troubleshoot issues without additional equipment.
Texas Instruments provides extensive support and documentation, aiding engineers in optimising the performance of the TLC2543IDWR in their designs.

Key Features of the TLC2543IDWR

High-Level Overview of Specifications

The TLC2543IDWR offers a robust set of specifications tailored for high-performance analogue-to-digital conversion. This 12-bit ADC ensures precise and accurate digital representation of analogue signals, making it suitable for applications requiring high resolution. It features 14 input channels, enabling the handling of multiple signals simultaneously. The device operates with a minimum supply voltage of 4.5V and supports a wide operating temperature range from -40°C to 85°C. Its compact 20-pin SOIC package makes it an excellent choice for space-constrained designs. Additionally, the low power consumption of the TLC2543IDWR enhances its usability in battery-powered systems.

Unique Features of the TLC2543IDWR

This converter incorporates several unique features that set it apart from other ADCs. The integrated reference voltage generator simplifies the design process by eliminating the need for external components. Its serial interface ensures seamless communication with microcontrollers and other digital systems. The built-in sample-and-hold function enhances signal stability during conversion, resulting in more reliable outputs. Furthermore, the TLC2543IDWR includes self-test modes, which improve reliability and facilitate easier troubleshooting during operation. These features make it a versatile and user-friendly solution for engineers.

Benefits of the TLC2543IDWR in Practical Scenarios

The TLC2543IDWR delivers significant benefits in real-world applications. Its high-resolution 12-bit conversion ensures precise data acquisition, which is critical in instrumentation and industrial automation. The 14 input channels allow engineers to monitor multiple signals without requiring additional hardware, reducing system complexity. The low power consumption extends the battery life of portable devices, making it ideal for energy-sensitive applications. Its wide operating temperature range ensures reliable performance in harsh environments, such as industrial settings. The compact design saves valuable space in electronic systems, making it suitable for modern, space-efficient designs.

Technical Specifications of the TLC2543IDWR

Resolution and Sampling Rate

The TLC2543IDWR delivers a high-resolution 12-bit conversion, ensuring precise representation of analogue signals in digital form. This level of resolution allows for detailed signal analysis, making it suitable for applications requiring accuracy and reliability. The device employs a successive approximation register (SAR) architecture, which supports fast and efficient sampling. Its sampling rate ensures that even rapidly changing analogue signals are accurately captured and converted into digital outputs. This capability is particularly valuable in data acquisition systems where precision and speed are critical.

Input Channels and Multiplexing Capabilities

This analog-to-digital converter features 14 input channels, offering flexibility in handling multiple analogue signals simultaneously. The integrated analogue multiplexer enables seamless switching between these channels, reducing the need for external components. Engineers can connect various sensors or signal sources to the device, simplifying system design and minimising hardware complexity. The efficient multiplexing capabilities ensure that each input signal is accurately processed and converted into a corresponding digital output. This feature makes the TLC2543IDWR an excellent choice for systems requiring multi-channel data acquisition.

Operating Voltage and Temperature Range

The TLC2543IDWR operates within a supply voltage range starting at 4.5V, ensuring compatibility with a wide variety of electronic systems. Its low power consumption further enhances its suitability for battery-powered devices. The device is designed to function reliably across a broad temperature range, from -40°C to 85°C. This robust operating range ensures consistent performance in challenging environments, such as industrial settings or outdoor applications. The combination of energy efficiency and durability makes this 12-bit ADC a dependable solution for diverse use cases.

Applications of the TLC2543IDWR

Common Use Cases in Various Industries

The TLC2543IDWR finds extensive use across diverse industries due to its precision and versatility. In industrial automation, it plays a crucial role in monitoring and controlling processes by converting analog signals from sensors into accurate digital data. This ensures efficient operation and precise adjustments in machinery. In instrumentation, the 12-bit resolution of this converter enables detailed signal analysis, which is essential for scientific measurements and laboratory equipment. Data acquisition systems also benefit significantly from its 14 input channels, allowing simultaneous monitoring of multiple signals. The device’s low power consumption makes it ideal for portable medical devices, where energy efficiency is critical. Its robust design ensures reliable performance in harsh environments, such as automotive and aerospace applications.

Examples of Systems Where It Excels

The TLC2543IDWR excels in systems requiring high-resolution analog-to-digital conversion and multi-channel data handling. For instance, in environmental monitoring systems, it processes data from multiple sensors measuring temperature, humidity, and air quality. This ensures accurate and real-time reporting. In industrial robotics, the device converts analog signals from position and force sensors into precise digital outputs, enabling smooth and accurate robotic movements. Another example includes its use in smart grid systems, where it monitors electrical parameters like voltage and current, ensuring efficient energy distribution. The built-in self-test modes enhance reliability, making it a preferred choice for critical systems requiring minimal downtime.

Comparison with Other 12-bit ADCs

When compared to other 12-bit ADCs, the TLC2543IDWR demonstrates several advantages. Unlike the AMC1204BDWR, which focuses on isolated analog-to-digital conversion, the TLC2543IDWR offers 14 input channels, providing greater flexibility for multi-signal applications. Compared to the TLC2543CDWR, the TLC2543IDWR maintains similar specifications but includes enhanced features like built-in self-test modes, improving reliability. The MAX189CCWE, another competitor, offers comparable resolution but lacks the wide operating temperature range of the TLC2543IDWR, limiting its use in extreme environments. These distinctions highlight the TLC2543IDWR as a versatile and dependable choice for engineers seeking a balance of performance, reliability, and adaptability.

Integration and Design Considerations

Guidelines for System Integration

Integrating the TLC2543IDWR into a system requires careful planning to ensure optimal performance. Engineers should begin by evaluating the device's electrical requirements, such as its operating voltage range of 4.5V to 5.5V. This ensures compatibility with the power supply of the target system. Proper grounding is essential to minimise noise and interference during analogue-to-digital conversion. Designers should connect the device's analogue and digital grounds to a common point to maintain signal integrity. Design integration.

The serial interface of the TLC2543IDWR simplifies communication with microcontrollers or processors. Engineers should configure the SPI (Serial Peripheral Interface) settings to match the device's requirements, ensuring seamless data transfer. The 14 input channels allow for multiple signal connections, but designers must consider the impedance of the connected sensors or sources. Using appropriate buffering circuits can help maintain signal quality.

To maximise the device's capabilities, engineers should utilise the built-in reference voltage generator. This feature eliminates the need for external reference components, simplifying the design process. However, if an external reference is preferred, it must meet the device's specifications for stability and accuracy.

Best Practices for Optimising Performance

To achieve the best performance from the TLC2543IDWR, engineers should follow several best practices. Shielding the analogue input signals reduces the impact of electromagnetic interference (EMI). Placing decoupling capacitors close to the power supply pins of the device helps stabilise the voltage and minimises noise.

The sample-and-hold function of the TLC2543IDWR ensures stable signal conversion. To optimise this feature, designers should ensure that the input signals are within the specified voltage range. Signals outside this range may lead to inaccurate conversions. Additionally, the use of low-pass filters on the input channels can help remove high-frequency noise, improving the accuracy of the digital output.

Thermal management is another critical consideration. Although the device operates reliably within a temperature range of -40°C to 85°C, excessive heat can affect its performance. Engineers should ensure adequate ventilation or use heat sinks in high-temperature environments. Regular testing during the design phase can help identify potential issues and ensure consistent performance.

Troubleshooting and Self-Test Features

The TLC2543IDWR includes built-in self-test modes, which simplify troubleshooting during system development and operation. These modes allow engineers to verify the functionality of the device without requiring additional testing equipment. Activating the self-test feature generates known outputs, which can be compared against expected values to identify any discrepancies.

When troubleshooting, engineers should first check the power supply and grounding connections. Voltage fluctuations or improper grounding can cause erratic behaviour. Verifying the configuration of the serial interface is also crucial, as incorrect settings may lead to communication errors.

If the device fails to produce accurate outputs, inspecting the input signals is essential. Engineers should ensure that the signals are within the specified range and free from excessive noise. Using an oscilloscope can help visualise the signals and identify potential issues.

The self-test feature also aids in preventive maintenance. Regularly running self-tests can help detect early signs of wear or degradation, allowing for timely intervention. This enhances the reliability and longevity of systems incorporating the TLC2543IDWR.

Advantages of the TLC2543IDWR

Cost-Effectiveness and Reliability

The TLC2543IDWR offers an excellent balance between performance and affordability. Its integration of advanced features, such as a built-in reference voltage generator and self-test modes, reduces the need for additional external components. This minimises overall system costs, making it a cost-effective choice for engineers working within budget constraints.

Reliability stands as a key strength of this device. Its robust design ensures consistent performance across a wide operating temperature range of -40°C to 85°C. This makes it suitable for demanding environments, including industrial and outdoor applications. The inclusion of self-test modes enhances its dependability by allowing engineers to identify and resolve potential issues during operation. These attributes make the TLC2543IDWR a trusted solution for long-term use in critical systems.

Energy Efficiency and Compact Design

Energy efficiency is a standout feature of the TLC2543IDWR. Its low power consumption makes it ideal for battery-powered devices and energy-sensitive applications. By consuming minimal energy, the device extends the operational life of portable systems, which is particularly valuable in medical instruments and remote monitoring equipment.

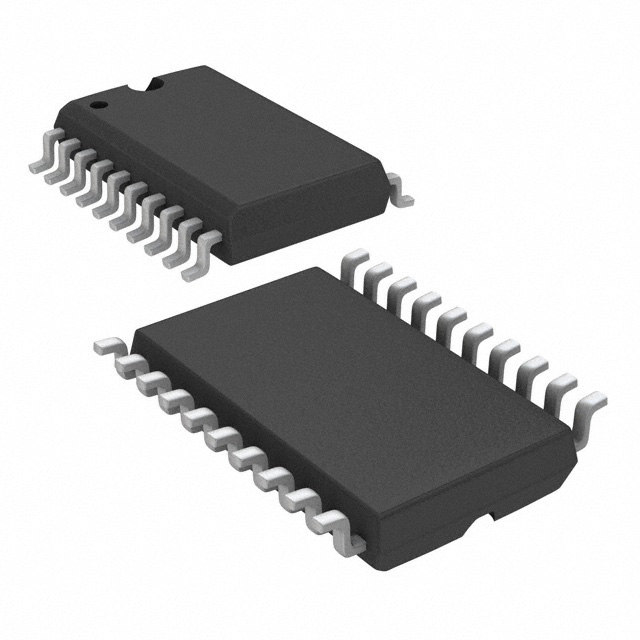

The compact 20-pin SOIC package of the TLC2543IDWR further enhances its appeal. Its small size allows it to fit seamlessly into space-constrained designs, such as handheld devices and compact industrial systems. This combination of energy efficiency and a compact form factor ensures that the device meets the demands of modern electronic designs, where space and power are often limited.

Support and Documentation from Texas Instruments

Texas Instruments provides comprehensive support and documentation for the TLC2543IDWR, ensuring a smooth integration process for engineers. The detailed datasheets and application notes offer valuable insights into the device's specifications, features, and usage guidelines. These resources simplify the design process and help engineers optimise the performance of their systems.

Additionally, Texas Instruments maintains an active online community and technical support channels. Engineers can access forums, FAQs, and direct assistance to address any challenges they encounter. This level of support underscores the commitment of Texas Instruments to ensuring customer success. The availability of extensive documentation and expert guidance makes the TLC2543IDWR a reliable choice for both novice and experienced designers.

Future Trends in Analogue-to-Digital Conversion

Emerging Applications in AI and IoT

The integration of analogue-to-digital conversion technology with artificial intelligence (AI) and the Internet of Things (IoT) is shaping the future of electronics. AI-driven systems rely heavily on precise data inputs, which analogue-to-digital converters (ADCs) provide by transforming real-world analogue signals into digital data. This capability enables AI to process and analyse information from various sources, such as sensors and monitoring devices.

In IoT applications, ADCs play a pivotal role in connecting physical devices to digital networks. For instance, environmental monitoring systems use ADCs to convert sensor data, such as temperature and humidity, into digital formats for real-time analysis. These systems benefit from the high resolution and low power consumption of modern ADCs, such as the TLC2543IDWR, which ensures accurate data acquisition while conserving energy.

AI and IoT also intersect in advanced healthcare technologies. Companies like Firefly Bio are exploring innovative solutions, such as degrader antibody conjugates (DACs), which combine ADC technology with protein degraders. AI enhances this process by analysing vast datasets to identify potential candidates for development. This approach accelerates research and reduces costs, making it a promising trend in medical advancements.

The convergence of AI and IoT presents challenges, including data security and system integration. However, the continuous evolution of ADCs, with features like built-in self-test modes and wide operating temperature ranges, addresses these issues. These advancements ensure reliable performance in diverse environments, supporting the growth of AI and IoT applications.

Advancements in ADC Technology

The field of analogue-to-digital conversion is witnessing significant technological advancements. Modern ADCs, such as the TLC2543IDWR, incorporate features that enhance performance and simplify integration. The inclusion of integrated reference voltage generators and serial interfaces reduces the need for external components, streamlining system design.

Emerging ADC technologies focus on improving resolution and sampling rates. High-resolution ADCs enable detailed signal analysis, which is essential for applications like scientific instrumentation and industrial automation. Faster sampling rates allow ADCs to capture rapidly changing signals, ensuring accurate digital representation in dynamic environments.

Innovations in ADC architecture are also driving progress. Successive approximation register (SAR) ADCs, like the TLC2543IDWR, offer a balance between speed and precision, making them suitable for a wide range of applications. Additionally, advancements in packaging, such as compact SOIC designs, address the demand for space-efficient solutions in modern electronics.

The integration of ADCs with AI is another noteworthy trend. AI algorithms optimise ADC performance by predicting and compensating for errors, enhancing accuracy. This synergy is particularly valuable in applications requiring high reliability, such as autonomous vehicles and smart grids.

Future developments in ADC technology will likely focus on energy efficiency and adaptability. Low-power designs will support the growing demand for portable and battery-powered devices. Meanwhile, adaptable ADCs capable of handling diverse input signals will cater to the expanding scope of applications in AI, IoT, and beyond.

The TLC2543IDWR exemplifies a high-performance solution for analogue-to-digital conversion. Its 12-bit resolution ensures precise data acquisition, while the 14 input channels provide flexibility for handling multiple signals. The low power consumption makes it ideal for energy-sensitive systems, including battery-powered devices. These features, combined with its compact design, make it suitable for applications ranging from industrial automation to instrumentation.

Texas Instruments offers extensive resources and support for this device. Engineers can explore detailed documentation or contact authorised distributors to integrate the TLC2543IDWR into their designs effectively.

FAQ

What is the package type of the TLC2543IDWR?

The TLC2543IDWR comes in a SOIC-20 package. This compact design ensures it fits seamlessly into space-constrained systems, making it ideal for modern electronic applications.

How many input channels does the TLC2543IDWR support?

This device supports 14 input channels, allowing engineers to connect multiple analogue signals. The integrated multiplexer simplifies switching between these channels, reducing the need for additional hardware.

What is the resolution of the TLC2543IDWR?

The TLC2543IDWR offers a 12-bit resolution, ensuring precise and accurate digital representation of analogue signals. This high resolution makes it suitable for applications requiring detailed signal analysis.

What is the operating temperature range of the TLC2543IDWR?

The TLC2543IDWR operates reliably within a temperature range of -40°C to 85°C. This wide range ensures consistent performance in both industrial and outdoor environments.

Does the TLC2543IDWR include a reference voltage generator?

Yes, the TLC2543IDWR integrates a reference voltage generator. This feature eliminates the need for external components, simplifying the design process and enhancing system efficiency.

What type of architecture does the TLC2543IDWR use?

The TLC2543IDWR employs a successive approximation register (SAR) architecture. This design ensures fast and efficient sampling, making it suitable for applications requiring speed and precision.

Can the TLC2543IDWR perform self-tests?

Yes, the device includes built-in self-test modes. These modes allow engineers to verify functionality during development and operation, enhancing reliability and simplifying troubleshooting.

What is the minimum supply voltage required for the TLC2543IDWR?

The TLC2543IDWR operates with a minimum supply voltage of 4.5V. This ensures compatibility with a wide range of electronic systems.

How does the TLC2543IDWR communicate with other devices?

The TLC2543IDWR features a serial interface, enabling seamless communication with microcontrollers and processors. This interface simplifies data transfer and integration into complex systems.

What are the primary applications of the TLC2543IDWR?

The TLC2543IDWR excels in applications such as data acquisition systems, instrumentation, and industrial automation. Its precision, low power consumption, and robust design make it a versatile choice for various industries.
