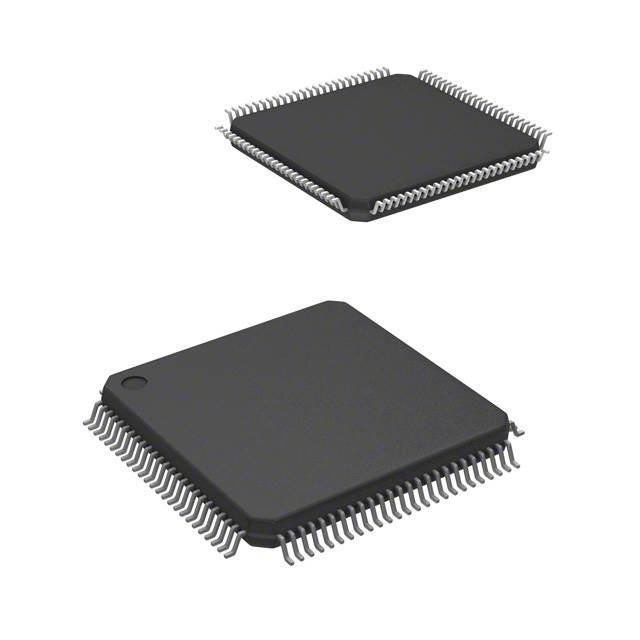

STM32H743VIT6 ,ST,Embedded processor high performance microcontroller chip — https://deirchip.com/

The STM32H743VIT6 stands out as a high-performance microcontroller tailored for demanding embedded systems. Its ARM Cortex-M7 core delivers exceptional processing power, making it ideal for applications requiring speed and precision. You can rely on its advanced features to enhance system performance and efficiency. With extensive memory, low power modes, and rich peripheral interfaces, this microcontroller adapts to versatile applications.

Here’s a quick look at its key specifications:

Specification	Detail
Core	ARM Cortex M7
Program Memory Size	2 MB
Supply Voltage	1.71V ~ 3.6V
Operating Temperature	-40°C ~ 85°C
Number of I/Os	82 I/Os
Number of ADC Channels	20 Channels
High-performance ADC and DAC	Yes
Rich peripheral interfaces	Yes
Fast wake-up and low power modes	Yes

This microcontroller empowers you to build efficient and versatile systems, meeting the demands of modern embedded applications.

Key Takeaways

The STM32H743VIT6 has a strong ARM Cortex-M7 core. It runs up to 480 MHz, perfect for fast tasks needing accuracy.
It has 2 MB of dual-bank flash memory and 1 MB of RAM. This helps handle data well and update software easily.
It includes USB, Ethernet, and CAN for connecting to systems. This makes it useful for IoT and industrial uses.
It has low-power modes like standby and stop to save energy. This makes it great for devices using batteries.
It comes with many built-in tools like timers and ADCs. These help developers make creative solutions for different industries.

Key Features of the STM32H743VIT6 Microcontroller

High-Performance ARM Cortex-M7 Core

The STM32H743VIT6 features the ARM Cortex-M7 core, which delivers exceptional processing power for demanding applications. This core supports a 32-bit data bus width and operates within a supply voltage range of 1.71V to 3.6V, ensuring reliable performance across various environments. Its floating-point unit enhances computational efficiency by supporting both single-precision and double-precision data processing. Additionally, the Cortex-M7 includes a full set of DSP instructions and a memory protection unit, which improve application performance and security.

With an operating temperature range of -40°C to 85°C, this microcontroller adapts to industrial and outdoor applications. Its 82 I/Os and 20 ADC channels provide extensive input/output capabilities, making it suitable for complex embedded systems. The ARM Cortex-M7 core ensures high performance, enabling you to handle real-time tasks and multitasking with ease.

Extensive Memory and Storage Capabilities

The STM32H743VIT6 offers robust memory and storage options to meet the needs of modern embedded systems. It includes 2 MB of dual-bank flash memory, which allows for seamless firmware updates and enhanced reliability. The microcontroller also features up to 1 MB of RAM, divided into:

192 KB of TCM RAM for high-speed data access.
Up to 864 KB of user SRAM for versatile application storage.
4 KB of backup SRAM to retain critical data during power loss.

These memory features ensure efficient data handling and storage, enabling you to develop applications that require high-speed processing and large data sets.

Memory Type	Size
Dual Bank Flash	Up to 2 MB
RAM	Up to 1 MB
TCM RAM	192 KB
User SRAM	Up to 864 KB
Backup SRAM	4 KB

This extensive memory capacity sets the STM32H743VIT6 apart from other microcontrollers, making it a reliable choice for high-performance applications.

Advanced Connectivity Options

The STM32H743VIT6 supports a wide range of connectivity options, enhancing its adaptability for embedded systems. It includes peripheral interfaces such as I2C, SPI, CAN, RTC, PWM, and USART, which allow seamless communication with external devices. High-speed serial communication interfaces and digital signal processing capabilities further boost its performance.

The microcontroller also supports multiple communication protocols, including CAN and USART, which facilitate robust communication networks. These features make it ideal for applications like IoT devices, industrial automation, and automotive systems.

Connectivity Options	Description
USB	Facilitates data transfer and device connection
Ethernet	Enables network connectivity for IoT applications
CAN	Supports automotive communication protocols
I2C	Allows for communication with multiple peripherals
SPI	Provides high-speed data transfer between devices
UART	Enables serial communication with other devices

With these advanced connectivity options, the STM32H743VIT6 ensures seamless integration into complex systems, enabling you to build efficient and versatile applications.

Power Efficiency and Management

The STM32H743VIT6 excels in balancing high performance with energy efficiency, making it a reliable choice for battery-powered and portable applications. This microcontroller integrates advanced power management features that allow you to optimize energy consumption without compromising functionality.

You can take advantage of its multiple low-power modes to reduce energy usage during idle periods:

Standby Mode: Minimizes energy consumption by powering down the system while retaining essential data.
Stop Mode: Halts the system clock but keeps SRAM contents intact, ensuring quick recovery when needed.
CSleep Mode: Stops the CPU clock while allowing peripherals to operate, reducing power usage during idle CPU tasks.

These modes enable the STM32H743VIT6 to sleep while maintaining critical functions, such as real-time clock operations. Its rapid wake-up capability ensures seamless transitions between active and low-power states, which is especially beneficial for wearables, IoT devices, and remote sensors.

This microcontroller's ability to combine high performance with low power consumption makes it suitable for applications like industrial automation and smart home systems. By leveraging these features, you can extend battery life and improve the overall efficiency of your designs.

Rich Peripheral Set for Versatile Applications

The STM32H743VIT6 offers a comprehensive set of peripherals, enabling you to develop versatile and feature-rich applications. Its integrated peripherals include:

Low-Power Real-Time Clock (RTC): Ensures accurate timekeeping with minimal energy usage.
Random Number Generator (RNG): Supports secure data encryption and cryptographic operations.
High-Resolution Timers: Provides precise timing for applications like motor control and signal generation.
Multiple ADCs and DACs: Facilitates analog signal processing for sensors and actuators.
Pulse-Width Modulation (PWM) Timers: Optimized for motor control and other timing-critical tasks.

Additionally, the STM32H743VIT6 supports a wide range of communication interfaces, including I2C, SPI, CAN, USART, and Ethernet. These interfaces allow seamless integration with external devices and networks, making this microcontroller ideal for IoT devices, robotics, and automotive systems.

With its rich peripheral set, the STM32H743VIT6 empowers you to create innovative solutions across various industries. Whether you're designing a smart home device or an industrial control system, this microcontroller provides the tools you need to succeed.

Applications of the STM32H743VIT6 in Embedded Systems

Industrial Automation and Control

The STM32H743VIT6 plays a vital role in industrial automation and control. Its high processing power and extensive peripheral support make it ideal for real-time control applications. You can use this microcontroller to manage machines, sensors, and actuators efficiently. Its ability to handle complex tasks ensures smooth operation in demanding environments.

For example, the STM32H743VIT6 is widely used in systems that require precise control, such as robotic arms, conveyor belts, and automated assembly lines. Its advanced features, like high-speed ADCs and DACs, enable accurate data acquisition and signal processing. This ensures that your industrial systems operate with precision and reliability.

By leveraging its rich peripheral set and robust performance, you can enhance the efficiency and productivity of your industrial automation projects.

IoT Devices and Smart Home Applications

The STM32H743VIT6 excels in IoT devices and smart home applications due to its advanced capabilities. Here’s how it enhances these systems:

Provides high processing power for handling complex tasks in IoT devices.
Supports a rich set of peripherals, improving connectivity options for smart home devices.
Offers advanced security features to ensure safe operation in connected environments.
Includes flexible power management options, contributing to energy efficiency.

These features make the STM32H743VIT6 a perfect choice for applications like smart thermostats, security cameras, and connected appliances. Its ability to integrate seamlessly with other devices allows you to create innovative and energy-efficient solutions for modern homes.

Robotics and Machine Learning

The STM32H743VIT6 is a powerful tool for robotics and machine learning applications. Its high-performance computing capabilities and rich peripheral support enable you to develop intelligent systems. The following table highlights the features that make it suitable for these applications:

Feature	Description
High-Performance Computing	Cortex-M7 core with FPU for efficient processing
Rich Peripheral Support	Extensive set of timers, GPIOs, and communication interfaces
Advanced Security Features	Hardware cryptographic accelerators and secure boot options
Integrated Analog Support	ADCs, DACs, and analog comparators for sensor interfacing
Flexible Power Management	Low-power modes and voltage scaling options
High-performance ADC and DAC	Achieves high-precision acquisition and output of analog signals, suitable for signal processing
Fast wake-up and low power	Supports multiple low-power modes with fast wake-up feature for battery-powered devices

These features allow you to build robots capable of real-time decision-making and machine learning tasks. Whether you’re designing autonomous vehicles or robotic arms, the STM32H743VIT6 provides the tools you need to succeed.

Medical Devices and Healthcare Technology

The STM32H743VIT6 plays a pivotal role in advancing medical devices. Its high processing power and energy efficiency make it ideal for critical healthcare applications. You can rely on this microcontroller to ensure precision and reliability in life-saving equipment. Its ability to handle real-time data processing and multitasking enhances the functionality of modern medical systems.

This microcontroller supports a wide range of medical devices, including:

Patient monitors that require accurate and continuous data acquisition.
Infusion pumps that demand precise control for medication delivery.
Diagnostic equipment that benefits from its high-speed data processing capabilities.

The STM32H743VIT6’s advanced connectivity options allow seamless integration with other devices in healthcare networks. Its low-power modes ensure uninterrupted operation, even in portable or battery-powered equipment. These features make it a trusted choice for developing innovative solutions in the medical field. By leveraging its capabilities, you can create devices that improve patient care and operational efficiency.

Automotive and Consumer Electronics

The STM32H743VIT6 excels in automotive and consumer electronics applications. Its high performance and low power consumption make it suitable for a variety of electronic systems. You can use this microcontroller to enhance the functionality and efficiency of modern devices.

In consumer electronics, the STM32H743VIT6 powers smart TVs, audio systems, and wearable devices. Its advanced features improve user experience by enabling faster processing and seamless connectivity. For automotive applications, it supports engine control units, dashboard displays, and vehicle networking systems. These applications benefit from its robust performance and real-time processing capabilities.

This microcontroller’s versatility allows you to design systems that meet the demands of modern technology. Whether you are working on automotive innovations or consumer gadgets, the STM32H743VIT6 provides the tools you need to succeed.

Advantages of the STM32H743VIT6 Microcontroller

Superior Processing Power and Speed

The STM32H743VIT6 delivers exceptional processing power, making it a standout choice for demanding applications. Its ARM Cortex-M7 core operates at up to 480 MHz, achieving a remarkable performance of 1027 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1). This microcontroller supports a full set of DSP instructions and includes a floating-point unit (FPU), enabling efficient data processing for complex tasks.

You can rely on its high-speed capabilities to handle real-time operations with precision. Whether you're working on industrial automation or IoT devices, the STM32H743VIT6 ensures smooth and reliable performance. Its ability to process large datasets quickly makes it ideal for applications requiring fast response times and high computational power.

Versatility Across Multiple Industries

The STM32H743VIT6 adapts seamlessly to a wide range of industries, showcasing its versatility. It powers IoT devices that require real-time data processing and supports smart city infrastructure, such as traffic control and environmental monitoring. In consumer electronics, this microcontroller enhances the functionality of wearable devices and smart appliances.

In the healthcare sector, the STM32H743VIT6 plays a critical role in medical devices like diagnostic imaging systems and patient monitors. Its robust design and high performance make it a preferred choice for engineers across various fields.

The STM32H743VIT6 is designed for demanding applications that require significant processing power, extensive memory, and advanced peripherals.

This adaptability allows you to create innovative solutions tailored to specific industry needs, ensuring efficiency and reliability in your projects.

Energy Efficiency for Portable Applications

The STM32H743VIT6 excels in energy efficiency, making it ideal for portable and battery-powered devices. It supports multiple low-power modes, allowing you to optimize energy consumption without sacrificing functionality.

Standby Mode: Minimizes power usage by halting the system clock, perfect for extended idle periods.
Stop Mode: Retains SRAM contents while halting the clock, enabling quick wake-up for periodic tasks.
CSleep Mode: Stops the CPU clock but keeps peripherals active, reducing power usage during idle CPU operations.

These features ensure that essential functions remain operational while conserving energy. For example, in IoT devices or remote sensors, the STM32H743VIT6's ability to enter low-power modes extends battery life significantly. Its rapid wake-up capability ensures seamless transitions between active and idle states, enhancing the efficiency of portable applications.

Robust Development Ecosystem and Support

The STM32H743VIT6 microcontroller offers you a robust development ecosystem, making it an excellent choice for both professionals and hobbyists. Its ecosystem includes a wide range of hardware and software tools designed to simplify your development process and enhance productivity. Whether you are building a prototype or a complex embedded system, these resources provide the support you need to succeed.

You can access a variety of hardware tools to get started. These include a PC or laptop with a USB port, power supply, breadboard, jumper wires, and debugging tools like an oscilloscope or logic analyzer. Depending on your project, you may also need additional components such as capacitors, resistors, sensors, or actuators. These tools allow you to test and refine your designs effectively.

On the software side, the STM32H743VIT6 is supported by powerful integrated development environments (IDEs), compilers, and debugging tools. You can use STM32Cube, an open development environment, to configure your microcontroller and generate code quickly. STM32Cube also provides utilities and expansion packages that help you customize your applications. These tools streamline your workflow and reduce development time.

Here’s a quick overview of the key tools available:

Hardware Development Tools: STM32 hardware debuggers, programmers, and performance analyzers.
Software Development Tools: STM32 configurators, code generators, and utilities.
Additional Accessories: Breadboards, sensors, actuators, and other components for prototyping.

The STM32 family, including the STM32H743VIT6, is renowned for its reliability and extensive ecosystem. This makes it easier for you to create innovative solutions while minimizing challenges. By leveraging these resources, you can focus on designing efficient and high-performance systems with confidence.

Comparison with Other Microcontrollers

STM32H743VIT6 vs STM32F7 Series

When comparing the STM32H743VIT6 to the STM32F7 series, you will notice significant differences in performance and features. Both microcontrollers use the ARM Cortex-M7 core, but the STM32H743VIT6 operates at a maximum frequency of 480 MHz, more than double the STM32F7's 216 MHz. This higher frequency allows the STM32H743VIT6 to handle more demanding tasks with ease.

The STM32H743VIT6 also includes advanced security features, making it a better choice for applications requiring robust data protection. While the STM32F7 series offers rich peripheral support, the STM32H743VIT6 takes it further with extensive options that enhance system versatility. However, the STM32F7 series may be more power-efficient in certain scenarios.

Feature	STM32H743VIT6	STM32F7
Core	Cortex-M7	Cortex-M7
Maximum Frequency	Up to 480 MHz	Up to 216 MHz
Peripheral Support	Extensive	Rich
Security Features	Advanced	Basic
Power Efficiency	Lower	Higher

STM32H743VIT6 vs Competitor Microcontrollers

The STM32H743VIT6 outshines many competitor microcontrollers in its category. For instance, it surpasses the CY8C614AFNI-S2F03T in computational power, dual-bank flash memory, and interconnect architecture. These features make the STM32H743VIT6 ideal for applications requiring high processing speeds and robust data handling.

In contrast, the CY8C614AFNI-S2F03T focuses on energy efficiency and includes capacitive touch capabilities, which suit less intensive applications. If your project demands high performance and advanced features, the STM32H743VIT6 is the superior choice. Its ability to balance processing power with extensive memory options ensures reliable operation in complex systems.

STM32H743VIT6 vs Low-Power Microcontrollers

The STM32H743VIT6 combines high performance with energy efficiency, making it a versatile option for various applications. Compared to low-power microcontrollers, it offers:

The ability to enter low-power modes while keeping essential functions active.
Quick wake-up times, which enhance usability in battery-operated devices.
Efficient power management, extending device lifetimes in energy-sensitive applications.

The STM32H743VIT6 supports numerous low-power modes, such as standby and stop modes.
Its rapid wake-up capability ensures smooth transitions between active and idle states.
These features make it suitable for wearables, IoT devices, and remote sensors.

While low-power microcontrollers prioritize energy savings, the STM32H743VIT6 balances this with superior processing power. This optimization makes it a reliable choice for applications requiring both performance and energy efficiency.

The STM32H743VIT6 microcontroller combines high-speed processing, extensive memory, and advanced peripherals, making it a standout choice for demanding applications. Its features, such as a low-power RTC, high-resolution timers, and multiple ADCs and DACs, enhance its versatility across industries. Whether you are working on industrial automation, automotive systems, or IoT devices, this microcontroller delivers exceptional performance and reliability.

With its Arm Cortex-M7 processor operating at up to 480 MHz and adaptive real-time acceleration, the STM32H743VIT6 advances embedded system designs by ensuring faster instruction execution and efficient multitasking. Its robust capabilities empower you to create innovative solutions tailored to your needs.

Explore the STM32H743VIT6's potential for your projects and rely on deirchip.com as a trusted distributor for authentic components.

FAQ

What makes the STM32H743VIT6 suitable for high-performance applications?

The STM32H743VIT6 features an ARM Cortex-M7 core running at 480 MHz. It delivers exceptional processing power, supports advanced peripherals, and includes extensive memory. These features make it ideal for demanding tasks like real-time control, data processing, and multitasking.

Can the STM32H743VIT6 handle low-power applications?

Yes, it supports multiple low-power modes, including standby and stop modes. These modes reduce energy consumption while retaining critical functions. Its rapid wake-up capability ensures smooth transitions, making it perfect for battery-powered devices like IoT sensors and portable gadgets.

What development tools are available for the STM32H743VIT6?

You can use STM32Cube, an open development environment, to configure the microcontroller and generate code. It also supports debugging tools, IDEs like Keil and IAR, and hardware accessories like breadboards and sensors. These tools simplify your development process.

How does the STM32H743VIT6 compare to other microcontrollers?

The STM32H743VIT6 outperforms many competitors with its 480 MHz processing speed, dual-bank flash memory, and advanced connectivity options. It balances high performance with energy efficiency, making it a versatile choice for complex systems across industries.

Where can I purchase authentic STM32H743VIT6 microcontrollers?

You can purchase authentic STM32H743VIT6 microcontrollers from trusted distributors like deirchip.com. They provide genuine components and excellent customer support, ensuring you receive reliable products for your projects.
