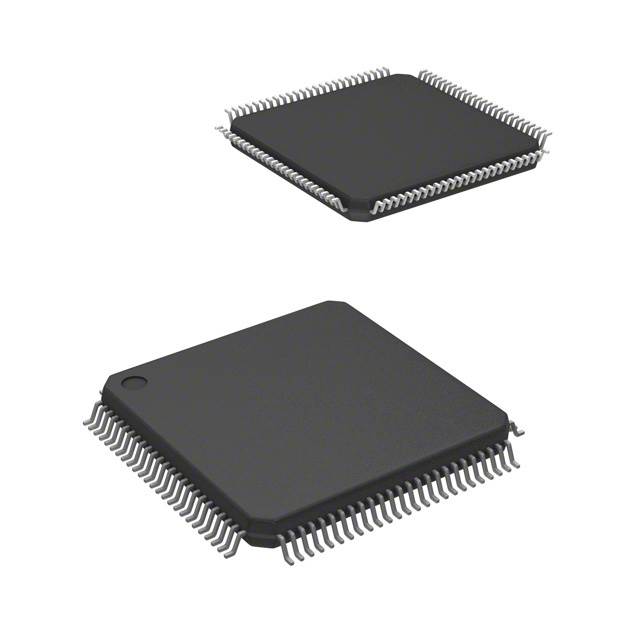

STM32F469VIT6,ST,ARM Cortex-M4 Embedded Industrial Automation Microcontroller Application Chip

The STM32F469VIT6 microcontroller stands out as a high-performance solution for embedded systems. Built on the ARM Cortex-M4 core, it operates at an impressive 180 MHz, ensuring exceptional processing power. This microcontroller supports advanced features like real-time response and robust graphics processing, making it ideal for demanding applications. Its low power consumption and rich peripheral set enhance its versatility. From industrial automation to smart homes and medical devices, STM32 microcontrollers, including the STM32F469NIH6, continue to drive innovation in embedded technology.

Key Takeaways

The STM32F469VIT6 microcontroller operates at 180 MHz, providing high processing power essential for demanding applications like industrial automation and medical devices.
With advanced peripheral support, including multiple ADCs and DACs, this microcontroller enhances versatility for precise analog signal processing and motor control.
Its low power consumption and energy-efficient design make it ideal for battery-operated devices, ensuring long operational lifespans without sacrificing performance.
The STM32F469VIT6 supports advanced graphics processing, enabling the development of high-quality displays and user interfaces for IoT and smart devices.
Robust connectivity options, such as CANbus and Ethernet, facilitate seamless integration into diverse systems, making it suitable for various industries.
Designed to operate reliably in extreme conditions (-40°C to +85°C), this microcontroller is perfect for challenging environments like industrial settings.
Choosing the STM32F469VIT6 empowers developers to create innovative solutions across multiple fields, including industrial automation, IoT, and healthcare.

Key Features of the STM32F469VIT6 Microcontroller

High-Performance Processing

The STM32F469VIT6 delivers exceptional high-performance processing, making it a standout choice for demanding applications. Powered by the ARM Cortex-M4 core, this high-performance microcontroller operates at a clock speed of 180 MHz. This ensures that your embedded systems can handle complex tasks with ease. The inclusion of a floating-point unit (FPU) enhances its ability to process single-precision data efficiently, which is critical for applications requiring precise calculations. Whether you are working on real-time control systems or advanced signal processing, this microcontroller provides the high processing power needed to meet your goals.

The ART Accelerator further boosts the chip’s performance by optimizing memory access, ensuring faster execution of instructions. This feature is particularly beneficial for applications requiring quick response times, such as industrial automation and medical devices. By leveraging the STM32F469VIT6, you can achieve reliable and efficient embedded system design without compromising on speed or accuracy.

Advanced Peripheral Support

The STM32F469VIT6 offers a wide range of advanced peripherals that enhance its versatility. With rich peripheral resources, including three 12-bit ADCs, two DACs, and multiple timers, this microcontroller supports precise analog signal processing and motor control. Its connectivity options, such as CANbus, Ethernet, I2C, SPI, UART/USART, and USB OTG, allow seamless integration into various systems. These features make it an excellent choice for IoT devices, smart homes, and industrial equipment.

The microcontroller also includes a real-time clock (RTC), direct memory access (DMA), and a watchdog timer. These peripherals improve system reliability and efficiency, ensuring stable operation even in complex environments. Additionally, the support for TFT and MIPI-DSI interfaces enables advanced graphics processing, making it suitable for applications requiring high-quality displays.

Power Efficiency and Low Power Consumption

The STM32F469VIT6 excels in low-power design, ensuring energy efficiency without sacrificing performance. Its architecture optimizes power usage, making it ideal for battery-operated devices and systems requiring long operational lifespans. This microcontroller’s ability to balance high processing power with minimal energy consumption makes it a valuable asset for developers aiming to create sustainable and efficient solutions.

By incorporating low-power modes and advanced power management features, the STM32F469VIT6 ensures that your applications remain operational under stringent energy constraints. This capability is particularly important for IoT devices and portable medical equipment, where power efficiency directly impacts usability and reliability.

Technical Specifications of the STM32F469VIT6

CPU and Memory Details

The STM32F469VIT6 microcontroller is built on the ARM Cortex-M4 core, which operates at a clock speed of 180 MHz. This architecture ensures high performance for your embedded applications. The inclusion of a floating-point unit (FPU) enhances its ability to handle single-precision data efficiently, making it suitable for tasks requiring precise calculations.

You will find 2 MB of Flash memory and 384 kB of SRAM in this microcontroller. These memory resources allow you to store complex programs and manage data-intensive operations with ease. The ART Accelerator optimizes memory access, ensuring faster execution of instructions. This feature is particularly beneficial for applications that demand real-time response and high-speed processing.

Operating Conditions and Environmental Tolerance

The STM32F469VIT6 is designed to perform reliably under a wide range of operating conditions. It supports an operating temperature range from -40°C to +85°C, making it suitable for industrial environments. Its robust design ensures stability even in challenging conditions, such as high humidity or fluctuating temperatures.

This microcontroller also features advanced power management capabilities. You can utilize its low-power modes to optimize energy consumption, which is essential for battery-operated devices. These features make it a dependable choice for applications requiring long-term reliability and efficiency.

Connectivity and Interface Options

The STM32F469VIT6 offers extensive connectivity options to meet the needs of modern embedded systems. It supports multiple communication protocols, including CANbus, Ethernet, I2C, SPI, UART/USART, and USB OTG. These interfaces enable seamless integration into diverse systems, whether you are working on IoT devices, industrial automation, or medical equipment.

For analog signal processing, this microcontroller includes three 12-bit ADCs and two DACs. These peripherals allow you to handle precise measurements and control tasks effectively. Additionally, the support for TFT and MIPI-DSI interfaces enables advanced graphics processing, making it ideal for applications requiring high-quality displays.

The STM32F469VIT6 also incorporates a real-time clock (RTC), direct memory access (DMA), and a watchdog timer. These features enhance system reliability and ensure smooth operation in complex environments. By leveraging these connectivity and interface options, you can design versatile and efficient embedded solutions.

Applications of the STM32F469VIT6 in Embedded Systems

The STM32F469VIT6 microcontroller excels in a variety of embedded applications, offering high performance, robust connectivity, and energy efficiency. Its versatility makes it a preferred choice for developers working on cutting-edge solutions across multiple industries.

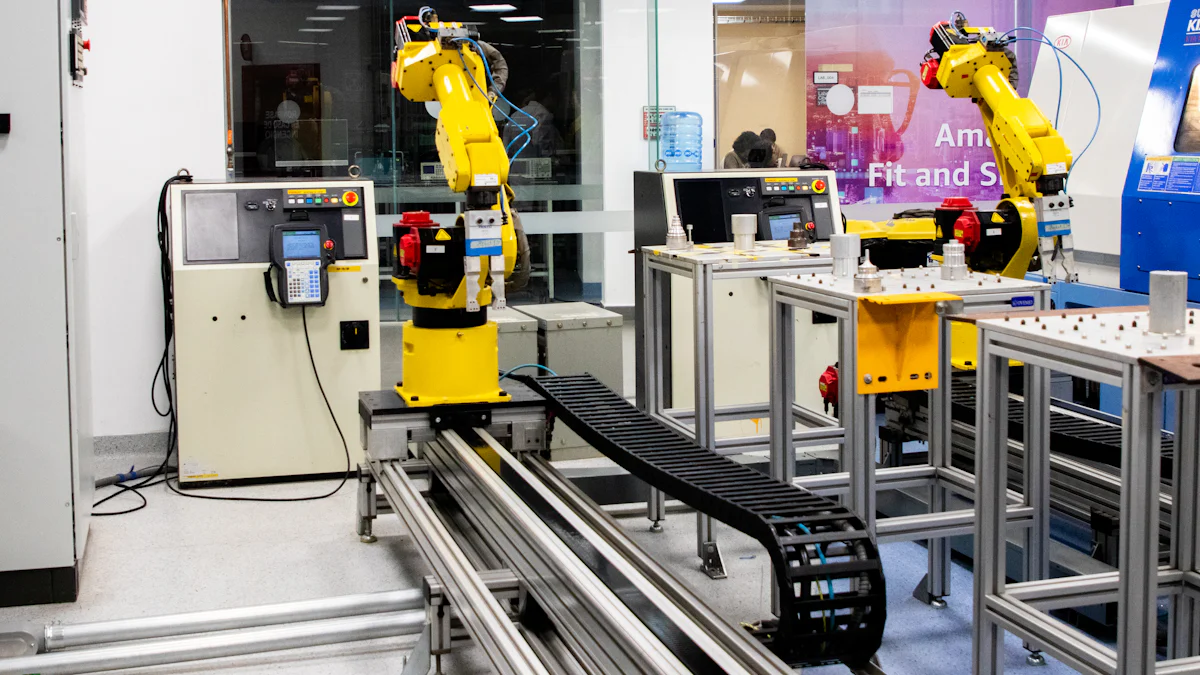

Industrial Automation

The STM32F469VIT6 plays a pivotal role in industrial automation. You can use this microcontroller to control machinery, monitor systems, and process data with precision. Its 180 MHz ARM Cortex-M4 core ensures that your applications handle complex tasks efficiently. The inclusion of advanced peripherals like ADCs, DACs, and timers allows seamless integration into motor control systems and sensor networks.

With its extensive connectivity options, including CANbus and Ethernet, the STM32F469VIT6 enables reliable communication between devices in industrial environments. This capability is essential for creating smart factories and automated production lines. Its low power consumption ensures long-term reliability, even in energy-sensitive setups. By leveraging this microcontroller, you can design systems that enhance productivity and operational efficiency in industrial settings.

IoT and Smart Devices

The STM32F469VIT6 is a cornerstone for IoT and smart device development. Its rich peripheral support and connectivity options make it ideal for building devices that interact seamlessly within the Internet of Things ecosystem. You can use its interfaces, such as I2C, SPI, and USB OTG, to connect sensors, actuators, and other components in your IoT projects.

This microcontroller’s real-time response capabilities ensure smooth operation in time-critical applications. Whether you are designing smart home systems, wearable devices, or connected appliances, the STM32F469VIT6 provides the processing power and energy efficiency needed for optimal performance. Its support for advanced graphics processing also enables the creation of user-friendly interfaces, enhancing the overall user experience.

Medical Devices and Healthcare Systems

In the medical field, the STM32F469VIT6 stands out as a reliable solution for developing healthcare systems and devices. You can rely on its high processing power and stability to handle critical tasks, such as patient monitoring, diagnostic equipment, and portable medical devices. Its floating-point unit (FPU) ensures precise calculations, which are crucial for accurate data analysis in medical applications.

The microcontroller’s low power consumption makes it suitable for battery-operated medical devices, ensuring extended usage without frequent recharging. Its ability to operate under a wide range of environmental conditions adds to its reliability in healthcare settings. By incorporating the STM32F469VIT6 into your designs, you can create innovative solutions that improve patient care and streamline medical processes.

Comparison with Other STM32 Microcontrollers

STM32F469VIT6 vs STM32F429

When comparing the STM32F469VIT6 to the STM32F429, you will notice several key differences that set these two microcontrollers apart. Both belong to the family of STM32 microcontrollers, but they cater to different performance and application needs.

The STM32F469VIT6 operates at a clock speed of 180 MHz, offering higher processing power compared to the STM32F429, which runs at 168 MHz. This makes the STM32F469VIT6 a better choice for applications requiring faster data processing and real-time responsiveness. Additionally, the STM32F469VIT6 includes advanced graphics processing capabilities, such as support for TFT and MIPI-DSI interfaces, which are not available in the STM32F429. These features make it ideal for projects involving high-quality displays or graphical user interfaces.

In terms of memory, the STM32F469VIT6 provides 2 MB of Flash memory and 384 kB of SRAM, while the STM32F429 offers 2 MB of Flash memory but only 256 kB of SRAM. The additional SRAM in the STM32F469VIT6 allows you to handle more complex applications and data-intensive tasks with ease. Both microcontrollers support a wide range of peripherals and connectivity options, but the STM32F469VIT6 stands out with its enhanced real-time performance and energy efficiency.

If your project demands higher processing power, advanced graphics capabilities, and greater memory resources, the STM32F469VIT6 is the superior choice. However, for simpler applications where these features are not critical, the STM32F429 remains a reliable and cost-effective option.

STM32F469VIT6 vs Competitor Microcontrollers

The STM32F469VIT6 also holds its ground when compared to competitor microcontrollers in the market. Its ARM Cortex-M4 core, operating at 180 MHz, delivers exceptional performance for embedded systems. Many competitor microcontrollers in the same category lack the combination of high processing power, low power consumption, and rich peripheral support that the STM32F469VIT6 offers.

One of the standout features of the STM32F469VIT6 is its advanced graphics processing capabilities. With support for TFT and MIPI-DSI interfaces, this microcontroller enables the development of visually appealing and interactive user interfaces. Competitor microcontrollers often fall short in this area, making the STM32F469VIT6 a preferred choice for applications requiring high-quality displays.

The STM32F469VIT6 also excels in memory capacity, offering 2 MB of Flash memory and 384 kB of SRAM. Many competitor microcontrollers provide less memory, which can limit their ability to handle complex applications. Additionally, the STM32F469VIT6 includes features like three 12-bit ADCs, two DACs, and multiple timers, ensuring precise analog signal processing and motor control. These peripherals enhance its versatility across various industries, including industrial automation, IoT, and medical devices.

When you choose the STM32F469VIT6, you benefit from a microcontroller that combines high performance, energy efficiency, and robust peripheral support. Its ability to meet the demands of modern embedded systems makes it a strong contender against other microcontrollers in the market.

Challenges and Limitations of the STM32F469VIT6

Design and Integration Challenges

When you work with the STM32F469VIT6, you may encounter challenges during the design and integration phases. This microcontroller offers a wide range of advanced features, which can sometimes make the initial setup complex. You need to carefully configure its peripherals, such as ADCs, DACs, and timers, to ensure they function as intended. Misconfigurations can lead to delays in development or unexpected behavior in your application.

The extensive connectivity options, including CANbus, Ethernet, and USB OTG, require precise implementation. If you are integrating these interfaces into your system, you must ensure compatibility with other components. This process often involves additional testing and debugging to achieve seamless communication. For developers new to advanced microcontrollers, the learning curve can feel steep. However, with proper documentation and tools, you can overcome these hurdles and unlock the full potential of the STM32F469VIT6.

Limitations in Specific Use Cases

While the STM32F469VIT6 excels in many applications, it may not suit every use case. For projects requiring ultra-low power consumption, such as certain wearable devices, you might find other microcontrollers more suitable. Although this chip offers low-power modes, some applications demand even lower energy usage for extended battery life.

In addition, the STM32F469VIT6’s advanced graphics processing capabilities, like support for TFT and MIPI-DSI interfaces, may not be necessary for simpler designs. If your project does not involve high-quality displays or graphical user interfaces, these features could remain unused, making the microcontroller less cost-effective for your needs. You should evaluate your project requirements carefully to determine if this microcontroller aligns with your goals.

By understanding these challenges and limitations, you can make informed decisions when incorporating the STM32F469VIT6 into your designs. Proper planning and consideration will help you maximize its benefits while addressing potential obstacles.

Why Choose the STM32F469VIT6 for Your Project?

Unique Advantages of the STM32F469VIT6

The STM32F469VIT6 microcontroller offers several unique advantages that set it apart from other options. Its ARM Cortex-M4 core, operating at 180 MHz, ensures high-speed processing for demanding applications. You can rely on its floating-point unit (FPU) to handle precise calculations, which is essential for tasks like signal processing and real-time control.

This microcontroller provides rich peripheral support, including three 12-bit ADCs, two DACs, and multiple timers. These features allow you to design systems that require accurate analog signal processing and motor control. Its advanced graphics capabilities, such as support for TFT and MIPI-DSI interfaces, enable the creation of visually appealing user interfaces. These features make it ideal for projects involving high-quality displays.

The STM32F469VIT6 excels in energy efficiency. Its low-power modes and optimized architecture help you create sustainable solutions without compromising performance. This balance between power and efficiency makes it suitable for battery-operated devices and energy-sensitive applications.

You also benefit from extensive connectivity options, including CANbus, Ethernet, I2C, SPI, UART/USART, and USB OTG. These interfaces ensure seamless communication between devices, making integration into complex systems straightforward. Whether you are working on IoT devices or industrial automation, this microcontroller provides the tools you need to succeed.

Ideal Use Cases and Industries

The STM32F469VIT6 shines in a variety of industries and applications. Its versatility and performance make it a preferred choice for developers across multiple fields.

Industrial Automation
You can use the STM32F469VIT6 to control machinery, monitor systems, and process data with precision. Its high processing power and advanced peripherals support motor control, sensor integration, and real-time decision-making. These features make it indispensable for creating smart factories and automated production lines.
IoT and Smart Devices
This microcontroller is perfect for IoT applications. Its connectivity options allow you to link sensors, actuators, and other components seamlessly. You can design smart home systems, wearable devices, and connected appliances with ease. Its energy efficiency ensures long-lasting performance in battery-powered devices.
Medical Devices and Healthcare Systems
The STM32F469VIT6 is a reliable choice for medical applications. Its stability and processing power support critical tasks like patient monitoring and diagnostic equipment. You can trust its low power consumption to extend the operational life of portable medical devices. Its ability to handle precise calculations ensures accuracy in healthcare solutions.

By choosing the STM32F469VIT6, you gain access to a microcontroller that combines performance, reliability, and versatility. Its features align with the needs of modern embedded systems, making it a valuable asset for your projects.

The STM32F469VIT6 stands out as a powerful microcontroller, offering high-performance processing, low power consumption, and robust peripheral support. Its versatility makes it suitable for a wide range of applications, including industrial automation, smart homes, and medical devices. Among STM32 microcontrollers, it excels with advanced features like real-time response and graphics processing. Whether you are developing complex systems or innovative solutions, the STM32F469VIT6 and its counterpart, the STM32F469NIH6, provide the tools you need to succeed in modern embedded technology.

FAQ

What makes the STM32F469VIT6 unique compared to other microcontrollers?

The STM32F469VIT6 stands out due to its ARM Cortex-M4 core, which operates at 180 MHz. This high processing speed ensures exceptional performance for demanding applications. It also features advanced graphics capabilities, including support for TFT and MIPI-DSI interfaces, making it ideal for projects requiring high-quality displays. Its combination of low power consumption and rich peripheral support further enhances its versatility.

Can the STM32F469VIT6 handle real-time applications?

Yes, the STM32F469VIT6 excels in real-time applications. Its architecture includes a floating-point unit (FPU) and the ART Accelerator, which optimize processing speed and memory access. These features ensure quick response times, making it suitable for time-critical tasks in industrial automation, medical devices, and IoT systems.

What are the memory specifications of the STM32F469VIT6?

The STM32F469VIT6 includes 2 MB of Flash memory and 384 kB of SRAM. This memory capacity allows you to store complex programs and manage data-intensive operations efficiently. The ART Accelerator further enhances memory performance by speeding up instruction execution.

Which industries benefit most from using the STM32F469VIT6?

The STM32F469VIT6 serves a wide range of industries. It is highly effective in industrial automation for controlling machinery and monitoring systems. In IoT and smart devices, it supports seamless connectivity and energy-efficient designs. The medical field also benefits from its stability and precision, making it ideal for patient monitoring and diagnostic equipment.

What connectivity options does the STM32F469VIT6 offer?

The STM32F469VIT6 provides extensive connectivity options, including CANbus, Ethernet, I2C, SPI, UART/USART, and USB OTG. These interfaces enable seamless communication between devices, making it easy to integrate into diverse systems like IoT networks, industrial setups, and medical devices.

How does the STM32F469VIT6 ensure energy efficiency?

The STM32F469VIT6 incorporates low-power modes and advanced power management features. These capabilities optimize energy usage, making it suitable for battery-operated devices and systems requiring long operational lifespans. Its architecture balances high performance with minimal energy consumption.

Is the STM32F469VIT6 suitable for graphics-intensive applications?

Yes, the STM32F469VIT6 supports advanced graphics processing. It includes interfaces like TFT and MIPI-DSI, which allow you to create high-quality displays and interactive user interfaces. These features make it an excellent choice for applications requiring visually appealing designs.

What operating conditions can the STM32F469VIT6 withstand?

The STM32F469VIT6 operates reliably in a temperature range from -40°C to +85°C. Its robust design ensures stability in challenging environments, such as industrial settings with high humidity or fluctuating temperatures. This durability makes it a dependable choice for demanding applications.

How does the STM32F469VIT6 compare to the STM32F429?

The STM32F469VIT6 offers higher processing power with its 180 MHz clock speed, compared to the STM32F429’s 168 MHz. It also includes enhanced graphics capabilities, such as support for TFT and MIPI-DSI interfaces, which are absent in the STM32F429. Additionally, the STM32F469VIT6 provides more SRAM (384 kB vs. 256 kB), making it better suited for complex applications.

Why should you choose the STM32F469VIT6 for your project?

The STM32F469VIT6 combines high performance, energy efficiency, and robust peripheral support. Its ARM Cortex-M4 core ensures fast processing, while its advanced graphics capabilities enable high-quality displays. With extensive connectivity options and low power consumption, it meets the needs of modern embedded systems across various industries. Whether you are working on industrial automation, IoT devices, or medical equipment, this microcontroller provides the tools you need to succeed.
