STM32F103C8T6,ST,High Performance Embedded ARM Cortex-M3 Microcontroller Chip

The STM32F103C8T6 microcontroller is a high-performance 32-bit chip from STMicroelectronics. It features the ARM Cortex-M3 core, which operates at a clock speed of 72 MHz, delivering efficient processing power for complex tasks. This microcontroller stands out with its low power consumption and a variety of peripheral interfaces, such as GPIO, USART, SPI, I2C, and CAN. These features make it ideal for connecting sensors, communication modules, and displays.

You will find the STM32F103C8T6 microcontroller widely used in embedded systems and IoT projects. Its excellent performance-cost ratio and advanced peripherals have made it a favorite among developers. Applications range from industrial automation to consumer electronics. For example:

• Industrial Automation: Used in PLCs and alarm systems for reliable operation.

• Consumer Electronics: Powers video intercoms and HVAC systems.

• Portable Devices: Perfect for battery-powered gadgets due to its low energy needs.

The STM32 microcontroller continues to gain popularity for its versatility and ability to handle diverse applications.

Key Takeaways

• The STM32F103C8T6 chip has a strong ARM Cortex-M3 core. It runs at 72 MHz, making it fast for tough tasks.

• It uses little power and has modes to save energy. This makes it great for gadgets that run on batteries.

• It has many connections like GPIO, USART, SPI, and I2C. These help it work with sensors and communication tools easily.

• With 64 KB Flash and 20 KB SRAM, it handles big tasks well. It keeps things running smoothly and manages data efficiently.

• The chip is affordable and has a helpful developer community. This makes it good for both new learners and skilled developers.

Key Features of the STM32F103C8T6

ARM Cortex-M3 Core and 72 MHz Speed

The STM32F103C8T6 microcontroller features the powerful ARM Cortex-M3 core, which operates at a clock speed of 72 MHz. This high-performance core ensures efficient task execution, making it suitable for handling complex operations in embedded systems. You can rely on its single-cycle multiplication and hardware division capabilities for faster mathematical computations.

Here’s a quick look at its performance benchmarks:

These features allow the STM32F103C8T6 to deliver exceptional processing power while maintaining reliability. Whether you are building IoT devices or industrial automation systems, this microcontroller ensures smooth and efficient operation.

Low Power Consumption and Power-Saving Modes

The STM32F103C8T6 stands out for its low power consumption, a critical factor in modern embedded systems. Its design prioritizes energy efficiency, which extends battery life in portable devices. This makes it an excellent choice for applications like wireless sensors and handheld gadgets.

You will also benefit from reduced heat generation, which enhances the reliability of your system. This microcontroller supports various power-saving modes, ensuring sustainable performance in energy-sensitive applications. Whether you are working on IoT projects or consumer electronics, the STM32F103C8T6 helps you achieve optimal energy efficiency.

Rich Peripheral Interfaces (GPIO, USART, SPI, I2C, CAN, ADC)

The STM32F103C8T6 offers a wide range of peripheral interfaces, making it highly versatile for different applications. These interfaces simplify the connection of sensors, communication modules, and other components.

Here’s how you can use its peripherals:

These interfaces make the STM32F103C8T6 a flexible solution for a variety of embedded system designs. Whether you are developing robotics, IoT devices, or industrial equipment, this microcontroller provides the connectivity you need.

Memory Capacity: 64 KB Flash and 20 KB SRAM

The STM32F103C8T6 microcontroller offers a robust memory architecture that supports a wide range of embedded applications. Its 64 KB Flash memory and 20 KB SRAM provide ample space for code storage and data handling. This combination ensures efficient performance, even in complex projects.

Flash memory serves as the primary storage for your program code. With 64 KB available, you can implement advanced algorithms, integrate multiple libraries, and store configuration data. This capacity is ideal for applications like IoT devices, robotics, and industrial automation, where functionality often requires extensive codebases.

SRAM, on the other hand, handles temporary data during runtime. The 20 KB SRAM allows you to manage variables, buffers, and real-time data processing efficiently. This feature becomes crucial when working with tasks like sensor data acquisition or communication protocols.

Here’s a quick breakdown of how the memory benefits your projects:

The STM32F103C8T6’s memory design ensures smooth operation without bottlenecks. You can rely on its Flash memory for long-term storage and SRAM for real-time processing. This balance makes it a dependable choice for developers aiming to create efficient and reliable systems.

Tip: Optimize your code to make the most of the available memory. Efficient memory usage can enhance performance and reduce power consumption.

By leveraging the memory capabilities of the STM32F103C8T6, you can tackle demanding applications with confidence. Its architecture supports both flexibility and scalability, making it a valuable asset in embedded system development.

Technical Specifications of the STM32F103C8T6

Clock Speed and Performance

The STM32F103C8T6 delivers exceptional performance with its ARM Cortex-M3 CPU, operating at a clock speed of 72 MHz. This high-speed processor ensures efficient task execution, making it ideal for complex embedded applications. You can rely on its single-cycle multiplication and hardware division capabilities for faster mathematical operations.

Here are some key performance highlights:

• Operates at 72 MHz for high-speed processing.

• Features an ARM Cortex-M3 core optimized for embedded systems.

• Supports single-cycle multiplication and hardware division for efficient calculations.

• Includes 64 KB or 128 KB of Flash memory and 20 KB of SRAM for robust data handling.

This combination of speed and efficiency allows you to build reliable systems for IoT devices, robotics, and industrial automation.

Peripheral Support and Connectivity

The STM32F103C8T6 offers a wide range of communication protocols, enhancing its functionality across various applications. These protocols provide flexible connectivity options, allowing you to integrate sensors, communication modules, and other peripherals seamlessly.

Some of the supported communication protocols include:

• UART: Enables asynchronous data transmission for serial communication.

• SPI: Facilitates high-speed, short-distance communication.

• I2C: A versatile bus for connecting multiple devices.

• USB: Full-Speed interface for USB device connections.

• CAN: Ideal for automotive and industrial communication.

These connectivity options make the STM32F103C8T6 a versatile choice for embedded systems requiring robust communication capabilities.

Packaging and Scalability

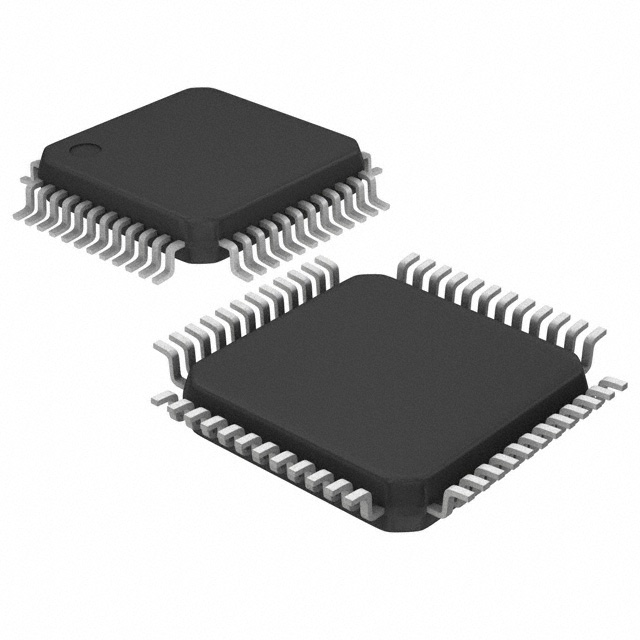

The STM32F103C8T6 comes in a compact LQFP-48 package, making it suitable for space-constrained designs. Its pinout configuration ensures easy integration into your projects. You can scale your designs effortlessly, as the STM32 family offers a wide range of compatible microcontrollers. This scalability allows you to upgrade or modify your system without significant redesign efforts.

The microcontroller’s packaging and scalability make it a reliable choice for developers working on diverse applications, from consumer electronics to industrial systems.

Power Management Features

The STM32F103C8T6 microcontroller excels in power management, making it a reliable choice for energy-sensitive applications. You can take advantage of its advanced design to optimize energy consumption in your projects. This feature is especially useful for battery-powered devices and IoT systems that require extended operation.

The microcontroller offers multiple working modes of stm32f103c8t6 to help you manage power efficiently. These modes include:

1. Run Mode: The default mode where the microcontroller operates at full performance.

2. Sleep Mode: Reduces power consumption by halting the CPU while keeping peripherals active.

3. Stop Mode: Minimizes energy usage by suspending most operations, retaining only essential data in SRAM.

4. Standby Mode: Achieves the lowest power consumption by shutting down all functions except for a few key features like the real-time clock.

Tip: Use Stop or Standby Mode for applications that require long periods of inactivity to maximize battery life.

The STM32F103C8T6 also includes a flexible clock system to further enhance power efficiency. You can adjust the clock frequency to match the performance needs of your application. Lowering the clock speed reduces energy usage during less demanding tasks. This feature allows you to balance performance and power consumption effectively.

By leveraging the power management features of the STM32F103C8T6, you can design systems that are both efficient and reliable. Whether you are building IoT devices, portable gadgets, or industrial equipment, this microcontroller ensures optimal energy usage without compromising performance.

Applications of the STM32F103C8T6 Microcontroller

IoT Devices and Wireless Sensor Networks

The STM32F103C8T6 microcontroller plays a vital role in IoT devices and wireless sensor networks. Its high performance and energy efficiency make it ideal for applications requiring real-time data processing and communication. You can find this microcontroller in various systems, including:

• Wireless communication systems

• RF (Radio Frequency) modules

• Internet of Things (IoT) devices

Its rich peripheral interfaces, such as SPI and I2C, simplify the integration of sensors and communication modules. This flexibility allows you to design efficient and scalable IoT solutions. Whether you are building smart home devices or environmental monitoring systems, the STM32F103C8T6 ensures reliable performance.

Industrial Automation and Control Systems

In industrial automation, the STM32F103C8T6 microcontroller excels in process control, monitoring, and data logging. Its integration into Programmable Logic Controllers (PLCs) ensures reliable operation and energy efficiency. You can use this microcontroller to manage complex tasks like real-time data acquisition and equipment control.

Its high performance and robust memory capacity make it suitable for handling large datasets and executing precise control algorithms. This microcontroller supports seamless communication with industrial sensors and actuators, enabling you to create efficient and automated systems.

Robotics and Drones

The STM32F103C8T6 microcontroller offers several advantages for robotics and drones. Its comprehensive integration with enhanced peripherals reduces development time, allowing you to focus on innovation. The microcontroller’s power efficiency ensures longer battery life, which is crucial for portable devices like drones.

You can rely on its real-time performance for quick and accurate responses, essential for tasks like motion control and obstacle detection. Its compatibility across platforms supports modular designs, making it easier to scale and update your projects. Whether you are developing autonomous robots or aerial drones, the STM32F103C8T6 provides the flexibility and reliability you need.

Consumer Electronics and Smart Home Devices

The STM32F103C8T6 microcontroller plays a key role in modern consumer electronics and smart home devices. Its powerful processing capabilities and rich peripheral interfaces make it an excellent choice for creating innovative and efficient solutions.

Why Choose STM32F103C8T6 for Consumer Electronics?

You can rely on this microcontroller to handle tasks like device control, data processing, and communication. Its low power consumption ensures that your devices operate efficiently, even in energy-sensitive environments. The compact LQFP-48 package also makes it ideal for space-constrained designs.

Here are some common applications in consumer electronics:

• Smart Thermostats: Manage temperature settings and communicate with mobile apps.

• Video Doorbells: Process video streams and enable two-way communication.

• Wearable Devices: Power fitness trackers and health monitoring gadgets.

Smart Home Applications

In smart homes, the STM32F103C8T6 enables seamless integration between devices. You can use its GPIO, USART, and I2C interfaces to connect sensors, displays, and communication modules. This allows you to build systems that enhance convenience and security.

Some examples include:

1. Lighting Control Systems: Automate lighting based on occupancy or time of day.

2. Smart Plugs: Monitor and control energy usage remotely.

3. Home Security Systems: Integrate cameras, motion detectors, and alarms for real-time monitoring.

Tip: Use the microcontroller’s power-saving modes to extend battery life in wireless smart home devices.

Benefits for Developers

The STM32F103C8T6 offers flexibility and scalability, making it easier for you to design and upgrade products. Its robust memory capacity supports complex applications, while its wide range of peripherals simplifies hardware integration. Whether you are developing a smart appliance or a home automation system, this microcontroller provides the tools you need to succeed.

By leveraging the STM32F103C8T6, you can create consumer electronics and smart home devices that are efficient, reliable, and user-friendly. Its features empower you to bring your innovative ideas to life.

Programming the STM32F103C8T6: A Practical Example

Setting Up the Development Environment

To program the STM32F103C8T6 microcontroller, you need to set up a suitable development environment. Follow these steps to get started:

1. Download and install the Arduino IDE. Choose the version compatible with your operating system.

2. Open the Arduino IDE and navigate to File -> Preferences.

3. In the "Additional Boards Manager URL" field, paste the following link:
   <http://dan.drown.org/stm32duino/package_STM32duino_index.json> and click OK.

4. Alternatively, you can use STM32CubeIDE. Install it and create a new project by selecting the STM32F103C8T6 microcontroller family.

These tools provide a robust platform for writing, compiling, and uploading code to your microcontroller. Once the setup is complete, you are ready to begin programming.

Writing and Uploading Code

After setting up the environment, you can write and upload code to the STM32F103C8T6. Start by configuring the GPIO pins for your project. For example, if you want to toggle an LED, configure the GPIO pin connected to the LED as an output. Use the following steps:

• Enable clock access to the GPIO port.

• Set the desired pin as an output pin.

• Write code to control the pin's state (HIGH or LOW).

Once the code is ready, upload it to the microcontroller using the development environment. The Arduino IDE simplifies this process with its "Upload" button, while STM32CubeIDE provides a similar feature for flashing the code onto the board.

Example Project: Toggling an LED

Let’s create a simple project to toggle an LED using the STM32F103C8T6. This project demonstrates how to control GPIO pins and execute basic tasks.

• Configure GPIO pin C13 as an output pin:

  GPIO_CRH_REGISTER(GPIO_BLINK_PORT) &= ~(GPIO_CHR_MODE_MASK(GPIO_BLINK_NUM));
  GPIO_CRH_REGISTER(GPIO_BLINK_PORT) |= GPIO_CHR_MODE_OUTPUT(GPIO_BLINK_NUM);


• Use an infinite loop to keep the program running:

  for (;;) {
      GPIO_ODR_REGISTER(GPIO_BLINK_PORT) ^= GPIO_ODR_PIN(GPIO_BLINK_NUM); // Toggle LED
      delay(500); // Wait for 500ms
  }


• Upload the code to the microcontroller. The LED will blink at a regular interval, showcasing the toggling functionality.

This example highlights the simplicity and flexibility of programming the STM32F103C8T6. You can expand this project by adding more LEDs or integrating sensors for advanced applications.

Tip: Use the development environment's debugging tools to monitor the program's behavior and ensure smooth operation.

Debugging and Testing the Application

Debugging and testing are essential steps in ensuring your STM32F103C8T6 application works as intended. These processes help you identify and fix errors while verifying that your code performs as expected. By following a structured approach, you can save time and improve the reliability of your project.

Steps to Debugging Your Application

1. Set Up Debugging Tools: Use an integrated debugger like the one in STM32CubeIDE. Connect your microcontroller to your computer using a USB or ST-Link programmer. This setup allows you to monitor your code in real time.

2. Add Debugging Points: Insert breakpoints in your code to pause execution at specific lines. For example, if your application involves toggling an LED, place a breakpoint where the GPIO pin state changes.

3. Monitor Variables: Use the debugger to inspect variables and registers. Check if the values match your expectations during runtime.

4. Step Through Code: Execute your program line by line to identify where errors occur. This method is especially useful for troubleshooting logic errors.

Tip: Always test small sections of your code before integrating them into the main program. This practice makes it easier to isolate issues.

Testing Your Application

After debugging, test your application to ensure it meets your requirements. Start by running your program on the STM32F103C8T6 microcontroller. If your project involves toggling an LED, observe the LED's behavior. Does it blink at the correct interval? If not, revisit your code and check for timing errors.

You can also use external tools like oscilloscopes or logic analyzers to verify signal outputs. These tools help you confirm that your microcontroller sends the correct signals to connected devices. For example, when toggling a GPIO pin, an oscilloscope can display the pin's voltage changes over time.

Finally, test your application under different conditions. For instance, if your project involves sensors, simulate various environmental factors to ensure consistent performance. This step ensures your application is robust and reliable.

Note: Document your debugging and testing results. Keeping records helps you track progress and identify recurring issues.

By following these steps, you can debug and test your STM32F103C8T6 application effectively. Whether you are toggling LEDs or managing complex systems, a thorough approach ensures your project runs smoothly.

Why Choose the STM32F103C8T6 for Embedded Systems?

Cost-Effectiveness and Versatility

The STM32F103C8T6 microcontroller offers an excellent performance-to-cost ratio, making it a cost-effective choice for embedded systems. Its ARM Cortex-M3 core delivers robust processing power, ensuring reliable performance across various applications. You can use this microcontroller in both industrial controls and consumer electronics, showcasing its adaptability.

Here are some reasons why it stands out:

• It integrates a wide range of peripherals, reducing the need for additional components.

• Its versatility supports diverse projects, from IoT devices to robotics.

• The microcontroller balances affordability with advanced features, making it accessible to developers at all levels.

By choosing the STM32F103C8T6, you can create efficient and innovative systems without exceeding your budget.

Developer Community and Resources

The STM32F103C8T6 benefits from a strong developer community, providing you with valuable resources and support. Whether you are a beginner or an experienced developer, you can find tools and guidance to simplify your work.

Some key resources include:

• Tutorials for getting started with STM32F103C8T6 programming.

• Recommended development boards tailored for STM32 microcontrollers.

• Active discussions on platforms like AVR Freaks, where developers share insights and solutions.

These resources help you overcome challenges and accelerate your development process. The community's collaborative nature ensures you always have access to the latest tools and techniques.

Scalability for Various Applications

The STM32F103C8T6 offers strong scalability, making it suitable for projects with evolving requirements. Its compatibility across the STM32 family allows you to upgrade your system without redesigning the entire infrastructure. This adaptability supports modular designs, enabling you to adjust your project as needed.

Here’s how it promotes scalability:

• Integrated peripherals cater to a wide range of applications, from simple devices to complex systems.

• Its design encourages innovation by balancing technical demands with creative engineering.

• Developers can efficiently expand their projects while maintaining reliability and performance.

With the STM32F103C8T6, you can confidently scale your designs to meet future challenges, ensuring long-term success.

The STM32F103C8T6 microcontroller combines high performance, energy efficiency, and versatile connectivity. Its ARM Cortex-M3 core, operating at 72 MHz, ensures fast processing, while features like Flash memory, SRAM, and advanced power-saving modes make it ideal for embedded systems. You can use it in diverse applications, from IoT devices to industrial automation. Its rich peripheral support and adaptability empower you to create innovative solutions. Whether you are designing smart home devices or portable gadgets, the STM32F103C8T6 offers the tools to bring your ideas to life.

Explore its potential and unlock new possibilities in your next project.

FAQ

What development tools can you use with the STM32F103C8T6?

You can use tools like STM32CubeIDE, Keil uVision, or the Arduino IDE. These platforms provide features for writing, compiling, and debugging code. STM32CubeIDE is especially popular for its integrated debugging tools and support for STM32 microcontrollers.

Tip: Start with STM32CubeIDE if you're new to STM32 development.

How do you program the STM32F103C8T6?

You can program it using a USB-to-serial adapter or an ST-Link programmer. Write your code in a compatible IDE, compile it, and upload it to the microcontroller. The Arduino IDE simplifies this process for beginners.

Can the STM32F103C8T6 handle real-time applications?

Yes, it can. Its ARM Cortex-M3 core and 72 MHz clock speed make it suitable for real-time tasks. You can use its peripherals and interrupts to manage time-sensitive operations efficiently.

What makes the STM32F103C8T6 ideal for IoT projects?

Its low power consumption, rich peripheral interfaces, and robust memory make it perfect for IoT. You can connect sensors, communication modules, and other devices easily. Its power-saving modes also extend battery life in wireless systems.

Is the STM32F103C8T6 beginner-friendly?

Yes, it is. The STM32 ecosystem offers extensive documentation, tutorials, and community support. Development tools like STM32CubeIDE and Arduino IDE simplify the learning curve, making it accessible for beginners.

Note: Explore online forums and resources to accelerate your learning process.
