SN74LVTH16245ADGGR,TI,Logic Level Conversion Cache Driver Chip

The SN74LVTH16245ADGGR chip serves as a 16-bit high-performance bus driver and level shifter. It plays a critical role in embedded systems by enabling seamless logic level conversion and supporting bidirectional data flow. This chip ensures efficient communication between components operating at different voltage levels. Its design focuses on delivering high-speed performance while maintaining low power consumption. You can rely on this device to enhance signal integrity and optimize data transmission in complex systems, making it an essential component for modern embedded applications.

Key Takeaways

The SN74LVTH16245ADGGR chip is essential for seamless communication between components operating at different voltage levels, making it ideal for modern embedded systems.
With a high-speed operation of up to 143MHz, this chip ensures rapid data transmission, crucial for applications like memory modules and microcontroller interfaces.
Its low power consumption minimizes energy usage, extending the lifespan of battery-operated devices and enhancing overall system efficiency.
The chip's 3-state output feature allows multiple devices to share the same bus without interference, optimizing resource sharing in complex designs.
Utilizing advanced BiCMOS technology, the SN74LVTH16245ADGGR enhances signal integrity by reducing noise and preventing signal conflicts.
For projects requiring bidirectional data flow and robust performance, the SN74LVTH16245ADGGR outperforms many alternatives, making it a reliable choice for engineers.
Accessing official datasheets and application notes from Texas Instruments is crucial for maximizing the chip's potential and ensuring successful integration into your designs.

Overview of SN74LVTH16245ADGGR

What is SN74LVTH16245ADGGR?

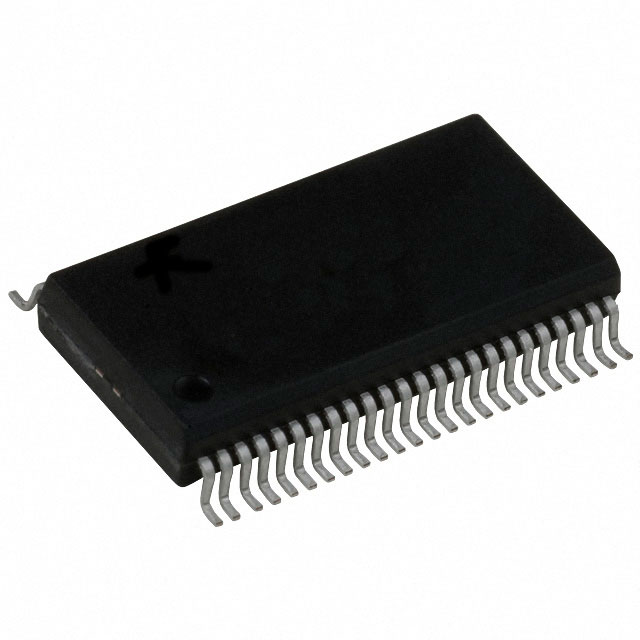

The SN74LVTH16245ADGGR is a 16-bit bus transceiver designed and manufactured by Texas Instruments (TI). Texas Instruments, a global leader in semiconductor technology, has been at the forefront of innovation since its founding in 1930. Headquartered in Dallas, Texas, TI specializes in creating high-quality analog and digital signal processing products, including embedded processors and microcontrollers. The SN74LVTH16245ADGGR reflects TI's commitment to delivering reliable and efficient solutions for modern electronic systems.

This chip operates as a high-performance bus driver and level shifter, making it indispensable in embedded systems. It features a wide voltage range, enabling compatibility with various components. Its 3-state output allows multiple devices to share the same bus without interference. Built using BiCMOS technology, the chip combines the speed of bipolar transistors with the low power consumption of CMOS technology. These specifications make it a versatile and efficient choice for complex designs.

How the SN74LVTH16245ADGGR Works

The SN74LVTH16245ADGGR excels in logic level conversion and bidirectional data flow. It bridges components operating at different voltage levels, ensuring seamless communication. This capability is crucial in embedded systems where devices often work at varying logic levels. The chip's design ensures that data flows smoothly in both directions, enhancing system flexibility.

In addition, the chip plays a vital role in driving data buses. It enables shared bus communication by managing multiple devices on the same bus. The 3-state output ensures that only one device communicates at a time, preventing conflicts and maintaining signal integrity. This functionality is essential for systems requiring high-speed data transmission and efficient resource sharing.

Key Features and Benefits of SN74LVTH16245ADGGR

High-Level Features

Wide voltage compatibility and high-speed operation

The SN74LVTH16245ADGGR offers wide voltage compatibility, making it suitable for systems with varying voltage levels. This feature ensures seamless integration with diverse components in embedded designs. The chip supports high-speed operation, enabling rapid data transmission. This capability is essential for applications requiring quick and efficient communication, such as memory modules and microcontroller interfaces. With its 143MHz operating speed, the chip ensures fast data processing, similar to high-performance components like the MT48LC4M32B2F5-7IT:G.

Low power consumption and enhanced signal integrity

Low power consumption is a standout feature of the SN74LVTH16245ADGGR. It minimizes energy usage, reducing heat generation and extending the lifespan of battery-operated devices. This efficiency mirrors the design philosophy of components like the DS1023-50, which prioritize energy savings. Additionally, the chip enhances signal integrity by reducing noise and interference. This improvement ensures reliable data transmission, even in complex systems with multiple devices sharing the same bus.

Advantages in Embedded Systems

Efficient handling of bidirectional data flow

The SN74LVTH16245ADGGR excels in managing bidirectional data flow. It allows seamless communication between devices operating at different logic levels. This capability is crucial in embedded systems where components often need to send and receive data simultaneously. The chip's design ensures smooth data transfer, optimizing system performance and flexibility.

Reduction of signal integrity issues in complex designs

Signal integrity issues can disrupt communication in complex designs. The SN74LVTH16245ADGGR addresses this challenge by incorporating advanced features like 3-state outputs and BiCMOS technology. These features prevent signal conflicts and maintain data accuracy. By reducing noise and ensuring stable signals, the chip simplifies the design process and enhances overall system reliability.

Applications of SN74LVTH16245ADGGR in Embedded Systems

Common Use Cases

Interfacing between different voltage domains in embedded systems

The SN74LVTH16245ADGGR chip provides a reliable solution for interfacing components operating at different voltage levels. Embedded systems often integrate devices with varying logic levels, which can create communication challenges. This chip bridges these differences by converting logic levels seamlessly. For example, you can use it to connect a 3.3V microcontroller with a 5V peripheral device. Its ability to handle bidirectional data flow ensures smooth communication in both directions, making it an essential tool for modern embedded designs.

Use in memory modules, microcontroller communication, and FPGAs

You can also rely on the SN74LVTH16245ADGGR for applications involving memory modules, microcontroller communication, and FPGAs. In memory modules, the chip ensures high-speed data transfer while maintaining signal integrity. When working with microcontrollers, it facilitates efficient communication between processors and peripherals. For FPGA-based systems, the chip simplifies the process of managing shared buses and enables seamless integration of multiple components. Its versatility makes it a valuable asset in these scenarios.

Real-World Examples

Application in communication modules and battery-operated devices

The SN74LVTH16245ADGGR excels in communication modules and battery-operated devices. In communication modules, it supports high-speed data transmission, ensuring reliable performance even in complex networks. For battery-operated devices, its low power consumption extends battery life, making it ideal for portable electronics. Imagine a handheld device that requires efficient communication between its processor and sensors. This chip ensures smooth operation while conserving energy, enhancing the overall user experience.

Case study: Implementing the SN74LVTH16245ADGGR in an FPGA-based system

A practical example of the chip's capabilities can be seen in FPGA-based systems. Consider a scenario where you need to interface an FPGA with multiple peripherals operating at different voltage levels. The SN74LVTH16245ADGGR simplifies this task by providing bidirectional level shifting and bus driving capabilities. Its 3-state output allows multiple devices to share the same bus without interference. This feature proved invaluable in vintage computing systems like the MOS 6502 family, where efficient bus management was critical. By integrating this chip, you can achieve high-speed communication and maintain signal integrity, even in complex designs.

Comparison of SN74LVTH16245ADGGR with Similar Chips

Alternatives to SN74LVTH16245ADGGR

Overview of similar chips in the market

When exploring alternatives to the SN74LVTH16245ADGGR, you will find several options available in the market. Chips like the 74LVC16245A and 74HC245N are popular choices for logic level conversion and bus driving applications. These devices also support bidirectional data flow and offer compatibility with various voltage levels. Manufacturers such as Nexperia and ON Semiconductor produce these alternatives, ensuring a wide range of options for embedded system designs.

Each alternative comes with unique features tailored to specific use cases. For instance, the 74LVC16245A focuses on ultra-low power consumption, making it suitable for energy-sensitive applications. The 74HC245N, on the other hand, emphasizes simplicity and cost-effectiveness, which appeals to budget-conscious projects. By understanding the strengths of these chips, you can identify the best fit for your design requirements.

Key differences, such as performance, power consumption, and cost

The SN74LVTH16245ADGGR stands out due to its high-speed operation and robust signal integrity. It supports a maximum operating frequency of 143MHz, which surpasses many alternatives. This speed ensures reliable performance in demanding applications like FPGA-based systems and communication modules. In contrast, chips like the 74HC245N operate at lower frequencies, limiting their use in high-speed designs.

Power consumption is another critical factor. The SN74LVTH16245ADGGR offers low power usage while maintaining excellent performance. This balance makes it ideal for battery-operated devices. Alternatives like the 74LVC16245A also prioritize energy efficiency but may not match the SN74LVTH16245ADGGR in terms of speed and versatility.

Cost considerations often influence chip selection. While the SN74LVTH16245ADGGR provides advanced features, it may come at a slightly higher price compared to simpler alternatives like the 74HC245N. However, its superior performance and reliability justify the investment for complex embedded systems.

When to Choose SN74LVTH16245ADGGR

Scenarios where it outperforms alternatives

The SN74LVTH16245ADGGR excels in scenarios requiring high-speed data transmission and seamless bidirectional communication. If your project involves interfacing components with different voltage levels, this chip ensures smooth logic level conversion. Its ability to maintain signal integrity in complex designs makes it a preferred choice for systems with shared buses or multiple devices.

For applications like FPGA-based designs, memory modules, and microcontroller communication, the SN74LVTH16245ADGGR outshines alternatives. Its 3-state output feature allows multiple devices to share the same bus without interference. This capability proves invaluable in systems requiring efficient resource sharing and high-speed operation.

Guidance on selecting the chip for specific embedded projects

To select the right chip for your project, consider your system's requirements. If you need high-speed performance and robust signal integrity, the SN74LVTH16245ADGGR is an excellent choice. It works well in designs where components operate at varying voltage levels and require bidirectional data flow.

For simpler projects with limited budgets, alternatives like the 74HC245N may suffice. However, if your application demands energy efficiency without compromising speed, the 74LVC16245A could be a viable option. Always evaluate the trade-offs between cost, performance, and power consumption to make an informed decision.

Resources for SN74LVTH16245ADGGR

Datasheets and Technical Documentation

Links to official datasheets and application notes

Accessing the right technical documentation is essential when working with the SN74LVTH16245ADGGR. Texas Instruments provides comprehensive datasheets and application notes that detail the chip's specifications, features, and usage guidelines. These documents help you understand the chip's voltage range, 3-state output functionality, and BiCMOS technology. You can find these resources on the official Texas Instruments website. They include:

Datasheets: These outline the chip's electrical characteristics, pin configurations, and performance metrics.
Application Notes: These provide practical examples and design tips for integrating the chip into your embedded systems.

"The datasheet is your blueprint for success when designing with the SN74LVTH16245ADGGR. It ensures you maximize the chip's potential while avoiding common pitfalls."

Make sure to download these documents to guide your design process. They serve as a reliable reference for engineers and developers at every stage of your project.

Additional resources for engineers and developers

Beyond the official datasheets, you can explore additional resources to deepen your understanding of the SN74LVTH16245ADGGR. Online forums like TI E2E Community allow you to connect with other engineers who have experience using this chip. These platforms often feature discussions, troubleshooting tips, and innovative design ideas.

You can also find video tutorials and webinars hosted by Texas Instruments or third-party experts. These resources demonstrate practical applications of the chip in real-world scenarios. For example, you might learn how to implement the chip in FPGA-based systems or optimize its performance in battery-operated devices.

Supplier Information

Availability from authorized distributors like deirchip.com

When sourcing the SN74LVTH16245ADGGR, always choose authorized distributors to ensure authenticity and quality. Websites like deirchip.com offer this chip with verified specifications and reliable delivery options. Purchasing from trusted suppliers protects you from counterfeit products and ensures you receive components that meet industry standards.

Authorized distributors often provide additional services, such as bulk purchasing options and technical support. These benefits make them a preferred choice for engineers working on large-scale projects or time-sensitive designs.

Tips for sourcing and purchasing the chip

Follow these tips to streamline your purchasing process:

Verify Stock Availability: Check the distributor's website for real-time stock updates. This step helps you avoid delays in your project timeline.
Compare Prices: Evaluate pricing across multiple authorized distributors to find the best deal without compromising quality.
Request Samples: If you're prototyping, request sample units to test the chip's compatibility with your design.
Review Shipping Policies: Ensure the distributor offers secure packaging and fast shipping to your location.

By following these steps, you can source the SN74LVTH16245ADGGR efficiently and confidently. Reliable sourcing ensures your project stays on track and meets its performance goals.

The SN74LVTH16245ADGGR chip plays a vital role in modern embedded systems. It functions as a high-performance bus driver and level shifter, ensuring seamless communication between components with different voltage levels. Its ability to deliver high-speed operation while consuming minimal power makes it an excellent choice for complex designs. You can rely on this chip to enhance signal integrity and optimize data flow in your projects. Explore its datasheets and technical resources to unlock its full potential and consider integrating it into your next embedded system design.

FAQ

What is the primary function of the SN74LVTH16245ADGGR chip?

The SN74LVTH16245ADGGR serves as a 16-bit bus driver and level shifter. It enables seamless communication between components operating at different voltage levels. This chip ensures bidirectional data flow and enhances signal integrity in embedded systems.

How does the SN74LVTH16245ADGGR improve signal integrity?

This chip reduces noise and interference by incorporating advanced BiCMOS technology and 3-state outputs. These features prevent signal conflicts and ensure stable data transmission, even in complex designs with multiple devices sharing the same bus.

Can the SN74LVTH16245ADGGR handle bidirectional data flow?

Yes, the SN74LVTH16245ADGGR excels in managing bidirectional data flow. It allows devices to send and receive data efficiently, making it ideal for systems requiring simultaneous communication between components.

What voltage range does the SN74LVTH16245ADGGR support?

The SN74LVTH16245ADGGR operates over a wide voltage range, ensuring compatibility with various components in embedded systems. This flexibility makes it suitable for designs involving different logic levels.

Where can I find the datasheet for the SN74LVTH16245ADGGR?

You can access the official datasheet on the Texas Instruments website. The datasheet provides detailed specifications, pin configurations, and application guidelines. It serves as a valuable resource for engineers and developers.

"The datasheet is your go-to guide for understanding the full potential of the SN74LVTH16245ADGGR."

What are some common applications of the SN74LVTH16245ADGGR?

This chip is widely used in memory modules, microcontroller communication, and FPGA-based systems. It also plays a critical role in interfacing components with different voltage domains and supporting high-speed communication in embedded designs.

How does the SN74LVTH16245ADGGR compare to similar chips?

The SN74LVTH16245ADGGR offers superior speed, low power consumption, and robust signal integrity. While alternatives like the 74HC245N may be more cost-effective, they often lack the high-speed performance and versatility of the SN74LVTH16245ADGGR.

What should I do if I encounter issues with the chip's symbol or footprint?

If you experience any issues with the symbol or footprint, report them promptly. This feedback helps manufacturers and distributors address potential problems and improve the product's usability.

Where can I purchase the SN74LVTH16245ADGGR?

You can purchase the SN74LVTH16245ADGGR from authorized distributors like deirchip.com. Always verify stock availability and compare prices to ensure you get the best deal. Trusted suppliers guarantee authenticity and quality.

Why should I choose the SN74LVTH16245ADGGR for my project?

Choose the SN74LVTH16245ADGGR if your project requires high-speed data transmission, seamless logic level conversion, and efficient bidirectional communication. Its advanced features make it a reliable choice for complex embedded systems.
