Single Supply Differential Signal Amplification Solution Based on AD623ARZ

ymn@deirchip.com

·April 9, 2025

·12 min read

The Single Supply Differential Signal Amplification Solution Based on AD623ARZ is a strong and simple signal amplifier. The AD623ARZ operates with one power supply, making it very useful. You can easily use it in many different projects. It is great for medical tools, factory machines, or sensors. This amplifier helps boost signals without much work. Both experts and beginners will find the AD623ARZ very helpful.

Key Takeaways

The AD623ARZ is a flexible amplifier that uses one power source.
It can amplify signals from 1 to 1000 times, making it useful.
This amplifier helps make circuits simpler and saves power.
It also makes signals clearer and easier to understand.
Good grounding and setup are important to reduce noise.
Using good parts and smart design keeps projects accurate and steady.

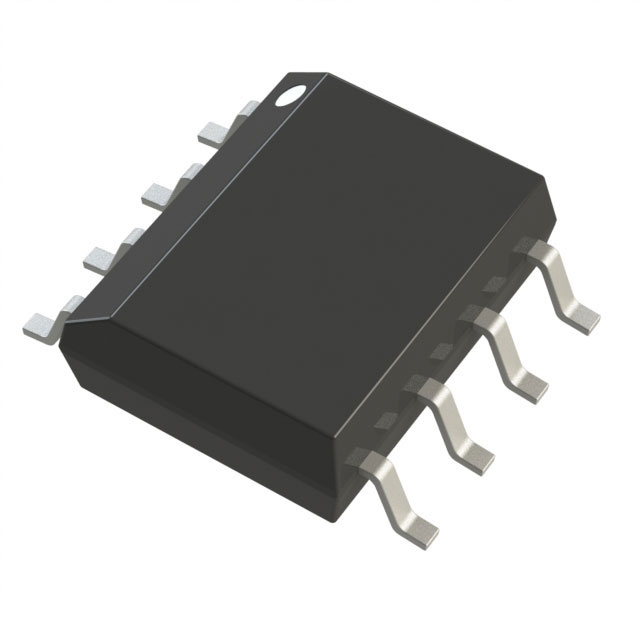

Overview of the AD623ARZ

The AD623ARZ is a flexible amplifier made for accurate signal boosting. It works well with just one power source, which saves energy and ensures accuracy. This amplifier is often used in sensors, data systems, and factory controls.

Key Features of the AD623 Instrumentation Amplifier

The AD623 amplifier has many useful features for engineers and hobbyists. Here are some important details:

Feature	Specification
Power Supply Range	2.7 V to 12 V
Gain Range	1 to 1000
Power Use	550 μA maximum
Gain Error (G = 1)	0.10%
Noise Level	35 nV/√Hz RTI noise at 1 kHz
Bandwidth (G = 1)	800 kHz
Settling Time (G = 10)	20 μs to 0.01%
Package Types	8-Pin PDIP, SOIC, and VSSOP

This amplifier makes circuits easier by needing just one resistor for gain. Its rail-to-rail output works great for low-power devices.

Benefits of Single-Supply Operation with the AD623ARZ

The AD623ARZ uses one power source, which simplifies circuit design. This is helpful for portable and battery-powered gadgets. Its low input offset voltage (0.5 mV max) and high common-mode rejection ratio (90 dB at DC) ensure clear signal boosting. It also uses little power, only 1.2 mA per amplifier, making it good for long use.

Applications of the AD623ARZ in Precision Signal Amplification

The AD623ARZ is great for tasks needing accurate signal boosting. It is often used for:

Sensor signals in medical tools and factory machines.
Data systems needing exact measurements.
Factory controls to manage and check machines.
Temperature measurement using thermocouples.
Changing physical signals into electrical ones with transducers.

This amplifier is reliable and works well for precision electronics, making it a top choice for engineers.

Single-Supply Configuration Basics

What is Single-Supply Operation?

Single-supply operation uses just one voltage to power a circuit. Instead of needing both positive and negative voltages, it only needs one. This makes the design easier and uses fewer parts. For example, the AD623ARZ works well with a single voltage from 2.7 V to 12 V. This makes it great for portable or battery-powered devices.

In these circuits, the ground is the main reference point. Signals going in and out must stay within the supply voltage range. This keeps the circuit working properly and avoids signal problems. To do this, you need to set input signals carefully and use proper biasing methods.

Why Use Single-Supply Configurations?

Single-supply setups have many advantages. First, they make power supply designs simpler. You only need one voltage source, which saves money and effort. Second, they are perfect for portable devices. They use less power, so batteries last longer. Third, they are small and compact. Fewer parts mean smaller circuit boards, which is great for modern gadgets.

The AD623ARZ amplifier works very well in single-supply setups. Its rail-to-rail output lets you use the full signal range, even with low voltages. This makes it a dependable choice for precise tasks.

Tips for Designing Single-Supply Circuits

When designing single-supply circuits, keep a few things in mind. First, make sure input signals stay within the amplifier's range. If they don’t, signals can get distorted or clipped. Next, use the right biasing to set the input signal’s reference point. This keeps the circuit working correctly.

Also, focus on power supply decoupling. Place capacitors near the amplifier to reduce noise and keep the voltage steady. Good grounding is important too. A well-planned ground layout reduces interference and improves signal accuracy. Lastly, pick components that fit your project. The AD623ARZ is a great choice because it uses little power and is very precise.

Step-by-Step Guide to Amplifying Differential Signals

Circuit Design and Pin Configuration

When building a circuit with the AD623ARZ, knowing its pins is key. Each pin has a job to help amplify signals. Here's a table showing what each pin does:

Pin Name	What It Does
V+	Connects to the positive power.
V-	Connects to the ground.
IN-	Takes the inverting input signal.
IN+	Takes the non-inverting input.
OUT	Sends out the amplified signal.
FB	Used for feedback control.
NC	Not connected to anything.
VS	Detects the power supply.

To set it up, connect IN+ and IN- to your signal source. Attach V+ to the positive power and V- to the ground. The OUT pin gives you the amplified signal. Correct wiring makes the circuit work well.

Choosing Gain Resistors for the AD623ARZ

You can change how much the AD623ARZ amplifies by picking the right resistor. This is called the gain. Use this formula to find the resistor value:

Gain = 1 + (49.4 kΩ / RG)

Here, RG is the resistor for gain. For example, if you want a gain of 10, calculate RG like this:

RG = 49.4 kΩ / (Gain - 1)
RG = 49.4 kΩ / 9 ≈ 5.49 kΩ

Pick a resistor close to this value for the gain you need. Accurate resistors help boost signals correctly.

Power Supply and Grounding Setup

A steady power source and good grounding are very important. Connect V+ to a power supply between 2.7 V and 12 V. Make sure V- is connected to the ground. To reduce noise, put capacitors near the power pins. These help keep the voltage steady.

Good grounding improves signal quality. Use one main ground point to avoid problems. This setup helps the AD623ARZ amplify signals clearly and reliably.

Practical Tips for Better Performance

To make the AD623ARZ work its best, follow these tips. They will help your circuits run smoothly and reliably.

1. Reduce Noise with Good Layout

Keep your circuit neat and simple. Place the AD623ARZ close to the signal source. Use short wires for input and output signals. This lowers noise and keeps signals clear.

Tip: Add a ground plane on your PCB to block EMI. A strong ground connection makes the circuit more stable.

2. Pick Quality Parts

Use resistors with low tolerance for setting gain. Precise resistors make the amplifier more accurate. Choose capacitors with low ESR for better decoupling.

3. Improve Power Supply Decoupling

Put decoupling capacitors near the AD623ARZ power pins. Use a 0.1 µF ceramic capacitor and a 10 µF electrolytic capacitor together. This removes noise and keeps the power steady.

4. Set Input Bias Correctly

For single-supply use, adjust input signals to fit the amplifier's range. Use a voltage divider or reference voltage to set the right bias.

5. Test Gain Carefully

Start with a low gain when testing. Slowly increase it to the level you need. Watch the output to avoid signal problems.

Note: Stay within the recommended gain range to keep signals clear.

6. Check Temperature

The AD623ARZ works well in its temperature range. Make sure your design has good airflow or cooling to prevent overheating.

By using these tips, you can get accurate and steady signal amplification with the AD623ARZ.

Common Challenges and Troubleshooting

Managing Noise and Signal Interference

Noise can mess up your AD623ARZ circuit. To fix this, focus on keeping signals clean. The AD623ARZ is great for reducing noise in sensitive projects. Here are some features that help:

Low Noise Levels: It keeps noise low at 35 nV/√Hz at 1 kHz.
High Common Mode Rejection Ratio (CMRR): It blocks unwanted signals with a CMRR of 90 dB.
Low Distortion: This keeps your output signal clear and accurate.

To lower noise, keep your circuit small and neat. Place the amplifier near the signal source. Use short wires that are shielded for better connections. Adding a ground plane to your PCB can block EMI and make the circuit stable.

Tip: Put decoupling capacitors near power pins to filter noise. This keeps the voltage steady.

Adjusting Gain for Stability and Accuracy

Setting gain correctly makes signals stable and accurate. The AD623ARZ lets you change gain by picking the right resistor. Follow these steps for good gain settings:

Keep calibration at a steady temperature.
Set the sensor's temperature compensation to 0% and save it.
Put the sensor in calibration fluid and let it settle.
Change the gain percentage between 80% and 120% to match conductivity.
Enter the process media's reference temperature if you know it.
Reset the temperature compensation to the needed percentage and save it.

Good gain settings help your circuit work well in different conditions. Check and adjust gain often for the best results.

Ensuring Proper Power Supply Decoupling

A steady power supply keeps the AD623ARZ working right. Decoupling reduces voltage changes and noise that can hurt signals. Place capacitors near the amplifier's power pins. Use a 0.1 µF ceramic capacitor and a 10 µF electrolytic capacitor together to filter noise.

Grounding is also important. Connect all ground points to one spot to avoid loops. This setup keeps interference low and signals clean.

Note: Make sure your power supply voltage stays between 2.7 V and 12 V.

By fixing these problems, your AD623ARZ circuit will amplify signals clearly and reliably.

Fixing Common Circuit Problems

Fixing circuit problems might seem hard, but it gets easier with the right steps. Here are some simple ways to find and fix issues in your AD623ARZ circuits.

1. Start with Testing

Make a test setup to check how your circuit works. This setup shows how your circuit behaves in different situations. Testing early helps you find and fix problems before building.

2. Check Signal Shapes

Look at signal shapes to see how they change over time. This helps you find anything unusual in your circuit's output. Use tools like oscilloscopes or software to see these signals clearly.

3. Use Print Statements

Add print commands in your simulation to see signal values. This lets you watch how signals behave while the circuit runs. It’s a simple way to find mistakes.

4. Set Error Alerts

Add checks to make sure everything works as expected. These checks warn you if something is wrong. For example, you can check if input signals stay within the amplifier's limits.

5. Monitor Signals Live

Use tools like SignalTap or ChipScope to watch signals in real-time. Debug registers also help you see what’s happening inside the circuit without taking it apart.

Tip: Write down your steps while fixing problems. Notes on what works will help you in future projects.

By using these methods, you can solve circuit problems and make sure your AD623ARZ amplifier works well.

Setting up the AD623ARZ as a single-supply amplifier is easy. First, connect the power supply. Next, adjust the gain using an external resistor. Finally, ensure the grounding is correct. Its rail-to-rail output and adjustable gain make it useful for many tasks.

Feature	Specification
Easy to Use	Works simply with one power source
Rail-to-Rail Output	Reaches full output range
Low Power Use	Uses only 550 μA at most

The AD623ARZ is great for accurate work. Its simple design, accuracy, and low power use make it perfect for medical tools, sensors, and more. Try it in your next project!

FAQ

1. How can you find the gain for the AD623ARZ?

To find the gain, use this formula:

Gain = 1 + (49.4 kΩ / RG)

RG is the resistor you pick. For example, if you need a gain of 10, choose an RG close to 5.49 kΩ.

Tip: Pick accurate resistors for better signal boosting.

2. Can the AD623ARZ work with battery-powered gadgets?

Yes, the AD623ARZ is great for battery-powered gadgets. It uses little power (550 μA max) and works with one power source. This makes it perfect for portable tools like medical devices and sensors.

Note: Keep the supply voltage between 2.7 V and 12 V.

3. Why are decoupling capacitors important in circuits?

Decoupling capacitors help reduce noise and keep the power steady. Place a 0.1 µF ceramic capacitor and a 10 µF electrolytic capacitor near the AD623ARZ power pins. This setup ensures smooth and clear signal boosting.

4. How can you reduce noise in AD623ARZ circuits?

To lower noise, make your circuit small and neat. Use short, shielded wires for connections. Add a ground plane to your PCB to block EMI. Also, place decoupling capacitors near the power pins to reduce noise.

Tip: Keep the amplifier close to the signal source for better results.

5. Where can you use the AD623ARZ?

The AD623ARZ is useful in many areas, such as:

Boosting sensor signals in medical tools.
Checking factory machines.
Measuring heat with thermocouples.
Turning physical signals into electrical ones.

Its accuracy and flexibility make it a favorite for engineers.
