SI53102-A3-GMR,SILICON,Network Data Center Clock Generator Chip
The SI53102-A3-GMR chip is a cutting-edge timing solution engineered to deliver exceptional precision and reliability. Designed by Silicon Labs, this advanced device ensures low-jitter clock synchronization, which is critical for maintaining seamless data flow in high-speed communication systems. Its ability to generate multiple clock outputs from a single input reduces complexity and enhances efficiency. This makes it indispensable for network data centers, where precise timing directly impacts performance and stability. By integrating innovative technology, the SI53102-A3-GMR sets a new standard for timing accuracy in demanding applications.
Key Takeaways
The SI53102-A3-GMR chip offers exceptional precision and low jitter performance, ensuring reliable clock synchronization critical for high-speed communication systems.
With flexible clock frequency selection, this chip adapts to various system requirements, making it suitable for diverse applications from network data centers to industrial automation.
Its ultra-low power consumption not only reduces operational costs but also supports sustainable practices in power-sensitive applications.
The compact design of the SI53102-A3-GMR allows for seamless integration into space-constrained systems, optimizing space utilization without compromising performance.
Compliance with PCIe Gen 1 to Gen 5 standards ensures the chip's compatibility with advanced communication systems, making it a future-ready solution for evolving technologies.
By generating multiple clock outputs from a single input, the SI53102-A3-GMR simplifies circuit design and enhances overall system reliability.
Key Features of the SI53102-A3-GMR
High Precision and Low Jitter Performance
The SI53102-A3-GMR delivers exceptional clocking performance, ensuring precise timing for critical systems. Its advanced phase-locked loop (PLL) design minimizes jitter, which is essential for maintaining signal integrity in high-speed communication networks. By generating low-jitter clock signals from a single input source, this chip guarantees reliable synchronization across various electronic applications. This high precision enhances data transfer consistency, making it indispensable for industries requiring robust timing solutions. The device's ability to maintain stable clock outputs even under demanding conditions underscores its reliability and efficiency.
Flexible Clock Frequency Selection
The SI53102-A3-GMR supports a wide range of operating frequencies, offering unparalleled flexibility for diverse applications. This feature allows users to tailor the clock settings to meet specific system requirements, ensuring optimal performance in every scenario. Whether used in network data centers or industrial automation, the chip adapts seamlessly to varying frequency demands. Its compatibility with multiple frequency ranges simplifies integration into existing systems, reducing development time and effort. This adaptability positions the device as a versatile solution for modern electronic designs.
Ultra-Low Power Consumption
Energy efficiency remains a cornerstone of the SI53102-A3-GMR's design. The chip operates with ultra-low power consumption, making it ideal for power-sensitive applications. By minimizing energy usage, it reduces operational costs while maintaining high performance. This efficiency does not compromise its ability to deliver precise clock signals, ensuring that systems remain both reliable and sustainable. Its low power requirements also make it suitable for compact devices, where energy conservation is critical. This balance of performance and efficiency highlights the chip's innovative engineering.
Compact Design and Robust Reliability
The SI53102-A3-GMR stands out with its compact design, making it an ideal choice for modern electronic systems where space is a premium. Measuring just 1.4 x 1.6 mm in an 8-pin TDFN package, this chip integrates seamlessly into compact circuit boards. Its small footprint reduces the overall size of devices, enabling manufacturers to create sleeker and more efficient products. This design approach not only optimizes space utilization but also simplifies system integration, especially in applications requiring high-density layouts.
"Compactness without compromising performance" defines the engineering philosophy behind the SI53102-A3-GMR.
Reliability remains a cornerstone of this clock generator chip. Built to withstand demanding operational conditions, it ensures consistent performance across various environments. The robust construction minimizes the risk of failure, even in high-temperature or high-vibration settings. This durability makes it suitable for critical applications such as industrial control systems, networking equipment, and embedded systems. Its ability to maintain stable clock outputs under challenging conditions underscores its dependability.
The SI53102-A3-GMR also reduces component count by generating multiple clock outputs from a single input. This feature not only simplifies circuit design but also enhances system reliability by reducing potential points of failure. By combining compactness with robust performance, this chip delivers a solution that meets the needs of both space-constrained and mission-critical applications.
Technical Specifications of the SI53102-A3-GMR
PCIe Gen 1 to Gen 5 Compliance
The SI53102-A3-GMR meets the stringent requirements of PCI Express (PCIe) Gen 1 through Gen 5 standards. This compliance ensures seamless integration into high-speed communication systems, where precise timing is critical. The chip functions as a 1:2 fanout buffer, distributing reference clocks with exceptional accuracy. Its design aligns with the Intel DB1900Z specification, making it suitable for advanced applications such as Intel UltraPath, QuickPath Interconnect, SAS, and SATA. By adhering to these standards, the SI53102-A3-GMR guarantees reliable performance in data-intensive environments.
Input Frequency Range and Stability
The SI53102-A3-GMR supports an input frequency range of up to 175 MHz, ensuring compatibility with a variety of clock sources. This wide range allows the chip to adapt to different system requirements, providing flexibility for diverse applications. The device maintains exceptional stability, even under fluctuating conditions, ensuring consistent clock output. Its ability to work seamlessly with crystal oscillators enhances its reliability in generating precise timing signals. This stability makes it an ideal choice for systems requiring robust clock synchronization.
Power Supply Requirements
The SI53102-A3-GMR operates efficiently with a minimum supply voltage of 2.97 V, making it suitable for power-sensitive applications. Its ultra-low power consumption reduces energy usage without compromising clock performance. This efficiency supports sustainable operation in compact devices and high-density systems. The chip’s design ensures that it delivers stable clock outputs while maintaining low power requirements, which is essential for modern electronic systems. Its compatibility with various power configurations simplifies integration into existing designs.
Packaging and Integration Options
The SI53102-A3-GMR offers a compact and efficient packaging solution, designed to meet the needs of modern electronic systems. Encased in an 8-pin TDFN (Thin Dual Flat No-Lead) package, it measures only 1.4 x 1.6 mm. This small footprint allows seamless integration into space-constrained designs, making it ideal for high-density circuit boards. The TDFN package ensures excellent thermal performance and electrical reliability, which are critical for maintaining stable operation in demanding environments.
Integration of the SI53102-A3-GMR into existing systems is straightforward due to its well-documented application circuit diagram. This diagram provides clear guidance on connecting the chip to system timing signals, including power supply, ground, and clock input/output lines. By following these instructions, engineers can achieve optimal performance and ensure precise clock synchronization. The simplicity of the integration process reduces development time and minimizes the risk of errors during implementation.
The chip's compatibility with various clock sources further enhances its versatility. It supports seamless integration with crystal oscillators and other timing components, ensuring robust clock signal generation. This flexibility allows the SI53102-A3-GMR to adapt to diverse applications, from network data centers to industrial automation systems. Its ability to maintain consistent performance across different configurations underscores its reliability as a timing IC.
Manufacturers benefit from the chip's robust design, which simplifies system assembly and reduces the overall component count. By generating multiple clock outputs from a single input, the SI53102-A3-GMR streamlines circuit layouts and improves system efficiency. This feature not only saves valuable board space but also enhances the reliability of the overall design by reducing potential failure points.
"The SI53102-A3-GMR combines compact packaging with seamless integration, delivering a timing IC solution that meets the demands of modern electronic systems."
Applications of the SI53102-A3-GMR Clock Generator Chip
Network Data Centers
The SI53102-A3-GMR plays a pivotal role in network data centers by ensuring precise clock synchronization. These centers rely on accurate timing to maintain seamless data flow across servers and storage systems. The chip generates stable clock outputs, which are essential for reducing latency and improving data transmission efficiency. Its low jitter performance enhances signal integrity, enabling reliable communication between interconnected devices. By supporting multiple clock outputs from a single input, the chip simplifies circuit design and optimizes system performance. This capability makes it indispensable for modern data centers that demand high-speed and reliable operations.
5G Base Stations
5G base stations require advanced timing solutions to handle the complexities of high-speed data communication. The SI53102-A3-GMR meets these demands by delivering precise clock signals with minimal jitter. Its ability to operate across a wide frequency range ensures compatibility with various 5G network components. The chip's ultra-low power consumption supports energy-efficient operation, which is critical for large-scale deployments. By maintaining stable clock outputs under fluctuating conditions, it ensures uninterrupted connectivity and optimal network performance. This reliability positions the chip as a key component in the infrastructure of next-generation wireless communication systems.
High-Definition Multimedia Systems
High-definition multimedia systems depend on accurate timing to deliver seamless audio and video synchronization. The SI53102-A3-GMR provides the precise clock outputs needed to achieve this synchronization, ensuring a superior user experience. Its compatibility with crystal oscillators enhances its ability to generate stable clock signals, even in demanding environments. The chip's compact design allows integration into space-constrained multimedia devices, such as set-top boxes and gaming consoles. By reducing jitter and maintaining consistent clock performance, it supports high-quality playback and real-time data processing. This makes the chip an ideal choice for multimedia applications requiring exceptional timing accuracy.
Industrial Automation and High-Speed Data Communication
The SI53102-A3-GMR chip plays a crucial role in industrial automation systems by delivering precise timing for automation devices and controls. These systems rely on accurate clock synchronization to ensure seamless operation of machinery, sensors, and embedded communication modules. The chip's low-jitter performance enhances signal integrity, which is essential for maintaining reliable communication between interconnected devices in automated environments.
In high-speed data communication, the SI53102-A3-GMR excels by providing stable clock outputs that support real-time data transfer. Its ability to adapt to various timing requirements makes it suitable for applications requiring rapid and consistent data exchange. This versatility ensures compatibility with advanced communication protocols, enabling efficient operation in industries such as manufacturing, logistics, and energy management.
"Whether it’s for high-speed data centers, telecommunications networks, or industrial automation systems, this versatile solution can adapt to various timing requirements with outstanding precision and flexibility."
The chip's compact design and ultra-low power consumption further enhance its appeal for industrial applications. By reducing energy usage, it supports sustainable operations while maintaining high performance. Its small footprint simplifies integration into space-constrained systems, allowing manufacturers to optimize their designs without compromising functionality.
The SI53102-A3-GMR also supports embedded communication modules, which are critical for real-time applications needing high-speed data transfer. These modules benefit from the chip's ability to generate multiple clock outputs from a single input, reducing complexity and improving system efficiency. This feature ensures that industrial systems can handle demanding workloads with minimal latency and maximum reliability.
By combining precision, flexibility, and efficiency, the SI53102-A3-GMR meets the rigorous demands of industrial automation and high-speed data communication. Its robust performance and adaptability make it an indispensable component for modern industries striving for innovation and operational excellence.
Comparison with Other Clock Generator Chips
Performance and Jitter Reduction
The SI53102-A3-GMR stands out for its ability to deliver low-jitter clock signals, ensuring precise timing in high-speed communication systems. Compared to the SI5351-A3-GMR, which offers a higher frequency range and enhanced jitter performance, the SI53102-A3-GMR focuses on maintaining stability and reliability up to 200 MHz. This makes it an excellent choice for applications requiring consistent clock synchronization without the need for ultra-high frequencies.
In contrast, the SI53102-A2-GMR operates at a maximum frequency of 100 MHz, which limits its use in more demanding environments. The SI53102-A3-GMR doubles this capability, providing superior performance for data centers, 5G base stations, and industrial automation systems. Its advanced phase-locked loop (PLL) design further enhances its ability to minimize jitter, ensuring excellent clocking performance across various applications.
"The SI53102-A3-GMR excels in delivering stable and low-jitter clock outputs, making it indispensable for critical systems requiring precise timing."
Cost-Effectiveness and Value
The SI53102-A3-GMR offers a balance between performance and affordability, making it a cost-effective solution for industries seeking reliable clock generator chips. While the SI5351-A3-GMR may cater to applications requiring higher frequencies, its advanced features often come at a premium. For users prioritizing efficient clock synchronization within a reasonable budget, the SI53102-A3-GMR provides exceptional value.
Its ability to generate multiple clock outputs from a single input reduces the need for additional components, lowering overall system costs. Furthermore, its ultra-low power consumption minimizes operational expenses, making it an economical choice for power-sensitive applications. By combining affordability with robust performance, the SI53102-A3-GMR delivers a compelling value proposition for modern electronic systems.
Unique Features and Market Differentiators
The SI53102-A3-GMR distinguishes itself through its compact design, robust reliability, and seamless integration capabilities. Measuring just 1.4 x 1.6 mm in an 8-pin TDFN package, it fits effortlessly into space-constrained designs. This compactness, paired with its ability to maintain stable clock outputs under demanding conditions, sets it apart from competitors like the SI5351-A3-GMR and SI53102-A2-GMR.
Another key differentiator lies in its compliance with PCIe Gen 1 to Gen 5 standards, ensuring compatibility with a wide range of high-speed communication systems. While other chips may focus on niche applications, the SI53102-A3-GMR caters to diverse industries, including network data centers, multimedia systems, and industrial automation. Its versatility, combined with its ability to deliver precise clock synchronization, positions it as a market leader in timing solutions.
"The SI53102-A3-GMR combines compact design, reliability, and versatility, making it a standout choice in the competitive landscape of clock generator chips."
Advantages of Using the SI53102-A3-GMR
Enhanced Timing Integrity for Critical Systems
The SI53102-A3-GMR ensures precise clock synchronization, which is vital for maintaining the integrity of critical systems. Its advanced design minimizes jitter, delivering stable and accurate clock outputs that meet the stringent requirements of modern network infrastructure. By providing consistent timing, the chip enhances data transfer reliability and reduces the risk of errors during high-speed communication. This capability makes it indispensable for applications where timing precision directly impacts performance, such as network data centers, 5G base stations, and industrial automation systems.
"The SI53102-A3-GMR sets a new standard for clock synchronization in the digital era, ensuring seamless data flow and operational stability."
The chip’s ability to generate multiple clock outputs from a single input simplifies circuit design while maintaining timing accuracy. This feature reduces potential points of failure, ensuring uninterrupted operation in mission-critical environments. Its robust performance under demanding conditions further solidifies its role as a trusted timing IC for industries requiring exceptional reliability.
Improved System Efficiency and Reliability
The SI53102-A3-GMR optimizes system efficiency by reducing power consumption without compromising clock performance. Its ultra-low power design supports energy-sensitive applications, lowering operational costs while maintaining high output stability. By streamlining clock distribution, the chip minimizes component count, which simplifies system architecture and enhances overall reliability.
The device’s compact design allows seamless integration into space-constrained systems, enabling manufacturers to create efficient and compact products. Its ability to maintain stable clock outputs under fluctuating conditions ensures consistent performance across various environments. This reliability reduces downtime and enhances user experience, making the SI53102-A3-GMR a valuable asset for modern electronic systems.
Key Benefits:
Reduced energy usage for sustainable operations.
Simplified system design with fewer components.
Consistent performance in diverse operating conditions.
Scalability for Future Technology Upgrades
The SI53102-A3-GMR offers scalability, making it adaptable to future technological advancements. Its compliance with PCIe Gen 1 through Gen 5 standards ensures compatibility with evolving high-speed communication protocols. This adaptability allows the chip to support next-generation systems, providing a future-proof solution for industries investing in long-term infrastructure.
The chip’s flexible clock frequency selection enables it to meet diverse timing requirements, ensuring optimal performance across various applications. Its ability to maintain precise clock outputs even as system demands evolve highlights its versatility as a timing IC. By integrating this chip, manufacturers can scale their designs to accommodate future upgrades without significant redesign efforts.
"The SI53102-A3-GMR combines precision, efficiency, and adaptability, making it a cornerstone for future-ready electronic systems."
This scalability positions the SI53102-A3-GMR as a forward-thinking solution for industries aiming to stay ahead in the rapidly advancing digital landscape. Its robust design and advanced features ensure that it remains a reliable choice for years to come.
Why Choose SI53102-A3-GMR for Your Needs?
Trusted Technology Backed by Silicon Labs
Silicon Labs has established itself as a leader in the semiconductor industry, delivering innovative solutions for high-speed communication systems. The SI53102-A3-GMR reflects the company’s commitment to excellence, offering a reliable clock generator chip designed to meet the demands of modern electronic systems. With a focus on precision and efficiency, Silicon Labs ensures that this chip delivers low jitter and stable clock signals, even in challenging environments.
The company’s expertise in timing technology is evident in the SI53102-A3-GMR, which integrates advanced features like flexible frequency selection and ultra-low power consumption. These attributes make it a trusted choice for industries requiring robust timing solutions. Silicon Labs also provides comprehensive development tools, enabling engineers to streamline system integration and optimize clock performance. This support underscores the company’s dedication to helping users achieve maximum efficiency and reliability in their designs.
"Silicon Labs combines innovation and reliability, making the SI53102-A3-GMR a benchmark in clock synchronization technology."
Optimized for Network Data Centers and Beyond
The SI53102-A3-GMR is specifically engineered to address the critical timing needs of network data centers. Its ability to generate multiple clock outputs from a single input simplifies circuit design and enhances system efficiency. By delivering low-jitter clock signals, the chip ensures seamless data flow across servers and storage systems, reducing latency and improving overall performance. This optimization makes it indispensable for data centers where precise timing directly impacts operational success.
Beyond data centers, the SI53102-A3-GMR excels in various applications, including 5G base stations, industrial automation, and high-definition multimedia systems. Its wide operating frequency range and compatibility with crystal oscillators allow it to adapt to diverse timing requirements. The chip’s compact design and robust reliability further enhance its versatility, making it suitable for space-constrained and mission-critical environments. This adaptability positions the SI53102-A3-GMR as a comprehensive solution for industries seeking advanced clock synchronization technology.
Available Through Global Distributors like deirchip.com
The SI53102-A3-GMR is readily available through trusted global distributors, ensuring easy access for manufacturers and engineers worldwide. Platforms like deirchip.com provide a reliable source for purchasing this high-performance clock generator chip. These distributors offer competitive pricing and detailed product information, simplifying the procurement process for businesses of all sizes.
By partnering with global distributors, Silicon Labs ensures that the SI53102-A3-GMR reaches a broad audience, supporting industries in need of precise timing solutions. This accessibility, combined with the chip’s advanced features, makes it a preferred choice for professionals seeking dependable clock synchronization components. Whether for large-scale deployments or specialized applications, the SI53102-A3-GMR remains a top-tier option available through reputable suppliers.
"Global availability through trusted distributors like deirchip.com ensures that the SI53102-A3-GMR meets the timing needs of industries worldwide."
The SI53102-A3-GMR delivers exceptional performance, combining precision, reliability, and efficiency. Its key features, such as low jitter, flexible clock frequency selection, and ultra-low power consumption, make it a standout solution for modern electronic systems. With compliance to PCIe Gen 1 through Gen 5 standards, it ensures seamless integration into high-speed communication networks. Applications in network data centers, 5G base stations, and industrial automation highlight its versatility and value. For industries requiring precise timing and synchronization, the SI53102-A3-GMR offers a future-ready solution that enhances system performance and operational stability.
FAQ
What is the primary function of the SI53102-A3-GMR?
The SI53102-A3-GMR serves as a high-precision clock generator chip. It ensures low-jitter clock synchronization, which is essential for maintaining signal integrity in high-speed communication systems. This chip generates multiple clock outputs from a single input, simplifying circuit design and enhancing system efficiency.
Which industries benefit most from the SI53102-A3-GMR?
Industries such as network data centers, 5G telecommunications, industrial automation, and high-definition multimedia systems benefit significantly from the SI53102-A3-GMR. Its precise timing capabilities and robust performance make it indispensable for applications requiring reliable clock synchronization.
What are the key features that set the SI53102-A3-GMR apart?
The SI53102-A3-GMR offers several standout features, including low-jitter performance, flexible clock frequency selection, ultra-low power consumption, and a compact 8-pin TDFN package. These attributes ensure seamless integration into modern electronic systems while maintaining high efficiency and reliability.
How does the SI53102-A3-GMR support PCIe compliance?
The SI53102-A3-GMR complies with PCIe Gen 1 through Gen 5 standards. It functions as a 1:2 fanout buffer, distributing reference clocks with exceptional accuracy. This compliance ensures compatibility with high-speed communication systems and advanced applications like Intel UltraPath and QuickPath Interconnect.
What is the input frequency range of the SI53102-A3-GMR?
The SI53102-A3-GMR supports an input frequency range of up to 175 MHz. This wide range allows it to adapt to various system requirements, ensuring compatibility with diverse clock sources and maintaining stable clock outputs under fluctuating conditions.
How does the SI53102-A3-GMR contribute to energy efficiency?
The SI53102-A3-GMR operates with ultra-low power consumption, making it ideal for power-sensitive applications. By minimizing energy usage, it reduces operational costs while maintaining high performance. This efficiency supports sustainable operations in compact and high-density systems.
What packaging options are available for the SI53102-A3-GMR?

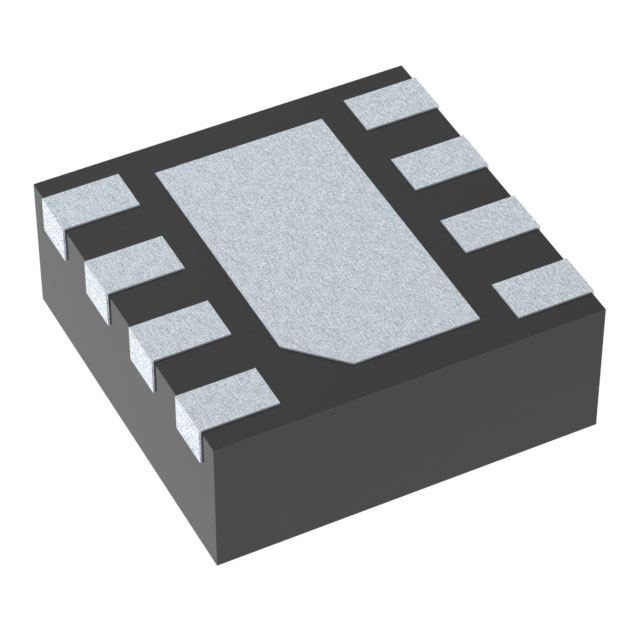

The SI53102-A3-GMR comes in a compact 8-pin TDFN (Thin Dual Flat No-Lead) package, measuring just 1.4 x 1.6 mm. This small footprint allows seamless integration into space-constrained designs, ensuring excellent thermal performance and electrical reliability.
How can users access technical support or datasheets for the SI53102-A3-GMR?
For technical support or to request datasheets, users can refer to the SI53102-A3-GMR datasheet page or contact the support team via email at dasenic@dasenic.com. This ensures easy access to detailed product information and expert assistance.
Why is the SI53102-A3-GMR considered a future-ready solution?
The SI53102-A3-GMR supports scalability for future technology upgrades. Its compliance with PCIe Gen 1 through Gen 5 standards ensures compatibility with evolving communication protocols. This adaptability makes it a reliable choice for industries investing in long-term infrastructure.
Where can the SI53102-A3-GMR be purchased?
The SI53102-A3-GMR is available through global distributors, including deirchip.com. These platforms provide competitive pricing and detailed product information, simplifying the procurement process for manufacturers and engineers worldwide.
