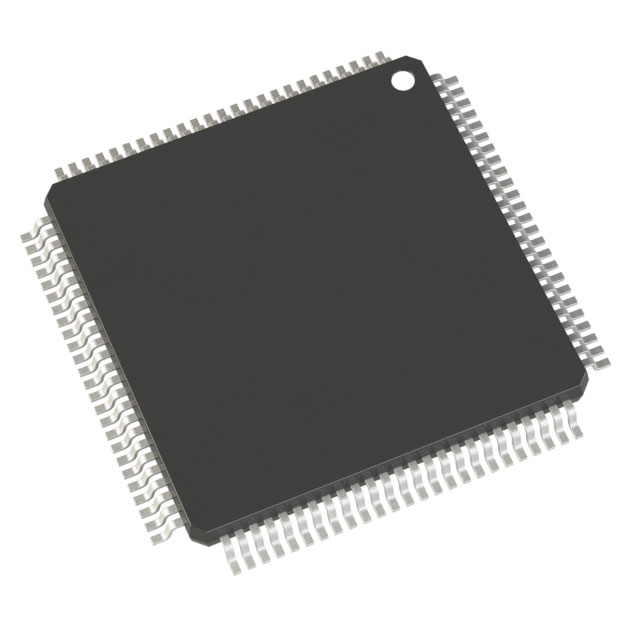

PIC24FJ1024GB610-I/PT, MICROCHIP, IoT Embedded Microcontroller Chip
The PIC24FJ1024GB610-I/PT microcontroller offers a powerful solution for IoT and embedded systems. Its 16-bit core ensures high performance, while the 1 MB Flash memory supports complex software development. You can rely on its integrated peripherals, including ADCs and serial communication modules, to simplify your design process. With energy-efficient modes and extended connectivity options like USB, SPI, and I2C, this microcontroller is ideal for battery-powered devices.
Here’s a quick look at its key specifications:
Feature | Description |
|---|---|
High-Performance Core | 16-bit core with a wide range of peripherals for versatile applications. |
Flash Memory | 1 MB of program memory for complex embedded software. |
Peripheral Integration | Includes ADCs, serial communication modules, and more for enhanced functionality. |
Low-Power Operation | Energy-efficient modes suitable for battery-powered devices. |
Extended Connectivity | Supports SPI, I2C, UART, and USB communication interfaces. |
This microcontroller empowers you to create efficient and stable IoT devices, from smart homes to industrial automation systems.
Key Takeaways
The PIC24FJ1024GB610-I/PT microcontroller has a strong 16-bit core. It works well for advanced IoT projects.
It has 1 MB of Flash memory, allowing big software to run easily.
Its low-power use and XLP tech help batteries last longer. This makes it great for portable gadgets.
Built-in tools like ADCs and communication modules make designing easier for developers.
It works well in tough conditions because of its wide temperature range.
Overview of PIC24FJ1024GB610-I/PT
What is the PIC24FJ1024GB610-I/PT?
The PIC24FJ1024GB610-I/PT is a high-performance 16-bit microcontroller designed to meet the demands of modern IoT and embedded systems. It combines advanced processing capabilities with a rich set of peripherals, making it a versatile choice for developers. With 1 MB of Flash memory, this microcontroller supports complex software applications while ensuring efficient data handling. Its low-power operation and extended connectivity options, including USB 2.0 OTG, SPI, I2C, and UART, make it ideal for battery-powered devices. Whether you are building smart home systems or industrial automation solutions, this microcontroller provides the tools you need to succeed.
Here’s how it stands out compared to other microcontrollers:
Feature | Description |
|---|---|
High-Performance 16-Bit Core | Offers enhanced processing capabilities for versatile applications. |
1 MB Flash Memory | Provides ample program memory space for complex embedded software. |
Rich Peripheral Integration | Includes various peripherals like ADCs and communication modules. |
Low-Power Operation | Features low-power modes for energy efficiency in battery-operated devices. |
Extended Connectivity | Supports multiple communication interfaces such as SPI, I2C, UART, and USB. |
Manufacturer: Microchip Technology
Microchip Technology, the manufacturer of the PIC24FJ1024GB610-I/PT, has a long-standing reputation in the microcontroller industry. Established in 1987 as a spin-off from General Instrument's microelectronics division, Microchip became independent in 1989. It gained recognition for its affordable 8-bit RISC microcontrollers, which offered a cost-effective alternative to pricier 32-bit options. Over the years, Microchip has solidified its position as a leader in the market by consistently delivering innovative and reliable solutions for embedded systems.
Applications in IoT and Embedded Systems
You can use the PIC24FJ1024GB610-I/PT in a wide range of IoT and embedded system applications. Its low-power consumption and robust connectivity make it perfect for smart home devices, such as thermostats and security systems. In industrial settings, it powers automation systems and sensors, ensuring reliable performance in demanding environments. The microcontroller also supports medical devices, portable instruments, and automotive systems, thanks to its secure encryption and wireless connectivity features.
Tip: The PIC24FJ1024GB610-I/PT’s XLP low-power technology ensures efficient energy management, making it a great choice for battery-operated IoT devices.
Key Features of PIC24FJ1024GB610-I/PT
High Memory Capacity
1024 KB Flash memory with dual-partition capability
The PIC24FJ1024GB610-I/PT offers an impressive 1 MB of Flash memory, which surpasses many other microcontrollers in its class. This high memory capacity allows you to develop more complex embedded applications without worrying about storage limitations. Compared to alternatives like the PIC24FJ128GA010-I/PT, which provides lower memory options, this microcontroller stands out as a versatile choice for developers seeking advanced processing power.
The dual-partition capability of the Flash memory further enhances its functionality. This feature enables you to run applications while simultaneously programming new firmware. It is especially useful for over-the-air updates, ensuring your devices remain secure and up-to-date. With this capability, you can maintain reliable performance in your embedded systems without interrupting operations.
32 KB RAM for efficient data handling
In addition to its Flash memory, the PIC24FJ1024GB610-I/PT includes 32 KB of RAM. This ensures efficient data handling, even in applications requiring high-speed processing. Whether you are managing real-time data or running multiple tasks, this microcontroller provides the resources you need for smooth operation.
USB 2.0 On-The-Go (OTG) Support
The USB 2.0 OTG support in the PIC24FJ1024GB610-I/PT adds significant flexibility to your designs. This feature allows your device to function as both a host and a peripheral, depending on the application. You can use it to connect external devices like sensors, storage drives, or other microcontrollers. This capability simplifies the integration of additional components, making your IoT and embedded systems more adaptable.
Low-Power Consumption
eXtreme low power for battery-operated devices
The PIC24FJ1024GB610-I/PT incorporates XLP (eXtreme Low Power) technology, making it ideal for battery-powered devices. This technology minimizes energy consumption, extending the operational life of your devices. Whether you are designing portable medical instruments or smart home sensors, this microcontroller ensures efficient power management.
Power-saving modes for energy efficiency
This microcontroller also includes multiple power-saving modes, allowing you to optimize energy usage based on your application’s requirements. These modes reduce power consumption during idle periods, ensuring your devices remain energy-efficient without compromising performance.
Integrated Peripherals
The PIC24FJ1024GB610-I/PT microcontroller includes a rich set of integrated peripherals, making it a versatile choice for IoT and embedded applications. These peripherals simplify your design process by providing built-in functionality for various tasks.
Key peripherals include:
Feature | Description |
|---|---|
Analog-to-Digital Converters | Enable precise data acquisition from sensors. |
Serial Communication Modules | Support UART, SPI, and I2C for seamless device communication. |
USB 2.0 OTG | Allows the device to act as both a host and a peripheral. |
These peripherals enhance the microcontroller's functionality, enabling you to connect sensors, storage devices, and other components effortlessly. For example, the ADCs ensure accurate sensor data conversion, while the serial communication modules provide reliable data transfer between devices.
Tip: Use the USB 2.0 OTG feature to add flexibility to your designs, allowing your device to adapt to different roles in a system.
16-bit Architecture
The 16-bit architecture of the PIC24FJ1024GB610-I/PT delivers high performance for a wide range of applications. This architecture strikes a balance between processing power and energy efficiency, making it ideal for IoT devices.
Feature | Description |
|---|---|
High-Performance 16-Bit Core | Provides enhanced processing capabilities for versatile applications. |
1 MB Flash Memory | Offers ample space for complex embedded software. |
Rich Peripheral Integration | Includes ADCs and communication modules for added functionality. |
This architecture ensures smooth operation even in demanding environments. Whether you are developing smart home systems or industrial automation solutions, the 16-bit core provides the reliability and efficiency you need.
Operating Temperature Range and Package Type
The PIC24FJ1024GB610-I/PT is designed to perform reliably in industrial-grade applications. Its I/PT package supports a wide operating temperature range, ensuring stable performance in harsh conditions.
Temperature Range | Value (°C) |
|---|---|
Minimum | -40 |
Maximum | 125 |
This extended range makes the microcontroller suitable for environments with extreme temperatures, such as automotive systems or outdoor IoT devices. The robust I/PT package further enhances its durability, ensuring long-term reliability in your applications.
Applications of PIC24FJ1024GB610-I/PT
IoT Devices
Smart home systems
The PIC24FJ1024GB610-I/PT microcontroller is a perfect fit for smart home systems. Its low-power consumption and robust connectivity options allow you to create efficient devices like smart thermostats, lighting systems, and security cameras. The integrated peripherals, such as ADCs and communication modules, simplify the connection of sensors and actuators. This microcontroller ensures reliable performance, even in complex home automation setups.
Industrial IoT solutions
In industrial IoT applications, the PIC24FJ1024GB610-I/PT excels due to its durability and extended operating temperature range. You can use it to develop automation systems, predictive maintenance tools, and environmental monitoring devices. Its USB 2.0 OTG support and multiple communication interfaces, including SPI and I2C, enable seamless integration with industrial networks. The high memory capacity ensures smooth operation of data-intensive applications, making it a reliable choice for industrial environments.
Consumer Electronics
The PIC24FJ1024GB610-I/PT enhances the functionality of various consumer electronics. Its energy-efficient design makes it ideal for devices like calculators, washing machines, and microwave ovens. You can also use it in advanced gadgets like 3D printers and smart home appliances. The microcontroller’s rich peripheral set and extended connectivity options simplify the development of innovative products.
Here are some examples of consumer electronics that benefit from this microcontroller:
Televisions
Heaters and fans
Kindle devices
Christmas lights
Home video and audio systems
Medical Devices
The PIC24FJ1024GB610-I/PT is well-suited for medical devices due to its high performance and energy efficiency. Its 16-bit core and 1 MB Flash memory support complex software applications, while the integrated ADCs ensure accurate data acquisition. You can rely on its low-power operation for battery-powered devices like portable monitors and diagnostic tools.
Feature | Description |
|---|---|
High-Performance 16-Bit Core | Provides enhanced processing capabilities for complex applications. |
1 MB Flash Memory | Ample program memory for sophisticated embedded software in medical devices. |
Rich Peripheral Integration | Includes ADCs and communication modules for versatile functionality. |
Low-Power Operation | Energy-efficient modes ideal for battery-operated medical devices. |
Extended Connectivity | Supports SPI, I2C, UART, and USB for various communication needs. |
The microcontroller’s secure encryption and wireless connectivity features further enhance its suitability for medical applications, ensuring data integrity and device reliability.
Automotive Systems
The PIC24FJ1024GB610-I/PT microcontroller is an excellent choice for automotive systems. Its robust design ensures reliable performance in demanding environments. You can use it to develop applications like engine control units, battery management systems, and in-vehicle infotainment systems. The microcontroller’s wide operating temperature range and extensive peripheral integration make it highly suitable for automotive use cases.
Feature | Description |
|---|---|
Wide Operating Temperature Range | Ensures reliable operation in various automotive environments. |
Extensive Peripheral Integration | Includes ADCs, communication modules, enhancing functionality for automotive applications. |
Low-Power Operation | Energy-efficient modes suitable for battery-powered automotive devices. |
The wide temperature range, from -40°C to 125°C, ensures stable operation in extreme conditions, such as under the hood or in cold climates. The integrated ADCs allow precise sensor data acquisition, while communication modules like CAN and UART enable seamless interaction with other vehicle systems. Additionally, the low-power operation supports energy-efficient designs, making it ideal for electric and hybrid vehicles.
Tip: Use the microcontroller’s CAN communication module to enhance data exchange between different automotive subsystems.
Data Acquisition and Control Systems
The PIC24FJ1024GB610-I/PT microcontroller excels in data acquisition and control systems. Its high performance and reliability make it a preferred choice for developers handling demanding embedded projects. You can leverage its expansive memory and diverse peripheral set to create innovative solutions tailored to your specific needs.
Key benefits include:
Up to 1 MB of Flash memory and 32 KB of RAM for complex applications.
USB connectivity for seamless integration with external devices.
Dual-partition Flash with Live Update capability for uninterrupted operation.
Over-the-air firmware updates to enhance application security.
eXtreme low power modes with current consumption as low as 300 nA.
Feature | Description |
|---|---|
Performance | High-performance 16-bit microcontroller |
Memory | 1 MB of flash memory for significant program storage |
Peripheral Integration | Extensive range of peripherals for versatile applications |
Power Operation | Low power operation suitable for battery-powered applications |
Connectivity Options | Extended connectivity options for various data acquisition needs |
The microcontroller’s ability to handle real-time data processing ensures accurate and efficient control. Its USB 2.0 OTG support simplifies the integration of external sensors and devices. You can also rely on its low-power modes to optimize energy consumption, making it ideal for portable and industrial applications.
Note: The dual-partition Flash memory allows you to perform firmware updates without interrupting system operations, ensuring continuous functionality.
Advantages for IoT and Embedded Systems
Scalability and Flexibility
The PIC24FJ1024GB610-I/PT microcontroller offers unmatched scalability and flexibility for IoT and embedded systems. Its high-performance 16-bit core allows you to handle complex processing tasks with ease. Whether you are developing a small-scale IoT device or a large industrial system, this microcontroller adapts to your needs.
The 1 MB Flash memory provides ample space for large applications, enabling you to implement advanced features without worrying about storage limitations. Additionally, the rich peripheral integration supports diverse interfaces, making it suitable for a wide range of applications. You can rely on its low-power operation to extend the life of battery-powered devices, ensuring long-term reliability.
Feature | Benefit |
|---|---|
Enables complex processing tasks essential for IoT and embedded systems. | |
1 MB Flash Memory | Supports large applications requiring significant program memory. |
Rich Peripheral Integration | Enhances functionality with various interfaces for diverse applications. |
Ideal for battery-powered devices, extending operational life. | |
Extended Connectivity | Facilitates communication in IoT devices through multiple protocols. |
This scalability ensures that your designs remain future-proof, allowing you to upgrade or expand your systems as needed.
Energy Efficiency
Ideal for battery-powered devices
Energy efficiency is a critical factor in IoT and embedded systems, and the PIC24FJ1024GB610-I/PT excels in this area. Its XLP (eXtreme Low Power) technology minimizes energy consumption, making it perfect for battery-operated devices. You can use this microcontroller to design products like portable medical instruments, smart home sensors, or industrial monitoring tools.
The microcontroller also includes multiple power-saving modes, which allow you to optimize energy usage based on your application’s requirements. These modes reduce power consumption during idle periods, ensuring your devices operate efficiently without compromising performance.
Tip: By leveraging the XLP technology, you can significantly extend the battery life of your IoT devices, reducing maintenance costs and enhancing user satisfaction.
Ease of Integration
The PIC24FJ1024GB610-I/PT simplifies the integration process, making it an excellent choice for developers. Its high-performance 16-bit core provides robust processing capabilities, while the 1 MB Flash memory supports complex embedded software. These features ensure seamless integration into existing systems.
The microcontroller’s rich peripheral set, including ADCs and communication modules, enhances functionality and reduces the need for external components. Its low-power operation and extended connectivity options, such as SPI, I2C, UART, and USB, further streamline the development process.
Feature | Description |
|---|---|
High-Performance 16-Bit Core | Provides a robust processing capability for various applications. |
1 MB Flash Memory | Ample memory for complex embedded software, facilitating integration. |
Rich Peripheral Integration | Includes ADCs and communication modules, enhancing functionality. |
Low-Power Operation | Energy-efficient modes suitable for battery-powered devices. |
Extended Connectivity | Supports SPI, I2C, UART, and USB for versatile communication options. |
This ease of integration allows you to focus on innovation rather than troubleshooting, helping you bring your products to market faster.
Robust Performance
Reliable operation in diverse environments
The PIC24FJ1024GB610-I/PT microcontroller delivers exceptional performance, even in challenging environments. Its robust design ensures that your devices operate reliably, whether in extreme temperatures or under varying power conditions. This makes it an excellent choice for applications like industrial automation, automotive systems, and outdoor IoT devices.
The microcontroller’s wide operating temperature range, from -40°C to 125°C, allows it to function seamlessly in both freezing and high-heat conditions. For example, you can use it in automotive systems where temperatures fluctuate drastically, or in outdoor sensors exposed to harsh weather. Its ability to maintain stable performance in such scenarios ensures your devices remain dependable.
The PIC24FJ1024GB610-I/PT also supports a broad operating voltage range, from 2V to 3.6VDC. This flexibility allows you to design systems that adapt to different power sources, including battery-operated devices. Whether you are working on portable medical instruments or industrial monitoring tools, this microcontroller provides the stability you need.
Here’s a quick look at its performance benchmarks:
Specification | Value |
|---|---|
CPU Type | 16-bit PIC MCU |
CPU Speed (MHz) | 16 |
Program Memory Size (KB) | 1024 |
Temp. Range Min. (°C) | -40 |
Temp. Range Max. (°C) | 125 |
Operation Voltage Min. (V) | 2 |
Operation Voltage Max. (V) | 3 to 3.6VDC |
The microcontroller’s 16-bit architecture and 16 MHz CPU speed ensure smooth operation, even in data-intensive applications. Its 1 MB Flash memory provides ample space for complex programs, while the integrated peripherals enhance functionality.
Tip: Use the PIC24FJ1024GB610-I/PT for projects requiring reliable performance in extreme conditions. Its durability and flexibility make it a trusted choice for diverse embedded systems.
Development Tools and Ecosystem for PIC24FJ1024GB610-I/PT
Compatible Development Boards and Kits
To get started with the PIC24FJ1024GB610-I/PT, you can use development boards designed for Microchip’s 16-bit microcontrollers. These boards provide a ready-to-use platform for testing and prototyping. The Explorer 16/32 Development Board is a popular choice. It supports the PIC24FJ1024GB610-I/PT and offers expansion options for additional modules. You can also use the Curiosity Development Board, which simplifies the development process with its plug-and-play design.
These boards include features like onboard debugging tools, multiple I/O pins, and compatibility with Microchip’s software ecosystem. They help you test your designs quickly and efficiently. Whether you are a beginner or an experienced developer, these kits provide the tools you need to bring your ideas to life.
Software Tools
MPLAB X IDE
Microchip’s MPLAB X Integrated Development Environment (IDE) is a powerful tool for programming and debugging the PIC24FJ1024GB610-I/PT. It supports multiple operating systems, including Windows, macOS, and Linux. You can use it to write, compile, and debug your code in one unified environment. Its user-friendly interface and advanced features make it ideal for both beginners and professionals.
MPLAB X IDE also integrates seamlessly with Microchip’s hardware tools, such as the PICkit 4 programmer. This integration ensures a smooth development experience. You can rely on its debugging capabilities to identify and fix issues in your code efficiently.
XC16 Compiler
The XC16 Compiler is another essential tool for working with the PIC24FJ1024GB610-I/PT. It converts your high-level code into machine language that the microcontroller can execute. This compiler is optimized for 16-bit devices, ensuring efficient code generation. You can use it with MPLAB X IDE for a complete development solution.
The XC16 Compiler includes features like code optimization and support for advanced data types. These features help you create efficient and reliable applications.
Community and Support Resources
Microchip offers a robust support ecosystem to help you succeed with the PIC24FJ1024GB610-I/PT. The Microchip Developer Help Center provides technical articles, user guides, and application notes. You can also access the Microchip Forum, where developers share insights and solutions.
For additional learning, explore Microchip’s YouTube channel. It features tutorials and webinars on using their tools and microcontrollers. These resources ensure you have the knowledge and support needed to optimize your IoT and embedded system projects.
Tip: Join the Microchip Developer Community to connect with other developers and stay updated on the latest tools and techniques.
The PIC24FJ1024GB610-I/PT microcontroller delivers exceptional performance for IoT and embedded systems. Its high memory capacity, USB OTG support, and low-power operation make it a versatile choice for developers. You can rely on its rich peripheral integration and extended connectivity to simplify complex designs.
Key Features | Applications |
|---|---|
High-Performance 16-Bit Core | Embedded Systems |
1 MB Flash Memory | IoT Devices |
Rich Peripheral Integration | Medical Instruments |
Low-Power Operation | Battery-Powered Devices |
Extended Connectivity | Industrial Automation |
This microcontroller empowers you to innovate in IoT applications, from smart homes to medical devices. Its scalability and energy efficiency ensure reliable performance in diverse environments. Explore its potential to create efficient and stable embedded systems for the future.
FAQ
What makes the PIC24FJ1024GB610-I/PT ideal for IoT devices?
The PIC24FJ1024GB610-I/PT offers XLP low-power technology, 1 MB Flash memory, and USB 2.0 OTG. These features ensure energy efficiency, ample storage, and flexible connectivity. Its integrated peripherals like ADCs and communication modules simplify IoT device development, making it perfect for smart homes, industrial automation, and portable instruments.
How does the dual-partition Flash memory benefit developers?
Dual-partition Flash memory allows you to perform firmware updates without interrupting device operation. This feature ensures seamless over-the-air updates, enhancing security and reliability. It’s especially useful for IoT devices that require continuous functionality while receiving software improvements.
Can the PIC24FJ1024GB610-I/PT handle extreme environments?
Yes, this microcontroller operates reliably in temperatures ranging from -40°C to 125°C. Its robust I/PT package ensures durability in harsh conditions, making it suitable for automotive systems, outdoor IoT devices, and industrial automation.
What development tools are compatible with this microcontroller?
You can use Microchip’s MPLAB X IDE and XC16 Compiler for programming and debugging. Development boards like the Explorer 16/32 and Curiosity Board provide a ready-to-use platform for prototyping. These tools streamline your development process and help you bring products to market faster.
How does XLP technology improve battery-powered devices?
XLP (eXtreme Low Power) technology minimizes energy consumption, extending battery life. It supports power-saving modes that reduce energy usage during idle periods. This makes the microcontroller ideal for portable medical devices, smart sensors, and other battery-operated IoT applications.
Tip: Use XLP technology to optimize energy efficiency and reduce maintenance costs for your IoT products.
