Why Engineers Trust PIC18F46K22-I/PT for Data Tasks

ymn@deirchip.com

·April 29, 2025

·9 min read

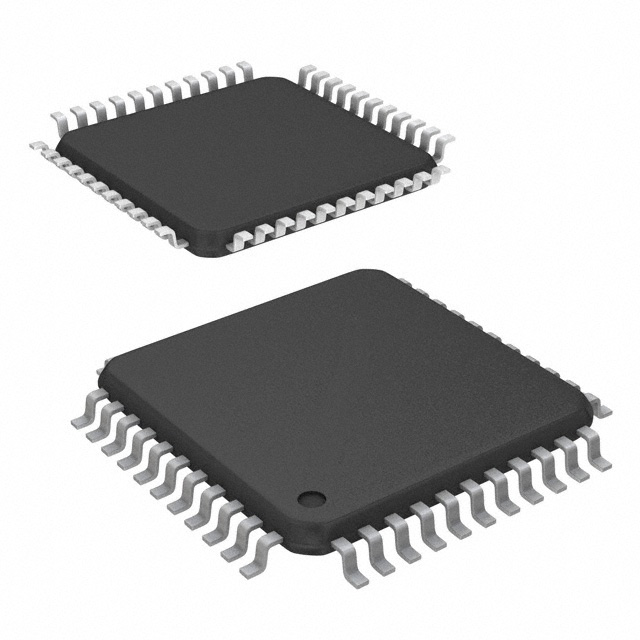

Why Engineers Trust PIC18F46K22-I/PT for Data Tasks — Image Source: deirchip

The PIC18F46K22-I/PT integrated multi-channel I2C interface data acquisition serial communication system is excellent for managing data tasks. This microcontroller features a built-in multi-channel I2C and serial system, which facilitates rapid data processing in challenging applications. It operates effectively in various environments without issues, making it ideal for systems that require dependable data handling. Whether utilized in factories or medical tools, the PIC18F46K22-I/PT meets your needs and performs reliably.

Key Takeaways

The PIC18F46K22-I/PT microcontroller is great for handling data. It uses a strong RISC design for quick and smooth processing.
It has lots of memory, like 64 KB Flash and 4 KB RAM. This helps it run big programs and save important data.
Its built-in I2C and communication tools make sensor connections easy. This makes it useful for factories and medical tools.
The advanced ADC channels give accurate readings. It works well for checking temperature, pressure, and other important things in real-time.
The PIC18F46K22-I/PT saves energy, so it’s good for battery devices. It also helps lower running costs.

Core Features of PIC18F46K22-I/PT for Data Acquisition

High Processing Power and RISC Architecture

The PIC18F46K22-I/PT is powerful because of its RISC design. This setup helps it run tasks quickly and efficiently. It’s great for jobs needing fast data handling. You’ll see quicker speeds and less delay, which is important for real-time work.

RISC design makes tasks simpler and faster for the microcontroller.

Tests show RISC systems work well. For example:

Studies show RISC uses less power than other systems.
Programs like fluid simulation prove RISC handles tough tasks better.

This strong performance lets the PIC18F46K22-I/PT handle hard data jobs easily.

Plenty of Program and Data Memory

Memory size matters when working with data systems. The PIC18F46K22 has lots of memory for storing instructions and data.

It includes:

64 KB of Flash memory for programs.
4 KB of RAM for processing data.
1 KB of EEPROM for saving important data.

These memory options let you run complex programs and save key information. Whether for factory tools or sensor systems, this microcontroller gives you the space you need.

Built-In Multi-Channel I2C and Serial Communication

The PIC18F46K22-I/PT has a built-in multi-channel I2C system. This makes it easy to connect with sensors and other devices.

It also supports strong communication tools like:

UART for sending data without syncing.
SPI for fast data sharing.
I2C for linking many devices.

These tools help the microcontroller talk to other devices smoothly. This makes it useful for many things, like medical tools or weather monitors.

Having these built-in tools saves space and money in designs.

With its advanced ADC feature, the PIC18F46K22 ensures accurate data collection and reliable use in any system.

Advanced ADC Channels for Accurate Data Reading

The PIC18F46K22-I/PT microcontroller is special because of its ADC. These converters change analog signals into digital data for your system. With 12-bit resolution, the ADC gives accurate readings, perfect for precise tasks.

This microcontroller is great for checking temperature, pressure, or voltage. Its ADC channels let you connect many sensors at once. Each channel works alone, so there’s no signal mixing or errors.

Tip: Use ADC channels to collect real-time data from different sensors. This is helpful for systems needing constant checks.

The PIC18F46K22-I/PT allows flexible ADC settings. You can change the sampling speed to fit your needs. Whether you need fast or slow data collection, this microcontroller adjusts easily.

Here’s how the ADC helps with sensor communication:

It turns analog signals into digital data for use.
It gives clear readings, even in noisy places.
It handles many channels for collecting data at the same time.

This makes the PIC18F46K22-I/PT a dependable choice for tough data jobs. Its ADC channels offer the accuracy and flexibility needed for many uses.

Reliability and Versatility of PIC18F46K22

Strong Design for Different Conditions

The PIC18F46K22 microcontroller works well in many environments. Its tough design keeps it running, even in hard conditions. It performs reliably in hot factories or humid outdoor areas.

Its sturdy build lowers the chance of breaking down. Engineers trust it for jobs needing steady performance, like factory machines or weather tracking. This dependability means less fixing and smooth operation, saving time and money.

Saves Energy with Low Power Use

Saving energy is important, and the PIC18F46K22 does it well. It uses little power, making it great for battery devices. You can use it in systems needing low energy, like portable medical tools or remote monitors.

Here are ways it saves energy:

It powers smart meters for tracking electricity use.
It helps monitor energy remotely, cutting down manual work.
It supports systems that manage electricity without human help.

These features make the PIC18F46K22 good for eco-friendly designs. It saves energy while still working efficiently.

Works with Different Voltages and Devices

The PIC18F46K22 can handle a wide range of voltages. This makes it fit for systems with different power needs. It’s easy to use and reduces extra parts in your design.

It also connects to many devices and sensors easily. Whether for communication or collecting data, it works well. Its flexible input and output options make it useful for complex systems.

With its voltage range and device support, the PIC18F46K22 is a smart pick. It handles tough projects of any size or difficulty.

Practical Uses of PIC18F46K22 in Data Collection

Factory Automation and Control Systems

The PIC18F46K22 microcontroller helps simplify factory automation tasks. Its strong design and useful features handle complex systems well. The built-in multi-channel I2C makes connecting sensors easy.

In factories, it monitors and controls machines effectively. It reads data from sensors to make precise changes. For example:

It checks temperature and pressure in factory machines.
It changes motor speeds using real-time sensor data.

Tip: Use the PIC18F46K22 to avoid delays and boost performance in automated systems.

Its low energy use is great for remote factory setups. You can use it in energy-saving systems without losing reliability.

Environmental Tracking and Sensor Systems

The PIC18F46K22 works well in environmental tracking systems. Its advanced ADC and communication tools collect accurate data from sensors.

You can create sensor systems to track air, water, or soil. Each sensor sends data quickly and clearly. Key benefits include:

Reliable work in tough outdoor conditions.
Support for many sensors like temperature and gas detectors.

Note: The PIC18F46K22’s wide voltage range works with different power sources, making it ideal for remote monitoring.

Its ability to connect many sensors makes it a top choice for environmental projects.

Medical Tools and Devices

The PIC18F46K22 is important in modern medical tools. Its small size and strong performance fit healthcare systems needing accurate data.

In smart healthcare, it connects to sensors like heart rate monitors. It sends real-time data so doctors can check patients remotely. For example:

It tracks vital signs like heart rate and oxygen levels.
It sends secure data to healthcare workers.

Tip: Use the PIC18F46K22 to improve patient care with reliable and affordable medical devices.

Tests show it works well in medical tools. Its ADC gives accurate readings, and its low power use supports portable devices.

Comparison with Alternative Microcontrollers

Why PIC18F46K22 Performs Better

The PIC18F46K22 is better than many other microcontrollers. Its RISC design makes it process data faster. This is great for tasks needing quick results. Unlike others, it has built-in tools like I2C, SPI, and UART. These tools help it connect to devices easily and share data well.

Its advanced ADC changes signals into accurate digital data. This is important for jobs needing exact measurements. Many other microcontrollers don’t work as well in noisy places. The PIC18F46K22 also works with different power levels. This makes it useful for many systems, like factory machines or medical tools.

The PIC18F46K22 is fast, accurate, and works in many ways.

Saves Money and Offers Great Value

The PIC18F46K22 is a good deal for its price. Its built-in features mean you don’t need extra parts. For example, its ADC and communication tools save money on extra modules. This makes it a good choice for projects with small budgets.

It also uses less power, which is great for battery devices. Over time, this lowers costs for systems that run all the time.

Another plus is its strong design. It doesn’t break easily, so you spend less on repairs. Whether for tracking the environment or making medical tools, it works well without problems.

Picking the PIC18F46K22 means getting a microcontroller that’s affordable, reliable, and performs well. It’s a smart pick for engineers.

The PIC18F46K22 microcontroller is great for handling tough data tasks. Its advanced ADC gives clear and accurate readings every time. The multi-channel system makes it easy to connect sensors and devices. It has a strong build and saves energy, making it useful for many jobs. Whether for factories or medical tools, it works dependably. Check its features to see if it suits your project.

FAQ

Why is the PIC18F46K22 good for collecting data?

Its ADC channels and I2C system collect accurate data. It also connects easily with sensors and works well in tough tasks.

Can the PIC18F46K22 work with many sensors at once?

Yes, it can handle many sensors using ADC channels and I2C or SPI. It avoids signal problems and connects devices smoothly.

Is the PIC18F46K22 good for battery-powered devices?

Yes, it uses little power, making it great for portable tools. It helps batteries last longer while still working well.

Can the PIC18F46K22 work in hard conditions?

Yes, its strong design works in hot or wet places. It’s reliable for outdoor and factory systems.

What industries use the PIC18F46K22 the most?

Factories, environmental tracking, and healthcare use this microcontroller. It’s precise, flexible, and affordable for many projects.
