PIC16F876A-I/SO,MICROCHIP,Embedded Real-Time Data Acquisition 8-bit Microcontroller Chip
The PIC16F876A-I/SO stands out as a high-performance 8-bit microcontroller tailored for your embedded system needs. It combines advanced features like a 14-bit instruction set and multiple peripheral interfaces, including PWM, ADC, I2C, and SPI. This microcontroller excels in real-time data acquisition, offering precise sensor data processing. Its low power consumption ensures efficiency, making it ideal for battery-operated devices. Designed for versatility, the PIC16F876A-I/SO fits seamlessly into compact, cost-effective, and industrial-grade projects, empowering you to create innovative solutions across various applications.
Key Takeaways
The PIC16F876A-I/SO microcontroller is designed for real-time data acquisition, making it ideal for applications that require precise sensor data processing.
With its low power consumption and compact design, this microcontroller is perfect for battery-operated devices and space-constrained projects.
It supports multiple peripheral interfaces like I2C, SPI, and UART/USART, enabling seamless communication with various external devices.
The built-in 10-bit ADC allows for accurate analog-to-digital conversion, making it suitable for applications in industrial automation and portable medical devices.
Programming the PIC16F876A-I/SO is straightforward with tools like MPLAB X IDE and the XC8 compiler, which streamline the development process.
Utilizing best practices such as efficient memory management and proper ADC configuration can significantly enhance the performance and reliability of your projects.
The extensive documentation and community support available for the PIC16F876A-I/SO empower developers to troubleshoot and innovate effectively.
Features and Capabilities of the PIC16F876A-I/SO
Technical Specifications
The PIC16F876A-I/SO offers a robust set of technical specifications that make it a standout choice for embedded systems. Its memory and storage capabilities include 14 KB of program memory, 368 bytes of RAM, and 256 bytes of EEPROM. These resources provide ample space for developing complex applications while ensuring reliable data retention.
This microcontroller supports multiple peripheral interfaces, including I2C, SPI, and UART/USART. These interfaces enable seamless communication between the microcontroller and external devices, such as sensors, displays, and actuators. The inclusion of built-in ADC and PWM functionalities further enhances its versatility. The ADC allows precise analog-to-digital conversion, while the PWM feature supports tasks like motor control and signal modulation.
Real-Time Data Acquisition
The PIC16F876A-I/SO excels in real-time data acquisition, making it ideal for applications requiring accurate and efficient sensor data processing. Its 10-bit ADC can handle up to five input channels, enabling simultaneous data collection from multiple sensors. This capability ensures that you can monitor and process real-world signals with precision.
The microcontroller's Harvard architecture plays a crucial role in optimizing data handling. By separating program memory and data memory, this architecture allows simultaneous access to both, improving processing speed and efficiency. This design ensures that your system can handle real-time tasks without delays or bottlenecks.
Design and Performance Advantages
The PIC16F876A-I/SO is designed with performance and practicality in mind. Its low power consumption makes it an excellent choice for battery-operated devices, ensuring extended operation without frequent recharging or battery replacement. This feature is particularly valuable for portable and remote applications.

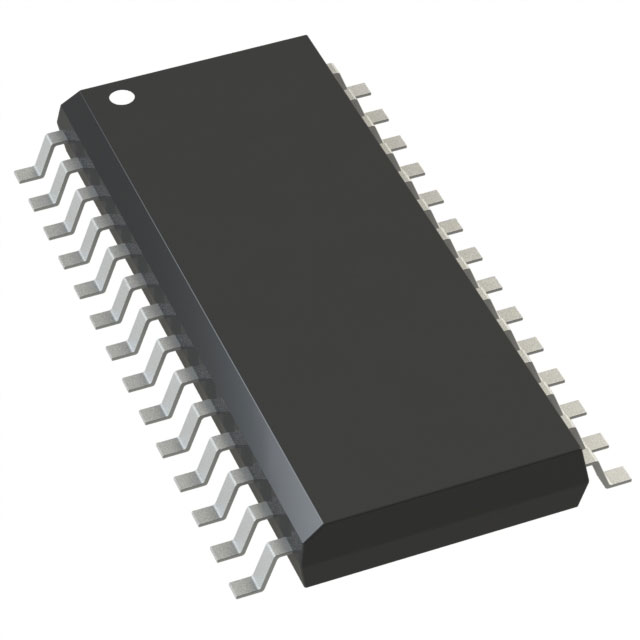

The compact 28-pin SOIC package of this microcontroller is another significant advantage. Its small size allows easy integration into space-constrained designs, such as wearable devices, compact IoT modules, and industrial automation systems. Despite its small footprint, the microcontroller delivers high-speed performance, making it a reliable solution for demanding applications.
Applications of the PIC16F876A-I/SO in Embedded Systems
Real-World Use Cases
The PIC16F876A-I/SO microcontroller proves its value in a variety of real-world applications. Its advanced features and reliable performance make it a preferred choice for developers across industries.
IoT Devices for Smart Homes and Industries
You can use this microcontroller to power IoT devices that enhance automation and connectivity. Its support for I2C, SPI, and UART/USART interfaces allows seamless communication with sensors, actuators, and cloud platforms. Whether you are building smart thermostats, lighting systems, or industrial monitoring tools, the PIC16F876A-I/SO ensures efficient data acquisition and processing.Industrial Automation and Robotics
The microcontroller's built-in ADC and PWM functionalities make it ideal for industrial automation and robotics. You can implement precise motor control, sensor integration, and real-time decision-making in your projects. Its robust design and ability to operate in harsh environments (-40°C to +85°C) ensure reliability in demanding industrial settings.Portable Medical Devices and Remote Monitoring Systems
For portable medical devices, the PIC16F876A-I/SO offers low power consumption and compact packaging. You can create devices like glucose monitors, portable ECG machines, or remote patient monitoring systems. Its 10-bit ADC ensures accurate sensor readings, while its EEPROM memory retains critical data even during power interruptions.
Why It’s Ideal for These Applications
The PIC16F876A-I/SO stands out as an ideal solution for these applications due to its unique combination of features and benefits.
High-Speed Performance and Reliability
The microcontroller's 14-bit instruction set and Harvard architecture deliver high-speed performance. You can rely on it to handle complex tasks without delays. Its ability to process real-time data efficiently ensures smooth operation in time-sensitive applications.Cost-Effectiveness for Large-Scale Deployment
The affordability of the PIC16F876A-I/SO makes it a practical choice for large-scale projects. Whether you are developing IoT devices for smart cities or deploying automation systems in factories, this microcontroller helps you manage costs without compromising on quality or functionality.
By leveraging the capabilities of the PIC16F876A-I/SO, you can create innovative solutions that meet the demands of modern embedded systems. Its versatility and performance make it a valuable asset for developers aiming to push the boundaries of technology.
How to Program the PIC16F876A-I/SO
Programming the PIC16F876A-I/SO is a straightforward process when you have the right tools and follow a structured approach. This section will guide you through the essential tools, step-by-step instructions, and an example project to help you get started.
Tools and Software Required
To program the PIC16F876A-I/SO, you need specific hardware and software tools. These tools ensure seamless development and debugging of your embedded system projects.
MPLAB X IDE and Compatible Compilers
MPLAB X IDE is the official development environment for programming PIC microcontrollers. It provides a user-friendly interface for writing, compiling, and debugging your code. You also need compatible compilers like XC8 to translate your code into machine language that the microcontroller can understand.
Hardware Tools Like PICkit Programmer and Development Boards
For transferring your code to the microcontroller, you require a PICkit programmer. This device connects your computer to the microcontroller and uploads the compiled code. A development board simplifies the process by providing a ready-to-use platform for testing and debugging your projects.
Step-by-Step Guide to Programming PIC Microcontrollers
Follow these steps to start programming PIC microcontrollers like the PIC16F876A-I/SO:
Installing and Configuring MPLAB X IDE
Download MPLAB X IDE from Microchip's official website and install it on your computer.
Install the XC8 compiler to support 8-bit microcontrollers.
Launch MPLAB X IDE and create a new project by selecting "Create New Project" from the File menu.
Choose the PIC16F876A-I/SO as your target device and set configuration properties like the oscillator type and memory settings.
Writing and Uploading a Basic Program to the Microcontroller
Write your code in the MPLAB X IDE editor. For example, you can write a simple program to blink an LED.
Set configuration bits to define the microcontroller's operating parameters, such as the oscillator frequency and watchdog timer settings.
Compile the code to check for errors and generate a hex file.
Connect the PICkit programmer to your computer and the microcontroller.
Use MPLAB X IDE to upload the compiled code to the microcontroller.
Example Project: Real-Time Data Acquisition System
This example project demonstrates how to use the PIC16F876A-I/SO for real-time data acquisition. You will set up sensors, configure the ADC module, and process the collected data.
Setting Up Sensors and ADC for Data Collection
Connect analog sensors to the ADC input pins of the microcontroller.
Initialize the ADC module by configuring the ADCON0 and ADCON1 registers. This step ensures accurate analog-to-digital conversion.
Configure oscillator settings to match the desired clock speed for efficient data processing.
Processing and Displaying Real-Time Data
Write code to read sensor values using the ADC module. For example, you can start by reading an analog value and converting it into a digital format.
Process the collected data to extract meaningful information. For instance, you can calculate temperature or pressure based on sensor readings.
Display the processed data on an LCD or send it to a computer for further analysis.
By following these steps, you can successfully program the PIC16F876A-I/SO and implement real-time data acquisition in your projects. This process equips you with the skills to handle more complex applications in the future.
Best Practices for Using PIC Microcontrollers
Optimizing Performance
Efficient performance is crucial when working with pic microcontrollers. To achieve this, you should focus on utilizing memory and peripheral interfaces effectively. Allocate memory resources wisely by organizing your code and data structures. This approach ensures that the microcontroller operates smoothly without unnecessary delays or memory overflows. Use peripheral interfaces like I2C, SPI, and UART/USART to streamline communication between the microcontroller and external devices. These interfaces reduce processing overhead and improve overall system efficiency.
Minimizing power consumption is another key aspect of optimization. Activate low-power modes during idle periods to conserve energy. For example, you can use the Sleep mode available in the PIC16F876A-I/SO to significantly reduce power usage. Configure timers and interrupts to wake the microcontroller only when necessary. This strategy is especially beneficial for battery-operated devices, as it extends their operational lifespan.
Avoiding Common Pitfalls
Proper configuration of the ADC module is essential for accurate data acquisition. When setting up the ADC, ensure that you configure the ADCON0 and ADCON1 registers correctly. These settings determine the reference voltage and input channels, which directly impact the precision of analog-to-digital conversions. Neglecting these configurations can lead to inaccurate sensor readings, compromising the reliability of your application.
Avoid overloading the microcontroller with excessive tasks. Assigning too many simultaneous operations can cause delays or even system crashes. Prioritize tasks based on their importance and timing requirements. Use interrupts to handle time-sensitive operations efficiently. This approach ensures that the microcontroller maintains stable performance even under demanding conditions.
Debugging and Testing Tips
Effective debugging and thorough testing are vital for successful project development. Leverage the debugging tools provided by MPLAB X IDE to identify and resolve issues in your code. Use breakpoints to pause execution and examine variable values. Step through your code line by line to pinpoint errors and understand program flow. These tools help you gain deeper insights into the behavior of your microcontroller.
Testing with simulated inputs before deployment is equally important. Simulate real-world scenarios to evaluate how your system responds to various conditions. For instance, you can use test signals to verify the accuracy of the ADC module or the functionality of peripheral interfaces. This practice allows you to identify potential issues early and make necessary adjustments, ensuring a reliable final product.
By following these best practices, you can maximize the performance and reliability of your pic microcontrollers. These strategies not only enhance your development process but also help you create robust and efficient embedded systems.
Advantages of Programming PIC Microcontrollers
Flexibility and Scalability
Wide range of applications from IoT to industrial automation
The PIC16F876A-I/SO microcontroller offers unmatched flexibility, making it suitable for a wide range of applications. You can use it in IoT devices to enhance connectivity and automation in smart homes or industries. Its ability to handle real-time data acquisition ensures precise monitoring and control in industrial automation systems. Whether you are developing robotics, automotive electronics, or home appliances, this microcontroller adapts seamlessly to your project requirements.
Easy integration with other systems and components
Integration becomes effortless when working with the PIC16F876A-I/SO. Its support for multiple peripheral interfaces, such as I2C, SPI, and UART/USART, allows you to connect it with sensors, actuators, and other components. You can easily incorporate it into existing systems or combine it with additional modules to expand functionality. This compatibility simplifies the development process and ensures smooth communication between devices.
Development Support
Extensive documentation and community resources
Microchip Technology provides comprehensive documentation for the PIC16F876A-I/SO, ensuring you have access to detailed technical information. You can refer to datasheets, application notes, and user guides to understand the microcontroller's features and capabilities. Additionally, the active developer community offers valuable insights and solutions. By engaging with forums and online groups, you can learn from others' experiences and troubleshoot challenges effectively.
"The strength of a microcontroller lies not only in its features but also in the support ecosystem surrounding it."
Availability of development tools and libraries
Programming the PIC16F876A-I/SO becomes straightforward with the availability of robust development tools. The MPLAB X IDE provides a user-friendly platform for writing, debugging, and optimizing your code. Compatible compilers like XC8 ensure efficient translation of your programs into machine language. You can also leverage pre-built libraries to simplify complex tasks, such as ADC configuration or PWM setup. These tools and resources empower you to focus on innovation while reducing development time.
The PIC16F876A-I/SO microcontroller delivers exceptional features and capabilities, including a 14-bit instruction set, 10-bit ADC with five channels, and versatile communication interfaces like I2C and SPI. Its low power consumption and compact design make it ideal for real-time data acquisition and embedded system applications. You can rely on its performance for projects in industrial automation, IoT, and consumer electronics. Explore its potential to create innovative solutions. Leverage its versatility and efficiency to bring your ideas to life and achieve success in your embedded system designs.
FAQ
What is the part number of the microcontroller?
The part number for this microcontroller is PIC16F876A-I/SO. It is a versatile and high-performance 8-bit microcontroller designed for embedded systems.
Where can I find the datasheet for PIC16F876A-I/SO?
You can access the datasheet for the PIC16F876A-I/SO at the following link:
Microchip Tech PIC16F876A-I/SO Datasheet.
This document provides detailed technical specifications and usage guidelines.
What are some similar part numbers to PIC16F876A?
Some similar part numbers include:
PIC16F876AT-I-SO
PIC16LF876A-I
For more information, refer to their respective datasheets to compare features and specifications.
What are the key features of the PIC16F876A-I/SO?
The PIC16F876A-I/SO offers several advanced features, including:
256 bytes of EEPROM data memory for reliable data storage.
Self-programming capability for flexible firmware updates.
Two comparators for signal comparison tasks.
Five channels of 10-bit ADC for precise analog-to-digital conversion.
Two capture/compare/PWM functions for motor control and signal modulation.
These features make it ideal for advanced A/D applications in industries like IoT, automation, and medical devices.
What is the maximum operating speed of the PIC16F876A-I/SO?
The PIC16F876A-I/SO operates at a maximum speed of 20 MHz, ensuring fast and efficient processing for real-time applications.
What types of peripheral interfaces does the PIC16F876A-I/SO support?
This microcontroller supports multiple peripheral interfaces, including:
I2C for communication with sensors and other devices.
SPI for high-speed data transfer.
UART/USART for serial communication.
These interfaces enable seamless integration with external components in embedded systems.
What is the operating temperature range of the PIC16F876A-I/SO?
The PIC16F876A-I/SO operates within a temperature range of -40°C to +85°C. This makes it suitable for use in both industrial and outdoor environments.
How much memory does the PIC16F876A-I/SO have?
The microcontroller includes:
14 KB of program memory for storing application code.
368 bytes of RAM for temporary data storage during operation.
256 bytes of EEPROM for non-volatile data storage.
These memory resources support the development of complex and reliable embedded applications.
What development tools are compatible with the PIC16F876A-I/SO?
To program the PIC16F876A-I/SO, you can use:
MPLAB X IDE, a user-friendly development environment.
XC8 compiler, which translates your code into machine language.
PICkit programmer, a hardware tool for uploading code to the microcontroller.
These tools simplify the development and debugging process.
What applications is the PIC16F876A-I/SO best suited for?
The PIC16F876A-I/SO is ideal for a wide range of applications, including:
IoT devices for smart homes and industrial automation.
Industrial automation systems for robotics and process control.
Portable medical devices like glucose monitors and ECG machines.
Automotive electronics for sensor control and real-time monitoring.
Its low power consumption, compact design, and high-speed performance make it a reliable choice for these use cases.
