PCF8575DBQR,TI,High Performance Embedded Device I2C I/O Microcontroller Interface Chip

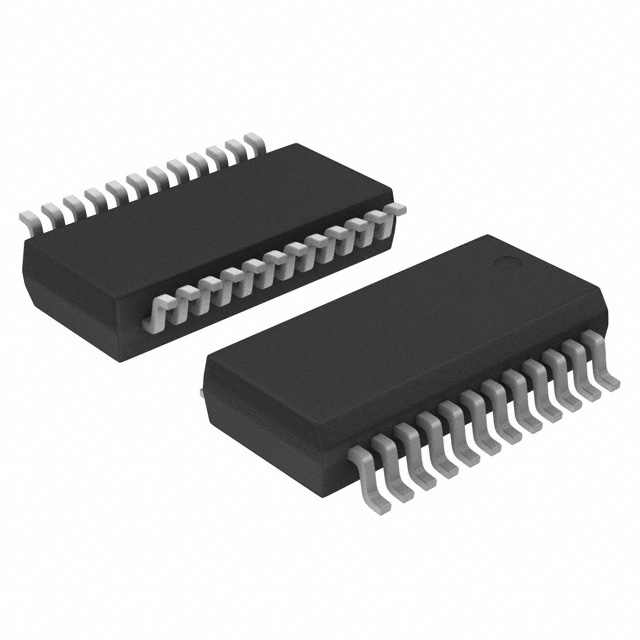

The PCF8575DBQR by Texas Instruments serves as a 16-bit I/O expansion chip, enhancing the capabilities of embedded systems. It efficiently expands GPIOs, supporting seamless I2C communication. This chip proves invaluable in various applications, including industrial automation and smart home systems. Its ability to extend microcontroller I/O ports makes it ideal for projects requiring additional general-purpose inputs and outputs. The PCF8575DBQR operates within a voltage range of 2.5 to 5.5 volts, ensuring compatibility with a wide array of devices. Its integration into existing systems simplifies complex wiring, offering a streamlined solution for modern technological needs.

Key Takeaways

The PCF8575DBQR expands microcontroller capabilities with 16 bidirectional I/O ports, allowing for flexible input and output operations in various projects.
Utilizing the I2C communication protocol, this chip simplifies wiring and enables multiple devices to connect on the same bus, enhancing system efficiency.
With a low power consumption design, the PCF8575DBQR is ideal for battery-powered applications, ensuring longer device operation without frequent battery changes.
Its wide operating voltage range of 2.5 to 5.5 volts makes the PCF8575DBQR compatible with a variety of microcontrollers, increasing its versatility in embedded systems.
The chip's robust temperature range of -40°C to 85°C ensures reliable performance in diverse environments, from industrial settings to consumer electronics.
Cost-effective and easy to integrate, the PCF8575DBQR provides a budget-friendly solution for expanding I/O capabilities without the need for additional microcontrollers.
Applications of the PCF8575DBQR include home automation, smart appliances, robotics, and data acquisition systems, making it a valuable component for modern technological needs.

Technical Specifications

Key Features

I2C Interface and Addressing

The PCF8575DBQR utilizes the I2C communication protocol, which allows for efficient data transfer between devices. This protocol supports multiple devices on the same bus, simplifying the wiring process. The chip features a unique addressing system, enabling it to communicate with other components seamlessly. Users can configure the address pins to set the device's unique I2C address, ensuring proper communication within the network.

16-bit I/O Port Expansion

This chip offers 16 bidirectional I/O ports, significantly expanding the input and output capabilities of microcontrollers. Each port can function as either an input or an output, providing flexibility in various applications. The PCF8575DBQR allows users to control multiple devices, such as LEDs and sensors, without needing additional microcontrollers. This feature makes it ideal for projects requiring extensive I/O operations.

Low Power Consumption

The PCF8575DBQR is designed with energy efficiency in mind. It operates with minimal power consumption, making it suitable for battery-powered applications. This characteristic ensures that devices using this chip can run longer without frequent battery replacements. Its low power requirements also contribute to the overall efficiency of embedded systems.

Electrical Characteristics

Operating Voltage Range

The PCF8575DBQR operates within a voltage range of 2.5 to 5.5 volts. This wide range ensures compatibility with various microcontrollers and devices. Users can integrate this chip into different systems without worrying about voltage mismatches. The flexibility in operating voltage makes it a versatile choice for many applications.

Current Consumption

This chip exhibits low current consumption, which is crucial for maintaining energy efficiency in embedded systems. The reduced current draw helps in minimizing heat generation, thereby enhancing the reliability and lifespan of the device. Users can rely on the PCF8575DBQR for applications where power efficiency is a priority.

Temperature Range

The PCF8575DBQR functions effectively across a broad temperature range, making it suitable for diverse environments. It can operate in conditions ranging from -40°C to 85°C, ensuring reliable performance in both industrial and consumer applications. This temperature tolerance allows the chip to be used in various settings, from harsh industrial environments to everyday consumer electronics.

Configuration and Setup

Integrating with Microcontrollers

I2C Communication Setup

To integrate the PCF8575DBQR with a microcontroller, users must first establish an I2C communication setup. The I2C protocol facilitates data exchange between the microcontroller and the PCF8575DBQR. Users should connect the SDA (Serial Data Line) and SCL (Serial Clock Line) pins of the chip to the corresponding pins on the microcontroller. This connection enables the microcontroller to send and receive data efficiently. Pull-up resistors are necessary for the SDA and SCL lines to ensure proper signal levels. Users should select resistor values based on the specific requirements of their system.

Address Configuration

The PCF8575DBQR features a unique addressing system that allows multiple devices to coexist on the same I2C bus. Users can configure the address by setting the A0, A1, and A2 pins on the chip. These pins determine the device's I2C address, which ranges from 0x20 to 0x27. By adjusting these pins, users can assign a unique address to each PCF8575DBQR in their system. This configuration ensures that the microcontroller communicates with the correct device, preventing data conflicts.

Programming and Control

Writing to the I/O Ports

Programming the PCF8575DBQR involves writing data to its I/O ports. Users can send commands from the microcontroller to control the state of each port. The chip's 16 ports can function as outputs, allowing users to drive external devices like LEDs or relays. To write data, users must send a control byte followed by two data bytes over the I2C bus. Each bit in the data bytes corresponds to one of the 16 I/O ports. Setting a bit to '1' turns the corresponding port high, while '0' sets it low.

Reading from the I/O Ports

Reading data from the PCF8575DBQR's I/O ports is equally straightforward. Users can configure the ports as inputs to monitor external signals, such as switches or sensors. To read data, the microcontroller sends a read command to the chip. The PCF8575DBQR then responds with two bytes of data, representing the current state of its 16 I/O ports. Each bit in the response indicates whether the corresponding port is high or low. This functionality allows users to gather real-time data from their connected devices.

Comparison with Similar Chips

Advantages of PCF8575DBQR

Versatility in Applications

The PCF8575DBQR stands out for its versatility across various applications. It serves as a reliable component in industrial automation, smart home systems, and robotics. This chip's ability to expand I/O ports makes it suitable for projects requiring additional general-purpose inputs and outputs. Its compatibility with a wide range of microcontrollers enhances its adaptability, allowing it to fit seamlessly into diverse embedded systems.

Cost-Effectiveness

Cost-effectiveness remains a significant advantage of the PCF8575DBQR. It offers a budget-friendly solution for expanding I/O capabilities without the need for additional microcontrollers. This chip provides excellent value for money by delivering high performance at a reasonable price. Its low power consumption further reduces operational costs, making it an economical choice for both small-scale and large-scale projects.

Alternative I/O Expansion Chips

Comparison with PCF8574

The PCF8574, another I/O expander, shares similarities with the PCF8575DBQR but differs in several aspects. While both chips support the I2C communication protocol, the PCF8575DBQR offers 16 bidirectional I/O ports compared to the PCF8574's 8 ports. This difference makes the PCF8575DBQR more suitable for applications requiring extensive I/O operations. Additionally, the PCF8575DBQR's wider operating voltage range enhances its compatibility with various devices, providing greater flexibility in system design.

Comparison with MCP23017

The MCP23017 presents another alternative to the PCF8575DBQR. Both chips offer 16 I/O ports and support I2C communication. However, the MCP23017 includes interrupt capabilities, which can be advantageous in specific applications. Despite this feature, the PCF8575DBQR excels in terms of simplicity and ease of integration. Its straightforward configuration process and cost-effectiveness make it a preferred choice for many developers seeking efficient I/O expansion solutions.

Practical Applications

Use in Consumer Electronics

Home Automation Systems

Home automation systems benefit greatly from the PCF8575DBQR. This chip expands the I/O capabilities of microcontrollers, allowing them to manage multiple devices within a smart home environment. Users can control lighting, security systems, and climate controls efficiently. The PCF8575DBQR facilitates seamless communication between various components, ensuring a cohesive and responsive home automation setup. Its low power consumption makes it ideal for devices that require continuous operation, enhancing the overall energy efficiency of smart homes.

Smart Appliances

Smart appliances integrate the PCF8575DBQR to enhance their functionality. This chip allows appliances to interact with other smart devices, creating a connected ecosystem. For instance, refrigerators can monitor inventory and communicate with smartphones to provide updates. The PCF8575DBQR's ability to handle multiple I/O operations enables appliances to perform complex tasks without additional microcontrollers. This integration simplifies the design of smart appliances, making them more cost-effective and reliable.

Industrial and Commercial Uses

Robotics and Automation

In robotics and automation, the PCF8575DBQR plays a crucial role. It expands the I/O ports of microcontrollers, allowing robots to interact with various sensors and actuators. This capability is essential for tasks such as object detection, movement control, and environmental monitoring. The chip's robust design ensures reliable performance in demanding industrial environments. By using the PCF8575DBQR, developers can create sophisticated robotic systems that operate efficiently and accurately.

Data Acquisition Systems

Data acquisition systems rely on the PCF8575DBQR to gather information from multiple sources. This chip enables microcontrollers to interface with numerous sensors, collecting data on temperature, pressure, and other variables. Its I2C communication protocol ensures fast and accurate data transfer, which is vital for real-time monitoring and analysis. The PCF8575DBQR's versatility makes it suitable for various applications, from environmental monitoring to industrial process control. By integrating this chip, data acquisition systems can achieve higher levels of precision and efficiency.

The PCF8575DBQR offers significant benefits for embedded systems. It expands I/O ports efficiently, enhancing microcontroller capabilities in various applications like industrial automation and smart homes. Its performance and versatility surpass similar chips, making it a preferred choice for developers. The chip's low power consumption and wide operating voltage range contribute to its adaptability. Developers should consider the PCF8575DBQR for projects requiring reliable and cost-effective I/O expansion. Its integration simplifies complex systems, providing a streamlined solution for modern technological needs.

FAQ

What is the PCF8575DBQR?

The PCF8575DBQR is a 16-bit I/O expansion chip designed by Texas Instruments. It supports the I2C communication protocol, making it ideal for expanding the I/O ports of microcontrollers in embedded systems. This chip finds applications in industrial automation, smart home systems, and robotics.

How does the PCF8575DBQR expand GPIOs?

The PCF8575DBQR provides 16 bidirectional I/O ports. Each port can function as an input or output, allowing users to control multiple devices like LEDs and sensors. This expansion capability eliminates the need for additional microcontrollers in projects requiring extensive I/O operations.

What is the operating voltage range of the PCF8575DBQR?

The PCF8575DBQR operates within a voltage range of 2.5 to 5.5 volts. This wide range ensures compatibility with various microcontrollers and devices, making it a versatile choice for many applications.

How does the PCF8575DBQR support I2C communication?

The PCF8575DBQR utilizes the I2C communication protocol to facilitate data exchange between devices. It features a unique addressing system, enabling seamless communication with other components on the same bus. Users can configure the address pins to set the device's unique I2C address.

What are the key features of the PCF8575DBQR?

16-bit I/O Port Expansion: Offers 16 bidirectional I/O ports.
Low Power Consumption: Designed for energy efficiency, suitable for battery-powered applications.
Wide Operating Voltage Range: Compatible with a variety of devices.

How do you configure the I2C address for the PCF8575DBQR?

Users can configure the I2C address by setting the A0, A1, and A2 pins on the chip. These pins determine the device's I2C address, which ranges from 0x20 to 0x27. Adjusting these pins allows users to assign a unique address to each PCF8575DBQR in their system.

What is the temperature range for the PCF8575DBQR?

The PCF8575DBQR functions effectively across a broad temperature range, from -40°C to 85°C. This temperature tolerance ensures reliable performance in both industrial and consumer applications.

Where can I find the datasheet for the PCF8575DBQR?

The datasheet for the PCF8575DBQR provides detailed technical specifications and can be found in PDF format. It offers comprehensive information on the chip's features, electrical characteristics, and configuration guidelines.

How does the PCF8575DBQR compare to similar chips like the PCF8574?

While both the PCF8575DBQR and PCF8574 support I2C communication, the PCF8575DBQR offers 16 bidirectional I/O ports compared to the PCF8574's 8 ports. This makes the PCF8575DBQR more suitable for applications requiring extensive I/O operations.

What are some practical applications of the PCF8575DBQR?

The PCF8575DBQR is used in various applications, including:

Home Automation Systems: Expands I/O capabilities for managing multiple devices.
Smart Appliances: Enhances functionality by allowing interaction with other smart devices.
Robotics and Automation: Expands I/O ports for interacting with sensors and actuators.
Data Acquisition Systems: Interfaces with numerous sensors for real-time monitoring and analysis.
