How the PCA9306DCUR Enables Dual Voltage I²C Communication

ymn@deirchip.com

·April 23, 2025

·9 min read

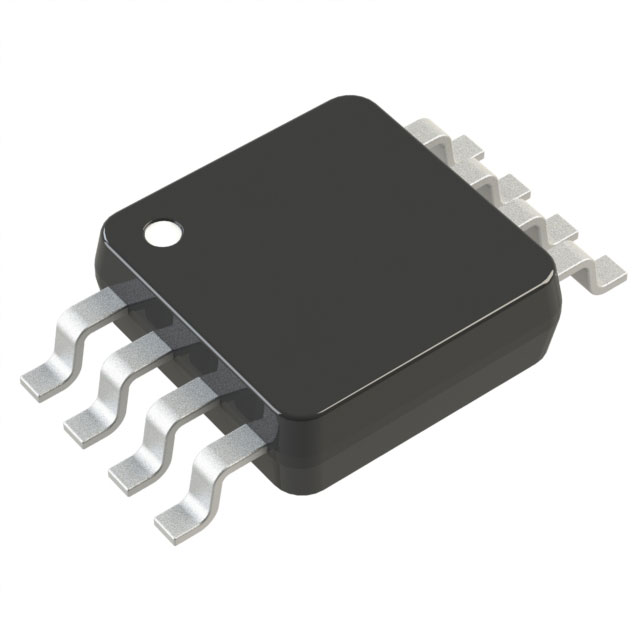

How the PCA9306DCUR Enables Dual Voltage I²C Communication — Image Source: deirchip

The PCA9306DCUR: Dual Voltage I²C Level Shifter for Embedded Applications enables devices with different voltage levels to communicate effectively. This component functions as a two-way I²C voltage translator, ensuring compatibility between various systems. The PCA9306DCUR is compact yet powerful, supporting voltage ranges from 1.2 V to 5.5 V. It operates efficiently in temperatures ranging from -40 °C to +85 °C. With a minimal delay of less than 1.5 ns, it facilitates rapid data transfer. By addressing voltage discrepancies, the PCA9306DCUR enhances I²C functionality, making it a dependable solution for devices requiring a voltage converter.

Key Takeaways

The PCA9306DCUR helps devices with different voltages work together easily.
It works well with voltages from 1.2 V to 5.5 V, making it useful for many tasks.
Its automatic direction sensing removes the need for extra control pins, making circuits simpler.
With a delay of less than 1.5 ns, it sends data quickly and reliably, which is important for accurate communication.
Using the PCA9306DCUR saves time in design and testing, letting engineers focus on other parts of their projects.

Voltage Mismatches in I²C Communication

Why Voltage Compatibility Matters in I²C Systems

In I²C systems, matching voltages is very important. Many devices today use different power levels. For example, fast processors often run on 1.5V or 2.5V. But other devices, like analog converters, may need 3.3V or 5V. If voltages don’t match, devices can’t talk to each other properly. This can cause errors or system failures. Making sure all parts can handle different voltages helps everything work well.

Problems with Mixed-Voltage I²C Communication

Using devices with different voltages can cause problems. One issue is that devices may not understand each other’s signals. For example, a 1.8V device might miss signals from a 3.3V device. Another problem is that low-voltage parts can get damaged by higher voltages. Also, designing circuits for mixed voltages takes more time and effort. These problems show why a level translator is helpful for connecting devices.

Dangers of Ignoring Voltage Mismatches

Not fixing voltage mismatches can cause big problems. Low-voltage devices can break if exposed to high voltages. Fixing or replacing them can be expensive. Mismatched voltages can also cause data errors. In important systems, like medical or car devices, these errors can be dangerous. Solving voltage mismatches keeps devices safe and communication reliable.

How the PCA9306DCUR Works

Design Features of the PCA9306DCUR

The PCA9306DCUR is small but very useful. It works in tough conditions and fits many uses. Below is a table showing its main features:

Specification	Details
Operating Temperature	-40°C to 105°C
Number of Circuits	1
Mounting Type	Surface Mount
Features	Auto-Direction Sensing
Channels per Circuit	2
Channel Type	Bidirectional
Voltage - VCCA	1.2 V to 3.3 V
Voltage - VCCB	1.8 V to 5.5 V
Package / Case	8-VFSOP
Quality and Safety Features	Works in extreme temperatures, Built strong for durability
Compatibility	Works with I²C-bus and SMBus, Handles multi-master bus setups
Application Areas	Helps devices with different voltages communicate, Used in systems needing mixed-voltage connections

The PCA9306DCUR is made for hard tasks. Its auto-direction sensing lets devices talk easily. It also works well with I²C and SMBus systems, making it great for mixed-voltage setups.

Bi-Directional Level Shifting for I²C

The PCA9306DCUR helps devices with different voltages share data. It works both ways, so devices can send and receive signals. This is important for I²C systems where devices use different voltages. For example, a 1.8 V microcontroller can connect with a 3.3 V sensor using this tool.

It figures out the data direction on its own. It changes signal levels without needing extra control pins. This makes designing circuits easier and less confusing. Using the PCA9306DCUR ensures devices can share data correctly, even with voltage differences.

Voltage Translation Mechanism Explained

The PCA9306DCUR uses a simple way to change voltages. It works between 1.2 V and 5 V without needing a direction pin. V_REF1 handles 1.2 V to 3.3 V, and V_REF2 supports 1.8 V to 5.5 V. This makes it good for systems with different voltage needs.

It has an enable (EN) pin to control its work. When EN is high, data flows between devices. When EN is low, it stops data flow and isolates the buses. For example, you can separate a 400-kHz bus from a 100-kHz bus using the EN pin.

By learning how this level shifter works, you see how it helps mixed-voltage systems. It handles two-way data flow and keeps systems working smoothly.

Practical Uses of the PCA9306DCUR

PCA9306DCUR: A Helper for Devices with Different Voltages

The PCA9306DCUR is important in small electronic systems. It connects devices that use different voltages. This makes it easier to build systems where parts work together. For example, you can link a low-power microcontroller to a high-power sensor safely.

This tool works with voltages from 1.2 V to 5.5 V. It also supports different communication methods like I²C, SPI, and UART. This makes it useful in many types of systems. The PCA9306DCUR can also separate fast and slow buses, keeping communication smooth.

Here’s how its features help in real life:

Feature/Functionality	Real-World Use
Voltage Level Translation	Helps I²C and SMBus devices talk across different voltages.
Speed Management	Keeps fast and slow buses working without problems.
Protocol Adaptability	Works with I²C, SPI, UART, and GPIO for more system options.

Using the PCA9306DCUR makes designs simpler and communication more reliable.

How It Helps in Everyday Electronics

The PCA9306DCUR is common in gadgets we use daily. It helps devices like phones, tablets, and smart home tools work together. For example, a phone can use it to connect its low-power processor to a high-power screen. This keeps both parts safe and working well.

In smart home gadgets, it links sensors and controllers. For instance, a smart thermostat can connect a 1.8 V sensor to a 3.3 V controller. This makes the device work better and last longer.

You’ll also find it in fitness trackers and wearables. These devices have parts with different voltage needs. The PCA9306DCUR helps them work together, improving how the device performs.

Why It’s Great for Testing and Building

When creating new products, the PCA9306DCUR saves time and effort. Its simple design and auto-sensing make it easy to use. You don’t need extra control pins or tricky setups.

It also lowers the chance of mistakes during testing. By fixing voltage mismatches, it ensures parts talk correctly. This lets you focus on other parts of your project.

The PCA9306DCUR works with many voltages and systems. This makes it a handy tool for trying out different setups. Whether you’re building a gadget or an industrial system, it helps you make a strong and efficient design.

Benefits of Using the PCA9306DCUR

Makes Mixed-Voltage I²C Communication Simple

The PCA9306DCUR helps devices with different voltages work together easily. You don’t need to create complicated circuits to fix voltage differences. This tool automatically changes signal levels so devices can share data smoothly. For example, it lets a 1.8 V microcontroller connect to a 3.3 V sensor without extra parts.

Tip: The PCA9306DCUR saves time during design and testing. It removes the need for manual fixes, letting you focus on other tasks.

It works well with I²C systems, making sure devices are compatible. Its ability to send and receive signals both ways makes communication even easier.

Keeps Data Transfer Reliable

When devices use different voltages, signals can get messed up. The PCA9306DCUR stops these problems by translating voltage levels correctly. It keeps data safe during communication.

Its quick response time, under 1.5 ns, sends signals fast and clearly. This is important for systems needing accurate data, like medical tools or car devices.

Note: Using this tool lowers the chance of losing or messing up data. It keeps your system steady and reliable.

Makes Embedded System Design Easier

Building embedded systems often means connecting parts with different voltages. The PCA9306DCUR makes this simpler. Its auto-direction sensing removes the need for extra control pins, cutting down on parts in your design.

You can use it with devices needing voltages from 1.2 V to 5.5 V. This makes it useful for many things, like home gadgets or factory machines.

Feature	Benefit
Auto-Direction Sensing	Makes designs less complicated
Wide Voltage Range	Works for many types of systems
Compact Size	Saves space in circuits

Adding the PCA9306DCUR to your system makes designing easier and improves efficiency.

The PCA9306DCUR helps devices with different voltages work together. It fixes voltage mismatch problems, making communication smooth and easy. Its two-way level shifting makes designs simpler and reduces mistakes.

Tip: The PCA9306DCUR saves time and makes your projects more reliable.

This small tool works with many voltage levels and fits in tight spaces. Whether you're testing or building gadgets, it ensures devices connect well and work efficiently.

FAQ

What does the PCA9306DCUR do?

The PCA9306DCUR helps devices with different voltages communicate. It changes signal voltages in I²C systems to make them work together. You can use it in small gadgets, home electronics, and test projects.

How does the PCA9306DCUR manage two-way communication?

It figures out the data direction by itself. No extra control pins are needed. This makes building circuits easier and ensures devices with different voltages can talk smoothly.

Can the PCA9306DCUR work with other communication types?

Yes, it works with SPI, UART, and GPIO too. Its flexibility makes it useful for many systems needing voltage changes across different methods.

What voltage levels can the PCA9306DCUR handle?

It works with voltages from 1.2 V to 5.5 V. VCCA supports 1.2 V to 3.3 V, and VCCB handles 1.8 V to 5.5 V. This lets it connect devices with various voltage needs.

Is the PCA9306DCUR good for fast systems?

Yes! It has a delay of less than 1.5 ns, making it quick and accurate. It’s great for systems like medical tools or car electronics that need fast communication.

Tip: Choose the PCA9306DCUR for projects needing quick and reliable voltage changes.
