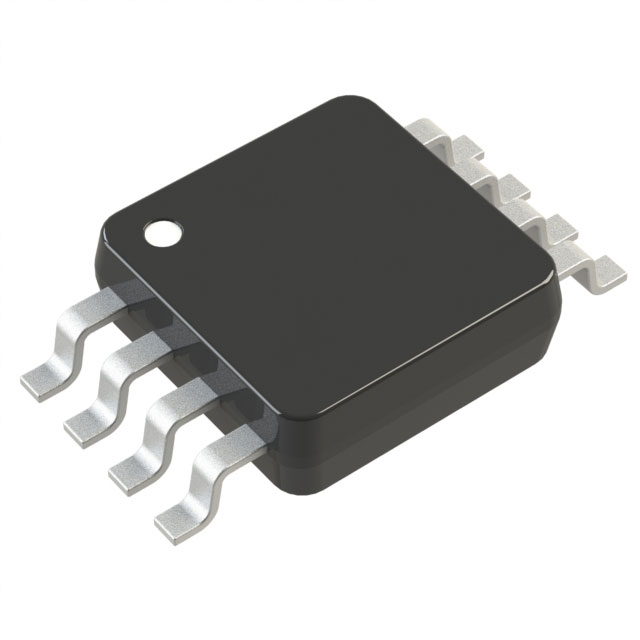

OPA2376AIDGKR,TI,High Precision Low Power Dual Operational Amplifier Chip
The OPA2376AIDGKR operational amplifier delivers exceptional performance for precision applications. Its dual-channel design ensures efficient signal processing, while its low-voltage and low-power characteristics make it ideal for modern electronic systems. You benefit from its standout features, including low noise at 7.5 nV/√Hz, high precision with a 5 µV offset voltage, and rail-to-rail input/output for maximum versatility. Industries like medical devices, industrial automation, and consumer electronics rely on this amplifier to achieve reliable and accurate results in demanding environments.
Key Takeaways
The OPA2376AIDGKR offers exceptional precision with a low offset voltage of just 5 µV, making it ideal for sensitive applications like medical devices and precision measurement.
Its low power consumption of 760 µA allows for longer battery life in portable devices, enhancing energy efficiency without sacrificing performance.
The dual-channel design simplifies circuit layouts, enabling simultaneous signal processing and reducing the need for additional components, which saves space and cost.
With a wide supply voltage range of 2.2 V to 5.5 V, this amplifier is versatile and compatible with various electronic systems, from low-voltage to standard-voltage applications.
The low noise performance of 7.5 nV/√Hz ensures clean signal amplification, crucial for applications such as audio equipment and sensor interfaces.
Rail-to-rail input and output maximize signal swing, enhancing dynamic range and ensuring optimal performance even in compact, low-voltage environments.
The compact 8-VSSOP package allows for easy integration into space-constrained designs, making it suitable for a wide range of industries including consumer electronics and industrial automation.
Key Features of the OPA2376AIDGKR
High Precision
The OPA2376AIDGKR stands out for its exceptional precision, making it a reliable choice for applications requiring accurate signal amplification. With an impressively low offset voltage of just 5 µV, you can achieve consistent and precise performance in your designs. This level of accuracy ensures minimal signal distortion, which is critical for sensitive applications like medical devices and precision measurement equipment. The amplifier's high input impedance further enhances its precision by reducing the impact of external circuit elements on signal integrity. Whether you're working on sensor interfaces or audio amplifiers, this operational amplifier delivers the precision you need.
Low Power Consumption
Energy efficiency is a key feature of the OPA2376AIDGKR, making it ideal for battery-powered devices. Its low quiescent current of 760 µA ensures minimal power usage, allowing your devices to operate longer without frequent battery replacements. This feature is particularly beneficial for portable medical devices, wireless sensors, and other applications where power conservation is essential. By using this amplifier, you can design systems that are not only efficient but also environmentally friendly. Its low power consumption does not compromise performance, ensuring you get the best of both worlds.
Dual Operational Amplifier Design
The dual-channel design of the OPA2376AIDGKR provides you with the flexibility to handle multiple signals simultaneously. This feature simplifies circuit design by reducing the need for additional components, saving both space and cost. The compact 8-VSSOP package further enhances its usability in space-constrained applications. Whether you're designing filter circuits, voltage buffers, or comparator circuits, the dual operational amplifier design ensures efficient and streamlined performance. This versatility makes it a valuable component for a wide range of industries, from industrial automation to consumer electronics.
Wide Supply Voltage Range
The OPA2376AIDGKR supports a wide supply voltage range of 2.2 V to 5.5 V, offering you flexibility in various design scenarios. This feature ensures compatibility with both low-voltage and standard-voltage systems, making it suitable for modern electronic devices. You can use this operational amplifier in battery-powered devices or systems with limited power supply options without compromising performance. Its ability to operate efficiently across this range simplifies your design process, as you won't need additional components to regulate voltage levels. Whether you're working on portable medical equipment or industrial automation systems, this wide voltage range enhances the versatility of your designs.
Low Noise Performance
Low noise is a critical factor in precision applications, and the OPA2376AIDGKR excels in this area. With a noise level of just 7.5 nV/√Hz at 1 kHz, this operational amplifier ensures clean and accurate signal amplification. You can rely on its low noise performance to minimize interference and distortion, which is essential for applications like audio amplifiers, sensor interfaces, and precision measurement equipment. This feature allows you to achieve high-quality results in environments where signal integrity is paramount. By incorporating this amplifier into your designs, you can enhance the overall performance and reliability of your systems.
Rail-to-Rail Input and Output
The OPA2376AIDGKR features rail-to-rail input and output, providing you with maximum signal swing and improved dynamic range. This capability ensures that the amplifier operates effectively even in low-voltage environments, making it ideal for compact and power-efficient devices. You can take advantage of this feature to design circuits that utilize the full range of the power supply, enhancing signal processing accuracy. Applications such as voltage buffers, filter designs, and comparator circuits benefit greatly from this functionality. The rail-to-rail input and output design simplifies your circuit layout while maintaining optimal performance, ensuring your designs meet the highest standards of precision and efficiency.
Technical Specifications of the OPA2376AIDGKR
Key Parameters
The OPA2376AIDGKR offers a combination of precision, efficiency, and versatility, making it a standout choice for demanding applications. Its low offset voltage of 5 µV ensures exceptional accuracy in signal amplification, reducing errors in sensitive circuits. The low noise level of 7.5 nV/√Hz at 1 kHz minimizes interference, allowing you to achieve clean and reliable signal processing. With a quiescent current of just 760 µA, this operational amplifier supports energy-efficient designs, especially in battery-powered devices. The rail-to-rail input and output enhance its dynamic range, enabling optimal performance even in low-voltage environments. These parameters make the amplifier suitable for applications requiring both precision and low power consumption.
Specification Table
Below is a detailed specification table summarizing the key technical attributes of the OPA2376AIDGKR:
Parameter | Value |
|---|---|
Channels | Dual |
Offset Voltage | 5 µV |
Noise Level | 7.5 nV/√Hz at 1 kHz |
Quiescent Current | 760 µA |
Gain Bandwidth Product | 5.5 MHz |
Supply Voltage Range | 2.2 V to 5.5 V |
Input Impedance | High |
Output Type | Rail-to-Rail Input and Output |
Package | 8-VSSOP |
This table highlights the amplifier's ability to deliver high precision and low noise while maintaining energy efficiency. The wide supply voltage range ensures compatibility with various systems, from portable devices to industrial equipment. The compact 8-VSSOP package makes it ideal for space-constrained designs, offering flexibility without compromising performance.
By understanding these specifications, you can confidently integrate the OPA2376AIDGKR into your projects, knowing it meets the demands of modern precision applications.
Applications of the OPA2376AIDGKR
Medical Devices
The OPA2376AIDGKR plays a vital role in medical devices where precision and reliability are critical. You can use this operational amplifier in applications like patient monitoring systems, diagnostic equipment, and portable medical devices. Its low offset voltage of 5 µV ensures accurate signal amplification, which is essential for detecting subtle physiological changes. The low noise performance of 7.5 nV/√Hz at 1 kHz minimizes interference, allowing you to achieve clear and reliable readings. Its energy-efficient design, with a quiescent current of just 760 µA, makes it ideal for battery-powered medical devices, ensuring longer operation times without frequent recharging. By integrating this amplifier into your medical designs, you can enhance both performance and patient safety.
Industrial Automation
In industrial automation, precision and durability are key. The OPA2376AIDGKR provides the accuracy and efficiency you need for applications like process control systems, sensor interfaces, and programmable logic controllers (PLCs). Its wide supply voltage range of 2.2 V to 5.5 V ensures compatibility with various industrial systems, while the rail-to-rail input and output allow for maximum signal swing even in low-voltage environments. You can rely on its high input impedance to maintain signal integrity, even in complex circuits. The dual-channel design simplifies your system architecture by reducing the need for additional components, saving both space and cost. Whether you're designing equipment for factory automation or robotics, this operational amplifier delivers consistent and reliable performance.
Consumer Electronics
The OPA2376AIDGKR enhances the functionality of modern consumer electronics by offering precision and energy efficiency. You can use it in audio amplifiers, sensor-based devices, and portable gadgets. Its low noise performance ensures high-quality audio output, making it an excellent choice for audio equipment. The low power consumption supports extended battery life in portable devices like wearables and wireless sensors. Its compact 8-VSSOP package allows for seamless integration into space-constrained designs, enabling you to create sleek and efficient products. With its rail-to-rail input and output, you can achieve optimal performance in low-voltage systems, ensuring your devices meet the demands of today's consumers.
Test and Measurement Equipment
The OPA2376AIDGKR proves invaluable in test and measurement equipment, where precision and reliability are paramount. You can rely on its low offset voltage of 5 µV to ensure accurate signal amplification, which is critical for detecting subtle variations in measurements. Its low noise performance, rated at 7.5 nV/√Hz at 1 kHz, minimizes interference, allowing you to achieve clean and consistent results. This operational amplifier supports applications such as data acquisition systems, oscilloscopes, and signal analyzers, where maintaining signal integrity is essential.
The rail-to-rail input and output feature enhances the dynamic range of your designs, enabling the amplifier to operate effectively in low-voltage environments. This capability ensures that your test equipment delivers reliable performance even under challenging conditions. The dual-channel design simplifies circuit layouts, reducing the need for additional components and saving valuable space in compact devices. By integrating this amplifier into your test and measurement systems, you can enhance their accuracy, efficiency, and overall performance.
Audio Amplifiers and Sensor Interfaces
The OPA2376AIDGKR excels in audio amplifiers and sensor interfaces, offering you a combination of low noise and high precision. Its low noise level ensures superior audio quality, making it an excellent choice for high-fidelity audio equipment. You can use this operational amplifier to design systems that deliver clear and distortion-free sound, meeting the demands of audiophiles and professionals alike. The rail-to-rail input and output further enhance its performance by maximizing signal swing, ensuring optimal sound reproduction.
In sensor interfaces, the amplifier's high input impedance preserves signal integrity by minimizing the impact of external circuit elements. This feature is particularly beneficial for applications like temperature sensors, pressure sensors, and other precision measurement devices. The wide supply voltage range of 2.2 V to 5.5 V ensures compatibility with various sensor types, allowing you to design versatile and efficient systems. Its low power consumption supports battery-powered devices, enabling longer operation times without compromising performance. By incorporating this amplifier into your audio and sensor designs, you can achieve exceptional results in both quality and efficiency.
Comparison with Similar Operational Amplifiers
Key Competitors
When selecting an operational amplifier, you often compare multiple options to find the best fit for your application. Several competitors to the OPA2376AIDGKR exist in the market, each offering unique features. Some of the notable alternatives include the AD8606 from Analog Devices, the MCP6022 from Microchip Technology, and the LM358 from Texas Instruments. These amplifiers cater to various precision and low-power applications, making them popular choices among engineers.
AD8606: This amplifier provides low noise and high precision, similar to the OPA2376AIDGKR. It features a low offset voltage and is suitable for applications requiring high accuracy. However, its higher quiescent current may not be ideal for battery-powered devices.
MCP6022: Known for its low power consumption, this amplifier works well in portable devices. Its noise performance, though, does not match the OPA2376AIDGKR, which may limit its use in sensitive applications.
LM358: A widely used dual operational amplifier, the LM358 offers affordability and versatility. However, it lacks the rail-to-rail input/output capability and low noise performance that the OPA2376AIDGKR provides.
Each of these competitors has strengths, but they may fall short in specific areas like noise level, precision, or power efficiency. Understanding these differences helps you make an informed decision when choosing an amplifier for your project.
Unique Advantages of the OPA2376AIDGKR
The OPA2376AIDGKR stands out due to its combination of precision, efficiency, and versatility. Its unique advantages make it a preferred choice for demanding applications.
Low Noise Performance: With a noise level of 7.5 nV/√Hz at 1 kHz, this amplifier ensures clean signal amplification. This feature is critical for applications like audio amplifiers and precision measurement equipment, where signal integrity matters most.
High Precision: The low offset voltage of 5 µV enhances accuracy in signal processing. This precision makes the OPA2376AIDGKR ideal for medical devices, sensor interfaces, and other sensitive applications.
Energy Efficiency: The low quiescent current of 760 µA supports energy-efficient designs. This feature benefits battery-powered devices, allowing them to operate longer without frequent recharging.
Rail-to-Rail Input and Output: This capability maximizes signal swing and dynamic range, enabling the amplifier to perform effectively in low-voltage environments. It simplifies circuit design and enhances performance in compact systems.
Wide Supply Voltage Range: Operating between 2.2 V and 5.5 V, the OPA2376AIDGKR adapts to various power supply conditions. This flexibility ensures compatibility with modern electronic systems.
Compact Design: The 8-VSSOP package allows for easy integration into space-constrained designs. This feature is particularly useful for portable devices and compact circuits.
By combining these advantages, the OPA2376AIDGKR delivers unmatched performance in precision applications. Its ability to balance low noise, high precision, and energy efficiency sets it apart from competitors. Whether you are designing medical equipment, industrial systems, or consumer electronics, this amplifier provides the reliability and versatility you need.
Why Choose the OPA2376AIDGKR?
Reliability in Precision Applications
The OPA2376AIDGKR ensures consistent performance in applications where precision is critical. Its low offset voltage of 5 µV minimizes signal distortion, enabling you to achieve accurate results in sensitive designs. This reliability makes it a trusted choice for medical devices, sensor interfaces, and precision measurement equipment. For example, in sensor and transducer amplifiers, this operational amplifier maintains signal integrity by reducing noise interference. Its high input impedance further enhances accuracy by preventing external circuit elements from affecting the signal. Whether you're working on diagnostic tools or industrial control systems, this amplifier delivers dependable results every time.
Versatility Across Industries
You can rely on the OPA2376AIDGKR to meet the demands of diverse industries. Its dual-channel design simplifies circuit layouts, making it suitable for applications like audio amplifiers, voltage buffers, and comparator circuits. The wide supply voltage range of 2.2 V to 5.5 V ensures compatibility with various systems, from portable medical devices to industrial automation equipment. In consumer electronics, its compact 8-VSSOP package allows seamless integration into space-constrained designs. Additionally, its low noise performance of 7.5 nV/√Hz at 1 kHz makes it ideal for high-fidelity audio systems and precision test equipment. This versatility enables you to use the same amplifier across multiple projects, saving time and resources.
Energy Efficiency for Battery-Powered Devices
The OPA2376AIDGKR excels in energy efficiency, making it perfect for battery-powered devices. Its low quiescent current of 760 µA reduces power consumption, allowing your devices to operate longer without frequent battery replacements. This feature is particularly beneficial for portable medical devices, wireless sensors, and wearable electronics. By incorporating this amplifier, you can design systems that balance performance and energy conservation. For instance, in general-purpose amplifiers used in instruments, its efficient power usage ensures extended operation without compromising accuracy. This energy efficiency not only enhances device longevity but also supports environmentally friendly designs.
The OPA2376AIDGKR combines high precision, low power consumption, and a dual operational amplifier design to deliver exceptional performance. Its low offset voltage and noise level ensure accurate signal amplification, making it indispensable for applications like medical devices, industrial automation, and consumer electronics. You can rely on its versatility to adapt to diverse industries and its reliability to maintain consistent results in demanding environments. Whether you need precision for sensitive measurements or energy efficiency for portable devices, this operational amplifier provides a dependable solution for your designs.
FAQ
What makes the OPA2376AIDGKR suitable for precision applications?
The OPA2376AIDGKR offers a low offset voltage of 5 µV and a noise level of 7.5 nV/√Hz at 1 kHz. These features ensure accurate signal amplification with minimal distortion. Its high input impedance preserves signal integrity, making it ideal for sensitive applications like medical devices and precision measurement equipment.
How does the OPA2376AIDGKR support battery-powered devices?
The amplifier consumes a low quiescent current of 760 µA, which minimizes power usage. This energy efficiency extends the operational life of battery-powered devices, such as portable medical equipment and wireless sensors, without compromising performance.
What is the significance of the rail-to-rail input and output feature?
Rail-to-rail input and output allow the amplifier to utilize the full range of the power supply. This feature enhances dynamic range and ensures optimal performance in low-voltage environments. It simplifies circuit design and improves signal processing accuracy in applications like voltage buffers and filter circuits.
Can the OPA2376AIDGKR handle multiple signals simultaneously?
Yes, the dual-channel design enables the amplifier to process multiple signals at once. This capability reduces the need for additional components, saving space and cost. It is particularly useful in applications like comparator circuits and sensor interfaces.
What industries benefit most from the OPA2376AIDGKR?
Industries such as medical devices, industrial automation, consumer electronics, and test and measurement equipment benefit greatly. The amplifier's precision, low noise, and energy efficiency make it versatile for applications like patient monitoring systems, process control systems, and audio amplifiers.
How does the wide supply voltage range enhance design flexibility?
The OPA2376AIDGKR operates on a supply voltage range of 2.2 V to 5.5 V. This flexibility ensures compatibility with both low-voltage and standard-voltage systems. It allows you to design devices without requiring additional voltage regulation components.
Why is low noise performance important in operational amplifiers?
Low noise performance ensures clean and accurate signal amplification. The OPA2376AIDGKR's noise level of 7.5 nV/√Hz at 1 kHz minimizes interference, which is critical for applications like audio amplifiers and precision measurement equipment. This feature enhances overall system reliability and performance.
What packaging options are available for the OPA2376AIDGKR?
The OPA2376AIDGKR comes in a compact 8-VSSOP package. This small form factor makes it suitable for space-constrained designs, such as portable devices and compact circuits, without sacrificing performance.
How does the OPA2376AIDGKR compare to similar operational amplifiers?
The OPA2376AIDGKR stands out with its combination of low noise, high precision, and energy efficiency. Unlike competitors like the LM358 or MCP6022, it offers rail-to-rail input/output and superior noise performance. These advantages make it a preferred choice for demanding precision applications.
What are some common applications of the OPA2376AIDGKR?
You can use the OPA2376AIDGKR in applications like audio amplifiers, sensor interfaces, voltage buffers, and filter circuits. It is also widely used in medical devices, industrial automation systems, and test and measurement equipment. Its versatility ensures reliable performance across various scenarios.
