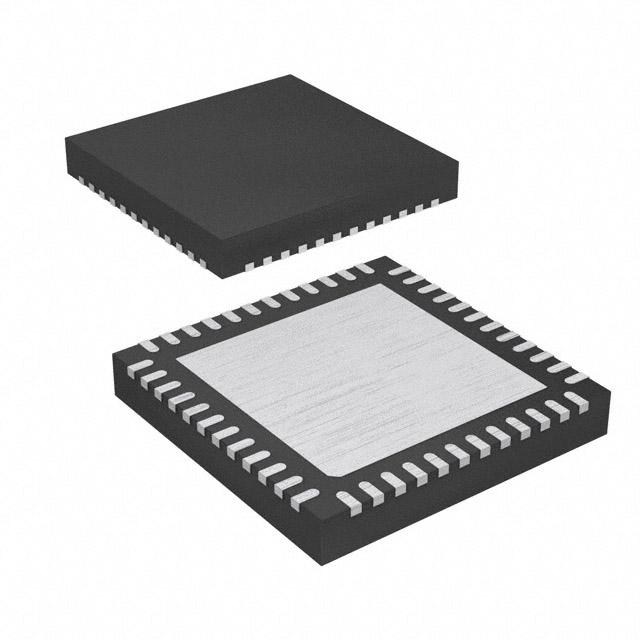

NRF52832-QFAA-R,NORDIC,Low Power Wireless Communication Smart Bluetooth Chip
The NRF52832-QFAA-R is a cutting-edge Bluetooth 5.0 chip tailored for IoT, wearable devices, and smart home systems. Its low power consumption and multi-protocol support make it ideal for embedded systems. You can rely on its ARM Cortex-M4 processor for efficient performance, even in demanding applications.
Market Trends:
Increasing investments in IoT devices
Rising demand for connected wearables
Development of low-power Bluetooth solutions
Year | Market Value (USD) | Growth Rate (%) |
|---|---|---|
2022 | 4.1 billion | N/A |
2027 | 7.0 billion | 11.0 |
This chip also excels in versatility, offering advanced security features and a rich peripheral set. Whether you’re designing fitness trackers or smart lighting systems, it provides the flexibility and reliability you need.
Key Takeaways
The NRF52832-QFAA-R is great for battery devices. It uses little power, so batteries last longer and need less changing.
This chip works with Bluetooth 5.0. It sends data faster and works farther away, perfect for smart homes and wearables.
Its ARM Cortex-M4 processor is strong. It handles hard tasks easily and keeps things running smoothly.
It has strong security like AES-128 encryption. This keeps data safe, making it good for healthcare and home security.
The NRF52832-QFAA-R can be used in many ways. From fitness trackers to industrial IoT, it helps make products better.
Features and Specifications of NRF52832-QFAA-R
Core Features
Bluetooth 5.0 support for enhanced connectivity.
The NRF52832-QFAA-R supports Bluetooth 5.0, offering faster data transfer rates and improved range. This makes it ideal for applications like smart home systems and wearable devices. You can rely on its Bluetooth low energy capabilities to ensure efficient communication while conserving power.
ARM Cortex-M4 processor with floating-point unit.
At the heart of the NRF52832-QFAA-R is a 32-bit ARM Cortex-M4 processor with a floating-point unit (FPU). This processor delivers high performance, enabling you to handle complex calculations and tasks efficiently. Its architecture ensures smooth operation in demanding IoT applications.
Low energy consumption for battery-powered devices.
The NRF52832-QFAA-R is designed for low power consumption, making it perfect for battery-powered devices. For instance, it consumes about 5.3 mA during transmission and only 0.7 μA in standby mode. This efficiency extends the battery life of your devices, reducing maintenance needs.
Technical Specifications
Memory and storage capabilities (RAM, Flash).
The chip offers 512 KB of Flash memory and 64 KB of RAM, providing ample space for your applications. Compared to similar chips like the NRF52840, it balances memory capacity and cost-effectiveness, making it a versatile choice for embedded systems.
Operating voltage and power efficiency.
The NRF52832-QFAA-R operates within a voltage range of 1.7V to 3.6V, supporting various battery types, including lithium and button batteries. This flexibility ensures compatibility with a wide range of applications while maintaining power efficiency.
RF performance and range.
The chip features adjustable transmission power from -20 dBm to +4 dBm and a receive sensitivity of -96 dBm in BLE mode. These RF metrics ensure reliable wireless communication over extended ranges, even in challenging environments.
Built-in Peripherals
GPIOs, ADC, and PWM support.
The NRF52832-QFAA-R includes 32 configurable GPIOs, an ADC for analog signal processing, and PWM support for precise control of peripherals. These features simplify the integration of sensors and actuators into your projects.
SPI, I2C, and UART interfaces.
The chip supports multiple communication interfaces, including SPI, I2C, and UART. These interfaces enable seamless connectivity with other components, enhancing the versatility of your designs.
Security features like AES encryption.
Security is a priority with the NRF52832-QFAA-R. It includes AES-128 encryption for data protection, secure boot to prevent unauthorized firmware execution, and a root of trust for device authentication. These features ensure the integrity and confidentiality of your applications.
Pinout and Configuration of NRF52832-QFAA-R
Pinout Overview
Explanation of key pins and their functions.
Understanding the pinout of the NRF52832-QFAA-R is essential for effective integration into your projects. The chip features a variety of pins, each serving a specific purpose. Here’s a breakdown of the key pins and their functions:
Pin Name | Description | Function |
|---|---|---|
VDD | Power Supply | Main power supply input. |
GND | Ground | Ground connection. |
P0.00-P0.31 | General Purpose I/O | Configurable GPIO pins. |
VDDH | Power Supply (High Voltage) | Higher voltage power supply input. |
DEC1 | Decoupling | Connects to a decoupling capacitor. |
DEC2 | Decoupling | Connects to a decoupling capacitor. |
XL1 | Crystal Oscillator | External 32.768 kHz crystal input. |
XL2 | Crystal Oscillator | External 32.768 kHz crystal output. |
SWDCLK | SWD Clock | Serial Wire Debug clock input. |
SWDIO | SWD I/O | Serial Wire Debug input/output. |
These pins allow you to connect power, interface with peripherals, and enable debugging. For example, the GPIO pins (P0.00-P0.31) can be configured for digital input or output, making them versatile for various applications.
Power supply and ground pin details.
The NRF52832-QFAA-R requires a stable power supply for optimal performance. The VDD pin serves as the main power input, while the GND pin provides the ground connection. If your project involves higher voltage levels, you can use the VDDH pin. Proper decoupling is also crucial; connect DEC1 and DEC2 to capacitors to stabilize the power supply and reduce noise.
Configuration and Setup
Steps to integrate the chip into a project.
To integrate the NRF52832-QFAA-R into your project, follow these steps:
Connect the power supply to the VDD and GND pins.
Attach an external 32.768 kHz crystal to the XL1 and XL2 pins for accurate timing.
Configure the GPIO pins based on your application requirements.
Use the SWDCLK and SWDIO pins for programming and debugging.
Ensure proper decoupling by connecting capacitors to DEC1 and DEC2.
Tools and software for configuration (e.g., Nordic SDK).
You can simplify the configuration process using the following tools and software:
Nordic SDK: Offers libraries and examples for BLE development.
nRF Connect for Desktop: Provides tools for testing and debugging.
nRF Command Line Tools: Includes utilities for flashing and debugging.
SEGGER J-Link Debugger: Enables programming and debugging via SWD.
ARM Keil MDK and IAR Embedded Workbench: Professional IDEs for ARM-based development.
Visual Studio Code with Nordic extensions: A flexible environment for NRF52 series projects.
These tools streamline development, allowing you to focus on creating innovative solutions with the NRF52832-QFAA-R.
Development Tools
Recommended development boards and kits.
To get started with the NRF52832-QFAA-R, consider using development boards like the nRF52 DK or nRF52832 Dongle. These boards provide easy access to the chip’s features and include debugging interfaces. They are ideal for prototyping and testing your designs.
Debugging and testing tools.
For debugging, the SEGGER J-Link Debugger is highly recommended. It supports SWD and JTAG interfaces, ensuring compatibility with the NRF52832-QFAA-R. Additionally, tools like nRF Connect for Desktop and nRF Command Line Tools help you test and troubleshoot your applications effectively.
Applications of NRF52832-QFAA-R in Real-World Projects
Wearable Devices
Fitness trackers and smartwatches
The NRF52832-QFAA-R plays a vital role in wearable devices like fitness trackers and smartwatches. Its low power consumption ensures these devices operate for extended periods without frequent charging. You can rely on its robust wireless communication to enable seamless data transfer between the wearable and connected smartphones or cloud platforms. Additionally, the chip's small form factor makes it ideal for compact designs.
Key Benefits:
Continuous and accurate data tracking for health metrics.
Efficient power management for prolonged battery life.
Reliable connectivity for real-time feedback.
Application Type | Description |
|---|---|
Wearable Devices | Used in fitness trackers and smartwatches for low power consumption and connectivity. |
Health Monitoring | Provides accurate data tracking for health metrics and fitness routines. |
Health monitoring devices
Health monitoring devices leverage the NRF52832-QFAA-R for real-time data collection and analysis. Its efficient power management supports continuous operation, making it suitable for devices like heart rate monitors and sleep trackers. You can use this chip to develop solutions that help individuals maintain healthier lifestyles through actionable insights.
Smart Home Systems
Wireless lighting and HVAC control
The NRF52832-QFAA-R enhances smart home devices by enabling reliable wireless communication for automation and remote control. Its multi-protocol support allows you to integrate BLE, ANT, and proprietary protocols into your designs. This flexibility makes it perfect for wireless lighting systems and HVAC control. The chip's low power consumption also reduces energy usage, contributing to eco-friendly smart home solutions.
Feature | Description |
|---|---|
Multi-protocol support | Supports BLE, ANT, and 2.4GHz proprietary protocols. |
Low power consumption | Designed for energy-efficient operation, ideal for battery-powered devices. |
Advanced security features | Provides robust security for smart home applications. |
Applications | Suitable for wireless lighting, HVAC control, and other IoT applications. |
Home security and automation
The NRF52832-QFAA-R provides a reliable platform for home security and automation systems. You can use it to enable wireless control of smart locks, cameras, and sensors. Its advanced security features, such as AES encryption, ensure data protection and device authentication. This chip enhances comfort and safety in smart home environments.
Advantages for Smart Home Systems:
Enables intelligent interaction and automation.
Reduces energy consumption while enhancing security.
Supports monitoring and control of multiple devices.
Healthcare and Medical Devices
Remote patient monitoring systems
The NRF52832-QFAA-R is ideal for remote patient monitoring systems. Its ultra-low power consumption ensures long-lasting operation in battery-powered devices. The chip's high-performance ARM Cortex-M4 processor enables efficient data processing, while its advanced security features protect sensitive health information. You can use this chip to develop reliable solutions for real-time health monitoring.
Portable diagnostic tools
Portable diagnostic tools benefit from the NRF52832-QFAA-R's low power consumption and multi-protocol support. These features extend battery life and provide flexibility in wireless communication. The chip's high-performance processor ensures accurate and efficient data analysis, making it a valuable component for medical applications.
Feature | Benefit |
|---|---|
Low Power Consumption | Extends battery life in portable devices. |
High Performance | ARM Cortex-M4 with FPU provides efficient and powerful processing. |
Multi-Protocol Support | Flexibility to use BLE, ANT, and proprietary protocols. |
Industrial IoT
Asset tracking and monitoring
The NRF52832-QFAA-R is an excellent choice for asset tracking in industrial IoT applications. You can use its low power consumption to extend the battery life of tracking devices, ensuring they operate for long periods without frequent maintenance. Its multi-protocol support allows seamless communication across various networks, making it adaptable to different industrial environments. The chip's advanced security features protect sensitive data, ensuring the safety of your assets.
Feature | Benefit for Industrial IoT Applications |
|---|---|
Low power consumption | Extends battery life for asset tracking devices |
Multi-protocol support | Enables communication across various networks |
Advanced security features | Protects sensitive data in industrial environments |
These features make the NRF52832-QFAA-R a reliable solution for tracking and monitoring assets in warehouses, factories, and supply chains. You can count on its robust performance to enhance operational efficiency and reduce downtime.
Wireless sensor networks
The NRF52832-QFAA-R also supports wireless sensor networks, a critical component of industrial IoT. You can use this chip to enable machine-to-machine communication, which is essential for automating industrial processes. Its capabilities make it effective for remote monitoring systems, allowing you to collect and analyze data from sensors spread across large areas.
The NRF52832-QFAA-R is utilized in industrial automation for wireless sensor networks.
It supports machine-to-machine communication.
It is effective for remote monitoring systems.
These features help you build efficient and scalable wireless sensor networks. Whether you are monitoring equipment performance or environmental conditions, the NRF52832-QFAA-R ensures reliable communication and data integrity. Its low power consumption further enhances the longevity of sensor devices, reducing operational costs and maintenance efforts.
The NRF52832-QFAA-R stands out as a versatile and efficient solution for industrial IoT applications. Its advanced features and reliability make it a valuable component for asset tracking and wireless sensor networks, helping you optimize industrial operations.
Comparison of NRF52832-QFAA-R with Similar Chips
NRF52832-QFAA-R vs. NRF52840
Differences in memory and processing power
When comparing the NRF52832-QFAA-R and the NRF52840, you will notice significant differences in memory and processing capabilities. Both chips feature an ARM Cortex-M4 processor, ensuring high performance for embedded applications. However, the NRF52840 offers 1 MB of Flash memory and 256 KB of RAM, while the NRF52832-QFAA-R provides 512 KB of Flash and 64 KB of RAM. This makes the NRF52840 better suited for applications requiring extensive memory, such as complex IoT systems.
Feature | NRF52832-QFAA-R | NRF52840 |
|---|---|---|
Processor | ARM Cortex-M4 | ARM Cortex-M4 |
Flash Memory | 512 KB | 1 MB |
RAM | 64 KB | 256 KB |
Supported Protocols | BLE, ANT | BLE, ANT, 802.15.4, Thread, Zigbee |
Package | 48-pin QFN | 73-pin QFN |
Bluetooth range and protocol support
The NRF52840 outshines the NRF52832-QFAA-R in protocol support and Bluetooth range. While both chips support Bluetooth, the NRF52840 includes additional protocols like Thread and Zigbee, making it a true multi-protocol SoC. This versatility allows you to use the NRF52840 for advanced applications, such as smart home hubs. The NRF52832-QFAA-R, on the other hand, is ideal for projects with moderate protocol needs.
Feature | NRF52832-QFAA-R | NRF52840 |
|---|---|---|
Protocol Support | Basic Bluetooth | Zigbee, Thread |
USB Interface | No | Yes |
Application Suitability | Moderate Memory | Complex Applications |
Tip: Choose the NRF52840 if your project requires advanced protocol support or higher memory capacity.
Suitability for Applications
When to choose NRF52832-QFAA-R over NRF52840
The NRF52832-QFAA-R is a better choice for compact and less demanding applications. Its moderate memory and protocol support make it ideal for wearable devices, fitness trackers, and simple IoT solutions. If your project prioritizes low power consumption and cost-effectiveness, this chip delivers excellent performance without unnecessary features.
Cost-effectiveness and power efficiency comparison
The NRF52832-QFAA-R excels in cost-effectiveness and power efficiency. Its low power consumption enhances battery life in portable devices, making it perfect for energy-sensitive applications. While the NRF52840 offers more features, its higher cost and power requirements may not suit all projects. For applications with moderate demands, the NRF52832-QFAA-R provides a balanced solution with high performance and efficiency.
Note: The NRF52832-QFAA-R is a multi-protocol SoC designed for applications where simplicity and efficiency are key.
Advantages of NRF52832-QFAA-R
Low Power Consumption
Ideal for battery-powered devices.
The NRF52832-QFAA-R excels in low power consumption, making it perfect for battery-operated devices. Whether you are designing wearable devices or IoT solutions, this chip ensures extended battery life. Its power efficiency allows your devices to operate longer without frequent recharging.
Here’s a breakdown of its power consumption metrics:
Operational Mode | Current Draw |
|---|---|
Transmit (TX @ 0 dBm) | about 5.3 mA |
Receive (RX) | about 4.6 mA |
Standby mode | about 0.7 μA |
These metrics highlight its suitability for energy-sensitive applications. You can rely on this chip to reduce maintenance needs and enhance user satisfaction.
Versatility
Wide range of supported applications.
The NRF52832-QFAA-R supports a diverse range of applications, showcasing its versatility. Its features make it ideal for wearable devices, smart home systems, industrial automation, and healthcare solutions.
Application Area | Description |
|---|---|
Wearable Devices | Ideal for wearable devices due to its small form factor, low power consumption, and robust wireless communication capabilities. |
Smart Home | Enables reliable and efficient wireless control and monitoring of various devices. |
Industrial Automation | Used for wireless sensor networks, machine-to-machine communication, and remote monitoring systems. |
Healthcare | Supports the development of connected medical devices, enabling real-time monitoring and data collection. |
This wide application range allows you to use the NRF52832-QFAA-R in innovative projects across multiple industries. Its robust communication capabilities and advanced features ensure reliable performance in every scenario.
Ease of Integration
Comprehensive development tools and support.
The NRF52832-QFAA-R simplifies integration into your projects with its comprehensive development tools. These tools provide everything you need to design, test, and deploy your devices efficiently.
Feature | Description |
|---|---|
Multi-protocol Support | Enables simultaneous operation of multiple wireless protocols. |
High Performance | ARM Cortex-M4 with FPU provides efficient processing power. |
Ultra-Low Power Consumption | Ideal for battery-operated devices. |
Advanced Security Features | AES-128 encryption, secure boot, and root of trust. |
Rich Peripheral Set | Includes a variety of interfaces for diverse applications. |
You can use tools like the Nordic SDK and nRF Connect for Desktop to streamline development. These resources help you focus on innovation while ensuring seamless integration of the NRF52832-QFAA-R into your designs.
The nrf52832-qfaa-r stands out as a reliable and versatile solution for low-power wireless communication. Its advanced features, such as multi-protocol support and low energy consumption, make it ideal for IoT, wearable, and smart home projects. You can use it in applications like smart bulbs, wireless door locks, and environmental sensors, showcasing its relevance in modern technology.
Why Choose the nrf52832-qfaa-r?
Ideal for Bluetooth® low energy applications
Supports ANT and 2.4GHz ultra-low-power wireless protocols
Offers robust security for data protection
Explore the potential of the nrf52832-qfaa-r to enhance your product development efficiency and bring your innovative ideas to life.
FAQ
What makes the NRF52832-QFAA-R ideal for IoT projects?
The NRF52832-QFAA-R combines low power consumption with Bluetooth 5.0 and multi-protocol support. Its ARM Cortex-M4 processor ensures efficient performance, while its security features protect data. These qualities make it perfect for IoT devices like smart sensors and connected home systems.
How does the NRF52832-QFAA-R ensure low power consumption?
The chip uses advanced power management techniques. It consumes only 5.3 mA during transmission and 0.7 μA in standby mode. This efficiency extends battery life, making it suitable for wearable devices and other battery-powered applications.
Can I use the NRF52832-QFAA-R for secure applications?
Yes, the chip includes AES-128 encryption, secure boot, and a root of trust. These features protect your data and prevent unauthorized access, making it reliable for applications like healthcare devices and smart home security systems.
What tools can I use to develop with the NRF52832-QFAA-R?
You can use the Nordic SDK, nRF Connect for Desktop, and SEGGER J-Link Debugger. These tools simplify programming, debugging, and testing, helping you integrate the chip into your projects efficiently.
Is the NRF52832-QFAA-R suitable for industrial IoT?
Absolutely! Its low power consumption, multi-protocol support, and robust security make it ideal for industrial IoT applications. You can use it for asset tracking, wireless sensor networks, and machine-to-machine communication.
Tip: Pair the NRF52832-QFAA-R with the nRF52 DK for faster prototyping and testing.
