NCP1117ST33T3G,ON,Linear Voltage Regulators

The NCP1117ST33T3G is a low-dropout voltage regulator designed to deliver a stable 3.3V output, ensuring consistent power for your sensitive electronic components. It supports an output current of up to 1A, making it ideal for various applications requiring reliable voltage regulation. Its compact SOT-223 package allows for efficient use in space-constrained designs. With features like thermal shutdown and current limiting, this regulator protects your devices from potential damage. By maintaining precise voltage levels, it plays a crucial role in enhancing the performance and longevity of your electronic systems.

Key Takeaways

The NCP1117ST33T3G provides a stable 3.3V output, making it ideal for powering sensitive electronic components like microcontrollers and sensors.
With a maximum output current of 1A and a low dropout voltage of 1.2V, this regulator is perfect for battery-powered applications where efficiency is crucial.
Built-in safety features such as thermal shutdown and current limiting protect your devices from overheating and excessive current, ensuring long-term reliability.
Its compact SOT-223 package allows for easy integration into space-constrained designs without sacrificing performance.
The regulator's low-noise output is essential for noise-sensitive applications, enhancing the performance of devices like audio equipment and communication systems.
Understanding the advantages and limitations of the NCP1117ST33T3G helps you make informed decisions about its integration into your electronic projects.

What is the NCP1117ST33T3G Voltage Regulator IC?

Overview of the NCP1117ST33T3G

The NCP1117ST33T3G is a low-dropout (LDO) voltage regulator designed to provide a stable and fixed 3.3V output. It ensures reliable power delivery for electronic systems that demand precise voltage levels. This regulator supports an output current of over 1.0A, making it suitable for powering a wide range of devices. Its compact SOT-223 package allows you to integrate it into designs where space is limited.

This voltage regulator stands out due to its low dropout voltage, which is capped at 1.2V. This feature makes it ideal for applications where the input voltage is only slightly higher than the desired output voltage. Additionally, the NCP1117ST33T3G includes built-in safety mechanisms such as thermal shutdown and output current limiting. These features protect your circuits from overheating or excessive current, ensuring long-term reliability.

Purpose and Significance in Electronic Systems

The NCP1117ST33T3G plays a critical role in maintaining stable voltage levels in electronic systems. Many devices, such as microcontrollers, sensors, and processors, require a consistent power supply to function correctly. Voltage fluctuations can lead to performance issues or even permanent damage to these components. By using this regulator, you can eliminate such risks and enhance the overall performance of your devices.

This regulator is particularly valuable in battery-powered systems. Its low dropout voltage ensures efficient power usage, extending the battery life of your devices. The high output current capability also makes it versatile, allowing you to use it in various applications, from consumer electronics to industrial equipment. With its integrated protection features, the NCP1117ST33T3G ensures that your systems remain safe and operational under different conditions.

How Does the NCP1117ST33T3G Work?

Working Principle of Linear Voltage Regulators

Linear voltage regulators operate by maintaining a steady output voltage, regardless of fluctuations in the input voltage or changes in the load. They achieve this by varying their internal resistance to compensate for these changes. This ensures that the output voltage remains constant, which is crucial for powering sensitive electronic components.

The NCP1117ST33T3G follows the same principle. It uses a transistor-based system to regulate voltage. The regulator adjusts the resistance dynamically, ensuring that the output voltage stays at 3.3V. This process minimizes noise, making it ideal for devices like sensor modules that require clean and stable power. Unlike switching regulators, linear regulators like the NCP1117ST33T3G provide a low-noise output, which enhances the performance of noise-sensitive applications.

However, linear regulators dissipate excess energy as heat. This occurs because the voltage drop across the regulator is similar to the voltage drop across a resistor. While this design simplifies the circuit and reduces noise, it can lead to inefficiencies in high-power applications. Despite this limitation, the NCP1117ST33T3G excels in low-power systems where efficiency and stability are priorities.

Internal Design and Functionality of the NCP1117ST33T3G

The internal design of the NCP1117ST33T3G revolves around its ability to deliver precise voltage regulation. It incorporates a reference voltage source, an error amplifier, and a pass transistor. These components work together to maintain the desired output voltage.

Reference Voltage Source: This component generates a stable reference voltage. The regulator compares this reference with the actual output voltage to detect any deviations.
Error Amplifier: The error amplifier processes the difference between the reference voltage and the output voltage. It then adjusts the pass transistor to correct any discrepancies.
Pass Transistor: The pass transistor acts as a variable resistor. It regulates the flow of current based on the input from the error amplifier. This adjustment ensures that the output voltage remains constant.

The NCP1117ST33T3G also includes built-in safety features like thermal shutdown and current limiting. These mechanisms protect your devices from overheating or excessive current, enhancing the reliability of your system. Its compact SOT-223 package further simplifies integration into space-constrained designs.

By combining precision, stability, and protection, the NCP1117ST33T3G ensures optimal performance in various electronic applications. Its low-dropout design makes it particularly effective in scenarios where the input voltage is only slightly higher than the output voltage.

Key Features and Specifications of the NCP1117ST33T3G

Electrical Specifications

The NCP1117ST33T3G delivers a fixed output voltage of 3.3V, ensuring stable power for your electronic devices. It supports an output current exceeding 1.0A, making it suitable for a variety of applications. The device operates with a maximum dropout voltage of 1.2V, which means it can maintain its output even when the input voltage is only slightly higher than the output. This low-dropout characteristic enhances efficiency, especially in battery-powered systems.

The regulator accommodates a wide input voltage range, from 3.5V to 20V. This flexibility allows you to use it in diverse environments, from low-power consumer electronics to industrial equipment. Additionally, the NCP1117ST33T3G features safe operating area compensation, ensuring reliable performance under varying load conditions. Its high power supply rejection ratio (PSRR) minimizes the impact of input voltage fluctuations, providing clean and consistent output.

Thermal and Physical Characteristics

Thermal management is a critical aspect of any voltage regulator, and the NCP1117ST33T3G excels in this area. It includes a built-in thermal shutdown mechanism that protects the device from overheating. When the internal temperature exceeds safe limits, the regulator automatically shuts down to prevent damage. This feature ensures long-term reliability, even in demanding applications.

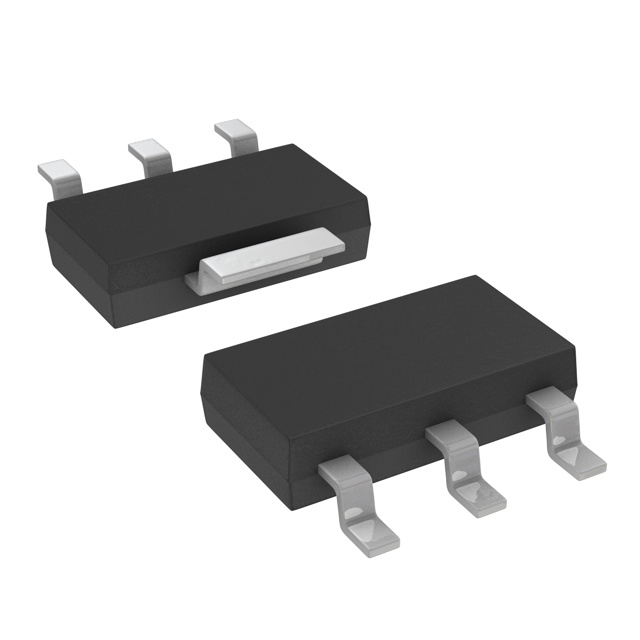

Physically, the NCP1117ST33T3G comes in a compact SOT-223 package. This small form factor makes it ideal for designs where space is limited. Despite its size, the package effectively dissipates heat, maintaining stable operation. The lead-free construction aligns with environmental standards, making it a sustainable choice for modern electronics.

Additional Features and Protection Mechanisms

The NCP1117ST33T3G incorporates several protection mechanisms to safeguard your devices. Its output current limiter prevents excessive current from damaging connected components. This feature is particularly useful in scenarios where sudden surges or short circuits might occur.

The regulator also includes on-chip trimming, which ensures precise voltage regulation. This level of accuracy enhances the performance of sensitive components like microcontrollers and sensors. Furthermore, the device's low-noise output makes it suitable for noise-sensitive applications, such as audio equipment or communication systems.

By combining these features, the NCP1117ST33T3G offers a reliable and efficient solution for voltage regulation. Its robust design and advanced protections make it a versatile choice for a wide range of electronic systems.

Applications of the NCP1117ST33T3G in Electronic Systems

Powering Microcontrollers and Processors

The NCP1117ST33T3G is a dependable choice for powering microcontrollers and processors in various electronic systems. These components require a stable and precise voltage supply to function efficiently. Voltage fluctuations can disrupt their operations, leading to errors or even permanent damage. By using this voltage regulator, you ensure that your microcontrollers and processors receive a consistent 3.3V output, enhancing their performance and reliability.

For instance, *John Doe shared his experience of using the NCP1117ST33T3G in an IoT project*. He highlighted how it provided a stable voltage to the microcontroller, ensuring seamless operation of the connected devices. Similarly, a smart home enthusiast successfully integrated this regulator into a smart home project. It powered the microcontroller, enabling smooth communication between sensors and the central control unit. These examples demonstrate the regulator's effectiveness in supporting critical components in modern electronic systems.

Use in Sensor Modules

Sensor modules often demand clean and stable power to deliver accurate readings. The NCP1117ST33T3G excels in this role by providing a low-noise output, which is essential for noise-sensitive applications. Whether you're working on robotics, environmental monitoring, or industrial automation, this regulator ensures that your sensors operate reliably.

Jane Smith, a robotics enthusiast, shared her success in using the NCP1117ST33T3G to power sensors in her projects. She emphasized how the regulator's stable output improved the accuracy of sensor readings. Similarly, an environmental scientist used it in a sensor network for environmental monitoring. The regulator ensured a reliable power supply to all sensor nodes, enabling continuous data collection. In another case, an agricultural technologist relied on this regulator for powering sensors in agricultural monitoring systems. It played a crucial role in maintaining uninterrupted data collection for analysis.

These real-world applications highlight the versatility of the NCP1117ST33T3G in powering sensor modules across diverse fields.

Other Common Applications

Beyond microcontrollers and sensors, the NCP1117ST33T3G finds use in a wide range of other applications. Its ability to deliver a stable 3.3V output makes it suitable for powering devices in consumer electronics, industrial equipment, and even weather stations. For example, a weather enthusiast used this regulator in a weather station project. It powered the sensor array, ensuring precise and continuous data collection.

In industrial automation systems, the regulator has proven to be a reliable choice for powering temperature sensors. An industrial engineer noted how it ensured stable operation, even in demanding environments. These examples illustrate the regulator's adaptability and reliability in various scenarios.

By integrating the NCP1117ST33T3G into your projects, you can achieve efficient and stable power management for a wide range of electronic systems. Its robust design and consistent performance make it a valuable component in both hobbyist and professional applications.

Advantages and Limitations of the NCP1117ST33T3G

Advantages of using the NCP1117ST33T3G

The NCP1117ST33T3G offers several advantages that make it a reliable choice for voltage regulation in electronic systems. Its low dropout voltage, capped at 1.2V, ensures efficient operation even when the input voltage is only slightly higher than the output. This feature is particularly beneficial in battery-powered devices, where conserving energy is critical.

You can rely on this regulator for its high output current capability, which exceeds 1.0A. This makes it suitable for powering a wide range of components, from microcontrollers to sensor modules. The fixed 3.3V output voltage ensures stable and precise power delivery, which is essential for sensitive electronic devices. Its high power supply rejection ratio (PSRR) further enhances stability by minimizing the impact of input voltage fluctuations.

The compact SOT-223 package allows you to integrate the regulator into space-constrained designs without compromising performance. Built-in protection mechanisms, such as thermal shutdown and current limiting, safeguard your devices from overheating or excessive current. These features enhance the reliability and longevity of your electronic systems.

Additionally, the NCP1117ST33T3G provides design flexibility with its fixed and adjustable output versions. This versatility allows you to tailor the regulator to meet specific application requirements. Its low-noise output makes it ideal for noise-sensitive applications, such as audio equipment and communication systems.

Limitations and considerations

While the NCP1117ST33T3G excels in many areas, it has certain limitations you should consider. As a linear voltage regulator, it dissipates excess energy as heat. This characteristic can lead to inefficiencies in high-power applications, especially when the voltage difference between input and output is significant. You may need to implement additional cooling solutions, such as heat sinks, to manage thermal performance in such scenarios.

The regulator's maximum dropout voltage of 1.2V, though low, may not be suitable for applications requiring ultra-low dropout performance. If your design involves input voltages very close to the desired output, you might need to explore alternative regulators with lower dropout voltages.

Another consideration is the limited efficiency of linear regulators compared to switching regulators. While the NCP1117ST33T3G provides clean and stable output, switching regulators are more efficient in handling higher power levels. If energy efficiency is a top priority, especially in high-power systems, you may need to evaluate whether a switching regulator better suits your needs.

Lastly, the regulator's fixed output voltage of 3.3V, while ideal for many applications, may not meet the requirements of designs needing different voltage levels. In such cases, you would need to opt for the adjustable version or consider other voltage regulator options.

By understanding these limitations, you can make informed decisions about integrating the NCP1117ST33T3G into your projects. Its advantages often outweigh its drawbacks, making it a dependable choice for many electronic systems.

Comparison with Other Voltage Regulators

Linear vs. Switching Regulators

When choosing a voltage regulator, you often face the decision between linear and switching regulators. Each type has unique characteristics that suit specific applications. Understanding these differences helps you make an informed choice for your project.

Linear regulators, like the NCP1117ST33T3G, provide a steady and low-noise output. They work by dissipating excess energy as heat, which makes them simple to use but less efficient in high-power applications. You benefit from their straightforward design, as they require fewer external components. This simplicity makes them ideal for powering noise-sensitive devices such as sensors, microcontrollers, and audio equipment.

Switching regulators, on the other hand, convert input voltage to the desired output using high-frequency switching. This process makes them highly efficient, especially when dealing with significant differences between input and output voltages. However, they generate more noise due to the switching action. You may need additional components like inductors and capacitors to filter this noise, which can complicate your design.

The NCP1117ST33T3G stands out as a vital component in modern electronics. Its ability to deliver a stable 3.3V output ensures reliable performance for sensitive devices like microcontrollers and sensors. You benefit from its low-dropout design, compact form factor, and built-in protection features, which enhance efficiency and safety. This regulator excels in diverse applications, from consumer electronics to industrial systems. By integrating it into your projects, you ensure consistent voltage regulation, making it an indispensable solution for powering today’s advanced technologies.

FAQ

What is the NCP1117ST33T3G used for?

The NCP1117ST33T3G is a low-dropout voltage regulator that provides a stable 3.3V output. You can use it to power sensitive electronic components like microcontrollers, sensors, and processors. It ensures consistent voltage levels, which are essential for reliable device performance.

How much current can the NCP1117ST33T3G handle?

This regulator supports an output current of up to 1A. It works well in applications requiring moderate power delivery, such as powering small circuits or low-power devices.

What makes the NCP1117ST33T3G a low-dropout regulator?

The NCP1117ST33T3G has a dropout voltage of 1.2V or less. This means it can maintain a stable 3.3V output even when the input voltage is only slightly higher than the output. This feature makes it ideal for battery-powered systems or applications with limited input voltage.

Can I use the NCP1117ST33T3G in high-power applications?

You can use it in low to moderate power applications. However, it dissipates excess energy as heat, which may reduce efficiency in high-power scenarios. For high-power systems, you might need a switching regulator for better efficiency.

Does the NCP1117ST33T3G have built-in protection features?

Yes, it includes thermal shutdown and current limiting. These features protect your devices from overheating and excessive current, ensuring long-term reliability.

What is the input voltage range for the NCP1117ST33T3G?

The regulator operates with an input voltage range of 3.5V to 20V. This flexibility allows you to use it in various applications, from consumer electronics to industrial systems.

Is the NCP1117ST33T3G suitable for noise-sensitive applications?

Yes, it provides a low-noise output, making it an excellent choice for noise-sensitive devices like audio equipment, communication systems, and sensor modules.

Can I adjust the output voltage of the NCP1117ST33T3G?

The standard version delivers a fixed 3.3V output. If you need adjustable output, you can explore other versions of the NCP1117 series that allow you to set different voltage levels.

What type of package does the NCP1117ST33T3G come in?

It comes in a compact SOT-223 package. This small form factor makes it easy to integrate into space-constrained designs while maintaining effective heat dissipation.

How does the NCP1117ST33T3G compare to switching regulators?

Linear regulators like the NCP1117ST33T3G provide a steady, low-noise output and are simpler to use. Switching regulators offer higher efficiency, especially in high-power applications, but they generate more noise and require additional components. Your choice depends on your specific application needs.
