Essential Tips for Optimizing Low Power Embedded Systems with N76E003AT20

ymn@deirchip.com

·April 24, 2025

·17 min read

Essential Tips for Optimizing Low Power Embedded Systems with N76E003AT20 — Image Source: deirchip

Saving power is very important in small computer systems, especially with the Application of N76E003AT20 MCU in Low Power Embedded Design. This is because people want electronics that use less energy. The market for Low Power Design Technology was worth $8.5 billion in 2023, and by 2032, it might grow to $18.7 billion, increasing by 8.7% each year. This growth is due to more IoT devices and the need for eco-friendly solutions.

Making low-power designs can be tricky. You need to save energy but still keep the system working well. To do this, you often need smart ideas for both hardware and software.

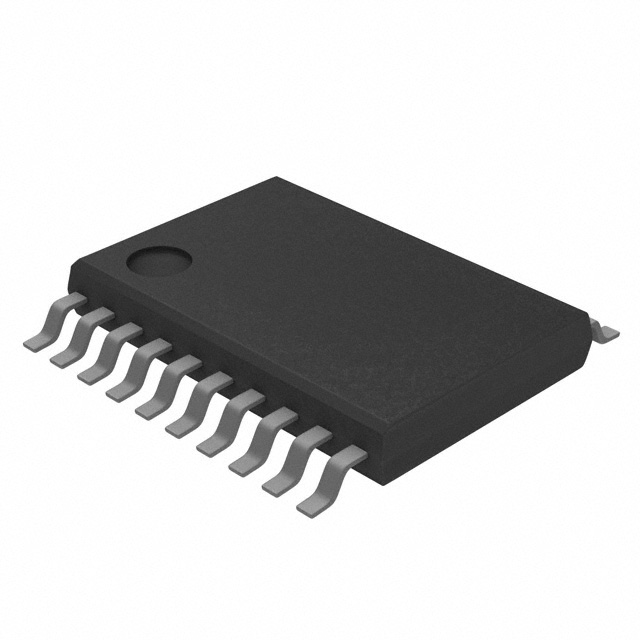

Using the N76E003AT20 helps in low-power designs. It is affordable and works well to save energy. It also keeps performance high, making it great for today’s systems.

Key Takeaways

Pick microcontrollers like the N76E003AT20 to save energy in designs.
Use modes like Idle and Power Down to make batteries last longer.
Write programs that only work when needed to save power.
Plan PCBs with good trace width and part placement to use less energy.
Test and check power use often to find and fix problems.

Understanding Power Needs in Low Power Embedded Design

Things that affect power use in embedded systems

Many things change how much power an embedded system uses. One big thing is the circuit's state. A circuit's activity depends on its inputs and past states. Another important thing is limited resources. These limits can cause delays, like pipeline or buffer stalls, which use more energy. Cache misses also matter. They slow down instructions and make the system use more power.

The way software is built also changes energy use. Tools like power estimation and instruction analysis find problems. For example, wireless modules use less power if software sends data smartly. Fixing these issues makes designs use less energy.

Why power checking and measuring are important

Checking power use is key to saving energy in systems. New tools can measure average power over time or per task. These tools show how energy is used. For example, you can see if changes save power by comparing before and after.

Tools that check power use help find wasted energy. This is very important for devices with batteries, where every bit of power matters. Knowing how much power you can use helps pick the right parts and software.

Challenges in low power system design

Making low power systems is not easy. Balancing speed and memory is a big problem. Small devices need to do more, but they may run out of memory. Managing resources well is very important.

Another problem is saving power while keeping the device working. For battery devices, you need to meet backup time needs, like hours or days. Using better compilers and simple code tricks, like memory pooling, can help. Adding low-power modes and energy-saving parts also improves power use.

Hardware Design Tips for Low Power Embedded Systems

Picking low-power microcontrollers and parts

Choosing the right parts helps save power in systems. Pick microcontrollers that use very little power when active or in standby. For example, ultra-low-power microcontrollers use about 30 μA/MHz to 40 μA/MHz when running. In shutdown mode, they may use as little as 50 nA to 70 nA. These features help your system work well without wasting energy.

You can also check microcontrollers using tests like the ULPMark-CoreProfile. This test shows how much energy is used under certain conditions, like a 2% duty cycle in 1 second. For instance, the STM32L476RG microcontroller saves 19% more energy by lowering voltage from 3 V to 1.8 V with a DC-to-DC converter. These tests help you pick parts that save power and still work well.

Other parts like capacitors, regulators, and power supplies also matter. High-efficiency power supplies can cut energy waste, especially in systems with changing power needs. By picking the right parts, you can make a system that saves energy.

Using power gating to save energy

Power gating is a way to cut power use in systems. It works by turning off parts of a circuit when they are not needed. For example, in IoT devices, power gating can turn off sensors or communication parts when idle. This saves energy without hurting performance.

To use power gating, design your system with controllable power areas. These areas let you manage different parts of the circuit. Some microcontrollers have built-in power gating to make this easier. You can also use parts like MOSFETs to improve power gating.

Measuring power use is important for power-gated systems. Tools can show where power leaks happen most. Fixing these leaks helps save energy and makes batteries last longer.

Designing PCBs to reduce power loss

Good PCB design helps cut power loss in systems. Focus on key things during design. For example, keep enough space between traces and parts to avoid interference. Use wide traces for high-current paths to lower resistance. Narrow traces can save space in low-current areas.

Placing vias correctly is also important. Right-sized and spaced vias keep signals strong and manage heat better. Put parts in smart spots to avoid signal problems and reduce interference. For example, place heat-making parts near heat sinks to manage heat and save energy.

For high-power systems, use materials like ceramics or PTFE that handle heat well. These materials stop hot spots that waste energy. Don’t group power parts too close, as this can cause heat buildup and lower reliability.

Tests show these tips work. For example, using copper thicknesses of 35 to 105 µm handles currents over 10 A well. Keeping high-current parts away from PCB edges improves safety and performance. Following these tips helps you design PCBs that save power.

Effective use of external components like capacitors and regulators

External parts like capacitors and regulators are key for saving energy. They help control power flow, cut waste, and keep systems steady. Picking the right ones can make your system much more efficient.

Capacitors: Stabilizing and Filtering Power

Capacitors keep voltage steady and remove noise in circuits. They store energy and release it fast to handle power changes. For example, if your system needs extra power suddenly, capacitors provide it. This helps the system stay stable and reduces energy waste.

Choose capacitors with the right size and voltage for your system. Low ESR capacitors are great for cutting power loss. Place them near power pins on your PCB to improve performance and lower resistance.

Regulators: Ensuring Efficient Power Conversion

Regulators control voltage for different parts of your system. They make sure each part gets the right amount of power. Switching regulators are very efficient, often saving up to 90% of input power. Only 10% is lost, mostly as heat.

Some power loss still happens due to resistance, switching, or internal current use. Resistance loss comes from transistors and inductors. Switching loss happens when power MOSFETs change states. Internal current loss depends on how much power transistors need. Picking good regulators and placing them well can reduce these losses.

Combining Capacitors and Regulators for Optimal Performance

Using capacitors and regulators together improves power management. Capacitors filter noise and stabilize regulators, making them work better. For example, adding a capacitor to a regulator’s output lowers voltage ripple and boosts efficiency. This setup is helpful for systems that turn off parts while staying stable.

Think about what each part of your system needs. Use capacitors for sudden power demands and regulators for steady voltage. This saves energy and makes parts last longer.

Practical Tips for Implementation

Pick the right capacitor: Use ceramic ones for high-frequency tasks and electrolytic ones for storing energy.
Place regulators smartly: Keep them close to the parts they power to save energy.
Check efficiency often: Test how well your regulators work. A 90% efficient regulator loses only 10% of power as heat.

By using capacitors and regulators wisely, you can build systems that save energy and work reliably. These parts are crucial for low-power embedded systems.

Software Optimization Strategies for Low-Power Design

Using low-power modes of the N76E003AT20 MCU

To save energy, put the MCU to sleep often. The N76E003AT20 MCU has modes like Idle and Power Down. These modes lower energy use while keeping the system functional. Idle mode stops the CPU but lets timers or UARTs work. This is good for tasks that need occasional activity. Power Down mode turns off most functions, leaving only key parts like the watchdog timer active. This is best for systems that can stay off for long periods.

Using sleep modes well can make batteries last longer. Design your system to switch between active and sleep states. For example, wake the MCU only when a button is pressed or a sensor is triggered. This saves power and keeps the system ready when needed.

Using event-driven programming to save power

Event-driven programming helps save energy in embedded systems. Unlike polling, it keeps the CPU asleep until an event happens. This way, energy is used only when needed.

Benefits of event-driven programming include:

The CPU works only when events occur, saving power.
Dynamic Power Management (DPM) balances speed and energy use.
Power-aware APIs adjust voltage and frequency for better efficiency.

For example, in a temperature system, wake the MCU only if the temperature goes too high. This avoids constant checking and saves energy. Designing systems to handle events smartly reduces power use and improves performance.

Cutting CPU activity with better code

Writing efficient code helps reduce CPU activity and saves energy. Shorter CPU tasks mean more time in sleep mode.

One way is to use fewer hardware performance counters (HwPCs). Studies show you can cut HwPCs from 50 to 5 without losing accuracy. This lowers the CPU's workload and saves power.

Another method is using tickless systems. Regular systems use timer interrupts even when idle. Tickless systems skip these interrupts, letting the CPU stay in low-power mode longer.

Also, write simple and compact code. Avoid extra steps and use better algorithms. For instance, replace nested loops with one optimized loop to save time. Streamlined code helps the CPU finish tasks faster and return to sleep mode.

Tip: Check your code often to find and fix slow parts. Use tools like power analyzers to see how changes affect energy use.

By using these software tips, you can save energy in your embedded system while keeping it efficient and reliable.

Using interrupts instead of polling to save energy

Polling and interrupts are two ways to handle events in systems. Interrupts are better for saving energy. Polling makes the CPU check for events all the time. This keeps the system active and wastes power. Interrupts let the CPU stay off until something happens, using less energy.

Why interrupts save more energy

Interrupts use less power than polling. Here’s why:

Polling keeps the CPU busy, even when nothing happens. This wastes energy.
Interrupts let the CPU sleep until an event wakes it up. This saves power by reducing active time.
Systems with interrupts can use low-power modes like WAIT or STOP. Polling doesn’t allow this.

Comparing power use: Polling vs. Interrupts

The table below shows how polling and interrupts differ in power use:

Method	How It Works	Power Use
Polling	CPU checks for events nonstop, staying active.	High power use.
Interrupts	CPU sleeps and wakes only when needed.	Low power use.

Polling uses more energy because the CPU stays active all the time. Interrupts save energy by letting the CPU rest during idle times.

Tips for using interrupts well

To use interrupts effectively, follow these tips:

Use hardware interrupts for important events like sensor signals.
Set your system to enter low-power mode when not in use. The N76E003AT20 MCU supports Power Down and Idle modes, which work well with interrupts.
Avoid using polling unless absolutely necessary. Interrupts are more efficient for handling events.

Tip: Focus on using interrupts for tasks that don’t need constant checking. This method saves energy and makes batteries last longer.

Switching from polling to interrupts can greatly improve your system’s energy efficiency. This simple change helps your device work well while using less power.

System-Level Strategies for Low Power Embedded Design

Keeping systems cool to save energy

Managing heat is key to saving energy and keeping systems reliable. Too much heat can harm parts and use more power. Here are ways to manage heat:

Heat sinks pull heat away from important parts, keeping them cooler.
Heat pipes move heat using special liquids, great for powerful systems.
Thermal interface materials (TIMs) help heat move between parts, lowering resistance.
Liquid cooling systems use liquids to remove heat, perfect for high-energy systems.

Using these methods keeps systems cool and helps them use less energy.

Testing and checking power use often

Testing helps find problems and makes systems use less energy. Try these ideas:

Use power-saving tricks like turning off unused parts and testing sleep modes.
Check how instructions, functions, and memory affect energy use.
Set clear testing goals to make sure the system works well in real life.

Regular checks show where energy is wasted. For example, tools can find a function that uses too much power so you can fix it.

Building systems that last and save energy

Designing systems to grow and last saves energy over time. Follow these tips:

Pick microcontrollers that balance power, cost, and energy use.
Use tricks like turning off parts or cycling power to save energy.
Choose Wi-Fi or Bluetooth based on how far and how much power they need.
Test early with tools like breadboards and computer simulations.
Make a power supply that works well for long periods.

Planning ahead helps your system handle future needs without wasting energy. This saves money and makes your design last longer.

Leveraging the Unique Features of the N76E003AT20 MCU

Overview of the N76E003AT20’s low-power modes

The N76E003AT20 microcontroller has special low-power modes to save energy. These modes are great for battery devices like fitness trackers or sensors. They lower power use, making batteries last longer and devices more reliable. For example, when a system is idle for a long time, these modes use very little energy but still work well.

You can adjust these modes to fit your device's needs. Whether your device works sometimes or stays idle often, the N76E003AT20 helps balance energy saving and performance.

Using Power Down and Idle modes for energy savings

Power Down and Idle modes help cut energy use. In Power Down mode, most functions stop, but key parts like the watchdog timer stay on. This is good for devices that don’t need to work all the time. Idle mode stops the CPU but keeps things like timers running. This is useful for tasks that happen now and then.

To save energy, design your system to switch between these modes. For example, a sensor can stay in Power Down mode until it detects something. Then, it can switch to Idle mode to process the signal. This way, energy is saved, and the system stays ready.

Tip: Test how your system works in these modes to find the best setup.

Optimizing the internal oscillator for reduced power consumption

The N76E003AT20’s internal oscillator helps manage energy use. By adjusting it, you can save more power. Tests show energy use per task is between 404 nJ and 466 nJ. One oscillator uses about 113.3 μW, and extra connections add 23 μW. This shows why fine-tuning the oscillator is important.

Here are some tips to optimize it:

Use fewer active oscillators when possible.
Reduce extra connections to save power.
Set the oscillator’s frequency to match your system’s needs.

These steps make your embedded system more energy-efficient.

Practical examples of low power embedded system applications with the N76E003AT20

The N76E003AT20 microcontroller works well in many low-power devices. Its energy-saving design and flexible features make it great for gadgets that need long battery life and dependability. Here are some examples where this MCU performs well.

1. Battery-Powered IoT Sensors

IoT sensors often work far away, making battery changes hard. The N76E003AT20’s Power Down mode uses very little energy when idle. For example, it can be used in a temperature sensor system. The sensor sleeps and wakes only when the temperature goes beyond a set limit. This method helps the battery last much longer.

Tip: Use the MCU’s low-power modes with event-based programming to save even more energy.

2. Wearable Health Devices

Fitness trackers and health monitors need small, energy-efficient solutions. The N76E003AT20 is perfect because it’s compact and saves power well. For instance, a heart rate monitor can use Idle mode to turn off the CPU while timers handle signals. This setup lets the device work for days without needing frequent charging.

3. Home Automation Systems

Smart home devices like motion sensors or door alarms benefit from the N76E003AT20’s energy-saving abilities. A motion sensor can stay in Power Down mode when there’s no movement. When motion is detected, the MCU quickly switches to active mode to send alerts or control other systems.

4. Portable Data Loggers

Data loggers used for tracking environmental or industrial data need long-lasting power. The N76E003AT20’s internal oscillator uses less energy while keeping accurate timing. This makes it ideal for recording data over long periods.

Example: A soil moisture logger can collect data every hour, staying in Power Down mode between readings.

These examples show how the N76E003AT20 helps create reliable and energy-saving devices for different industries. By using its features, you can design systems that work well and save power.

Low-power design is important for devices using batteries. It helps batteries last longer, uses less energy, and keeps devices cooler. This makes devices work better and helps the environment. For instance, saving just one watt per device can save a lot of energy when many devices are used.

To improve your low-power system, focus on hardware, software, and overall design. Pick microcontrollers that save energy, use power-saving modes, and plan for future needs. The N76E003AT20 MCU is a great choice. It has features like Power Down mode and an adjustable internal oscillator. Using these features, you can build systems that save energy, work well, and last a long time.

FAQ

1. Why is the N76E003AT20 good for low-power designs?

The N76E003AT20 has modes like Idle and Power Down. These modes save energy but keep important parts working. Its small size and efficient oscillator make it great for battery devices like wearables and IoT sensors.

Tip: Use Power Down mode for tasks with long waiting times to save energy.

2. How can you make the N76E003AT20 use less energy?

You can save energy by using its low-power modes and adjusting the oscillator. Event-driven programming also helps by reducing CPU work and saving battery life.

Example: In a motion sensor, keep the MCU in Power Down mode until it detects movement.

3. Can the N76E003AT20 handle tasks that need quick responses?

Yes, the N76E003AT20 works well for real-time tasks. It uses timers and interrupts to balance speed and energy use. This makes it good for things like home automation and data logging.

Note: Use interrupts instead of constant checking to save power and respond faster.

4. What are the advantages of low-power modes?

Low-power modes help batteries last longer and keep devices cooler. They also make systems more reliable by using less energy.

Emoji Insight: 🌱 Low-power modes are better for the environment by saving energy in many devices.

5. How does PCB design help save energy?

Good PCB design reduces wasted energy by lowering resistance and interference. Use wide traces for high currents and place parts smartly to avoid heat problems.

Pro Tip: Test your PCB design to find and fix areas wasting power.
