MSP430F1101AIDW: Tiny Yet Mighty Microcontroller

ymn@deirchip.com

·November 9, 2024

·10 min read

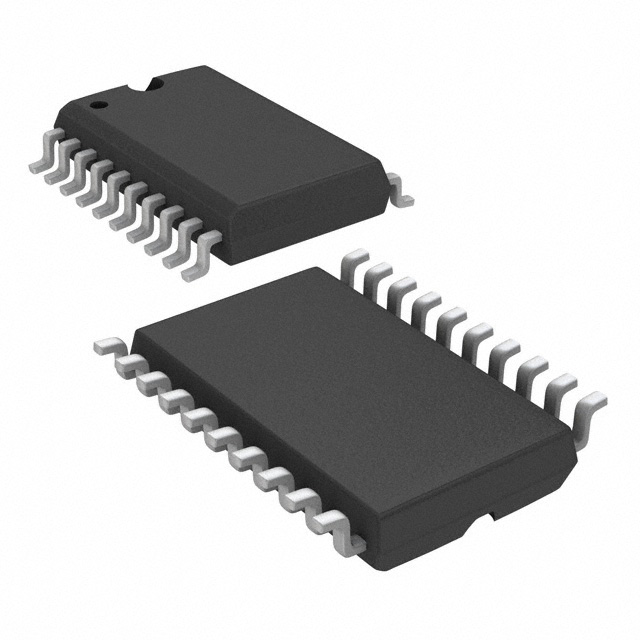

MSP430F1101AIDW: Tiny Yet Mighty Microcontroller — Image Source: https://deirchip.com

The MSP430F1101AIDW microcontroller from Texas Instruments (TI) is renowned for its compact size and robust capabilities, making it a key component in modern embedded systems. This tiny yet powerful device offers a blend of efficiency and versatility, essential for a wide range of applications. With its 16-bit RISC CPU and digitally controlled oscillator, the MSP430F1101AIDW ensures quick wake-up times, making it particularly suitable for battery-powered applications. The MSP430F1101AIDW, TI, Microcontroller Embedded System excels across various fields, from consumer electronics to industrial applications. For more detailed specifications, visit https://www.alldatasheet.com/datasheet-pdf/pdf/908.

Overview of MSP430F1101AIDW Specifications

Technical Specifications

Processor and Memory

The MSP430F1101AIDW microcontroller features a 16-bit RISC CPU, which ensures efficient processing and quick response times. This architecture supports a frequency of up to 8 MHz, providing ample speed for various applications. The device includes 1KB of FLASH memory, organized as 1K x 8, with an additional 256 bytes for flexibility in program storage. Furthermore, it offers 128 bytes of SRAM, which facilitates smooth data handling and temporary storage during operations.

Power Consumption and Efficiency

Designed for low-power consumption, the MSP430F1101AIDW excels in energy efficiency, making it ideal for battery-operated devices. Its ultralow-power mixed-signal capabilities allow it to operate effectively in environments where power conservation is crucial. The microcontroller supports a wide operating temperature range from -40 to 85 degrees Celsius, ensuring reliable performance in diverse conditions.

Key Features

Low Power Modes

The MSP430F1101AIDW incorporates several low power modes, which significantly reduce energy usage during idle periods. These modes enable the device to conserve power without compromising performance, extending battery life in portable applications. Quick wake-up times from low power states ensure that the microcontroller remains responsive when needed.

Integrated Peripherals

Equipped with a built-in 16-bit timer and a versatile analog comparator, the MSP430F1101AIDW supports a variety of embedded applications. The microcontroller includes fourteen I/O pins, offering flexible interfacing options with other components in a system. This versatility makes it suitable for a wide range of applications, from consumer electronics to industrial control systems.

Applications in Embedded Systems

Consumer Electronics

Wearable Devices

Wearable devices have become an integral part of modern life, offering convenience and functionality. The MSP430F1101AIDW microcontroller plays a crucial role in these devices. Its compact size and low power consumption make it ideal for wearables like fitness trackers and smartwatches. The microcontroller's quick wake-up times ensure that these devices remain responsive, providing users with real-time data and feedback. Additionally, the built-in 16-bit timer and versatile analog comparator enhance the performance of sensors, enabling accurate monitoring of physical activities and health metrics.

Home Automation

Home automation systems rely on efficient and reliable microcontrollers to manage various tasks. The MSP430F1101AIDW excels in this domain due to its energy efficiency and versatility. It can control lighting, heating, and security systems, ensuring seamless operation while conserving energy. The fourteen I/O pins allow for flexible interfacing with different components, making it easy to integrate into existing home automation setups. This microcontroller's ability to operate within a wide temperature range ensures consistent performance, even in varying environmental conditions.

Industrial Applications

Sensor Networks

In industrial settings, sensor networks play a vital role in monitoring and controlling processes. The MSP430F1101AIDW microcontroller supports these networks with its robust features. Its low power modes and efficient processing capabilities make it suitable for battery-powered sensors that need to operate for extended periods. The microcontroller's built-in peripherals, such as the 16-bit timer and analog comparator, enhance the accuracy and reliability of data collection. This ensures that industries can maintain optimal operations and quickly respond to any changes in the environment.

Control Systems

Control systems in industrial applications require precise and reliable microcontrollers. The MSP430F1101AIDW meets these demands with its powerful 16-bit RISC CPU and efficient memory management. It can handle complex control algorithms, ensuring smooth and accurate operation of machinery and equipment. The microcontroller's ability to interface with various components through its I/O pins allows for seamless integration into existing control systems. Its energy-efficient design also helps reduce operational costs, making it a cost-effective solution for industrial applications.

MSP430F1101AIDW, TI, Microcontroller Embedded System

Performance and Efficiency

MSP430F1101AIDW vs. Competitors

The MSP430F1101AIDW microcontroller stands out in the competitive landscape of embedded systems. Its 16-bit RISC CPU offers efficient processing, which many competitors struggle to match. While other microcontrollers may boast higher clock speeds, the MSP430F1101AIDW excels in energy efficiency, making it a preferred choice for battery-operated devices.

"Efficiency is doing better what is already being done." - Peter Drucker

This quote encapsulates the essence of the MSP430F1101AIDW's design philosophy. It prioritizes low power consumption without sacrificing performance. In comparison, some competitors focus on raw power, which often leads to increased energy usage. The MSP430F1101AIDW's ability to operate within a wide temperature range further enhances its reliability, a feature not always present in rival products.

Cost-Effectiveness

Value Proposition

The MSP430F1101AIDW offers a compelling value proposition for developers and engineers. Its affordability, combined with robust features, makes it an attractive option for various applications. Many competitors in the market offer similar functionalities at a higher price point, which can strain project budgets.

Affordability: The MSP430F1101AIDW provides essential features at a cost-effective price, making it accessible for projects with limited budgets.
Versatility: Its wide range of applications, from consumer electronics to industrial systems, ensures that developers can use it across different projects without needing multiple microcontroller types.
Development Support: Texas Instruments offers extensive resources and tools, such as Code Composer Studio, which streamline the development process and reduce time-to-market.

Advantages of MSP430F1101AIDW

Versatility in Design

Adaptability to Various Applications

The MSP430F1101AIDW microcontroller showcases remarkable versatility, making it adaptable to a wide array of applications. Engineers and developers appreciate its ability to fit seamlessly into diverse projects. This adaptability stems from its compact design and robust features, which allow it to function effectively in both consumer electronics and industrial systems.

Consumer Electronics: The microcontroller's low power consumption and quick wake-up times make it ideal for wearable devices and home automation systems.
Industrial Systems: Its reliable performance in varying temperatures and efficient processing capabilities suit sensor networks and control systems.

The MSP430F1101AIDW stands out as a flexible solution, capable of meeting the demands of different industries without compromising on performance.

Development Support

Tools and Resources Available

Texas Instruments provides extensive development support for the MSP430F1101AIDW, ensuring that engineers have access to the necessary tools and resources. This support enhances the development process, allowing for efficient and effective project execution.

Code Composer Studio: This integrated development environment (IDE) offers a comprehensive suite of tools for programming and debugging the microcontroller. It simplifies the development process, reducing time-to-market for new products.
Documentation and Community Support: Texas Instruments offers detailed documentation and a vibrant community forum. Developers can find answers to technical questions and share insights with peers, fostering a collaborative environment.

The availability of these resources ensures that developers can maximize the potential of the MSP430F1101AIDW, creating innovative solutions across various applications.

Case Studies and Success Stories

Real-World Implementations

Innovative Uses in Industry

Industries have embraced the MSP430F1101AIDW microcontroller for its innovative applications. In manufacturing, companies use this microcontroller to enhance automation processes. Its low power consumption and quick response times make it ideal for controlling machinery efficiently. For instance, sensor networks in factories rely on the MSP430F1101AIDW to monitor equipment health, ensuring timely maintenance and reducing downtime.

In the agricultural sector, the microcontroller plays a crucial role in precision farming. Farmers utilize it to control irrigation systems, optimizing water usage and improving crop yields. The device's ability to operate in harsh environmental conditions makes it a reliable choice for outdoor applications. These implementations highlight the microcontroller's versatility and effectiveness in diverse industrial settings.

Testimonials from Developers

User Experiences and Feedback

Developers have shared positive experiences with the MSP430F1101AIDW microcontroller. Dan, a software engineer, noted how the microcontroller improved data sharing between teams. He mentioned, "In the past, it was quite clunky to pull a clip or audio file to share with other teams. Now, they can easily search through transcripts and provide those snippets as text snippets. It’s been a huge improvement to our workflow."

Another developer praised the microcontroller's role in creating a great first impression with customers. They stated, "Dock helps create a great first impression with my customers. It helps organize all of the pre-sales/post-sales tasks, documents, and conversation. One customer even commented on how our proposal format really impressed them."

These testimonials underscore the microcontroller's impact on improving efficiency and organization in various projects. Developers appreciate its user-friendly features and the support provided by Texas Instruments, which enhances their overall experience.

Future Prospects and Developments

Emerging Trends

Role in IoT and Smart Devices

The MSP430F1101AIDW microcontroller holds a promising position in the rapidly evolving landscape of the Internet of Things (IoT) and smart devices. As IoT continues to expand, the demand for efficient and low-power microcontrollers grows. The MSP430F1101AIDW, with its ultralow power consumption and robust processing capabilities, aligns perfectly with these requirements.

In smart devices, energy efficiency remains crucial. The MSP430F1101AIDW's architecture, optimized for extended battery life, makes it an ideal choice for portable measurement applications. This microcontroller can power a variety of smart devices, from home automation systems to wearable technology, ensuring they operate efficiently without frequent battery replacements.

"The future belongs to those who prepare for it today." - Malcolm X

This quote underscores the importance of integrating efficient microcontrollers like the MSP430F1101AIDW into IoT and smart devices. By doing so, developers can create products that not only meet current demands but also anticipate future needs.

Ongoing Innovations

Potential Upgrades and Enhancements

Texas Instruments, a global leader in analog and digital signal processing, continues to innovate within its microcontroller product line. The MSP430F1101AIDW stands to benefit from these ongoing advancements. Potential upgrades may include enhancements in processing speed, memory capacity, and peripheral integration, further solidifying its role in embedded systems.

Developers can expect improvements in the microcontroller's ability to handle complex tasks while maintaining its low power consumption. These enhancements will likely expand its application range, making it suitable for even more demanding environments. As technology progresses, the MSP430F1101AIDW will continue to evolve, offering developers new opportunities to create innovative solutions.

In summary, the future of the MSP430F1101AIDW looks bright. Its role in IoT and smart devices, coupled with potential upgrades, positions it as a key player in the world of microcontrollers. As industries advance, this tiny yet mighty microcontroller will undoubtedly remain at the forefront of technological development.

The MSP430F1101AIDW microcontroller offers several key benefits, making it a standout choice in the realm of embedded systems. Its compact size and robust capabilities exemplify its 'tiny yet mighty' nature. The microcontroller's ultralow power consumption and extended battery life make it ideal for applications where energy efficiency is paramount. With a powerful 16-bit RISC CPU, it ensures maximum code efficiency and quick response times. Developers should consider the MSP430F1101AIDW for future projects, especially those requiring reliable performance in compact and energy-efficient designs.
