MPU-6050,INVENSENSE,6-axis accelerometer and gyroscope sensor chip

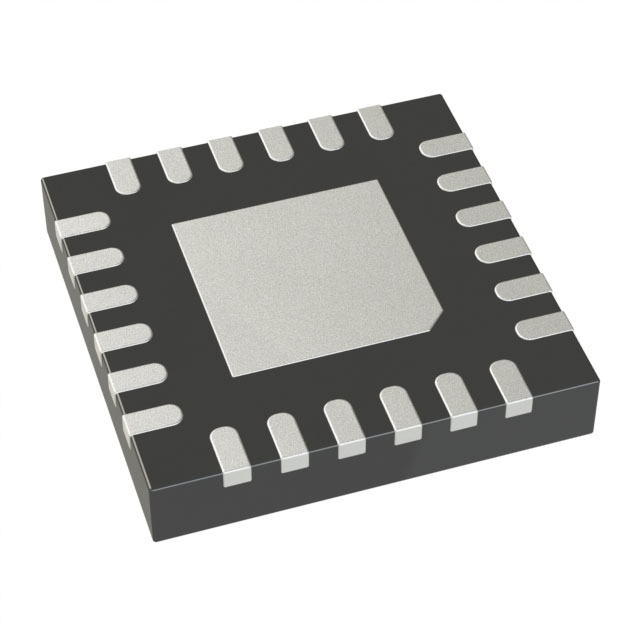

The MPU-6050 is a compact 6-axis motion tracking sensor that combines a 3-axis accelerometer and a 3-axis gyroscope. It excels in detecting motion and orientation, making it a vital component for various applications. With features like a built-in Digital Motion Processor (DMP) and high-accuracy 16-bit ADC, this sensor ensures precise data collection. Its low power consumption makes it ideal for energy-efficient devices.

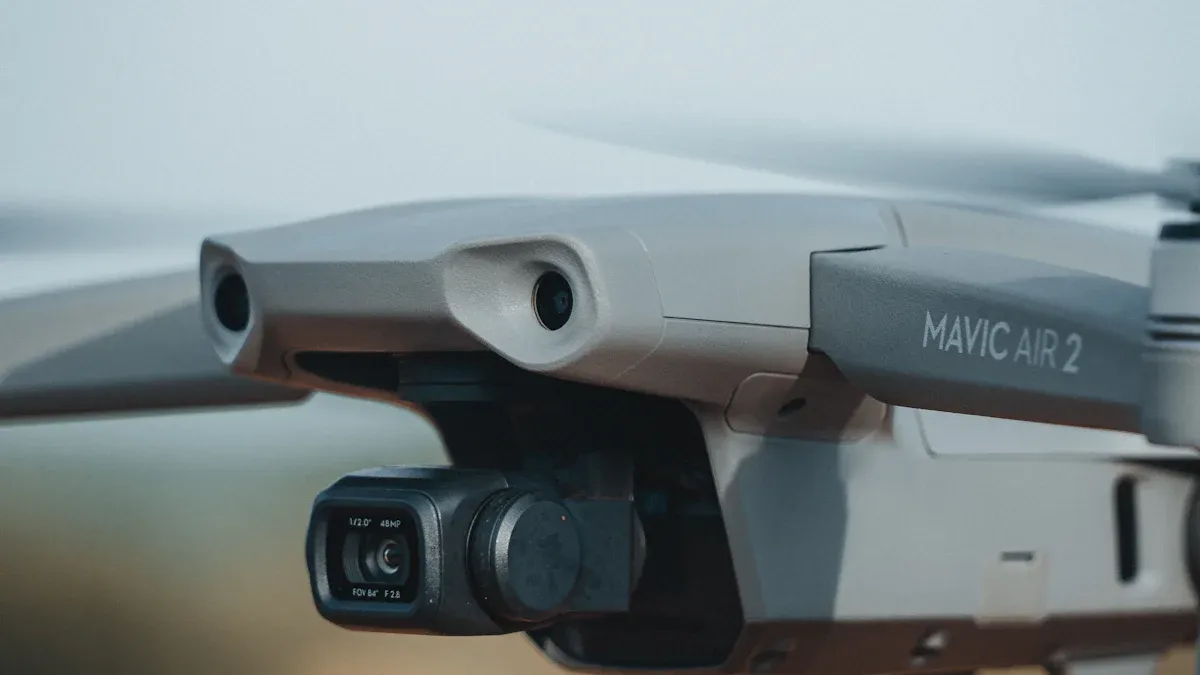

You’ll find the MPU-6050 widely used in robotics, drones, and wearable devices. In drones, it stabilizes flight and aids navigation. For robots, it tracks tilt and position with precision. Its versatility also supports gesture recognition in wearables, enhancing user interaction.

Key Takeaways

• The MPU-6050 has a 3-axis accelerometer and 3-axis gyroscope. It is great for tracking movement and finding direction.

• Use the Digital Motion Processor (DMP) to make your microcontroller work less. It also allows cool features like combining sensor data.

• Connect the MPU-6050 to a microcontroller using the I2C protocol. This makes communication fast and easy for your projects.

• Try using it in robots, drones, and wearables. It can help with things like gesture control and keeping drones steady.

• Calibrate the MPU-6050 often for accurate results. This is important if the temperature changes a lot.

Understanding the MPU-6050

Features of the MPU-6050

The MPU-6050 stands out as a versatile sensor due to its advanced features. It combines a 3-axis accelerometer and a 3-axis gyroscope into a single compact unit, making it ideal for motion tracking and orientation detection. This sensor operates on a power supply of 3-5V and communicates using the I2C protocol, ensuring seamless integration with microcontrollers. Its built-in 16-bit ADC provides high accuracy, while the Digital Motion Processor (DMP) enables complex motion processing without burdening your microcontroller.

Here’s a quick overview of its key features:

These features make the MPU-6050 a reliable choice for energy-efficient devices and applications requiring precise motion tracking.

How the MPU6050 accelerometer and gyroscope work together

The MPU6050 integrates a 3-axis accelerometer and a 3-axis gyroscope to provide comprehensive motion tracking data. The accelerometer measures linear acceleration, including static acceleration caused by gravity and dynamic acceleration from movement. Meanwhile, the gyroscope captures angular velocity, which helps you determine rotational motion.

When these two components work together, they enable accurate estimation of motion direction and orientation. For example, the accelerometer detects tilt, while the gyroscope measures rotation. By fusing these measurements, the MPU6050 delivers precise data for applications like attitude control and stabilization.

Applications of the MPU-6050 in motion tracking

The MPU-6050 plays a crucial role in various motion tracking applications. Its ability to measure acceleration and angular velocity makes it indispensable in fields like healthcare, sports, and robotics. Here are some examples:

1. Gait Analysis: Tracks human movement to assess walking patterns.

2. Posture Monitoring: Detects improper body orientation in real time.

3. Rehabilitation: Evaluates patient progress during physical therapy.

4. Fall Detection: Monitors elderly movements to prevent accidents.

5. Sports Biomechanics: Analyzes athlete techniques to optimize performance.

6. Virtual Reality: Enhances user interaction in immersive environments.

7. Prosthetic Design: Provides motion data for responsive prosthetics.

These applications highlight the versatility of the MPU6050 accelerometer and gyroscope in motion tracking and orientation detection.

How to Connect the MPU-6050 to a Microcontroller

Required components for setup

To connect the MPU-6050 to a microcontroller, you need specific components. These components ensure proper communication and power delivery between the sensor and the microcontroller. Here’s a table summarizing the necessary items:

These components allow the MPU-6050 to communicate with your microcontroller efficiently. The I2C protocol simplifies the connection by using only two data lines, SDA and SCL.

Wiring the MPU-6050 to an Arduino using I2C

Connecting the MPU-6050 to an Arduino board is straightforward. Follow these steps to set up the wiring:

1. Connect the VCC pin of the MPU-6050 to the Arduino’s 5V output.

2. Connect the GND pin of the MPU-6050 to the Arduino’s ground.

3. Attach the SDA pin to the appropriate Arduino pin (A4 for Uno/Nano, 2 for Leonardo/Micro).

4. Attach the SCL pin to the corresponding Arduino pin (A5 for Uno/Nano, 3 for Leonardo/Micro).

The MPU-6050 communicates with the Arduino using the I2C protocol. This protocol requires only two data lines: SDA (Serial Data Line) and SCL (Serial Clock Line). Ensure you connect these lines to the correct pins on your Arduino board to avoid communication errors.

Installing libraries for the MPU-6050

To interface with the MPU-6050, you need to install specific libraries in the Arduino IDE. These libraries simplify the process of reading data from the accelerometer and gyroscope. Follow these steps to install the required libraries:

1. Open the Arduino IDE.

2. Navigate to Sketch → Include Library → Manage Libraries.

3. In the Library Manager, search for 'Adafruit MPU6050'.

4. Click Install to add the library to your IDE.

5. Search for the 'Adafruit Sensor' library and install it as well. This library is a required dependency.

Alternatively, if you have a .zip file of the library, you can add it manually. Go to Sketch → Include Library → Add .ZIP Library, locate the file, and open it. Once installed, you can start writing Arduino code to read data from the MPU-6050.

Tip: Always ensure your libraries are up-to-date to avoid compatibility issues when running your Arduino code.

Reading Data from the MPU-6050

Initializing the MPU-6050 for data reading

To start reading data from the MPU-6050, you need to configure it properly. Follow these steps to initialize the sensor:

1. Wire the MPU-6050 to your microcontroller using the I2C protocol. Connect the SDA and SCL pins to the appropriate pins on your board.

2. Install the Adafruit MPU6050 library in the Arduino IDE. This library simplifies communication with the sensor.

3. Write and upload a basic test sketch to initialize the sensor. This step ensures the MPU-6050 is ready to read data and calibrate itself.

Once you complete these steps, the MPU-6050 will be ready to provide raw accelerometer and gyroscope data.

Tip: Double-check your wiring and library installation to avoid errors during initialization.

Reading raw accelerometer and gyroscope data

The MPU-6050 provides raw data from its accelerometer and gyroscope. To access this data, you need to set up I2C communication. Connect the SDA, SCL, VCC, and GND pins to your microcontroller. Afterward, you can use the following methods to read the data:

• Calibrate the sensor to account for misalignment with the ground. This step involves taking multiple measurements to calculate offsets.

• Use the I2C interface to initialize the sensor. Set the bus frequency to 400 kHz for optimal performance.

• Access the raw accelerometer and gyroscope data by applying sensitivity scale factors.

Here’s an example of Python code for reading data:

def read_accelerometer():
    accel = mpu.accel
    return accel.x, accel.y, accel.z

def read_gyroscope():
    gyro = mpu.gyro
    return gyro.x, gyro.y, gyro.z

These methods allow you to retrieve raw data, which you can process further for meaningful results.

Processing data for meaningful results

Raw data from the MPU-6050 often contains noise. Processing this data helps you extract accurate and useful information. Start by averaging accelerometer values to reduce noise. You can also use sensor fusion algorithms to combine data from the accelerometer and gyroscope. This approach improves accuracy and stability.

For advanced applications, consider using a Kalman filter. This algorithm is ideal for guidance and navigation tasks. Additionally, the MPU-6050’s Digital Motion Processor (DMP) can handle complex motion processing, reducing the computational load on your microcontroller.

By processing the fused accelerometer and gyroscope data, you can achieve precise motion tracking and orientation detection. This makes the MPU-6050 a powerful tool for applications like attitude control and stabilization.

Using the MPU-6050 for Attitude Detection

Sensor fusion techniques for attitude estimation

To achieve accurate attitude estimation, you can use sensor fusion techniques that combine data from the MPU-6050’s accelerometer and gyroscope. These techniques enhance precision by compensating for the limitations of individual sensors. Here are three effective methods:

• Kalman Filter: This algorithm predicts motion, corrects errors, and estimates angles with high accuracy. It is ideal for applications requiring precision, such as robotics.

• Complementary Filter: By blending accelerometer and gyroscope data, this filter provides real-time angle measurements. It balances stability and responsiveness, making it suitable for dynamic environments.

• Digital Motion Processing (DMP): The MPU-6050’s built-in DMP processes motion data internally. It reduces the computational load on your microcontroller while delivering stable results.

These techniques ensure reliable attitude detection, even in challenging conditions.

Calculating roll, pitch, and yaw

The MPU-6050 enables you to calculate roll, pitch, and yaw angles, which describe the sensor orientation in 3D space. Follow these steps to compute these angles:

1. Integrate gyroscope data over time to determine roll and pitch angles.

2. Use accelerometer data to calculate angles using specific formulas for yaw, pitch, and roll.

3. Apply a complementary filter to combine these angles, reducing drift effects from the gyroscope.

For example, you can initialize the MPU-6050 and read gyroscope data to calculate roll, pitch, and yaw. By integrating gyroscope values over time, you can compute these angles accurately. The complementary filter further refines the results, ensuring stability and precision.

Benefits of the MPU6050 accelerometer and gyroscope for orientation tracking

The MPU-6050 offers several advantages for orientation tracking. Its combination of a 3-axis accelerometer and a 3-axis gyroscope in a single module ensures precise motion tracking and orientation estimation. The sensor’s six degrees of freedom (6-axis) motion tracking capability makes it versatile for various applications.

In robotics, the MPU-6050 excels in tasks like robotic arm control and humanoid robot development. It enables precise motion tracking for manufacturing, surgery, and smart interaction with environments. Additionally, its low power consumption makes it ideal for battery-powered devices. The built-in Digital Motion Processor further enhances its performance by handling complex motion processing internally.

By leveraging these features, you can achieve accurate and efficient orientation tracking in your projects.

Advanced Applications of the MPU-6050

Real-time orientation tracking and visualization

The MPU-6050 is a powerful sensor for real-time orientation tracking and visualization. To implement this, you need to focus on several key steps:

• Set up the hardware correctly by wiring the sensor to your microcontroller.

• Install the necessary software libraries to enable data communication.

• Filter the raw data to reduce noise and improve accuracy.

• Calibrate the sensor to ensure precise measurements.

• Use visualization techniques, such as plotting data on a graph or displaying it in a 3D model.

These steps allow you to monitor the sensor's orientation in real time. For example, you can visualize roll, pitch, and yaw angles on a computer screen, making it easier to analyze motion patterns. This capability is especially useful in applications like virtual reality and gaming, where accurate motion tracking enhances user experience.

Tip: Regularly recalibrate the sensor to maintain accuracy, especially in environments with temperature fluctuations.

Motion tracking in robotics and drones

The MPU-6050 plays a critical role in motion tracking for robotics and drones. Its six-axis motion tracking capability combines acceleration and angular rate sensing, making it ideal for dynamic applications. In drones, the sensor ensures flight stability and navigation by continuously tracking orientation. For balance-maintaining robots, it assesses tilt and position to maintain stability. Robotic arms rely on the MPU-6050 for precise motion tracking, enabling tasks like assembly and surgery. Humanoid robots use the sensor to mimic human movements by detecting orientation and motion.

The sensor's low power consumption makes it suitable for battery-powered devices, while its built-in Digital Motion Processor handles complex calculations. This reduces the computational load on your microcontroller, allowing you to focus on other tasks. Whether you're building a drone or a robotic arm, the MPU-6050 provides the accuracy and efficiency needed for advanced motion tracking.

Gesture recognition in wearable devices

The MPU-6050 is widely used in wearable devices for gesture recognition. For instance, the Smart Glove incorporates multiple MPU-6050 sensors to detect hand gestures. These gestures are then translated into text or audio feedback, helping individuals with speech or hearing impairments communicate more effectively.

This sensor's ability to track motion and orientation makes it ideal for wearable technology. By analyzing accelerometer and gyroscope data, you can identify specific gestures, such as swiping or tapping. This opens up possibilities for creating intuitive interfaces in smartwatches, fitness trackers, and other wearable devices. With its compact size and low power consumption, the MPU-6050 fits seamlessly into these applications, enhancing functionality without compromising battery life.

The MPU-6050 stands out as a versatile sensor, combining a 3-axis accelerometer and a 3-axis gyroscope for precise motion tracking and orientation detection. Its features, such as the Digital Motion Processor and low power consumption, make it ideal for applications like drones, robotics, and wearable devices. You can use it to stabilize flight, track tilt, or even recognize gestures in smart devices.

Consider exploring exciting projects like self-balancing robots, gaming controllers, or virtual reality systems. Whether you're building a drone flight controller or a wearable head tracking system, the MPU-6050 offers endless possibilities for innovation. Start experimenting today and unlock its full potential in your projects!

FAQ

What is the purpose of the MPU-6050's Digital Motion Processor (DMP)?

The DMP processes motion data internally, reducing the computational load on your microcontroller. It enables advanced features like sensor fusion and gesture recognition. This makes it ideal for applications requiring real-time motion tracking, such as drones or wearable devices.

How do you calibrate the MPU-6050 for accurate readings?

To calibrate the MPU-6050, collect multiple readings while keeping the sensor stationary. Calculate the average offsets for the accelerometer and gyroscope. Subtract these offsets from raw data during processing. Calibration ensures precise motion tracking and orientation detection.

Can the MPU-6050 be used with Raspberry Pi?

Yes, you can connect the MPU-6050 to a Raspberry Pi using the I2C protocol. Use GPIO pins for SDA and SCL connections. Install libraries like smbus or Adafruit CircuitPython to read data. This setup supports projects like gesture recognition or robotic control.

What is the maximum sampling rate of the MPU-6050?

The MPU-6050 supports a maximum sampling rate of 1 kHz. This means it can capture up to 1000 data points per second. You can adjust the rate based on your application’s requirements using the sensor’s configuration registers.

How does the MPU-6050 handle temperature changes?

The MPU-6050 includes a built-in temperature sensor. It compensates for temperature variations to maintain accurate readings. You can also access temperature data for monitoring or adjusting your application’s performance in different environments.

Tip: Regularly recalibrate the sensor if used in environments with significant temperature fluctuations.
