MP4560DN-LF-Z,MPS,DC-DC Buck Converter Power Management Chip
The MP4560DN-LF-Z stands out as a high-efficiency DC-DC buck converter, ideal for stepping down voltage in power-sensitive applications. You can rely on its advanced design to achieve exceptional power management, whether you're an engineer or a hobbyist. Its efficiency levels exceed 90%, making it a competitive choice among converters. With a wide input voltage range and compact size, this chip adapts seamlessly to diverse electronic systems. As the DC-DC converter market grows, driven by trends like miniaturization and renewable energy, the MP4560DN-LF-Z remains a versatile solution for modern power needs.
Key Takeaways
The MP4560DN-LF-Z is a very efficient DC-DC buck converter. It works at over 90% efficiency, perfect for saving power.
Its small size and wide input range (3.8V to 55V) fit well in many devices like IoT gadgets and electronics.
Setting it up correctly is important. Use low ESR capacitors and connect the pins properly for best results.
Use cooling methods like heat sinks and good airflow to keep it working well and lasting longer.
Check temperatures and use good-quality parts to make it more reliable and perform better in your designs.
Key Features and Specifications of the MP4560DN-LF-Z
Technical Specifications
The MP4560DN-LF-Z offers impressive technical capabilities, making it a reliable choice for various applications. Its wide input voltage range and robust output specifications ensure flexibility in design.
Specification | Value |
|---|---|
Input Voltage Range | 3.8V to 55V |
Output Voltage Range | 0.8V to 52V |
Output Current | Up to 2A |
This converter achieves efficiency levels above 90%, even under varying load conditions. You can rely on its performance for energy-efficient designs.
Unique Features
The MP4560DN-LF-Z includes several features that simplify design and enhance performance:
Integrated High-Side MOSFET: This feature improves efficiency through synchronous rectification. It also reduces the component count, simplifying assembly and design. Enhanced thermal management ensures reliable operation in compact systems.
Adjustable Switching Frequency: You can set the switching frequency up to 2MHz, allowing flexibility to optimize performance for your specific application.
Built-in Protections: The chip includes overcurrent protection and thermal shutdown, safeguarding your design from potential damage.
These features make the MP4560DN-LF-Z a standout choice for digital switch mode power supplies.
Advantages of High Efficiency
High efficiency is a critical factor in modern power systems. The MP4560DN-LF-Z excels in this area, offering several benefits:
Feature | Description |
|---|---|
Efficiency | Typically above 90%, reducing power loss |

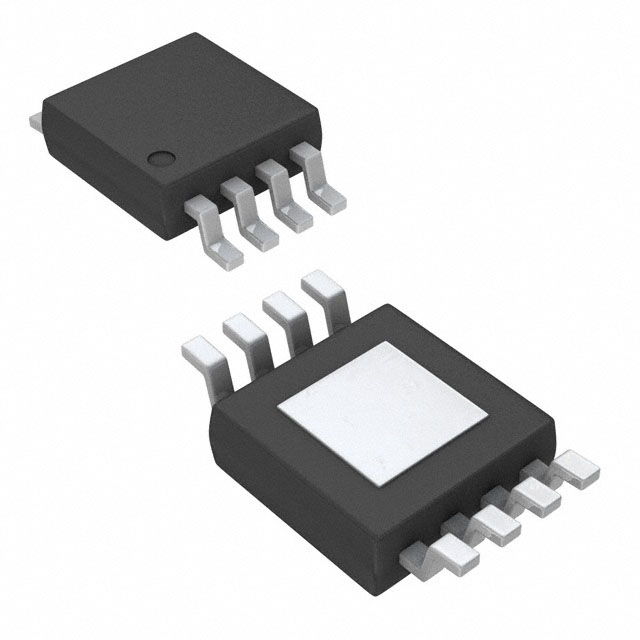

Compact Size | Small 8-pin SOIC package, ideal for tight spaces |
Quiescent Current | Low, enhancing battery life in portable devices |
By minimizing power loss, this converter extends battery life and improves overall performance. Its compact size and high power density make it suitable for space-constrained designs, such as IoT devices and wearable electronics.
The MP4560DN-LF-Z combines high efficiency, robust features, and flexibility, making it a top choice for dc-dc power conversion in digital switch mode power supplies.
How to Set Up the MP4560DN-LF-Z for High Efficiency
Understanding the Pin Configuration
To integrate the MP4560DN-LF-Z into your circuit, you must first understand its pin configuration. Each pin serves a specific purpose, and proper connections ensure optimal performance. Below is a breakdown of the pin functions:
Pin Name | Description |
|---|---|
VIN | Input Voltage |
VOUT | Output Voltage |
GND | Ground |
EN | Enable Pin |
SW | Switching Node |
PGND | Power Ground |
ILIM | Current Limit Setting |
FB | Feedback Pin |
The VIN pin receives the input voltage, while the VOUT pin delivers the regulated output. The GND and PGND pins provide grounding for stable operation. Use the EN pin to enable or disable the chip, and connect the FB pin to set the output voltage. Properly configuring these pins is essential for achieving high efficiency.
Step-by-Step Integration Guide
Selecting Appropriate Input and Output Capacitors
Choose capacitors with low equivalent series resistance (ESR) to minimize ripple and noise. For the input, use a capacitor rated for at least the maximum input voltage. For the output, select a capacitor that matches the desired load current and voltage stability.
Setting the Output Voltage Using External Resistors
Adjust the output voltage by connecting a resistor divider network to the FB pin. Calculate the resistor values using the formula provided in the datasheet. This step ensures precise voltage regulation tailored to your application.
Connecting the Feedback Loop for Stable Operation
Connect the feedback loop carefully to maintain stability. Place the resistors and capacitors close to the chip to reduce noise. A stable feedback loop prevents oscillations and ensures consistent performance.
Common Setup Mistakes to Avoid
Incorrect Capacitor Selection Leading to Instability
Using capacitors with incorrect ratings can cause voltage fluctuations. Always verify the capacitor specifications against the chip's requirements.
Poor PCB Layout Causing Noise and Thermal Issues
A poorly designed PCB layout can introduce noise and overheating. Keep the power traces short and wide, and place thermal vias under the chip to improve heat dissipation.
By following these guidelines, you can set up the MP4560DN-LF-Z for efficient and reliable operation. Proper planning and attention to detail will help you unlock the full potential of this versatile DC-DC buck converter.
Best Practices for Efficient Power Management
Optimizing Thermal Performance
Using heat sinks or thermal vias for heat dissipation
Efficient thermal management is crucial for maintaining the high efficiency of the MP4560DN-LF-Z. You can use heat sinks or thermal vias to dissipate heat effectively. Heat sinks increase the surface area for heat transfer, while thermal vias connect the chip to the PCB's copper layers, spreading heat evenly. These methods prevent overheating and ensure the chip operates within safe temperature limits.
Ensuring adequate airflow in the design
Proper airflow plays a vital role in cooling your design. Position the MP4560DN-LF-Z in a location with unobstructed airflow. If necessary, add a small fan to enhance cooling. This approach helps maintain energy efficiency and prolongs the chip's lifespan.
Managing Load Conditions
Avoiding sudden load changes to maintain stability
Sudden load changes can disrupt the stability of digital switch mode power supplies. Gradually adjust the load to prevent voltage spikes or drops. This practice ensures consistent performance and protects the surrounding circuitry.
Using soft-start functionality for gradual power-up
The MP4560DN-LF-Z features a soft-start function that allows a gradual increase in output voltage during startup. You should enable this feature to avoid inrush currents, which can damage components. This step also improves the overall power density of your design.
Ensuring Long-Term Reliability
Monitoring operating temperatures regularly
Regularly monitor the operating temperature of the MP4560DN-LF-Z to ensure it stays within the recommended range. Use a thermal sensor or an infrared thermometer for accurate readings. Consistent monitoring helps you maintain high efficiency and avoid potential failures.
Using high-quality components for surrounding circuitry
The quality of surrounding components directly impacts the performance of digital switch mode power supplies. Always choose capacitors, resistors, and inductors with reliable specifications. High-quality components enhance energy efficiency and contribute to the long-term reliability of your design.
Tip: Implementing these best practices not only improves efficiency but also ensures the durability and stability of your power management system.
Applications and Use Cases of the MP4560DN-LF-Z
IoT Devices
Powering sensors and communication modules
The MP4560DN-LF-Z plays a vital role in IoT devices by efficiently powering sensors and communication modules. Its high efficiency ensures minimal energy loss, which is critical for devices operating on limited power sources. You can use this converter in portable devices like smartphones, tablets, and audio players. It also supports industrial control systems and communication equipment, such as routers and base stations, making it a versatile choice for IoT applications.
Extending battery life in portable devices
When designing portable IoT devices, extending battery life is a top priority. The MP4560DN-LF-Z excels in this area with its high efficiency power conversion and low quiescent current. These features minimize power consumption, allowing your devices to operate longer on a single charge. Its compact size further enhances its suitability for battery-powered devices, ensuring efficient power management in space-constrained designs.
Consumer Electronics
Voltage regulation in smartphones and tablets
The MP4560DN-LF-Z ensures stable voltage regulation in consumer electronics like smartphones and tablets. Its wide input voltage range and compact design make it ideal for these portable devices. You can rely on its high efficiency to reduce power loss, which is essential for maintaining the performance and longevity of your devices.
Efficient power delivery in wearable devices
Wearable devices demand efficient power delivery to maximize battery life. The MP4560DN-LF-Z achieves this by maintaining efficiency levels above 90% and featuring a low quiescent current. Its compact design allows seamless integration into wearable technology, ensuring reliable and effective power management.
Industrial Applications
Powering control systems and automation equipment
In industrial settings, the MP4560DN-LF-Z provides efficient power conversion for control systems and automation equipment. Its robust design supports the demanding requirements of industrial environments. You can use this converter to ensure stable and reliable operation in critical systems.
Supporting low-power industrial sensors
The MP4560DN-LF-Z is well-suited for low-power industrial sensors. Its high efficiency across a wide load range reduces power consumption and heat generation. The low quiescent current makes it an excellent choice for battery-powered sensors, ensuring long-term reliability and efficient power management.
The MP4560DN-LF-Z combines high efficiency, a compact design, and versatile features, making it a standout choice for modern power management needs. Its wide input voltage range, adjustable output settings, and built-in protections ensure reliable performance across various applications. Whether you are designing portable devices, industrial systems, or IoT solutions, this chip delivers exceptional energy efficiency and stability.
Feature/Application | Description |
|---|---|
High Efficiency | Reduces energy loss and improves system performance. |
Compact Size | Fits seamlessly into space-constrained designs. |
Versatile Applications | Powers portable devices, industrial controls, and communication equipment. |
Comprehensive Protections | Safeguards against overcurrent and thermal issues. |
Explore the MP4560DN-LF-Z for your next project and experience its advanced capabilities. Visit authorized distributors like Deirchip.com for quality assurance, flexible payment options, and reliable after-sales support.
FAQ
What is the MP4560DN-LF-Z used for?
The MP4560DN-LF-Z is a DC-DC buck converter designed for stepping down voltage in power-sensitive applications. You can use it in IoT devices, consumer electronics, and industrial systems to achieve efficient power management and stable voltage regulation.
How do you set the output voltage of the MP4560DN-LF-Z?
You can set the output voltage by connecting a resistor divider network to the feedback (FB) pin. Use the formula provided in the datasheet to calculate the resistor values for precise voltage adjustment.
Tip: Place the resistors close to the chip to reduce noise.
What makes the MP4560DN-LF-Z efficient?
The MP4560DN-LF-Z achieves high efficiency through its integrated high-side MOSFET and adjustable switching frequency. These features minimize power loss and heat generation, making it ideal for battery-powered and compact designs.
Can the MP4560DN-LF-Z handle sudden load changes?
Yes, but you should avoid abrupt load changes to maintain stability. The chip’s soft-start functionality ensures a gradual power-up, preventing voltage spikes and protecting your components.
Where can you buy the MP4560DN-LF-Z?
You can purchase the MP4560DN-LF-Z from authorized distributors like Deirchip.com. They offer quality assurance, flexible payment options, and reliable after-sales support for your projects.
Note: Always verify the distributor's authenticity to ensure you receive genuine components.
