Master High-Speed Processing with PIC24F16KA102-I/SS

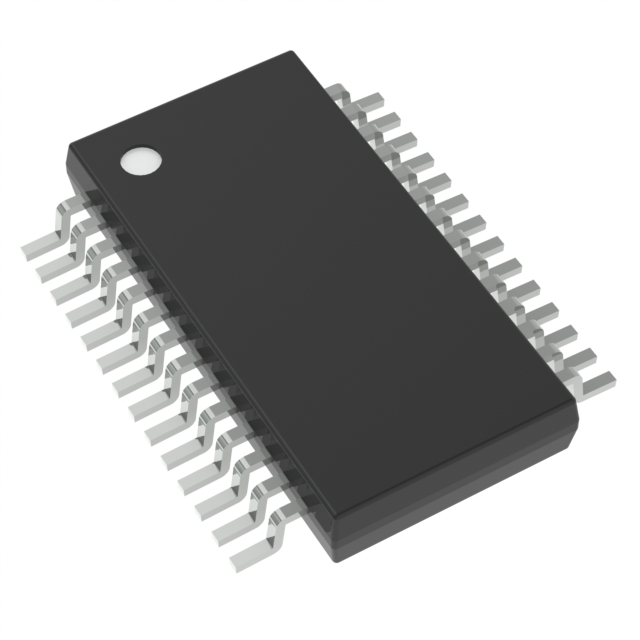

The PIC24F16KA102-I/SS is a state-of-the-art MICROCHIP high-speed processing microcontroller chip designed to meet the needs of modern embedded systems. Featuring a 16-bit architecture and a maximum operating frequency of 32 MHz, it ensures top-tier performance for even the most demanding applications. Equipped with 16 KB of Flash memory, 1.5 KB of RAM, and 512 bytes of EEPROM, this microcontroller provides robust storage capabilities for complex operations. Its low power consumption and real-time processing efficiency make it an excellent choice for energy-conscious and high-performance designs. Perfect for applications such as IoT, sensor interfaces, and battery-operated devices, the PIC24F16KA102-I/SS delivers unparalleled flexibility and dependability. For more details, visit .

Key Takeaways

The PIC24F16KA102-I/SS microcontroller features a powerful 16-bit architecture, delivering up to 16 MIPS for efficient processing of complex tasks.
With integrated peripherals like a 9-channel ADC and support for multiple communication protocols, this microcontroller simplifies real-time processing and enhances system design.
Its low power consumption and advanced power management make it ideal for battery-operated devices, extending battery life without sacrificing performance.
The microcontroller's scalability and flexibility allow it to adapt to various applications, from IoT devices to industrial automation, ensuring versatility in design.
Utilizing Microchip's MPLAB X IDE and XC16 compiler streamlines the development process, providing tools and resources for efficient coding and debugging.
Implementing performance tuning techniques, such as optimizing clock settings and utilizing hardware peripherals, can significantly enhance system efficiency.
Leveraging advanced features like low-power modes and high-speed communication interfaces positions the PIC24F16KA102-I/SS as a future-proof solution for emerging technology trends.

Key Features of the PIC24F16KA102-I/SS for High-Speed Processing

High-Performance Architecture

The PIC24F16KA102-I/SS stands out with its advanced 16-bit architecture, delivering up to 16 MIPS (Million Instructions Per Second) of performance. This capability ensures that you can handle complex tasks with precision and speed. Operating at a maximum frequency of 32 MHz, this MICROCHIP high-speed processing microcontroller chip is designed to meet the demands of real-time applications. Its architecture supports efficient data processing, making it ideal for projects requiring reliable and consistent performance. With 16 KB of addressable program memory and 1.5 KB of data memory, you gain the flexibility to store and execute intricate algorithms without compromising speed.

Integrated Peripherals for Real-Time Processing

The PIC24F16KA102-I/SS includes a range of integrated peripherals that simplify real-time processing. You can utilize its 9-channel 10-bit analog-to-digital converter (ADC) to efficiently convert analog signals into digital data, which is essential for sensor-based applications. The microcontroller also supports multiple communication protocols, including I2C, SPI, and UART, enabling seamless interaction with other devices in your embedded system. Additionally, its 24 general-purpose I/O pins provide the versatility needed to connect various components. These features allow you to streamline your design process and focus on developing innovative solutions.

Low Power Consumption and Efficiency

Energy efficiency is a key strength of the PIC24F16KA102-I/SS. Its advanced power management capabilities ensure minimal power consumption, making it an excellent choice for battery-operated devices. Operating within a voltage range of 1.8V to 3.6V, this microcontroller helps you extend battery life without sacrificing performance. Whether you're working on IoT devices, portable gadgets, or energy-sensitive applications, this chip offers the perfect balance of power and efficiency. By choosing this microcontroller, you can achieve high-speed processing while maintaining low energy usage, ensuring long-term reliability for your projects.

Advantages of the PIC24F16KA102-I/SS in Embedded Systems

Scalability and Flexibility for Diverse Applications

The PIC24F16KA102-I/SS offers unmatched scalability and flexibility, making it a versatile choice for a wide range of embedded applications. Its 24 general-purpose I/O pins allow you to connect multiple components, enabling seamless integration into diverse systems. Whether you are designing IoT devices, sensor interfaces, or portable gadgets, this MICROCHIP high-speed processing microcontroller chip adapts effortlessly to your needs. The 16 KB of addressable program memory and 1.5 KB of data memory provide ample space for storing and executing complex algorithms. You can rely on its robust architecture to handle both simple and intricate tasks with ease.

This microcontroller supports various communication protocols, including I2C, SPI, and UART, which ensures compatibility with a wide array of devices. Its ability to operate within a voltage range of 1.8V to 3.6V further enhances its adaptability, making it suitable for both low-power and high-performance applications. By choosing the PIC24F16KA102-I/SS, you gain the flexibility to scale your projects without compromising efficiency or functionality.

Compatibility with Development Tools and Ecosystems

The PIC24F16KA102-I/SS integrates seamlessly with Microchip's development tools, ensuring a smooth design and programming experience. You can use the MPLAB X IDE and XC16 compiler to write, debug, and optimize your code efficiently. These tools provide a user-friendly interface and extensive libraries, helping you accelerate the development process. With these resources, you can focus on innovation rather than troubleshooting.

Microchip's ecosystem also includes detailed documentation, application notes, and community support. These resources empower you to overcome challenges and implement advanced features in your projects. The compatibility with industry-standard tools ensures that you can integrate the PIC24F16KA102-I/SS into your workflow without any disruptions. This microcontroller simplifies the development process, allowing you to bring your ideas to life faster.

Cost-Effectiveness for High-Performance Tasks

The PIC24F16KA102-I/SS delivers exceptional performance at an affordable price point, making it a cost-effective solution for high-performance tasks. Its 16 MIPS processing capability at 3.3V ensures that you can achieve reliable and efficient operation without exceeding your budget. The integrated peripherals, such as the 9-channel 10-bit ADC and advanced timers, reduce the need for additional components, further lowering your overall costs.

This microcontroller's low power consumption also contributes to its cost-effectiveness. By minimizing energy usage, it helps you reduce operational expenses, especially in battery-operated devices. Its compact SSOP package design saves space and simplifies assembly, which can lead to additional savings in manufacturing. With the PIC24F16KA102-I/SS, you can achieve high-speed processing and real-time performance without compromising your budget.

Setting Up the PIC24F16KA102-I/SS for Optimal Performance

Hardware Configuration for High-Speed Processing

To achieve optimal performance with the PIC24F16KA102-I/SS, you must start with proper hardware configuration. This MICROCHIP high-speed processing microcontroller chip comes in a compact SSOP package, which simplifies integration into space-constrained designs. Begin by carefully studying the pinout diagram to understand the function of each pin. Each pin serves a specific purpose, such as power supply input, ground connection, or signal interface. Ensuring correct connections is critical for reliable operation.

For power supply, connect the microcontroller to a stable voltage source within its operating range of 1.8V to 3.6V. Use decoupling capacitors near the power pins to minimize noise and maintain stable operation. Ground connections should be secure to prevent interference. When interfacing with external components, utilize the 24 general-purpose I/O pins effectively. These pins allow you to connect sensors, actuators, and other peripherals seamlessly.

If your application involves analog signals, take advantage of the 9-channel 10-bit ADC. Properly configure the analog input pins to ensure accurate signal conversion. For communication, use the supported protocols like I2C, SPI, or UART to interface with other devices. By following these steps, you can establish a solid hardware foundation for high-speed processing.

Software Configuration Using MPLAB X IDE and XC16 Compiler

Once the hardware is ready, focus on software configuration. The PIC24F16KA102-I/SS integrates seamlessly with Microchip's MPLAB X Integrated Development Environment (IDE) and XC16 compiler. Start by downloading and installing these tools from Microchip's official website. MPLAB X IDE provides a user-friendly interface for writing, debugging, and managing your code.

Create a new project in MPLAB X IDE and select the PIC24F16KA102-I/SS as your target device. Configure the clock settings to utilize the maximum operating frequency of 32 MHz for high-speed processing. Use the XC16 compiler to write efficient and modular code. Take advantage of the extensive libraries provided by Microchip to simplify complex tasks. For example, use pre-built functions to configure peripherals like timers, ADCs, and communication modules.

Enable low-power modes in your code if your application requires energy efficiency. These modes allow the microcontroller to conserve power without compromising performance. Test your code frequently during development to identify and resolve issues early. With proper software configuration, you can unlock the full potential of this high-speed processing microcontroller chip.

Debugging and Testing for Reliable Operation

Debugging and testing are essential to ensure reliable operation of the PIC24F16KA102-I/SS. Use the debugging tools available in MPLAB X IDE to identify and fix errors in your code. The IDE supports real-time debugging, allowing you to monitor variables, set breakpoints, and step through your code line by line.

Testing your hardware setup is equally important. Verify all connections and ensure that the microcontroller receives a stable power supply. Use an oscilloscope or logic analyzer to check signal integrity on critical pins. For communication protocols like I2C or SPI, test the data transfer between the microcontroller and connected devices.

Run stress tests to evaluate the performance of your system under different conditions. Monitor the microcontroller's behavior during high-speed processing tasks to ensure stability. If you encounter issues, refer to Microchip's documentation and community forums for guidance. By thoroughly debugging and testing, you can achieve a reliable and efficient system.

Programming Techniques for High-Speed Processing

Writing Optimized and Modular Code

Writing optimized and modular code is essential when working with the PIC24F16KA102-I/SS. This approach ensures your programs run efficiently and remain easy to maintain. Start by breaking your code into smaller, reusable modules. Each module should handle a specific task, such as reading sensor data or managing communication protocols. Modular design simplifies debugging and allows you to reuse code across multiple projects.

To optimize performance, focus on reducing unnecessary operations. Use efficient algorithms and avoid redundant calculations. Take advantage of the microcontroller's 16-bit architecture to process data faster. For example, use native 16-bit data types instead of 8-bit or 32-bit types when possible. This reduces processing overhead and improves execution speed.

Memory management is another critical aspect. The PIC24F16KA102-I/SS offers 16 KB of Flash memory and 1.5 KB of RAM, which is sufficient for most applications. However, you should use memory resources wisely. Store constants in Flash memory to free up RAM for dynamic data. Avoid memory fragmentation by allocating and deallocating memory carefully. These practices help you maximize the potential of this MICROCHIP high-speed processing microcontroller chip.

Leveraging Interrupts and Direct Memory Access (DMA)

Interrupts and Direct Memory Access (DMA) are powerful tools for achieving high-speed processing. Interrupts allow the microcontroller to respond immediately to critical events, such as a sensor input or a communication request. Instead of continuously polling for events, you can configure interrupts to trigger specific functions. This approach reduces CPU load and improves system responsiveness.

The PIC24F16KA102-I/SS supports multiple interrupt sources, including timers, ADCs, and communication modules. To use interrupts effectively, prioritize tasks based on their importance. Assign higher priority to time-sensitive tasks and lower priority to less critical ones. This ensures that your system handles urgent events without delays.

DMA further enhances performance by enabling direct data transfers between peripherals and memory. With DMA, the CPU can focus on processing tasks while data moves independently. For example, you can use DMA to transfer ADC results to memory without CPU intervention. This reduces latency and increases overall efficiency. By combining interrupts and DMA, you can unlock the full potential of this high-speed processing microcontroller chip.

Minimizing Latency and Balancing CPU Load

Minimizing latency is crucial for real-time applications. High latency can lead to delays and affect system performance. To reduce latency, optimize your code and eliminate bottlenecks. Use hardware peripherals, such as timers and ADCs, to offload tasks from the CPU. Configure these peripherals to operate autonomously whenever possible.

Balancing CPU load is equally important. Distribute tasks evenly across the available processing time to prevent overloading the CPU. Use techniques like task scheduling to manage multiple processes efficiently. For instance, you can assign specific time slots to each task based on its priority and execution time. This ensures that all tasks receive adequate processing time without conflicts.

The PIC24F16KA102-I/SS operates at a maximum frequency of 32 MHz, providing ample processing power for most applications. However, you should avoid overloading the CPU with unnecessary tasks. Monitor system performance regularly and adjust your code as needed. By minimizing latency and balancing CPU load, you can achieve reliable and high-speed processing with this MICROCHIP high-speed processing microcontroller chip.

Practical Applications of the PIC24F16KA102-I/SS

Signal Processing and Data Acquisition

The PIC24F16KA102-I/SS excels in signal processing and data acquisition tasks. You can use its 9-channel 10-bit analog-to-digital converter (ADC) to capture and convert analog signals into precise digital data. This feature is essential for applications like sensor monitoring, where accuracy is critical. For instance, in environmental monitoring systems, this microcontroller can process temperature, humidity, or pressure data with high precision.

Its ability to handle multiple input channels allows you to monitor several sensors simultaneously. This capability simplifies system design and reduces the need for additional hardware. The high-speed processing power of this MICROCHIP high-speed processing microcontroller chip ensures that you can analyze data in real time without delays. Whether you're working on industrial automation or medical devices, this microcontroller provides the tools you need for efficient data acquisition and processing.

Real-Time Control Systems

The PIC24F16KA102-I/SS is an ideal choice for real-time control systems. Its advanced timers and interrupt capabilities enable you to execute time-sensitive tasks with precision. You can use this microcontroller to control motors, manage robotic movements, or regulate industrial processes. For example, in a robotic arm, it can process sensor inputs and adjust motor positions instantly, ensuring smooth and accurate operation.

The integrated peripherals, such as pulse-width modulation (PWM) modules, allow you to generate precise control signals. These signals are crucial for applications like motor speed control or LED dimming. The low latency and high-speed processing of this microcontroller ensure that your control systems respond quickly to changes in input conditions. By leveraging its features, you can build reliable and efficient real-time systems for various industries.

High-Speed Communication Protocols

The PIC24F16KA102-I/SS supports multiple communication protocols, including I2C, SPI, and UART. These protocols are essential for establishing high-speed communication between devices in embedded systems. You can use this microcontroller to connect sensors, actuators, or other microcontrollers seamlessly. For instance, in IoT applications, it can transmit data from sensors to a central hub or cloud server efficiently.

Its ability to handle high-speed communication ensures that data transfer occurs without bottlenecks. This feature is particularly useful in applications like industrial automation, where timely data exchange is critical. The compact SSOP package of this microcontroller makes it suitable for space-constrained designs, allowing you to integrate it into complex systems easily. By utilizing its communication capabilities, you can create interconnected systems that operate smoothly and reliably.

Troubleshooting and Optimization Tips

Common Issues and Their Solutions

When working with the PIC24F16KA102-I/SS, you may encounter challenges that can affect performance or functionality. Identifying these issues early and addressing them effectively ensures smooth operation. Below are some common problems and their solutions:

Incorrect Pin Configuration: Misconfigured pins often lead to unexpected behavior. Double-check the pinout diagram and ensure each pin is connected to the correct component. Use pull-up or pull-down resistors where necessary to stabilize input signals.
Power Supply Instability: An unstable power supply can cause erratic performance. Use decoupling capacitors near the power pins to filter out noise. Ensure the voltage remains within the recommended range of 1.8V to 3.6V.
Communication Failures: Issues with I2C, SPI, or UART communication can disrupt data transfer. Verify the baud rate, clock settings, and wiring connections. Use logic analyzers to monitor signals and identify errors.
Code Compilation Errors: Syntax errors or incorrect configurations in your code can prevent successful compilation. Review your code for mistakes and use the debugging tools in MPLAB X IDE to pinpoint issues.
Peripheral Misconfiguration: Improper setup of peripherals like ADCs or timers can lead to inaccurate results. Refer to the datasheet and application notes to configure these peripherals correctly.

By addressing these issues systematically, you can resolve most problems and ensure reliable operation.

Performance Tuning Techniques

Optimizing the performance of the PIC24F16KA102-I/SS involves fine-tuning both hardware and software aspects. Follow these techniques to enhance efficiency:

Optimize Clock Settings: Configure the microcontroller to operate at its maximum frequency of 32 MHz for high-speed processing. Use the internal oscillator or an external crystal for precise timing.
Streamline Code Execution: Remove redundant operations and simplify algorithms. Focus on using efficient loops and conditional statements. Avoid unnecessary delays in your code.
Utilize Hardware Peripherals: Offload tasks to hardware peripherals like timers, ADCs, and PWM modules. This reduces CPU load and improves overall system performance.
Enable Low-Power Modes: Activate low-power modes during idle periods to conserve energy. Use sleep or idle instructions to reduce power consumption without affecting functionality.
Prioritize Interrupts: Assign higher priority to critical interrupts and lower priority to non-essential ones. This ensures time-sensitive tasks receive immediate attention.
Minimize Memory Usage: Store constants in Flash memory and manage RAM efficiently. Avoid dynamic memory allocation whenever possible to prevent fragmentation.

Implementing these techniques helps you achieve optimal performance while maintaining system stability.

Monitoring and Profiling System Performance

Regular monitoring and profiling of your system's performance allow you to identify bottlenecks and improve efficiency. Use the following methods to evaluate your setup:

Use Debugging Tools: Leverage the debugging features in MPLAB X IDE to monitor variables, set breakpoints, and analyze code execution. This helps you identify inefficiencies in real time.
Measure Power Consumption: Use a multimeter or power analyzer to measure the microcontroller's power usage. Compare the readings with expected values to ensure energy efficiency.
Analyze Signal Integrity: Use an oscilloscope or logic analyzer to check signal quality on critical pins. Look for noise, voltage drops, or timing mismatches that could affect performance.
Test Under Load: Simulate real-world conditions by running stress tests. Monitor how the system handles high-speed processing tasks and adjust configurations as needed.
Profile Execution Time: Measure the execution time of individual functions or tasks. Identify slow processes and optimize them to reduce latency.

By consistently monitoring and profiling your system, you can maintain high performance and address potential issues before they escalate.

Advanced Features and Future-Proofing

Leveraging Advanced Timers and Communication Interfaces

The PIC24F16KA102-I/SS provides advanced timers and communication interfaces that enhance its functionality for complex applications. You can utilize its multiple timers and counters to achieve precise timing control in your projects. These timers support features like input capture, output compare, and pulse-width modulation (PWM), which are essential for tasks such as motor control, signal generation, and event scheduling.

For example, the microcontroller's advanced timers allow you to generate accurate PWM signals for controlling motor speed or LED brightness. Input capture functionality helps you measure external signal frequencies or pulse widths with high precision. These capabilities make the PIC24F16KA102-I/SS an excellent choice for real-time control systems.

In addition to timers, the microcontroller supports high-speed communication protocols, including I2C, SPI, and UART. These interfaces enable seamless data exchange between devices in embedded systems. You can use I2C for connecting multiple sensors, SPI for high-speed data transfer, and UART for serial communication. By leveraging these advanced features, you can build robust and efficient systems that meet the demands of modern applications.

Implementing Low-Power Modes Without Sacrificing Speed

The PIC24F16KA102-I/SS excels in low-power performance, thanks to its nanoWatt XLP technology. This feature allows you to implement power-saving modes without compromising processing speed. The microcontroller offers multiple power modes, including Run, Doze, Idle, Sleep, and Deep Sleep, giving you the flexibility to optimize energy consumption based on your application's requirements.

For instance, you can use the Doze mode to reduce power usage while maintaining clock speed for critical tasks. Sleep and Deep Sleep modes further minimize energy consumption by shutting down non-essential components. These modes are particularly useful for battery-powered devices, where extending battery life is crucial.

Unique peripherals like Deep Sleep Brown-Out Reset (DSBOR) and Deep Sleep Watchdog Timer (DSWDT) ensure reliable operation even in low-power states. The Real-Time Clock and Calendar (RTCC) module continues to function during Deep Sleep, enabling timekeeping for applications like data logging or alarms. By effectively utilizing these low-power modes, you can create energy-efficient designs that deliver high-speed performance when needed.

Designing for Scalability and Emerging Trends

Scalability is a key advantage of the PIC24F16KA102-I/SS, making it suitable for a wide range of applications. Its flexible memory configurations, including 16 KB of Flash memory and 1.5 KB of RAM, allow you to scale your projects from simple prototypes to complex systems. The 24 general-purpose I/O pins provide ample connectivity options for integrating additional components as your design evolves.

To future-proof your projects, consider emerging trends like the Internet of Things (IoT) and edge computing. The PIC24F16KA102-I/SS supports these trends with its low power consumption, high-speed processing, and robust communication interfaces. You can design IoT devices that collect and transmit data efficiently or develop edge computing solutions that process data locally for faster response times.

The microcontroller's ability to operate reliably in harsh environments further enhances its versatility. Whether you're working on industrial automation, medical devices, or consumer electronics, the PIC24F16KA102-I/SS provides the tools you need to stay ahead of technological advancements. By designing with scalability and emerging trends in mind, you can ensure your projects remain relevant and adaptable to future challenges.

The PIC24F16KA102-I/SS offers a unique combination of high-speed processing, low power consumption, and advanced architecture. Its robust features, such as integrated peripherals and compatibility with development tools, make it a reliable choice for embedded systems. Proper setup, efficient programming, and optimization techniques unlock its full potential, ensuring high-speed performance for your projects. Explore this MICROCHIP high-speed processing microcontroller chip to bring innovative ideas to life. Start implementing cutting-edge solutions today and experience the versatility and efficiency it delivers.
