LM358DR,TI,Low Power Operator Analog Signal Processing ICs
The LM358DR is a dual operational amplifier (op-amp) designed for low-power analog signal processing. You can use it in various circuit applications, including audio processing, signal amplification, and sensor interfaces. Its low-voltage operation and high precision make it ideal for battery-powered systems and embedded designs.
This LM358 op-amp stands out due to its versatility and robust features. It includes high ESD ratings and built-in EMI/RF filters, ensuring reliable performance in rugged environments. Additionally, it offers excellent value for money, making it a popular choice for cost-sensitive projects. Whether you need signal amplification or motor control, the LM358DR adapts seamlessly to your design needs.
Key Takeaways
The LM358DR is a useful dual amplifier for low-power use.
It works well with voltages from 3V to 32V, giving design flexibility.
The LM358DR has low input voltage error and high signal strength, making it great for audio and sensors.
Using feedback resistors and bypass capacitors helps it work better and stay stable.
The LM358DR is common in gadgets and factory machines, showing it is dependable.
Technical Specifications of the LM358DR
Key Electrical Characteristics
Supply Voltage Range and Power Consumption
The LM358DR operates efficiently across a wide supply voltage range of 3V to 32V for single-supply configurations or ±1.5V to ±16V for dual-supply setups. This flexibility makes it suitable for various applications, including battery-powered devices. Its low power consumption ensures minimal energy usage, which is critical for portable systems.
Input Offset Voltage and Gain-Bandwidth Product
The LM358 op-amp features a low input offset voltage, typically around 2 mV, ensuring precise signal processing. Its gain-bandwidth product of 1 MHz allows it to handle a wide range of frequencies effectively. Additional characteristics include:
Input Bias Current: 20 nA
Slew Rate: 0.6 V/μs
These specifications make the LM358 ideal for applications requiring stable and accurate signal amplification.
Package Types and Dimensions

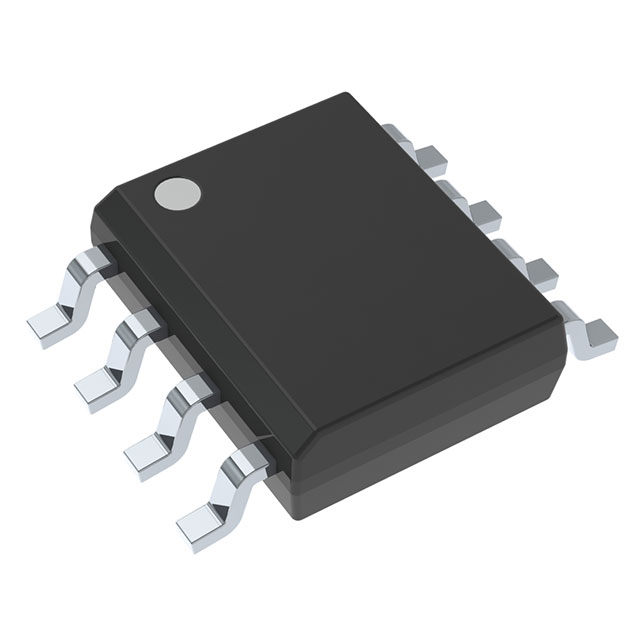

SOIC-8 Package Overview
The LM358DR comes in an SOIC-8 package, which is compact and lightweight. This package type is widely used in modern circuit designs due to its small footprint and ease of integration.
Pin Spacing and Dimensions
The SOIC-8 package dimensions are as follows:
Package | Length | Width | Height |
|---|---|---|---|
SOIC-8 | 4.9 mm | 3.91 mm | 1.58 mm |
Its pin spacing and compact size make it suitable for high-density circuit boards, ensuring efficient use of space.
Environmental and Reliability Ratings
Operating Temperature Range
The LM358DR performs reliably across a broad temperature range of -40°C to 85°C. This makes it suitable for both consumer and industrial applications, where environmental conditions can vary significantly.
ESD Protection Features
The integrated circuit includes robust ESD protection, ensuring durability against electrostatic discharge events. Additionally, it has a moisture sensitivity level (MSL) of 1, meaning it can withstand unlimited exposure to ambient conditions without degradation.
Specification | Value |
|---|---|
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
These features enhance the reliability of the LM358 in demanding environments, making it a dependable choice for your designs.
Pin Configuration of the LM358DR
Pin Layout Overview
Pin Functions and Descriptions
The LM358DR features a straightforward pin configuration, making it easy to integrate into your designs. It includes eight pins, each serving a specific function:
Pin Type | Pin Name | Description |
|---|---|---|
Power Pin | +VS, -VS | Supplies positive and negative voltage. |
Ground Pin | GND1, GND2 | Provides ground connections for the amplifiers. |
Input Pins | IN+, IN- | Accepts the differential input signals. |
Output Pins | OUT1, OUT2 | Delivers the amplified output signals. |
Gain Setting Pins | AGND1-4 | Configures the gain for specific applications. |
This configuration ensures high reliability and stability, even in rugged environments. The LM358DR also includes built-in EMI/RF filters and high ESD ratings, which protect it from external interference and electrostatic discharge.
Signal Input and Output Handling
You can connect the input signals to the IN+ and IN- pins, which represent the non-inverting and inverting inputs, respectively. The output signals are available at OUT1 and OUT2. To achieve optimal performance, ensure that the input signals remain within the recommended voltage range. Proper grounding of GND1 and GND2 is essential to minimize noise and maintain signal integrity.
Power Supply Connections
Single-Supply vs. Dual-Supply Operation
The LM358DR supports both single-supply and dual-supply configurations. For single-supply operation, connect the positive supply voltage to pin 8 (+VS) and the ground to pin 4 (-VS). In dual-supply mode, use pin 8 for the positive voltage and pin 4 for the negative voltage. This flexibility allows you to adapt the LM358DR to various circuit requirements.
To ensure stable operation, place a 0.1µF ceramic capacitor close to the power supply pins. This capacitor filters out noise and enhances the overall performance of the chip. When using a single supply, bias the input signal at half the supply voltage to maximize the output swing.
Voltage Range Recommendations
The LM358DR operates efficiently within a wide voltage range. For single-supply configurations, it works from 3V to 32V. In dual-supply setups, it supports ±1.5V to ±16V. Staying within these ranges ensures optimal performance and prevents damage to the chip.
By following these guidelines, you can harness the full potential of the LM358DR in your circuit designs.
How to Use the LM358DR in Circuit Design
Configuring the LM358 op-amp
Feedback Resistors and Gain Adjustment
To configure the LM358 op-amp for your circuit, you need to select appropriate feedback resistors. These resistors determine the gain of the amplifier. For instance, in an inverting amplifier configuration, the gain equals the ratio of the feedback resistor to the input resistor. Adjusting these values allows you to fine-tune the amplification level to suit your application.
Using Bypass Capacitors
Bypass capacitors play a crucial role in stabilizing the power supply. Place a 0.1µF ceramic capacitor near the power supply pins of the LM358DR. This reduces noise and ensures smooth operation. Proper decoupling enhances the performance of your circuit, especially in environments with high electrical interference.
Practical Circuit Design Tips
Avoiding Output Saturation
To prevent output saturation, ensure the input signal stays within the op-amp's linear operating range. Saturation occurs when the output voltage reaches the supply limits, leading to signal distortion. You can avoid this by carefully selecting input and feedback components.
Managing Gain-Bandwidth Trade-offs
The LM358 op-amp has a gain-bandwidth product of 1 MHz. This means that as the gain increases, the bandwidth decreases. When designing your circuit, balance these parameters to achieve the desired performance. For high-frequency applications, consider reducing the gain to maintain stability.
Common Configurations
Inverting and Non-Inverting Amplifiers
The LM358DR can be configured as an inverting or non-inverting amplifier. In the inverting setup, the input signal connects to the inverting input through a resistor, while the non-inverting input is grounded. This configuration provides a phase-inverted output. In the non-inverting setup, the input signal connects to the non-inverting input, offering a phase-aligned output. Both configurations are widely used for signal amplification.
Voltage Follower (Buffer)
The LM358DR also functions as a voltage follower. In this configuration, the output directly connects to the inverting input, and the input signal connects to the non-inverting input. This setup provides unity gain, ensuring the output voltage matches the input voltage. Voltage followers are ideal for isolating different circuit stages and maintaining signal integrity.
Applications of the LM358DR
Common Use Cases
Signal Amplifiers and Active Filters
The LM358DR excels in signal amplification, making it a reliable choice for boosting weak signals in audio equipment and sensor data processing. You can also use it to design active filters that eliminate unwanted noise. These filters are essential for applications like audio processing and communication systems.
Amplifies weak signals for better clarity in electronic devices.
Helps create active filters to remove noise and improve signal quality.
This versatility ensures the LM358DR meets the needs of various signal processing applications.
Comparator Circuits and Voltage Followers
The LM358DR offers flexibility for comparator circuits and voltage followers. Its dual high-gain operational amplifiers allow you to configure it for diverse applications.
As a comparator, it evaluates input levels and generates clear binary outputs, which are crucial for decision-making circuits.
As a voltage follower, it ensures the output signal matches the input voltage, preserving signal fidelity and preventing distortion.
These features make the LM358DR a dependable choice for circuits requiring stable and accurate signal handling.
Industry Applications
Consumer Electronics and Medical Devices
The LM358DR plays a significant role in consumer electronics and medical devices. It supports efficient power management and signal processing in devices like multi-functional printers and mobile chargers. In medical devices, it amplifies signals from electrodes in ECG, EEG, and EMG systems.
Application Area | Description |
|---|---|
Consumer Electronics | Used in multi-functional printers and mobile chargers for efficient power management and signal processing. |
Medical Devices | Utilized in biopotential amplifiers for ECG, EEG, and EMG devices to amplify signals from electrodes. |
Its ability to handle low-power analog signal processing makes it indispensable in these fields.
Industrial Automation and Control Systems
The LM358DR is widely used in industrial automation and control systems. It processes sensor data effectively, ensuring accurate signal amplification. You can also use it in motor control systems to manage speed and direction.
Interfaces with sensors for data processing in process control systems.
Supports motor driver circuits for precise motor control.
This adaptability makes the LM358DR a valuable component in industrial applications requiring robust performance.
Troubleshooting the LM358DR
Common Issues
Oscillation and Instability
Oscillation and instability can occur when the LM358 op-amp is improperly configured or lacks adequate decoupling. These issues often arise due to insufficient bypass capacitors near the power supply pins or incorrect feedback resistor values. Noise from the power supply or external interference can also contribute to instability. Ensuring proper grounding and shielding can help mitigate these problems.
Incorrect Output Levels
Incorrect output levels are another common issue when using the LM358 in your circuit. This can happen if the input signal is not properly biased or if the power supply voltage falls outside the recommended range. For single-supply operation, centering the input signal around half the supply voltage is crucial. Additionally, improper pin connections or excessive output loading can lead to unexpected results.
Issue | Explanation |
|---|---|
Output Not as Expected | Ensure that the power supply is within the specified range and that the input signal is properly biased. |
Low Output Swing | This can occur if the op-amp is not properly biased in single-supply operations. Make sure the input signal is centered around VCC/2. |
Noise in the Output | Check for proper decoupling and that the bypass capacitors are in place. Also, ensure that the feedback resistors are of appropriate values. |
Solutions and Best Practices
Checking Power Supply and Grounding
To resolve output issues, verify that the power supply voltage is stable and within the specified range for the LM358. Use a 0.1µF ceramic capacitor near the power supply pins to filter noise. Proper grounding is essential to minimize interference. Ensure all ground connections are secure and free from loops that could introduce noise.
Verifying Component Values
Accurate component values are critical for the LM358 to function correctly in your circuit. Start by checking the supply voltages to ensure they meet the recommended specifications. Inspect all pin connections to confirm they align with the pin configuration. Use an oscilloscope to examine the input and output signals for integrity.
Step | Description |
|---|---|
Check Supply Voltages | Verify that the supply voltages are within the specified range and are stable. |
Inspect Pin Connections | Ensure that all pins are correctly connected according to the pin configuration. |
Signal Integrity | Use an oscilloscope to check the integrity of the input and output signals. |
By following these best practices, you can address common issues and optimize the performance of the LM358 op-amp in your designs.
The LM358DR offers unmatched versatility for circuit design, making it a go-to choice for engineers and hobbyists alike. Its wide operating voltage range, low power consumption, and dual operational amplifiers enable you to create efficient and compact designs. Whether you are working on signal amplification, active filters, or motor control, this LM358 op-amp adapts seamlessly to your needs.
You can rely on its high ESD ratings and built-in EMI/RF filters for rugged performance in demanding environments. From battery-powered devices to industrial automation systems, the LM358DR proves its value across diverse applications. Start exploring its potential today and elevate your circuit designs to the next level.
FAQ
1. What makes the LM358DR suitable for low-power applications?
The LM358DR consumes minimal power, making it ideal for battery-powered devices. Its wide supply voltage range and low quiescent current ensure efficient operation in portable systems. You can rely on it for energy-efficient designs.
2. Can the LM358DR handle single-supply and dual-supply configurations?
Yes, the LM358DR supports both configurations. For single-supply, connect the positive voltage to +VS and ground to -VS. For dual-supply, use +VS for positive voltage and -VS for negative voltage. This flexibility adapts to various circuit requirements.
3. How does the LM358DR improve signal processing in audio systems?
The LM358DR amplifies weak audio signals with precision. Its low input offset voltage and high common-mode rejection ratio ensure clear, distortion-free sound. You can use it to design active filters or preamplifiers for audio equipment.
4. What precautions should you take when using the LM358DR?
Place a 0.1µF ceramic capacitor near the power supply pins to reduce noise. Ensure proper grounding to avoid instability. Verify that input signals stay within the recommended voltage range for optimal performance.
5. Where can you use the LM358DR in industrial applications?
The LM358DR processes sensor data in automation systems and controls motor drivers. Its reliability and precision make it suitable for industrial environments requiring accurate signal amplification and robust performance.
