LM2931AD-5.0R2G,ON,Low Differential Voltage Regulators

The LM2931AD-5.0R2G is a low dropout voltage regulator designed to deliver a stable 5V output. It ensures efficient voltage regulation by maintaining a minimal difference between input and output voltages. This feature makes it ideal for applications where power efficiency is critical. You can rely on its robust design for consistent performance in systems requiring low power consumption and high reliability. Its ability to operate under varying conditions ensures dependable functionality, making it a trusted choice for sensitive electronic devices.

Key Takeaways

The LM2931AD-5.0R2G provides a stable 5V output with an exceptionally low dropout voltage of just 15mV, making it ideal for energy-efficient applications.
With a low quiescent current of only 0.4mA, this regulator extends battery life in portable and battery-powered devices, ensuring longer operational times.
Robust protection mechanisms, including overcurrent and thermal shutdown protection, enhance the reliability of the LM2931AD-5.0R2G in demanding environments.
Its compact 8-pin SOIC package allows for easy integration into space-constrained designs, making it suitable for various applications across industries.
The LM2931AD-5.0R2G is versatile, supporting automotive, industrial, and consumer electronics applications, ensuring stable voltage regulation under varying conditions.
Reverse polarity protection safeguards your circuits from damage due to incorrect power connections, enhancing the durability of your designs.
Proper capacitor selection and placement are crucial for optimal performance, ensuring stability and reducing noise in your circuits.

Key Features of the LM2931AD-5.0R2G

Electrical Specifications

The LM2931AD-5.0R2G delivers a fixed 5V output, ensuring stable voltage regulation for your devices. It operates efficiently within an input voltage range of 14V to 40V, making it versatile for various power supply configurations. This regulator stands out with its low quiescent current of just 0.4mA at a 10mA output, which minimizes energy consumption and extends battery life in portable applications. Its standout feature is the exceptionally low dropout voltage of 15mV. This ensures minimal power loss, even when the input voltage is only slightly higher than the output voltage.

Protection Mechanisms

You can rely on the LM2931AD-5.0R2G for robust protection mechanisms that safeguard your devices. It includes overcurrent protection, which prevents damage caused by excessive current flow. Thermal shutdown protection ensures the regulator remains safe under high-temperature conditions by automatically shutting down when overheating occurs. Additionally, reverse polarity protection enhances durability by shielding your circuits from damage due to incorrect battery connections or power supply faults. These features make it highly reliable, especially in demanding environments like automotive systems.

Package and Design

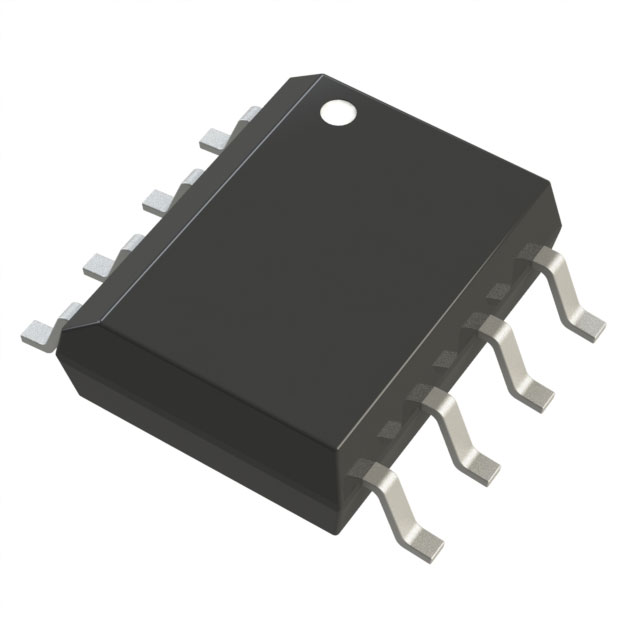

The compact 8-pin SOIC package of the LM2931AD-5.0R2G makes it ideal for space-constrained applications. Its small size allows you to integrate it seamlessly into compact electronic designs without compromising performance. The pin configuration is straightforward, simplifying the integration process and reducing design complexity. This design ensures that you can easily incorporate the regulator into your circuits, whether for industrial, automotive, or consumer electronics applications.

Applications of the LM2931AD-5.0R2G

Automotive Applications

The LM2931AD-5.0R2G plays a vital role in modern automotive systems. You can use it to power sensors and control modules, ensuring stable performance in critical vehicle operations. These sensors often require precise voltage regulation to function accurately, and this regulator delivers just that. It also supports infotainment systems and dashboard electronics, providing reliable power for displays, audio systems, and navigation units. Its low dropout voltage ensures efficiency, even in vehicles with fluctuating power supply conditions.

Industrial Applications

In industrial environments, the LM2931AD-5.0R2G excels at maintaining consistent voltage levels. You can rely on it for voltage regulation in control systems, where stability is crucial for smooth operations. It also supports low-power industrial IoT devices, which often operate in challenging conditions. The regulator’s robust design ensures durability and reliability, making it a dependable choice for industrial applications. Its ability to handle varying input voltages adds versatility to your designs.

Portable and Battery-Powered Devices

The LM2931AD-5.0R2G is an excellent choice for portable and battery-powered devices. You can integrate it into portable medical devices and wearables, where energy efficiency and compact design are essential. It ensures these devices operate reliably without draining the battery quickly. Additionally, it powers handheld communication devices, such as radios and mobile gadgets, by providing a stable 5V output. Its low quiescent current helps extend battery life, making it ideal for applications where power conservation matters most.

Other Applications

Integration in renewable energy systems

You can use the LM2931AD-5.0R2G to enhance the efficiency of renewable energy systems. It ensures stable voltage regulation for solar panels and wind turbines, where power output often fluctuates due to environmental conditions. By maintaining a consistent 5V output, it protects sensitive components like microcontrollers and sensors from voltage instability. This regulator also minimizes energy loss with its low dropout voltage, making it an excellent choice for systems that prioritize energy conservation. Its robust design ensures reliable performance, even in harsh outdoor environments, where renewable energy systems typically operate.

Use in low-power consumer electronics

The LM2931AD-5.0R2G is ideal for powering low-power consumer electronics. You can integrate it into devices like smart home gadgets, remote controls, and small appliances. Its compact size allows seamless integration into space-constrained designs without compromising functionality. The low quiescent current extends battery life, ensuring your devices run longer between charges. Its reverse polarity protection adds an extra layer of safety, preventing damage from incorrect power connections. This regulator provides the reliability and efficiency you need for modern consumer electronics.

Comparison with Similar Low Dropout Regulators

Performance Comparison

Advantages of low quiescent current in the LM2931AD-5.0R2G

You benefit from the LM2931AD-5.0R2G's low quiescent current, which sets it apart from many other low dropout regulators. This regulator consumes only 0.4mA at a 10mA output. Such efficiency makes it ideal for battery-powered devices where conserving energy is critical. Competing models often have higher quiescent currents, which can drain batteries faster. By choosing this regulator, you ensure longer operational times for your devices, especially in portable or remote applications. Its energy-saving capability directly translates to reduced power consumption and extended battery life.

Dropout voltage comparison with competing models

The LM2931AD-5.0R2G excels with its exceptionally low dropout voltage of just 15mV. This feature ensures minimal power loss, even when the input voltage is only slightly higher than the output voltage. Many competing regulators have dropout voltages exceeding 100mV, which can lead to inefficiencies in low-voltage systems. With this regulator, you achieve better performance in applications requiring precise voltage regulation under tight input-output voltage margins. Its low dropout voltage makes it a superior choice for systems where every millivolt matters.

Unique Features

Reverse polarity protection as a differentiator

The LM2931AD-5.0R2G includes reverse polarity protection, a feature that distinguishes it from many alternatives. This protection shields your circuits from damage caused by incorrect power connections. Competing regulators often lack this safeguard, leaving your devices vulnerable to costly failures. With this regulator, you gain peace of mind knowing that your system remains protected against accidental wiring errors. This feature enhances the durability and reliability of your designs, especially in environments where reverse polarity risks are common.

Enhanced thermal performance compared to alternatives

You can rely on the LM2931AD-5.0R2G for superior thermal performance. Its design ensures efficient heat dissipation, allowing it to operate reliably under varying load conditions. Many competing models struggle with thermal management, leading to overheating and potential failures. This regulator’s built-in thermal shutdown protection further enhances its reliability by preventing damage during high-temperature scenarios. By choosing this regulator, you ensure stable performance and longevity for your devices, even in demanding applications.

Design Considerations for Circuit Integration

Design integration is a key feature of the LM2931AD-5.0R2G.

Capacitor Requirements

Input and output capacitor selection guidelines

Selecting the right capacitors is crucial for ensuring the LM2931AD-5.0R2G operates efficiently. You should use a low Equivalent Series Resistance (ESR) capacitor for both input and output. For the input, a 0.33µF ceramic capacitor is recommended to stabilize the voltage supply and filter out noise. On the output side, a 22µF capacitor works well to maintain a stable 5V output under varying load conditions. These values ensure the regulator performs optimally across its input voltage range of 14V to 40V.

Importance of capacitor placement for stability

Proper placement of capacitors directly impacts the stability of your circuit. Position the input capacitor as close as possible to the regulator’s input pin. This minimizes voltage fluctuations caused by sudden changes in load or input supply. Similarly, place the output capacitor near the output pin to reduce noise and maintain a steady voltage. Keeping the capacitor leads short helps lower inductance, which further enhances stability. These placement practices ensure reliable performance, especially in sensitive applications like automotive and industrial systems.

Thermal Management

Heat dissipation techniques for optimal performance

Efficient heat dissipation is essential for maintaining the LM2931AD-5.0R2G’s performance. You can achieve this by using a heat sink or thermal vias on the PCB to transfer heat away from the regulator. Increasing the copper area around the regulator’s pins also helps dissipate heat effectively. For applications with high ambient temperatures, consider using forced air cooling or placing the regulator in a well-ventilated area. These techniques prevent overheating and ensure the device operates within its thermal limits.

PCB layout tips to minimize thermal issues

A well-designed PCB layout plays a key role in managing heat. Place the LM2931AD-5.0R2G away from other heat-generating components to avoid thermal interference. Use wide copper traces for the input and output connections to reduce resistance and improve heat dissipation. Adding thermal relief pads around the regulator’s pins can further enhance heat transfer. These layout strategies help maintain the regulator’s reliability, even in demanding environments like automotive or industrial applications.

General Design Tips

Ensuring proper grounding and noise reduction

Proper grounding is critical for minimizing noise and ensuring stable operation. Connect the ground pin of the LM2931AD-5.0R2G directly to a low-impedance ground plane. This reduces the risk of ground loops and improves noise immunity. Use decoupling capacitors near the regulator to filter high-frequency noise. Shielding sensitive components and routing signal traces away from power lines also helps reduce electromagnetic interference (EMI). These practices ensure clean and stable voltage regulation.

Avoiding common design pitfalls with low dropout regulators

To avoid common design mistakes, ensure the input voltage always exceeds the dropout voltage of 15mV. Operating below this threshold can cause instability or output voltage drops. Verify that the selected capacitors meet the regulator’s ESR requirements to prevent oscillations. Avoid placing the regulator in areas with excessive heat or vibration, as these conditions can affect performance. By following these guidelines, you can maximize the efficiency and reliability of the LM2931AD-5.0R2G in your circuit designs.

Advantages of the LM2931AD-5.0R2G

Energy Efficiency

Benefits of low quiescent current in battery-powered systems

You can achieve remarkable energy savings with the LM2931AD-5.0R2G, thanks to its low quiescent current. This regulator consumes minimal power during operation, which directly extends the battery life of your devices. In battery-powered systems, every milliamp counts. The LM2931AD-5.0R2G ensures that your devices operate longer without frequent recharging. This feature is especially valuable for portable medical devices, wearables, and remote sensors. By reducing energy waste, it helps you design systems that are both efficient and environmentally friendly.

Reliability

Robust protection mechanisms for long-term operation

The LM2931AD-5.0R2G offers robust protection mechanisms that enhance the reliability of your designs. Overcurrent protection prevents damage caused by excessive current, ensuring the safety of your circuits. Thermal shutdown protection safeguards the regulator from overheating, which can occur in demanding environments. Reverse polarity protection shields your devices from incorrect power connections, reducing the risk of failure. These features work together to provide long-term stability and durability. You can trust this regulator to perform consistently, even in challenging conditions like automotive or industrial applications.

Versatility

Wide range of applications across industries

The LM2931AD-5.0R2G adapts to a wide variety of applications, making it a versatile choice for engineers. In automotive systems, it powers sensors, control modules, and infotainment devices with precision. In industrial settings, it ensures stable voltage regulation for control systems and IoT devices. For consumer electronics, it supports compact designs while maintaining energy efficiency. Its ability to handle input voltages ranging from 14V to 40V adds flexibility to your designs. Whether you are working on renewable energy systems or portable gadgets, this regulator meets your needs with ease.

The LM2931AD-5.0R2G offers a combination of low dropout voltage, energy efficiency, and robust protection mechanisms. These features make it a reliable choice for your designs. You can use it confidently in automotive systems, industrial equipment, and portable devices, where stable voltage regulation is essential. Its unique advantages, such as reverse polarity protection and low quiescent current, set it apart from other regulators. By choosing this regulator, you ensure efficient performance, extended device lifespan, and versatility across various applications.

FAQ

What is the LM2931AD-5.0R2G?

The LM2931AD-5.0R2G is a low dropout voltage regulator designed to provide a fixed 5V output. It ensures stable voltage regulation with minimal power loss, making it ideal for applications requiring energy efficiency and reliability. This regulator operates within an input voltage range of 14V to 40V and supports a maximum output current of 100mA.

Why should I choose the LM2931AD-5.0R2G over other voltage regulators?

You should consider the LM2931AD-5.0R2G for its unique features, including an exceptionally low dropout voltage of 15mV, reverse polarity protection, and low quiescent current. These attributes make it highly efficient and reliable, especially for battery-powered devices and systems with tight input-output voltage margins. Its compact 8-pin SOIC package also simplifies integration into space-constrained designs.

What are the key applications of the LM2931AD-5.0R2G?

The LM2931AD-5.0R2G is versatile and supports a wide range of applications, such as:

Automotive systems: Powering sensors, control modules, and infotainment systems.
Industrial environments: Voltage regulation for control systems and IoT devices.
Portable devices: Supporting medical wearables, handheld communication gadgets, and low-power consumer electronics.
Renewable energy systems: Stabilizing voltage in solar panels and wind turbines.

How does the LM2931AD-5.0R2G ensure durability and reliability?

This regulator includes robust protection mechanisms like overcurrent protection, thermal shutdown, and reverse polarity protection. These features safeguard your devices from damage caused by excessive current, overheating, or incorrect power connections. Its design ensures long-term stability, even in demanding environments like automotive and industrial applications.

What makes the LM2931AD-5.0R2G energy efficient?

The LM2931AD-5.0R2G consumes minimal power during operation due to its low quiescent current of just 0.4mA at a 10mA output. This feature extends battery life in portable and battery-powered devices, making it an excellent choice for energy-conscious designs.

Can the LM2931AD-5.0R2G handle high temperatures?

Yes, the LM2931AD-5.0R2G is equipped with thermal shutdown protection, which prevents overheating by automatically shutting down the regulator when temperatures exceed safe limits. Additionally, its design supports efficient heat dissipation, ensuring reliable performance under varying load conditions.

What capacitors should I use with the LM2931AD-5.0R2G?

For optimal performance, use a 0.33µF ceramic capacitor on the input side to stabilize the voltage supply and filter noise. On the output side, a 22µF capacitor is recommended to maintain a stable 5V output. Ensure proper placement of these capacitors near the regulator’s pins to enhance stability and reduce noise.

Is the LM2931AD-5.0R2G suitable for compact designs?

Yes, the LM2931AD-5.0R2G comes in a compact 8-pin SOIC package, making it ideal for space-constrained applications. Its small size allows seamless integration into compact electronic designs without compromising performance or reliability.

How does reverse polarity protection benefit my design?

Reverse polarity protection prevents damage caused by incorrect power connections, such as reversed battery terminals. This feature ensures your devices remain safe and operational, reducing the risk of costly failures and enhancing the overall durability of your system.

Where can I purchase the LM2931AD-5.0R2G?

You can order the LM2931AD-5.0R2G in large quantities from authorized distributors or suppliers. The product is packaged for easy insertion into machinery, improving production efficiency for high-volume manufacturing needs.
