LM22676TJ-ADJ/NOPB,TI,High efficiency power conversion regulator chip

The LM22676TJ-ADJ/NOPB stands out as a high-efficiency adjustable buck regulator chip. It delivers precise voltage regulation and ensures a fast response to varying loads. You can rely on its robust overload and overheat protections to maintain stable output in demanding conditions. This chip excels in applications like smart home devices, automotive electronics, and other fields where efficient power management is essential. Its versatility and reliability make it a valuable choice for modern electronic systems.

Key Takeaways

The LM22676TJ-ADJ/NOPB offers over 90% efficiency, minimizing energy loss and ensuring optimal performance under heavy loads.
With an adjustable output voltage range from 1.285V to 37V, this chip is versatile for various applications, from low-voltage microcontrollers to high-voltage industrial equipment.
Robust built-in protections, including overload and thermal shutdown, ensure stable operation and safeguard your devices in demanding environments.
Its compact TO-263-7 package simplifies integration into space-constrained designs, making it ideal for smart home devices and automotive electronics.
Selecting the right external components, such as shielded inductors and low ESR capacitors, is crucial for maximizing the performance of the LM22676TJ-ADJ/NOPB.
Manufactured by Texas Instruments, this regulator chip is backed by a reliable brand known for high-quality components and comprehensive support.
Investing in the LM22676TJ-ADJ/NOPB not only enhances efficiency but also contributes to long-term cost savings and sustainability in your projects.

Key Features of the LM22676TJ-ADJ/NOPB

High Efficiency and Performance

The LM22676TJ-ADJ/NOPB delivers exceptional efficiency, exceeding 90% in many applications. This high efficiency minimizes energy loss, ensuring optimal performance even under heavy loads. The chip integrates a 42V N-channel MOSFET switch, which supports up to 3A of load current. Its 500kHz switching frequency allows for efficient power conversion and reduces the size of external components. You can rely on this regulator to maintain excellent line and load regulation, ensuring consistent output voltage across varying input conditions.

Adjustable Output Voltage

Flexibility is a key advantage of the LM22676TJ-ADJ/NOPB. It offers an adjustable output voltage ranging from 1.285V to 37V. This wide range makes it suitable for diverse applications, from powering low-voltage microcontrollers to driving higher-voltage industrial equipment. The adjustable feature simplifies design customization, enabling you to tailor the output voltage to meet specific requirements. Whether you're working on smart home devices or automotive systems, this chip adapts to your needs with ease.

Built-in Protections

The LM22676TJ-ADJ/NOPB prioritizes safety and reliability with its robust built-in protections. Overload protection safeguards the chip from excessive current, while thermal shutdown prevents damage from overheating. These features ensure stable operation even in demanding environments. Additionally, the chip includes a precision enable input for simplified system power sequencing. With these protections in place, you can trust the regulator to deliver consistent performance and protect your devices from potential risks.

Compact Design and Integration

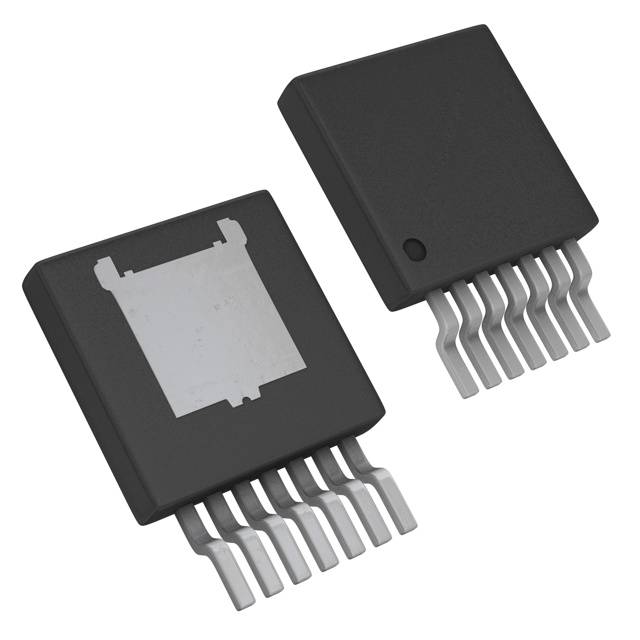

The LM22676TJ-ADJ/NOPB offers a compact design that simplifies integration into your projects. Its TO-263-7 package ensures compatibility with surface-mount applications, making it ideal for modern electronic systems where space is limited. This small footprint allows you to save valuable PCB real estate, enabling more efficient layouts and reducing overall design complexity.

The chip's internal loop compensation eliminates the need for external components to stabilize the control loop. This feature not only reduces the number of parts required but also minimizes design effort. You can focus on optimizing other aspects of your system without worrying about tedious calculations for loop compensation.

Additionally, the 500kHz switching frequency of the LM22676TJ-ADJ/NOPB supports the use of smaller external components, such as inductors and capacitors. Smaller components contribute to a more compact overall design, which is especially beneficial in applications like automotive electronics and portable devices. The regulator's built-in soft-start functionality further reduces the need for additional external circuitry, streamlining your design process.

By integrating multiple features into a single chip, the LM22676TJ-ADJ/NOPB ensures seamless compatibility with various applications. Whether you're designing for smart home devices or industrial equipment, this regulator provides a reliable and space-efficient solution.

Applications of the LM22676TJ-ADJ/NOPB

Smart Home Devices

You can enhance the efficiency of smart home devices with the LM22676TJ-ADJ/NOPB. This chip ensures stable power delivery to components like sensors, controllers, and communication modules. Its adjustable output voltage allows you to meet the specific power requirements of various devices. The compact design fits seamlessly into space-constrained smart home systems. With its high efficiency, the chip minimizes energy loss, which is crucial for devices running continuously in smart homes. Overload and thermal protections safeguard your devices, ensuring long-term reliability.

Automotive Electronics

The LM22676TJ-ADJ/NOPB excels in automotive electronics, where reliability and efficiency are critical. You can use it to power infotainment systems, dashboard displays, and advanced driver-assistance systems (ADAS). Its ability to handle up to 3A of current makes it suitable for high-demand automotive applications. The chip's robust protections ensure stable operation in environments with fluctuating temperatures and electrical noise. Its compact TO-263-7 package simplifies integration into automotive designs, saving valuable space on PCBs. The adjustable output voltage provides flexibility, allowing you to adapt it to different automotive components.

Industrial Equipment

Industrial equipment often requires efficient and reliable power management, and the LM22676TJ-ADJ/NOPB delivers on both fronts. You can rely on it to power control systems, sensors, and actuators in industrial settings. Its high efficiency reduces energy consumption, which is essential for equipment running continuously. The chip's wide output voltage range supports diverse industrial applications, from low-voltage control circuits to higher-voltage machinery. Built-in protections ensure stable performance even in harsh industrial environments. The compact design and reduced need for external components simplify the integration process, helping you optimize your industrial systems.

Recommended Components for Optimal Performance

To achieve the best performance from the LM22676TJ-ADJ/NOPB, selecting the right external components is essential. These components directly influence the regulator's efficiency, stability, and overall functionality. Below, you'll find a detailed guide to the key components you should consider.

Inductors

Inductors play a critical role in the operation of the LM22676TJ-ADJ/NOPB. They store energy during the switching cycle and release it to maintain a steady output current. When choosing an inductor, focus on its inductance value and current rating. The inductance should match the regulator's requirements to ensure smooth current flow and minimize ripple. A higher current rating prevents saturation, which could compromise efficiency.

For most applications, a shielded inductor is recommended. Shielded inductors reduce electromagnetic interference (EMI), which is especially important in sensitive environments like automotive systems or smart home devices. Compact inductors also complement the chip's small footprint, making them ideal for space-constrained designs.

Diodes

The LM22676TJ-ADJ/NOPB requires a Schottky diode for its freewheeling function. Schottky diodes are preferred due to their low forward voltage drop and fast switching speed. These characteristics minimize power loss and enhance the regulator's efficiency. When selecting a diode, ensure its reverse voltage rating exceeds the regulator's maximum input voltage. The current rating should also match or exceed the regulator's output current.

In automotive and industrial applications, where reliability is paramount, choose diodes with robust thermal performance. This ensures stable operation even under high-temperature conditions. Proper diode selection contributes to the chip's ability to handle demanding environments effectively.

Capacitors

Capacitors are essential for filtering and stabilizing the output voltage of the LM22676TJ-ADJ/NOPB. Use low equivalent series resistance (ESR) capacitors to achieve optimal performance. For input capacitors, select ones that can handle the ripple current generated by the switching process. This helps maintain a stable input voltage and protects the regulator from voltage spikes.

Output capacitors should provide sufficient capacitance to minimize voltage ripple and ensure a steady output. Ceramic capacitors are a popular choice due to their low ESR and compact size. In applications like smart home devices, where space is limited, ceramic capacitors align well with the chip's compact design.

For both input and output capacitors, ensure the voltage rating exceeds the operating voltage by a safe margin. This precaution enhances reliability and extends the lifespan of your design.

By carefully selecting these components, you can unlock the full potential of the LM22676TJ-ADJ/NOPB. Whether you're designing for smart home systems, automotive electronics, or industrial equipment, these recommendations will help you achieve efficient and reliable power conversion.

Comparison with Similar Products

Efficiency and Performance Metrics

When comparing the LM22676TJ-ADJ/NOPB to similar products, its efficiency and performance stand out.

Cost and Availability

The LM22676TJ-ADJ/NOPB provides excellent value for its features. Its compact TO-263-7 package reduces the need for additional components, which lowers overall design costs. Compared to alternatives like the LM2678T-ADJ/NOPB, which may require external heat sinks for thermal management, the LM22676TJ-ADJ/NOPB simplifies the design process and minimizes expenses. Additionally, as part of Texas Instruments' SIMPLE SWITCHER® family, this chip is widely available through multiple distributors. Its RoHS compliance ensures it meets environmental standards, making it a cost-effective and eco-friendly option for various industries.

Versatility and Applications

The LM22676TJ-ADJ/NOPB excels in versatility, adapting to a wide range of applications.

Design Tips for Using the LM22676TJ-ADJ/NOPB

PCB Layout Considerations

When designing a printed circuit board (PCB) for the LM22676TJ-ADJ/NOPB, you should prioritize an efficient layout to ensure optimal performance. Start by placing the chip close to the input and output capacitors. This minimizes the trace length, reducing resistance and inductance, which helps maintain stable voltage levels. Shorter traces also reduce electromagnetic interference (EMI), which is critical for sensitive applications like automotive electronics or smart home devices.

To further enhance performance, use wide copper traces for the power paths. Wider traces lower resistance and improve current flow, which reduces heat generation. Ground planes are essential for minimizing noise and ensuring a stable reference point for the regulator. Connect the ground pins of the LM22676TJ-ADJ/NOPB directly to the ground plane using vias to improve thermal dissipation and electrical performance.

Keep the feedback trace away from noisy components like inductors and switching nodes. This prevents interference, ensuring accurate voltage regulation. If possible, shield the feedback trace with a ground plane to further reduce noise. Proper placement of the inductor and diode is also crucial. Position them close to the chip to minimize loop area and improve efficiency.

Testing and Debugging

Testing and debugging are vital steps to ensure the LM22676TJ-ADJ/NOPB operates as intended. Begin by verifying the input and output voltages. Use a multimeter to confirm that the input voltage falls within the recommended range and that the output voltage matches your design specifications. If the output voltage deviates, check the feedback network for incorrect resistor values or poor connections.

Monitor the thermal performance of the chip during operation. Use a thermal camera or an infrared thermometer to identify hotspots. If the chip overheats, inspect the PCB layout for inadequate thermal dissipation. Ensure that the ground plane and vias are effectively dissipating heat. You can also verify the inductor and diode ratings to confirm they meet the current and voltage requirements.

For debugging, use an oscilloscope to analyze the switching waveform at the chip's switching node. A clean waveform indicates proper operation, while irregularities may suggest issues like excessive noise or incorrect component selection. Check the input and output capacitors for low equivalent series resistance (ESR) to ensure they are filtering voltage ripple effectively.

If you encounter instability, review the placement of the feedback trace and the selection of external components. Adjusting the values of the inductor or capacitors may resolve stability issues. Always refer to the datasheet for guidance on recommended component values and configurations.

By following these design tips, you can maximize the performance and reliability of the LM22676TJ-ADJ/NOPB in your application. Whether you're working on smart home devices, automotive systems, or industrial equipment, these practices will help you achieve efficient and stable power conversion.

Why Choose the LM22676TJ-ADJ/NOPB?

Manufacturer Reliability

When you choose the LM22676TJ-ADJ/NOPB, you benefit from the expertise of Texas Instruments, a trusted leader in the semiconductor industry. Texas Instruments has a long-standing reputation for producing high-quality components that meet rigorous standards. Their commitment to innovation ensures that you receive a product designed for reliability and performance. The LM22676TJ-ADJ/NOPB belongs to the SIMPLE SWITCHER® family, known for its ease of use and dependable operation. You can trust this regulator to deliver consistent results across various applications, whether in smart home devices, automotive systems, or industrial equipment.

Texas Instruments also provides comprehensive documentation and support for the LM22676TJ-ADJ/NOPB. You gain access to detailed datasheets, application notes, and design tools that simplify the integration process. This level of support reduces design challenges and helps you achieve optimal performance in your projects. By choosing a product from a reliable manufacturer, you ensure long-term success for your designs.

Long-Term Benefits

The LM22676TJ-ADJ/NOPB offers significant long-term advantages for your projects. Its high efficiency reduces energy consumption, which lowers operational costs over time. This feature is especially valuable in applications like smart home devices and industrial equipment, where energy efficiency directly impacts sustainability. The chip’s robust overload and thermal protections enhance durability, ensuring stable performance even in demanding environments. You can rely on it to maintain functionality under varying conditions, reducing the risk of system failures.

The adjustable output voltage of the LM22676TJ-ADJ/NOPB adds flexibility to your designs. This adaptability allows you to use the same regulator across multiple applications, simplifying inventory management and reducing costs. Its compact design minimizes PCB space requirements, enabling you to create more efficient layouts. Over time, these features contribute to streamlined designs and reduced development efforts.

By investing in the LM22676TJ-ADJ/NOPB, you secure a solution that supports long-term reliability and efficiency. Whether you are designing for automotive electronics, smart home systems, or industrial machinery, this regulator delivers consistent performance and value.

The LM22676TJ-ADJ/NOPB combines high efficiency, precise regulation, and robust protections to deliver exceptional performance. Its adjustable output voltage and compact design make it a versatile solution for various applications. You can rely on this regulator for smart home devices, automotive electronics, and industrial equipment, where efficient power conversion is essential. Manufactured by Texas Instruments, a trusted leader in the semiconductor industry, this chip ensures reliability and long-term value. Consider the LM22676TJ-ADJ/NOPB for your next project to achieve stable and efficient power management.

FAQ

What is the LM22676TJ-ADJ/NOPB used for?

The LM22676TJ-ADJ/NOPB serves as a high-efficiency adjustable buck regulator chip. You can use it in applications like smart home devices, automotive electronics, and industrial equipment. Its ability to deliver precise voltage regulation and handle up to 3A of current makes it suitable for scenarios requiring efficient power management.

How does the LM22676TJ-ADJ/NOPB ensure stable performance?

This chip includes built-in overload and thermal protections. These features prevent damage from excessive current or overheating. You can rely on its robust design to maintain stable output even in demanding environments.

What is the adjustable output voltage range of the LM22676TJ-ADJ/NOPB?

The LM22676TJ-ADJ/NOPB offers an adjustable output voltage range from 1.285V to 37V. This flexibility allows you to customize the voltage to meet the specific needs of your application, whether for low-voltage microcontrollers or higher-voltage industrial systems.

Why is the LM22676TJ-ADJ/NOPB considered efficient?

This chip achieves over 90% efficiency in many applications. Its 500kHz switching frequency minimizes energy loss and supports the use of smaller external components. You can depend on its high power density to improve overall system performance.

What type of package does the LM22676TJ-ADJ/NOPB use?

The LM22676TJ-ADJ/NOPB comes in a TO-263-7 package. This compact design is ideal for surface-mount applications. It saves PCB space and simplifies integration into modern electronic systems.

Can the LM22676TJ-ADJ/NOPB handle harsh environments?

Yes, this chip is designed to perform reliably in challenging conditions. Its built-in protections and robust thermal performance make it suitable for environments with fluctuating temperatures and electrical noise, such as automotive and industrial settings.

What external components are recommended for the LM22676TJ-ADJ/NOPB?

You should use shielded inductors, Schottky diodes, and low ESR capacitors. These components enhance efficiency, reduce electromagnetic interference, and ensure stable voltage regulation. Proper selection of these parts optimizes the chip's performance.

How does the LM22676TJ-ADJ/NOPB compare to similar products?

The LM22676TJ-ADJ/NOPB stands out for its high efficiency, compact design, and wide output voltage range. Unlike some alternatives, it integrates a 42V N-channel MOSFET and operates at a higher switching frequency, reducing the size of external components and improving thermal performance.

Is the LM22676TJ-ADJ/NOPB environmentally friendly?

Yes, the LM22676TJ-ADJ/NOPB is RoHS compliant. This compliance ensures that the chip meets environmental standards by limiting hazardous substances, making it an eco-friendly choice for your designs.

Why should I choose the LM22676TJ-ADJ/NOPB for my project?

The LM22676TJ-ADJ/NOPB combines high efficiency, precise regulation, and robust protections. Its adjustable output voltage and compact design make it versatile for various applications. Manufactured by Texas Instruments, this chip ensures reliability and long-term value, making it a dependable choice for your power management needs.
