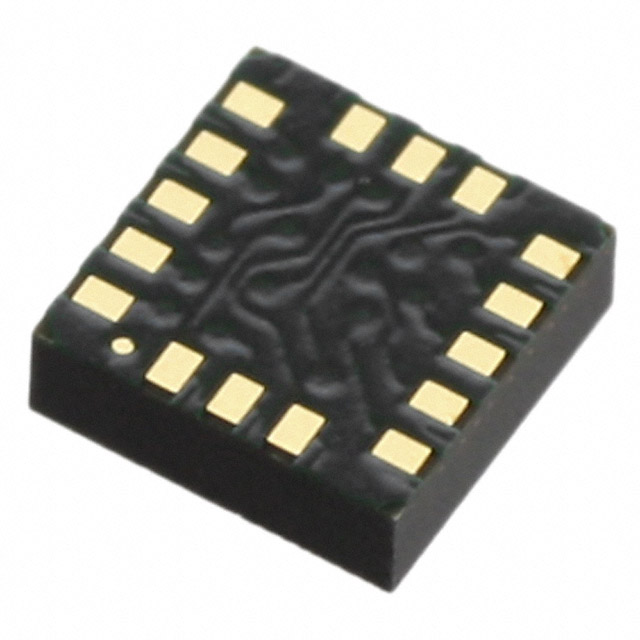

LIS3DHTR,ST, High Precision Triaxial Accelerometer MEMS Digital Sensor Chip

The LIS3DHTR is a high-performance triaxial linear accelerometer designed for precision and efficiency. This three-axis accelerometer excels in movement detection, making it essential for motion detection systems, gaming and virtual reality, and IoT and smart systems. Its advanced MEMS technology integrates features like reduced power consumption and gesture detection, ensuring reliable performance across applications. With selectable sensitivity ranges and programmable interrupts, it adapts to diverse needs. The LIS3DHTR datasheet highlights its robust design, including high-speed motion analysis and tap recognition, making it a preferred sensor for modern devices.

Key Takeaways

• The LIS3DHTR sensor measures movement in three directions accurately. It works well for games and wearable gadgets.

• It uses very little power, so batteries last longer. This makes it great for portable devices and smart technology.

• The sensor can connect using I2C or SPI, making it easy to use with different controllers.

• It is strong and works well even in tough conditions, staying reliable in many places.

• Cool features like custom alerts and a FIFO buffer make it faster and better at detecting motion.

Key Features of the LIS3DHTR Accelerometer

Triaxial Sensing and Measurement Range

The LIS3DHTR accelerometer offers precise triaxial sensing, allowing you to measure acceleration along three axes: X, Y, and Z. This capability makes it ideal for applications requiring accurate motion detection, such as gaming, virtual reality, and wearable devices. The sensor supports multiple measurement ranges, including ±2g, ±4g, ±8g, and ±16g, giving you the flexibility to choose the range that best suits your application. Whether you're designing a fitness tracker or an industrial monitoring system, this triaxial sensor ensures reliable performance.

The LIS3DH triple axis accelerometer also boasts a high-resolution output of 16 bits, enabling detailed motion analysis. Its robust design ensures consistent performance even in challenging environments. With its ability to detect activities like free-fall and tap events, this sensor becomes a versatile choice for modern devices.

Power Efficiency and Low-Power Modes

One of the standout features of the LIS3DHTR is its ultra-low power consumption. This accelerometer is designed to operate efficiently, making it perfect for battery-powered devices. It offers multiple power modes to optimize energy usage based on your needs. For instance, in normal mode at a 50 Hz output data rate (ODR), it consumes just 11 µA. In low-power mode, the consumption drops to 1 µA, while in power-down mode, it uses an impressive 0.5 µA. These metrics ensure that your device can run longer without frequent recharging.

This power efficiency doesn't compromise performance. The LIS3DH triple axis accelerometer maintains high accuracy and responsiveness, even in low-power modes. This makes it a preferred choice for applications like activity detection and wearable devices, where conserving energy is crucial.

Communication Interfaces: I2C and SPI

The LIS3DHTR supports both I2C and SPI communication interfaces, offering you flexibility in integration. These interfaces make the sensor compatible with a wide range of microcontroller platforms. Whether you're working on a simple DIY project or a complex industrial application, you can choose the protocol that aligns best with your requirements.

The dual-interface capability simplifies the integration process and enhances adaptability. For instance, I2C is ideal for applications requiring fewer pins, while SPI provides faster data transfer rates. This versatility ensures that the LIS3DH triple axis accelerometer can seamlessly fit into various designs, from consumer electronics to IoT devices.

Durability and Environmental Tolerance

When selecting a sensor for your project, durability and environmental tolerance are critical factors. The LIS3DHTR excels in both areas, making it a reliable choice for demanding applications. This triple-axis accelerometer is built to withstand harsh conditions, ensuring consistent performance in various environments.

The LIS3DHTR features a robust design that can handle mechanical shocks and vibrations. Whether you’re using it in automotive systems or industrial equipment, this sensor maintains accuracy even under challenging conditions. Its ability to detect events like a tap or free-fall remains unaffected by external disturbances, providing you with dependable results.

Temperature variations often impact sensor performance, but the LIS3DHTR addresses this issue effectively. It operates seamlessly across a wide temperature range, from -40°C to +85°C. This makes it suitable for outdoor applications, such as automotive systems or IoT devices exposed to fluctuating weather conditions. You can trust this accelerometer to deliver precise data, whether in freezing cold or scorching heat.

The LIS3DHTR also offers excellent resistance to moisture and dust, thanks to its advanced MEMS technology. This durability ensures long-term reliability, even in environments prone to contamination. For example, in automotive or industrial settings, where exposure to particles and humidity is common, this sensor continues to perform without compromise.

By choosing the LIS3DHTR, you gain a sensor that combines durability with high precision. Its ability to endure tough conditions makes it ideal for applications in automotive systems, wearable devices, and more. Whether you need a sensor for motion detection or tap recognition, this triple-axis accelerometer delivers consistent results in any environment.

How the LIS3DH Triple Axis Accelerometer Works

MEMS Technology and Acceleration Detection

The LIS3DHTR accelerometer uses advanced MEMS (Micro-Electro-Mechanical Systems) technology to deliver high performance in motion detection. This technology integrates multiple functions onto a compact chip, ensuring efficiency and cost-effectiveness. At its core, the sensor employs capacitive sensing to detect acceleration.

• A micro-proof mass inside the sensor moves in response to external forces.

• This movement alters the capacitance between electrodes, which the sensor's circuitry detects.

• The displacement of the proof mass is directly proportional to the applied force, enabling precise acceleration measurement.

This mechanism allows the LIS3DHTR to provide accurate data for applications like gaming, wearable devices, and IoT systems. Its ability to detect even subtle movements makes it a reliable choice for motion-sensitive tasks.

Embedded Functionalities: FIFO Buffer and Interrupts

The LIS3DHTR accelerometer includes embedded features like a FIFO buffer and programmable interrupts, which enhance its performance and usability. These functionalities reduce the processing load on your system while improving responsiveness.

• The 32-level FIFO buffer stores data temporarily, allowing your processor to access it without constant monitoring. This ensures efficient data handling and reduces power consumption.

• Programmable interrupts enable real-time responses to events such as free-fall detection or tap recognition. This feature is crucial for applications requiring immediate action, like fitness trackers or safety systems.

By leveraging these features, you can design systems that are both energy-efficient and highly responsive, making the LIS3DHTR an excellent choice for modern devices.

Calibration and Noise Reduction Mechanisms

To maintain accuracy, the LIS3DHTR accelerometer incorporates calibration and noise reduction mechanisms. These features ensure that the sensor delivers reliable data, even in challenging environments.

Calibration allows you to fine-tune the sensor for optimal performance. This process adjusts the output to account for any deviations caused by manufacturing tolerances or environmental factors. Noise reduction mechanisms, on the other hand, minimize interference from external vibrations or electrical noise. This ensures that the data you receive is clean and precise.

With these capabilities, the LIS3DHTR excels in applications where accuracy is critical, such as healthcare monitoring or industrial automation. Its ability to adapt to different conditions makes it a versatile and dependable sensor.

Applications of the LIS3DHTR Accelerometer

Consumer Electronics and Wearable Devices

The LIS3DHTR accelerometer plays a vital role in modern consumer electronics and wearable devices. Its ability to detect motion across three axes makes it indispensable for various applications. You can find this sensor in fitness trackers and smartwatches, where it monitors physical activity and tracks steps. It also powers health monitors, providing accurate motion analysis for daily fitness goals.

In consumer electronics, the LIS3DHTR enhances the functionality of smartphones and tablets by enabling features like screen rotation and gesture recognition. Game controllers also rely on this sensor for precise motion detection, creating immersive gaming experiences. Additionally, it supports navigation systems such as GPS modules and dead reckoning systems, ensuring accurate positioning. Whether you're designing a wearable device or a gaming accessory, this accelerometer delivers reliable performance.

Healthcare and Fitness Monitoring

The LIS3DHTR accelerometer excels in healthcare and fitness monitoring applications. Its triaxial sensing capability allows it to detect movement with high precision, making it ideal for step counting in pedometers. You can rely on this sensor for accurate tracking of daily activities, which is essential for health monitoring. Its low-power modes ensure energy efficiency, extending the battery life of portable fitness devices.

This sensor also supports advanced features like fall detection, which is crucial for elderly care. By integrating the LIS3DHTR into medical devices, you can create solutions that enhance patient safety and improve health outcomes. Its ability to provide consistent data makes it a trusted choice for fitness and healthcare applications.

IoT and Industrial Use Cases

The LIS3DHTR accelerometer is a cornerstone of IoT and industrial applications. Its versatility allows it to function in smart home sensors, where it detects motion for security systems. Environmental monitoring systems also benefit from its precise motion detection capabilities. In industrial IoT devices, this sensor enables condition-based maintenance by monitoring machinery health and detecting vibrations.

You can also use the LIS3DHTR in industrial automation, where it supports motion sensing in machinery. Its robust design ensures reliable performance in harsh environments, making it suitable for demanding applications. By leveraging this technology, you can optimize processes and enhance efficiency in industrial settings.

Integration Guide for the LIS3DHTR

Hardware Setup and Pinout

To integrate the LIS3DHTR into your project, you need to understand its hardware setup and pinout. This sensor features a compact design with a straightforward pin configuration, making it easy to connect to your microcontroller or development board. The LIS3DHTR typically includes pins for power supply (VDD and GND), communication interfaces (I2C or SPI), and interrupt signals.

When using the I2C interface, connect the SDA and SCL pins to your microcontroller's corresponding I2C pins. For SPI communication, connect the CS, SDO, SDI, and SCL pins. Ensure proper pull-up resistors for I2C lines if your board does not include them. The interrupt pins (INT1 and INT2) allow you to configure the sensor for event detection, such as fall detection or tap recognition. Properly grounding unused pins ensures stable operation.

Software Libraries and Example Code

Programming the LIS3DHTR is straightforward, thanks to the availability of software libraries for various platforms. Here are some options:

• Raspberry Pi: Use the pi4j library. Compile and run the code with:

  • {{ --qc-placeholder-blog }}gt; pi4j LIS3DHTR.java

• Python: Use the smbus library. Run the program with:

  • {{ --qc-placeholder-blog }}gt; python LIS3DHTR.py

• Arduino: Install the Arduino IDE, upload the code, and execute it.

• Particle Photon: Use the online IDE to flash the code to your device.

• Beaglebone Black: Compile and run the C program with:

  • {{ --qc-placeholder-blog }}gt; gcc LIS3DHTR.c -o LIS3DHTR

  • {{ --qc-placeholder-blog }}gt; ./LIS3DHTR

• Onion Omega: Install the Python module and execute the program:

  • {{ --qc-placeholder-blog }}gt; python LIS3DHTR.py

• Windows 10 IoT Core: Open the project in Visual Studio and run the sample.

These libraries simplify the process of configuring the LIS3DHTR for tasks like motion detection, fall detection, and tap recognition.

Troubleshooting and Debugging Tips

If you encounter issues while working with the LIS3DHTR, follow these steps to troubleshoot effectively:

1. Verify the Device ID register to confirm communication with the sensor.

2. Write to a configuration register and read it back to ensure proper write capability.

3. Check the GPIO mode of your microcontroller; interrupt pins should not be outputs.

4. Confirm the interrupt pin latch setting in CTRL_REG5 for correct signal behavior.

5. Read the interrupt status registers to verify if interrupts are being generated.

6. Set reasonable interrupt criteria to detect events like fall detection accurately.

7. Avoid configuring interrupts to "always on" to prevent constant triggering.

These steps help you identify and resolve common issues, ensuring the LIS3DHTR operates reliably in your application.

Comparison to Other Accelerometers

Key Competitors in the Market

The accelerometer market is filled with high-performing options, each catering to specific needs. Some of the key competitors include the ADXL345 from Analog Devices, the MPU-6050 from InvenSense, and the KX003-1077 from Kionix. These sensors are widely used in applications like motion detection, gaming, and wearable devices. Each offers unique features, such as integrated gyroscopes, advanced filtering algorithms, or ultra-low power modes.

For example, the ADXL345 is known for its high resolution and low power consumption, making it suitable for portable devices. The MPU-6050 combines an accelerometer and gyroscope, providing six degrees of freedom for motion tracking. Meanwhile, the KX003-1077 excels in industrial applications due to its robust design and high shock tolerance. While these sensors perform well in their respective domains, the LIS3DHTR stands out with its unique combination of features and versatility.

Unique Advantages of the LIS3DHTR

The LIS3DHTR accelerometer offers a range of advantages that set it apart from its competitors. Its design focuses on precision, efficiency, and adaptability, making it a preferred choice for various applications. Below is a detailed comparison of its standout features:

These features make the LIS3DHTR a versatile and reliable sensor. Its ultra-low power consumption ensures extended battery life, which is critical for wearable devices and IoT systems. The dynamic full-scale range allows you to customize sensitivity, whether you're designing a fitness tracker or an industrial monitoring system. Additionally, its high shock survivability and built-in temperature sensor make it suitable for demanding environments.

The LIS3DHTR also excels in detecting motion events like a tap or double-tap, thanks to its programmable interrupts. This capability enhances user interaction in devices like smartphones and gaming controllers. Its FIFO data buffer reduces processor load, improving system efficiency. These advantages make the LIS3DHTR a standout choice in the competitive accelerometer market.

The LIS3DHTR accelerometer combines high resolution, low power consumption, and versatile integration, making it a standout sensor in modern technology. Its ability to detect motion, free-fall, and tap events ensures reliable performance across applications like wearable devices, gaming systems, and industrial monitoring. With I2C and SPI interfaces, it adapts seamlessly to various platforms, offering efficient operation modes that conserve energy.

This sensor's dynamic measurement range and robust design make it suitable for diverse environments, from consumer electronics to IoT systems. By choosing the LIS3DHTR, you gain a high-performance solution that balances precision, durability, and adaptability, ensuring your projects achieve optimal results.

FAQ

What is MEMS technology, and how does it benefit the LIS3DHTR accelerometer?

MEMS (Micro-Electro-Mechanical Systems) technology integrates mechanical and electronic components on a small chip. It enhances the LIS3DHTR by reducing size, lowering costs, and improving efficiency. This makes the sensor ideal for compact devices like smartphones and wearables.

How does the LIS3DHTR detect motion accurately?

The LIS3DHTR uses a micro-proof mass that moves when force is applied. This movement changes capacitance, which the sensor converts into acceleration data. Its 16-bit resolution ensures precise motion detection for applications like gaming and fitness tracking.

Can the LIS3DHTR operate in extreme environments?

Yes, the LIS3DHTR works reliably in temperatures ranging from -40°C to +85°C. Its robust design resists shocks, vibrations, and environmental factors like dust and moisture, making it suitable for industrial and outdoor applications.

What are some common applications of the LIS3DHTR accelerometer?

You can use the LIS3DHTR in fitness trackers, smartphones, IoT devices, and industrial systems. It supports motion detection, fall detection, and gesture recognition, making it versatile for consumer electronics, healthcare, and automation.

How do I integrate the LIS3DHTR into my project?

Connect the LIS3DHTR to your microcontroller using I2C or SPI interfaces. Use available software libraries for platforms like Arduino or Raspberry Pi. Follow the datasheet for pinout details and configuration settings to ensure proper functionality.
