LIS2DH12TR,ST,Triaxial Accelerometer Sensor Module
The LIS2DH12TR sensor revolutionizes embedded designs by combining efficiency, accuracy, and versatility. Its low power consumption extends battery life, making it ideal for portable devices. High precision ensures accurate detection of subtle acceleration changes, which is crucial for demanding applications. With flexible configuration options, this sensor adapts seamlessly to various use cases.
You can rely on its robust performance for motion detection in wearables, vibration monitoring in industrial equipment, or power optimization in IoT devices. Its technical features, such as configurable measurement ranges and built-in filters, make it a reliable choice for enhancing your designs.
Key Takeaways
This sensor gives exact measurements, helping detect motion in wearables and robots.
Its small size fits easily into tiny devices like fitness bands and smart gadgets, while still working well.
The sensor works with I2C and SPI protocols, making it easy to connect to microcontrollers for smooth data sharing.
Setting up and adjusting the LIS2DH12TR sensor correctly is important for it to work well in different uses.
Overview of LIS2DH12TR
Key Features
The LIS2DH12TR sensor offers several features that enhance its usability in embedded systems.
Low power consumption: This sensor is designed for energy-efficient applications, making it perfect for battery-powered devices.
High-resolution triaxial acceleration measurement: It delivers precise readings, ensuring excellent accuracy for motion tracking and vibration analysis.

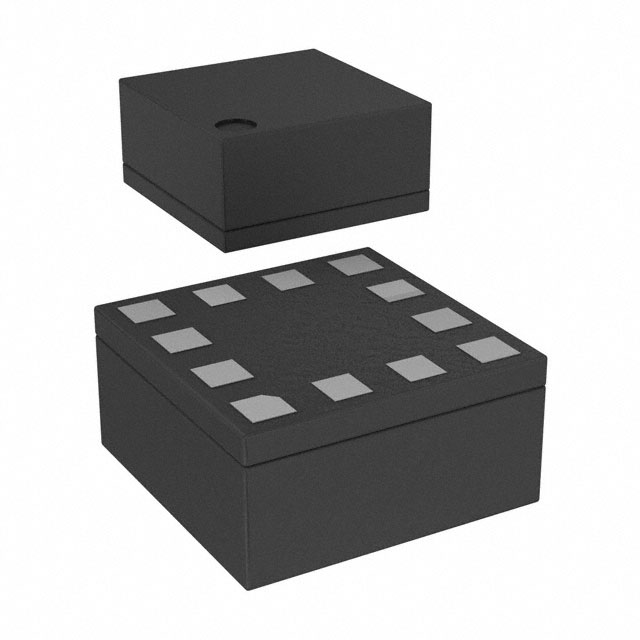

Compact and lightweight design: With dimensions of just 2x2x1 mm, this sensor fits seamlessly into space-constrained designs, such as wearables and IoT devices.
These features make the LIS2DH12TR a versatile choice for applications requiring high accuracy and efficiency.
Specifications
The LIS2DH12TR sensor provides robust technical specifications to meet diverse application needs:
Measurement ranges: You can select from ±2, ±4, ±8, or ±16 g, depending on your project requirements.
Maximum output data rate: The sensor supports up to 6.66 kHz, ensuring real-time responsiveness in dynamic environments.
Wide operating temperature range: It performs reliably in harsh conditions, making it suitable for industrial and automotive systems.
These specifications ensure consistent performance across various industries, from consumer electronics to industrial monitoring.
Why It’s Ideal for Embedded Systems
The LIS2DH12TR sensor integrates seamlessly into embedded systems, offering unmatched flexibility and reliability.
Seamless integration with microcontrollers: Its compact size and high sensitivity allow you to incorporate it into designs without compromising space or performance.
Compatibility with I2C and SPI protocols: This dual compatibility simplifies communication with microcontrollers, enabling smooth data transfer.
You can rely on this sensor for applications in consumer electronics, industrial control, and automotive safety systems. Its low power consumption and high accuracy make it a standout choice for embedded designs.
Practical Applications
The LIS2DH12TR sensor excels in diverse applications, offering high accuracy and energy efficiency. Its versatility makes it a valuable component in motion detection, vibration monitoring, and power optimization tasks.
Motion Detection
Activity tracking in wearable devices
You can use the LIS2DH12TR sensor to enhance activity tracking in wearables. Its high-resolution triaxial acceleration measurement ensures precise motion detection, enabling accurate step counting and fitness monitoring. This sensor also supports gravity sensing, which allows automatic screen rotation in smartwatches and fitness bands.
Movement analysis in robotics
In robotics, the LIS2DH12TR sensor provides precise acceleration data for movement analysis. Its low power consumption and built-in filtering capabilities improve performance in navigation and stabilization tasks. Robots equipped with this sensor can detect motion and orientation with high accuracy, making it ideal for industrial automation and mobile robotics.
Vibration Monitoring
Predictive maintenance in industrial equipment
The LIS2DH12TR sensor plays a crucial role in predictive maintenance. Its high sensitivity detects subtle vibrations, helping you monitor machine health and prevent unexpected failures. Compact design and low power consumption make it suitable for integration into various industrial systems. This sensor ensures reliable performance in vibration analysis and equipment monitoring.
Stability control in automotive systems
Automotive systems benefit from the LIS2DH12TR sensor's precise motion detection capabilities. It enhances stability control by providing accurate data for crash detection and advanced driver assistance systems (ADAS). The sensor's wide dynamic range ensures reliable operation in both low and high-speed scenarios, improving vehicle safety and performance.
Power Optimization
Low-power modes for IoT devices
The LIS2DH12TR sensor supports multiple low-power modes, making it ideal for IoT devices requiring continuous monitoring. These modes reduce energy consumption by limiting features like sampling rate and sensitivity. You can implement this sensor in fitness trackers or asset monitoring devices to achieve long-lasting battery life.
Energy efficiency in battery-powered systems
Battery-powered systems benefit from the LIS2DH12TR sensor's energy-efficient design. It offers various operating modes, including sleep and inactive states, to conserve power when not in use. This flexibility allows you to balance performance and energy consumption, ensuring optimal functionality in embedded systems.
Deep Learning-Based Embedded Systems
Real-time motion analysis using deep learning algorithms
You can leverage the LIS2DH12TR sensor to enhance the capabilities of a deep learning-based embedded system. Its high-resolution triaxial acceleration measurement provides accurate data for real-time motion analysis. This data serves as a foundation for training and deploying deep learning models. For example, you can use it to detect complex motion patterns in sports analytics or monitor human activities in healthcare applications.
The sensor's low power consumption ensures uninterrupted operation, even in battery-powered systems. Its compatibility with I2C and SPI protocols simplifies data transfer to microcontrollers running deep learning algorithms. By integrating this sensor, you can achieve precise motion tracking and improve the overall performance of your embedded system.
Integration into AI-driven applications for enhanced functionality
The LIS2DH12TR sensor plays a vital role in AI-driven applications. Its compact design and versatile features make it an excellent choice for deep learning-based embedded systems. You can integrate it into smart devices like drones, where it aids in navigation and obstacle detection. In robotics, the sensor enhances functionality by providing real-time acceleration data for AI models, enabling smoother movements and better decision-making.
Additionally, the sensor's wide measurement range and high output data rate support advanced AI applications. For instance, you can use it in predictive maintenance systems to analyze vibration patterns and prevent equipment failures. Its robust performance ensures reliable operation, even in challenging environments. By combining this sensor with AI technologies, you can unlock new possibilities in automation, safety, and efficiency.
Tip: When designing a deep learning-based embedded system, ensure proper calibration of the LIS2DH12TR sensor. Accurate data input significantly improves the reliability of AI models.
Step-by-Step Integration Guide
Hardware Setup
Connecting the LIS2DH12TR to a microcontroller
To connect the LIS2DH12TR sensor to a microcontroller, follow these steps:
Establish an I2C or SPI connection based on your system requirements.
Connect the sensor's SCL/SPC pin to the clock line of your microcontroller.
Use the SDA/SDI pin for data transfer.
Configure the CS pin to select the communication protocol (I2C or SPI).
For I2C communication, ensure you know the sensor's 7-bit address and the relevant registers for data exchange. This setup enables efficient communication and ensures accurate data transfer.
Power supply requirements and pin configurations
The LIS2DH12TR sensor operates within a voltage range of 1.8V to 3.6V, making it suitable for low-voltage embedded systems. Use the following guidelines for proper power supply and pin configuration:
Supply power through the Vdd line and power the I/O pads via the Vdd_IO line.
Place decoupling capacitors (100 nF ceramic and 10 μF aluminum) near pin 9 to stabilize the power supply.
Configure the pins as follows:
Pin 1: SCL/SPC for clock input.
Pin 2: CS for protocol selection.
Pin 3: SDO/SA0 for data output or I2C address selection.
Pin 4: Data input/output based on the protocol.
Pin 5: Connect to ground for LIS2DH12TR.
These steps ensure stable operation and compatibility with your microcontroller.
Software Configuration
Setting up I2C or SPI communication protocols
To set up communication, configure the sensor's registers for I2C or SPI. For I2C, use the sensor's 7-bit address to initiate communication. For SPI, ensure proper clock polarity and phase settings.
Tip: Use CTRL_REG1 to set the output data rate (ODR) and CTRL_REG4 to configure the full-scale range (FS). These settings optimize the sensor's performance for your application.
Configuring registers for desired functionality
You can configure the LIS2DH12TR sensor using the following code snippet:
/**
* @brief Function to configure LIS3DH
*/
void LIS3DH_cfg(void)
{
/* Set CTRL_REG_1 for ODR of 400Hz */
uint8_t conf = (BIT_6 | BIT_5 | BIT_4 | BIT_2 | BIT_1 | BIT_0);
uint8_t reg[2] = {CTRL_REG1, conf};
err_code = nrf_drv_twi_tx(&m_twi, LIS2DH12_ADDR, reg, sizeof(reg), false);
/* Set FS of +/- 16g in CTRL_REG_4 */
reg[0] = CTRL_REG4;
reg[1] = 0x30;
err_code = nrf_drv_twi_tx(&m_twi, LIS2DH12_ADDR, reg, sizeof(reg), false);
}
This configuration sets the sensor's ODR to 400 Hz and the FS to ±16 g, ensuring optimal accuracy and efficiency.
Interfacing with Microcontrollers
Writing code to read and process sensor data
To read and process data from the LIS2DH12TR sensor, follow these steps:
Establish an I2C connection using the sensor's address.
Initialize the sensor by configuring the necessary registers.
Read the sensor values and process them as needed.
Note: The sensor's data format is left-justified 2's complement. Ensure your code accounts for this format when processing data.
Using libraries and drivers for faster development
You can simplify development by using pre-built libraries and drivers. These tools provide functions for initializing the sensor, reading data, and configuring registers. They reduce development time and improve code reliability. Popular libraries for LIS2DH12TR include those compatible with Arduino and STM32 platforms.
By following these steps, you can integrate the LIS2DH12TR sensor into your embedded systems efficiently and achieve high accuracy in your applications.
Tips for Maximizing Efficiency
Power-Saving Modes
Configuring low-power modes for extended battery life
You can optimize the LIS2DH12TR sensor's power consumption by selecting the appropriate operating mode for your application. The sensor offers several modes:
Normal Mode: Delivers full performance, ideal for applications requiring high responsiveness.
Low-Power Mode: Reduces power usage by limiting features, making it suitable for continuous monitoring tasks.
High-Performance Mode: Balances power efficiency and accuracy, perfect for scenarios where precision is critical.
Inactive State: Minimizes power consumption when the sensor is idle, ensuring significant energy savings.
By choosing the right mode, you can extend battery life without compromising functionality.
Using sleep and wake-up functionalities effectively
The LIS2DH12TR sensor supports sleep and wake-up functionalities to conserve energy. You can configure the sensor to enter a sleep state after capturing data. It can then wake up upon detecting motion or at scheduled intervals. This approach reduces unnecessary power usage, especially in motion-based applications. For example, in a wearable device, the sensor can remain in sleep mode until it detects user activity, ensuring efficient energy management.
Calibration Techniques
Calibrating the sensor for accurate measurements
Proper calibration ensures the LIS2DH12TR sensor delivers precise data. You can follow these steps:
Perform a zero-g calibration by placing the sensor in a stationary position and recording its output. Subtract any offset from subsequent readings.
Use known gravitational fields to calibrate the scale factor.
Periodically recalibrate the sensor to maintain accuracy over time.
These techniques help you achieve consistent and reliable measurements.
Eliminating noise and offset errors in data
Noise and offset errors can affect the sensor's accuracy. To address these issues:
Implement filtering algorithms like low-pass or Kalman filters to reduce noise.
Ensure proper sensor alignment and mounting to avoid misalignment errors.
Apply temperature compensation techniques to minimize temperature-induced inaccuracies.
These steps enhance the sensor's performance and ensure accurate data collection.
Data Processing Strategies
Filtering and smoothing raw data for better accuracy
Raw data from the LIS2DH12TR sensor may contain noise. You can improve its accuracy by applying filtering techniques such as:
Low-pass filters: Allow low-frequency signals while reducing high-frequency noise.
Kalman filters: Combine sensor inputs and predictions to minimize noise.
Moving average filters: Smooth data by averaging multiple data points.
These methods ensure clean and reliable data for your applications.
Implementing algorithms for real-time analysis
Real-time analysis requires efficient algorithms to process sensor data. You can use:
Low-pass filters for basic noise reduction.
Kalman filters for advanced accuracy by integrating predictions.
Moving average filters to smooth fluctuations in real-time.
These algorithms enable you to analyze data effectively, improving the overall performance of your embedded system.
Troubleshooting Common Issues
Communication Errors
Resolving I2C/SPI connection problems
When you encounter communication issues with the LIS2DH12TR sensor, start by checking the physical connections. Ensure that the SCL/SPC and SDA/SDI lines are securely connected to the microcontroller. Verify that the pull-up resistors on the I2C lines are correctly configured. For SPI, confirm that the clock polarity and phase settings match the sensor's requirements.
If the issue persists, inspect the sensor's power supply. An unstable voltage can disrupt communication. Use decoupling capacitors near the sensor to stabilize the power. Finally, double-check the sensor's address for I2C communication or the chip select (CS) pin for SPI to ensure proper configuration.
Debugging incorrect register configurations
Incorrect register settings can lead to unexpected behavior. Follow these steps to debug and resolve such issues:
Review the sensor's datasheet to understand the purpose of each register.
Use a logic analyzer to monitor data exchange and confirm that the correct values are being written.
Reset the sensor to its default state and reconfigure the registers systematically.
Test the configuration incrementally to identify the problematic setting.
By addressing these issues methodically, you can restore proper communication and functionality.
Inaccurate Measurements
Addressing calibration and alignment issues
Calibration and alignment are critical for achieving accurate measurements. Misalignment during installation can cause errors. Ensure the sensor is mounted securely and aligned with the intended axis of measurement. Use a test jig to maintain stability during calibration.
Perform a zero-g calibration by placing the sensor in a stationary position and recording its output. Subtract any offset from subsequent readings. Regular recalibration helps maintain long-term accuracy, especially in environments with temperature fluctuations.
Identifying and mitigating environmental interference
Environmental factors like vibrations and electromagnetic interference can affect sensor readings. To minimize these effects, mount the sensor on a stable surface and shield it from external noise sources. Use filtering algorithms, such as low-pass filters, to reduce noise in the data. Additionally, consider temperature compensation techniques to address temperature-induced drift.
Power-Related Challenges
Ensuring stable power supply to the sensor
A stable power supply is essential for reliable sensor operation. Use decoupling capacitors near the sensor to filter out voltage fluctuations. Ensure the power source meets the sensor's voltage requirements (1.8V to 3.6V).
For high-demand applications, select the appropriate operating mode. For instance, use low-power modes for energy efficiency or high-performance modes for tasks requiring precision. Adjust the sampling rate to balance power consumption and performance.
Managing power consumption in high-demand applications
To optimize power usage, implement sleep modes when the sensor is inactive. This approach conserves energy and extends battery life. Dynamic Voltage and Frequency Scaling (DVFS) can further reduce power consumption by adjusting the sensor's workload. These strategies ensure efficient operation without compromising performance.
The LIS2DH12TR sensor offers unmatched efficiency, precision, and versatility for embedded systems. Its low power consumption and high-resolution measurements make it a reliable choice for motion detection, vibration monitoring, and power optimization.
Tip: Proper integration and calibration unlock the sensor's full potential, ensuring accurate and consistent performance.
Explore how this sensor can elevate your designs. Whether you're developing IoT devices, wearables, or automotive systems, the LIS2DH12TR provides the tools you need to streamline development and enhance functionality. Start integrating it into your projects today to achieve superior results.
FAQ
What makes the LIS2DH12TR sensor energy-efficient?
The LIS2DH12TR sensor offers multiple low-power modes, including sleep and inactive states. These modes reduce energy consumption by limiting active features. You can also configure the output data rate and sensitivity to balance performance and power usage, making it ideal for battery-powered devices.
How do you calibrate the LIS2DH12TR sensor?
Place the sensor in a stationary position to perform a zero-g calibration. Record the output and subtract any offset from future readings. Use known gravitational fields to adjust the scale factor. Regular calibration ensures accurate measurements, especially in environments with temperature changes.
Can the LIS2DH12TR sensor handle harsh environments?
Yes, the LIS2DH12TR sensor operates reliably in a wide temperature range (-40°C to +85°C). Its robust design ensures consistent performance in industrial and automotive systems. You can use it in challenging conditions without compromising accuracy or functionality.
What communication protocols does the LIS2DH12TR support?
The LIS2DH12TR sensor supports both I2C and SPI protocols. This dual compatibility allows seamless integration with various microcontrollers. You can select the protocol that best suits your system requirements for efficient data transfer.
How does the LIS2DH12TR improve motion detection in wearables?
The sensor's high-resolution triaxial acceleration measurement ensures precise motion tracking. It detects subtle movements, enabling accurate activity monitoring. Its compact size and low power consumption make it perfect for wearables like fitness trackers and smartwatches.
Tip: Use the built-in filtering capabilities to eliminate noise and enhance motion detection accuracy.
