Exploring IRFB11N50APBF for High Voltage Applications

The IRFB11N50APBF stands out as a high-performance power transistor designed for demanding high voltage applications. It offers a robust 500V voltage rating and supports an impressive 11A continuous drain current. Its low on-resistance ensures energy efficiency, reducing power loss during operation. These features make it an ideal choice for modern systems requiring reliable performance. You can find this transistor in applications like switched-mode power supplies (SMPS), inverters, and power amplifiers, where efficiency and durability are critical. Its versatility and reliability make it a valuable component for high voltage designs.

Key Takeaways

The IRFB11N50APBF is a high-performance power transistor with a 500V voltage rating and 11A continuous drain current, making it ideal for demanding high voltage applications.
Its low on-resistance of 0.52 ohms enhances energy efficiency by minimizing power loss and heat generation, which is crucial for modern electronic systems.
Designed for effective thermal management, the TO-220AB package allows for excellent heat dissipation, ensuring durability in challenging environments.
Common applications include switched-mode power supplies, renewable energy inverters, power amplifiers, and motor control systems, showcasing its versatility.
To optimize performance, focus on circuit design and layout, ensuring short traces and proper decoupling to reduce noise and improve efficiency.
Implement effective thermal management strategies, such as using heatsinks and thermal interface materials, to maintain optimal operating temperatures.
The IRFB11N50APBF is cost-effective and widely available through authorized distributors, ensuring access to reliable components for your projects.

Technical Advantages of the IRFB11N50APBF

High Voltage and Current Handling Capabilities

The IRFB11N50APBF excels in managing high voltage and current levels, making it a reliable choice for demanding applications. With a maximum voltage rating of 500V, it can handle substantial electrical loads without compromising performance. Its continuous drain current of 11A ensures stable operation even under heavy usage. You can depend on this transistor to deliver consistent results in high voltage systems, such as power supplies and motor controls. This capability reduces the risk of component failure, ensuring long-term reliability in your designs.

Low On-Resistance for Improved Efficiency

Efficiency plays a critical role in modern electronic systems, and the IRFB11N50APBF addresses this need with its low on-resistance of 0.52 ohms. This feature minimizes power loss during operation, allowing your circuits to perform more efficiently. Lower resistance translates to reduced heat generation, which helps maintain system stability. By integrating this transistor into your design, you can achieve better energy conversion rates, saving power and enhancing overall performance. This makes it an excellent choice for applications like switched-mode power supplies and inverters.

Thermal Management and Durability in Demanding Environments

Thermal management is essential for high voltage components, and the IRFB11N50APBF is designed to excel in this area. Its robust construction ensures it can withstand high temperatures and operate reliably in challenging environments. The TO-220AB package provides effective heat dissipation, reducing the risk of overheating. You can rely on this transistor to maintain durability even in applications with continuous or heavy-duty usage. Its ability to handle thermal stress makes it suitable for systems requiring consistent performance over extended periods.

Common Applications of the IRFB11N50APBF

Switched-Mode Power Supplies (SMPS)

Switched-mode power supplies demand components that deliver efficiency and reliability. The IRFB11N50APBF meets these requirements with its low on-resistance and high voltage handling. You can use it to achieve efficient power conversion, minimizing energy loss during operation. Its ability to handle continuous drain currents ensures stable performance, even under heavy loads. This makes it an excellent choice for powering devices in industrial, commercial, and consumer electronics. By integrating this transistor into your SMPS designs, you can enhance energy efficiency and reduce heat generation.

Renewable Energy Inverters

Renewable energy systems rely on inverters to convert DC power into AC power. The IRFB11N50APBF plays a crucial role in ensuring this process runs smoothly. Its 500V voltage rating allows it to handle the high voltages often present in solar and wind energy systems. You can depend on its durability to maintain consistent performance in outdoor or demanding environments. This transistor also supports efficient energy transfer, which is vital for maximizing the output of renewable energy sources. Using it in your inverter designs can help you achieve reliable and sustainable energy solutions.

Power Amplifiers for Audio and RF Systems

Power amplifiers require components that can handle high currents and voltages without compromising signal quality. The IRFB11N50APBF excels in this application by providing stable and efficient performance. You can use it to amplify audio signals with minimal distortion, ensuring clear and powerful sound output. In RF systems, its low on-resistance helps maintain signal integrity while reducing power loss. This transistor's robust design also ensures it can withstand the thermal stress associated with high-power amplification. By incorporating it into your amplifier circuits, you can achieve superior performance and reliability.

Motor Control and Lighting Systems

Motor control systems demand components that can handle high power levels while maintaining precision. You can rely on this transistor to deliver consistent performance in motor drives, ensuring smooth operation and accurate speed control. Its ability to manage high voltages and currents makes it suitable for industrial motors, robotic systems, and HVAC units. By integrating this component into your motor control designs, you can achieve reliable and efficient operation, even under heavy workloads.

Lighting systems, especially in commercial and industrial settings, require efficient power management. This transistor supports high-efficiency energy conversion, reducing power loss and heat generation. You can use it in LED drivers and high-intensity discharge (HID) lighting systems to enhance energy savings and extend the lifespan of your lighting solutions. Its robust design ensures durability, making it a dependable choice for applications that operate continuously or in demanding environments.

Whether you are designing motor control circuits or advanced lighting systems, this transistor provides the performance and reliability needed for optimal results. Its versatility allows you to address a wide range of high voltage applications with confidence.

Practical Tips for Integrating the IRFB11N50APBF

Circuit Design and Layout Optimization

When integrating the IRFB11N50APBF into your circuit, you should focus on optimizing the design and layout. Proper placement of components ensures efficient operation and minimizes potential issues like noise or signal interference. Keep the traces connecting the transistor as short as possible to reduce resistance and inductance. This improves overall performance and reduces power loss.

You should also use decoupling capacitors near the transistor to stabilize voltage levels and prevent fluctuations. These capacitors help maintain consistent operation, especially in high-frequency circuits. Additionally, ensure that the gate drive circuit provides sufficient voltage to fully turn on the transistor. This reduces switching losses and enhances efficiency.

Thermal Management Solutions

Effective thermal management is crucial when using the IRFB11N50APBF in high-power applications. You should always consider heat dissipation during the design phase. Attach a suitable heatsink to the transistor to manage heat generated during operation. The TO-220AB package of this transistor allows for easy mounting of heatsinks, ensuring better thermal performance.

Use thermal interface materials, such as thermal paste or pads, between the transistor and the heatsink. These materials improve heat transfer and prevent hotspots. Additionally, ensure proper airflow around the heatsink to enhance cooling. If your application involves continuous or heavy-duty usage, consider adding a cooling fan to maintain optimal operating temperatures.

Testing and Troubleshooting for Reliable Performance

Testing your circuit thoroughly ensures reliable performance of the IRFB11N50APBF. Begin by verifying the gate drive voltage to confirm it meets the transistor's requirements. Use an oscilloscope to check for clean and stable switching signals. Any irregularities in the signal can lead to inefficient operation or damage to the transistor.

Monitor the temperature of the transistor during operation. Excessive heat indicates inadequate thermal management, which you should address immediately. Inspect solder joints and connections to ensure they are secure and free from defects. Loose connections can cause intermittent issues or failure.

If you encounter problems, troubleshoot systematically. Check each component in the circuit to identify potential faults. Replace any damaged parts and retest the circuit. By following these steps, you can ensure the IRFB11N50APBF operates reliably in your application.

Comparison with Similar Power Transistors

Performance Metrics: Voltage, Current, and Efficiency

When evaluating power transistors, you should focus on key performance metrics like voltage, current, and efficiency. The IRFB11N50APBF offers a 500V voltage rating and an 11A continuous drain current, which positions it as a strong contender for high voltage applications. These specifications ensure reliable operation in demanding systems, such as motor controls and renewable energy inverters.

In comparison, other transistors may provide similar voltage ratings but often fall short in current handling or efficiency. For instance, some alternatives might have higher on-resistance, leading to greater power loss and heat generation. This can reduce the overall efficiency of your circuit. By choosing a transistor with low on-resistance, you can achieve better energy conversion and minimize thermal stress. Always compare these metrics to ensure the component aligns with your design requirements.

Cost-Effectiveness and Availability Through Authorized Distributors

Cost and availability play a significant role in selecting the right power transistor. The IRFB11N50APBF strikes a balance between performance and affordability, making it a cost-effective choice for high voltage applications. Its competitive pricing allows you to optimize your budget without compromising on quality or reliability.

You should also consider availability when sourcing components. The IRFB11N50APBF is widely available through authorized distributors, ensuring you can access genuine parts for your projects. Purchasing from trusted sources reduces the risk of counterfeit components, which can lead to performance issues or failures. Always verify the distributor's credentials to ensure you receive authentic and compliant products.

By comparing performance metrics and considering cost-effectiveness, you can make an informed decision when selecting a power transistor. The IRFB11N50APBF provides a reliable and efficient solution for a variety of high voltage applications.

Why Choose the IRFB11N50APBF for High Voltage Applications?

Summary of Technical Benefits

The IRFB11N50APBF offers a combination of features that make it a standout choice for high voltage applications. Its 500V voltage rating ensures reliable performance in systems requiring high power handling. The 11A continuous drain current supports stable operation under heavy loads, reducing the risk of failure. Its low on-resistance minimizes energy loss, improving efficiency and reducing heat generation. These technical advantages allow you to design circuits that perform consistently while maintaining energy efficiency.

Thermal management is another key benefit. The TO-220AB package provides excellent heat dissipation, ensuring the transistor operates within safe temperature limits. This durability makes it suitable for demanding environments where components face continuous stress. By choosing this transistor, you gain a reliable solution that meets the technical demands of modern high voltage systems.

Versatility Across High Voltage Use Cases

The IRFB11N50APBF adapts to a wide range of applications, making it a versatile component for your projects. In switched-mode power supplies, it ensures efficient power conversion with minimal energy loss. Renewable energy systems benefit from its ability to handle high voltages, supporting inverters in solar and wind power setups. Its robust design ensures consistent performance in outdoor or industrial environments.

For audio and RF power amplifiers, this transistor delivers stable current and voltage handling. It helps maintain signal integrity, ensuring clear audio output and reliable RF transmission. Motor control systems also benefit from its precision and efficiency, enabling smooth operation in industrial motors and robotic systems. Additionally, lighting systems like LED drivers and HID setups rely on its energy-saving capabilities to enhance performance and longevity.

This versatility allows you to use the IRFB11N50APBF across various high voltage applications with confidence. Its adaptability ensures that it meets the unique requirements of each system, providing a dependable solution for your designs.

The IRFB11N50APBF delivers exceptional performance for high voltage applications. Its 500V voltage rating, low on-resistance, and energy efficiency make it a reliable choice for demanding systems. You can use it confidently in applications like SMPS, inverters, and amplifiers, where efficiency and durability are essential. This transistor offers the versatility and reliability needed for modern designs. Explore the IRFB11N50APBF for your high voltage projects to achieve consistent performance and long-term dependability.

FAQ

What is the IRFB11N50APBF, and what makes it unique?

The IRFB11N50APBF is a power MOSFET transistor designed for high voltage applications. It stands out due to its 500V voltage rating, 11A continuous drain current, and low on-resistance of 0.52 ohms. These features ensure efficient energy conversion, reduced power loss, and reliable performance in demanding systems.

Where can you use the IRFB11N50APBF?

You can use the IRFB11N50APBF in various high voltage applications. Common uses include switched-mode power supplies (SMPS), renewable energy inverters, motor control systems, power amplifiers, and advanced lighting systems. Its versatility makes it suitable for industrial, commercial, and consumer electronics.

How does the low on-resistance benefit your designs?

The low on-resistance minimizes power loss during operation. This improves energy efficiency and reduces heat generation. By using this transistor, you can enhance the performance and reliability of your circuits while saving energy.

What packaging does the IRFB11N50APBF come in?

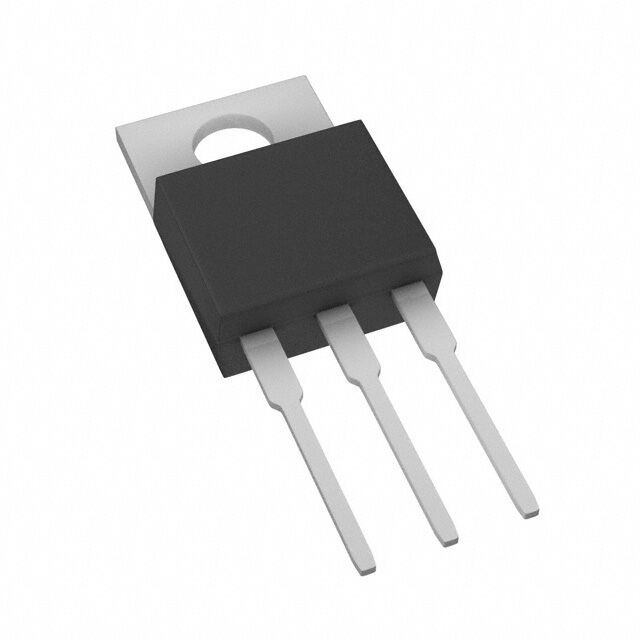

The IRFB11N50APBF comes in a TO-220AB package. This package allows for easy integration into your designs and provides effective heat dissipation. It also supports the attachment of heatsinks for improved thermal management.

How do you manage heat when using the IRFB11N50APBF?

To manage heat effectively, attach a suitable heatsink to the transistor. Use thermal interface materials like thermal paste or pads to improve heat transfer. Ensure proper airflow around the heatsink, and consider adding a cooling fan for applications with continuous or heavy-duty usage.

Is the IRFB11N50APBF environmentally friendly?

Yes, the IRFB11N50APBF is RoHS compliant. This ensures it meets environmental standards for electronic components, making it a responsible choice for your projects.

How do you ensure reliable performance when integrating this transistor?

To ensure reliable performance, optimize your circuit design and layout. Use decoupling capacitors to stabilize voltage levels. Verify the gate drive voltage to meet the transistor's requirements. Test your circuit thoroughly and monitor the temperature during operation to address any thermal issues.

How does the IRFB11N50APBF compare to similar transistors?

The IRFB11N50APBF offers a competitive edge with its combination of high voltage rating, low on-resistance, and cost-effectiveness. Many alternatives may lack the same balance of efficiency and durability, making this transistor a reliable choice for high voltage applications.

Where can you purchase the IRFB11N50APBF?

You can purchase the IRFB11N50APBF through authorized distributors. Always verify the distributor's credentials to ensure you receive genuine and compliant components. This reduces the risk of counterfeit parts that could compromise your designs.

Why should you choose the IRFB11N50APBF for your projects?

The IRFB11N50APBF provides exceptional performance, versatility, and reliability. Its technical advantages, such as high voltage handling, low on-resistance, and robust thermal management, make it ideal for modern high voltage systems. By choosing this transistor, you can achieve efficient and dependable results in your designs.
