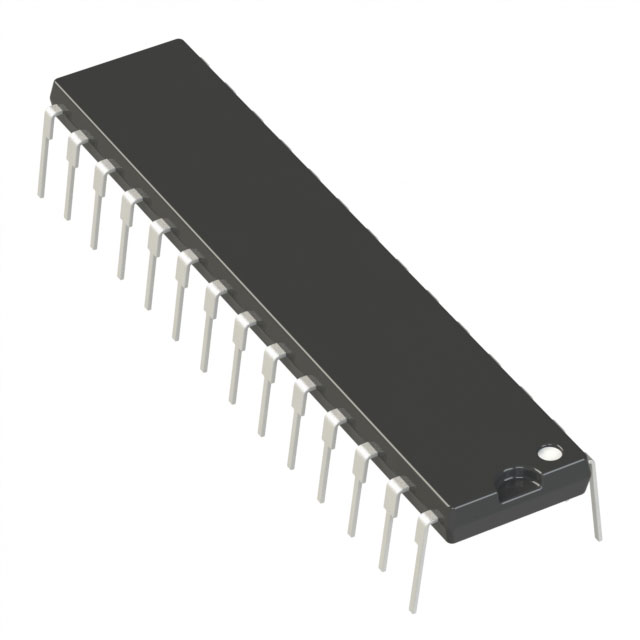

DSPIC30F2010-30I/SP,MICROCHIP,16-bit Digital Signal Processing Microcontroller Chip

The DSPIC30F2010-30I/SP microcontroller combines high-speed 16-bit processing with advanced digital signal control capabilities. You can rely on its robust architecture to handle up to 30 MIPs, making it ideal for real-time applications. Its integrated peripherals, such as motor control PWM and a 6-channel, 10-bit ADC, support diverse tasks like sensor interfacing and motor control. With low power consumption and a wide operating voltage range, this microcontroller excels in both industrial and consumer applications. Its built-in protection features and wide temperature tolerance ensure reliable performance in harsh environments.

Key Takeaways

• The DSPIC30F2010-30I/SP microcontroller works fast with 16-bit processing.

• It runs up to 30 MIPS, great for real-time tasks.

• It has built-in tools like UART, SPI, and I2C.

• These tools make circuits simpler and need fewer extra parts.

• It includes ADC modules for accurate data collection.

• This makes it perfect for sensors and controlling motors.

• The strong design works well in tough conditions.

• It can handle temperatures from -40°C to 85°C.

• It uses little energy, so it's good for battery devices.

• It's also great for saving power in energy-smart projects.

Key Features of DSPIC30F2010-30I/SP

16-bit Digital Signal Processing Architecture

The DSPIC30F2010-30I/SP microcontroller offers a powerful 16-bit digital signal controller that enhances your ability to process complex signals efficiently. Its architecture supports advanced signal processing tasks, making it ideal for real-time applications. You can rely on its maximum operating frequency of 30 MIPS to handle demanding workloads with ease.

Here are some of the key technical specifications of its architecture:

• 16-bit Digital Signal Controller: Provides advanced signal processing capabilities.

• Maximum operating frequency of 30 MIPS for fast processing.

• 512 bytes of RAM and 12 kB of Flash memory for program storage.

• Integrated peripherals including UART, SPI, I2C, and PWM modules.

• Enhanced Pulse Width Modulation capabilities for precision control.

This architecture ensures that you can achieve high performance while maintaining energy efficiency, making it suitable for a wide range of embedded applications.

High-Resolution PWM and CAN FD Support

The DSPIC30F2010-30I/SP stands out with its high-resolution Pulse Width Modulation (PWM) capabilities. These features allow you to achieve precise control over motor speeds, power delivery, and other critical functions. Whether you're working on motor control or power conversion, the high-resolution PWM ensures smooth and accurate operation.

Additionally, the microcontroller supports Controller Area Network Flexible Data-Rate (CAN FD), which is essential for modern communication systems. This feature enables faster data transmission and improved reliability in automotive and industrial applications. With these capabilities, you can design systems that meet the demands of high-speed and high-precision environments.

Integrated Peripherals for Embedded Control

The DSPIC30F2010-30I/SP simplifies your embedded control designs with its wide range of integrated peripherals. These peripherals reduce the need for external components, saving you both space and cost. Here's a detailed look at the available peripherals:

In addition to these, the microcontroller offers advanced features like motor control PWM, a quadrature encoder interface (QEI), and a watchdog timer (WDT) for system reliability. Its wide operating voltage range of 2.5V to 5.5V and 20 configurable I/O pins make it versatile for various applications. These integrated peripherals ensure that you can build robust and efficient systems with minimal effort.

Advanced Filtering and Modulation Capabilities

The DSPIC30F2010-30I/SP microcontroller excels in advanced filtering and modulation tasks, making it a reliable choice for signal processing applications. Its 16-bit modified Harvard architecture CPU ensures efficient execution of complex algorithms. You can depend on its high-performance capabilities to handle intricate filtering operations with precision.

Here are some features that enable efficient modulation and filtering:

• High-Performance CPU: The 16-bit architecture processes data quickly and accurately.

• Memory Capabilities: With 512 bytes of RAM and 12 kB of Flash memory, it supports demanding signal processing tasks.

• Rich Peripheral Set: Multiple UARTs, SPI, and I2C interfaces enhance connectivity for real-time applications.

• Advanced Analog Features: Integrated ADC modules provide accurate data acquisition for filtering.

• Enhanced Performance: Operating at speeds up to 30 MIPS, it ensures quick execution of modulation algorithms.

These features allow you to implement advanced filtering techniques, such as Finite Impulse Response (FIR) and Infinite Impulse Response (IIR) filters, with ease. Additionally, the microcontroller supports modulation schemes like Pulse Width Modulation (PWM) and Phase-Shift Keying (PSK), which are essential for communication and control systems. By leveraging these capabilities, you can design systems that meet the demands of modern signal processing applications.

Tip: Use the DSPIC30F2010-30I/SP's integrated ADC and PWM modules to simplify your circuit design and reduce development time.

Robust Design for Industrial and Consumer Applications

The DSPIC30F2010-30I/SP microcontroller is built to withstand the challenges of industrial and consumer environments. Its robust design ensures reliable performance even in harsh conditions. You can trust its wide operating temperature range of -40°C to 85°C to maintain functionality in extreme environments.

Key design features include:

• Wide temperature tolerance for industrial-grade reliability.

• Integrated protection features like a watchdog timer and brown-out detection to safeguard your system.

• Versatile pin configuration in a durable SDIP-28 package for flexible circuit integration.

• High-performance 16-bit processor capable of executing 30 MIPS for complex tasks.

• Comprehensive peripheral set, including motor control PWM and a quadrature encoder interface.

The microcontroller also complies with RoHS standards, reflecting its environmental responsibility. This makes it suitable for industrial automation, robotics, and consumer electronics. For example, you can use it in smart appliances or IoT devices where reliability and performance are critical.

Microchip Technology ensures that the DSPIC30F2010-30I/SP meets high-quality standards. Its combination of a robust microcontroller and a high-performance digital signal processor makes it a dependable choice for various applications. With comprehensive documentation and support, you can confidently integrate this microcontroller into your designs.

Applications of DSPIC30F2010-30I/SP in Embedded Systems

The DSPIC30F2010-30I/SP microcontroller plays a vital role in various embedded systems, offering high performance and versatility. Its advanced features make it suitable for signal processing, industrial automation, and consumer electronics.

Signal Processing Applications

Audio Processing

You can use the DSPIC30F2010-30I/SP for audio and speech processing tasks. Its high-speed 16-bit architecture ensures efficient execution of algorithms for filtering, modulation, and signal enhancement. This makes it ideal for applications like audio equalizers, noise cancellation systems, and digital audio effects.

Motor Control for DC, Stepper, and AC Motors

The DSPIC30F2010-30I/SP excels in motor control applications. It combines advanced analog features, enhanced PWM control, and real-time processing capabilities. These features allow you to achieve precise control over DC, stepper, and AC motors.

This microcontroller is perfect for robotics, industrial machinery, and HVAC systems where motor control is critical.

Sensor Data Analysis and Interfacing

The DSPIC30F2010-30I/SP simplifies sensor data analysis with its integrated ADC modules. These modules convert analog signals into digital data for processing. You can use this feature in applications like environmental monitoring, medical devices, and automotive systems.

Industrial Automation

Robotics and Control Systems

The DSPIC30F2010-30I/SP enhances robotics and control systems with its high-performance CPU and rich peripheral set. It supports real-time processing, enabling precise control of robotic arms and industrial equipment. Its integrated ADC modules ensure accurate data acquisition from sensors, making it a reliable choice for automation.

Power Conversion and Industrial Machinery

In power conversion systems, the DSPIC30F2010-30I/SP provides advanced PWM capabilities for efficient energy management. You can use it in industrial machinery to regulate power supply and optimize performance. Its robust design ensures reliability in demanding environments.

Consumer Electronics

Smart Appliances

The DSPIC30F2010-30I/SP is ideal for smart appliances like washing machines and refrigerators. Its versatile pin configuration and integrated peripherals simplify circuit design. You can rely on its high-speed processing to handle complex tasks like motor control and sensor interfacing.

IoT Systems and Communication Devices

For IoT systems, the DSPIC30F2010-30I/SP offers a rich set of communication interfaces, including UART, SPI, and I2C. These features enable seamless connectivity between devices. Its advanced analog capabilities make it suitable for sensor-based applications, ensuring accurate data acquisition and processing.

Benefits of Using DSPIC30F2010-30I/SP

High Performance for Real-Time Applications

The DSPIC30F2010-30I/SP microcontroller delivers exceptional performance, making it ideal for real-time applications. Its 16-bit modified Harvard architecture CPU ensures efficient execution of complex algorithms. This capability is crucial when you need to process data quickly and accurately. Operating at speeds of up to 30 MIPS, the microcontroller handles demanding tasks with ease, ensuring immediate responses in time-sensitive scenarios.

You can also rely on its memory capabilities to support intricate operations. With 512 bytes of RAM and 12 kB of Flash memory, the microcontroller provides ample space for program storage and data handling. These features make it a dependable choice for applications like motor control, audio processing, and industrial automation.

• Key Performance Metrics:

  • High-performance CPU for efficient algorithm execution.

  • 512 bytes of RAM and 12 kB of Flash memory for seamless operation.

  • Speeds up to 30 MIPS for quick task execution.

Energy Efficiency in Embedded Designs

Energy efficiency is a critical factor in embedded systems, and the DSPIC30F2010-30I/SP excels in this area. Its low power consumption ensures that your designs remain energy-efficient without compromising performance. This makes it suitable for battery-powered devices and applications where energy conservation is a priority.

The microcontroller's wide operating voltage range of 2.5V to 5.5V further enhances its adaptability. You can optimize power usage by selecting the appropriate voltage level for your application. This flexibility allows you to design systems that balance performance and energy efficiency effectively.

Tip: Use the microcontroller's low-power modes to extend battery life in portable devices.

Versatility Across Multiple Applications

The DSPIC30F2010-30I/SP stands out for its versatility, making it suitable for a wide range of embedded system applications. Its high-performance CPU, flexible pin configuration, and rich peripheral set enable you to design systems for various industries, from consumer electronics to industrial automation.

This versatility allows you to use the microcontroller in applications like motor control, IoT devices, and smart appliances. Its robust design ensures reliable performance across different environments, making it a valuable addition to your embedded projects.

Cost-Effectiveness for Complex Systems

The DSPIC30F2010-30I/SP microcontroller offers a cost-effective solution for designing complex systems. Its high-performance architecture and integrated features reduce the need for additional components, saving you both time and money during development. By combining advanced capabilities with affordability, this microcontroller ensures you can achieve optimal results without exceeding your budget.

Here’s how the DSPIC30F2010-30I/SP delivers cost-effectiveness:

• A 16-bit modified Harvard CPU ensures efficient execution of algorithms, reducing processing time and system complexity.

• Generous memory allocation, including 512 bytes of RAM and 12 kB of Flash memory, supports demanding applications without requiring external memory modules.

• Integrated peripherals like UARTs, SPI, and I2C interfaces enhance connectivity, eliminating the need for extra hardware.

• Advanced analog features, such as built-in ADC modules, provide accurate data processing for sensor-based systems.

• Operating speeds of up to 30 MIPS enable quick task execution, ensuring high performance in real-time applications.

These features allow you to streamline your designs while minimizing costs. For example, the integrated peripherals reduce the number of external components required, which simplifies your circuit design. The microcontroller’s robust performance also ensures that you can handle complex tasks efficiently, making it ideal for applications like motor control, industrial automation, and IoT systems.

Tip: Use the DSPIC30F2010-30I/SP’s built-in ADC and PWM modules to cut down on external component costs and simplify your design process.

By leveraging its versatile capabilities, you can create reliable and efficient systems without compromising on quality or affordability. This makes the DSPIC30F2010-30I/SP an excellent choice for developers seeking a balance between performance and cost in their embedded projects.

Implementation Tips for DSPIC30F2010-30I/SP

Development Tools and Programming Environments

To get started with the DSPIC30F2010-30I/SP, you need the right development tools and programming environments. Microchip Technology provides a range of tools to simplify your development process. MPLAB X IDE is a powerful integrated development environment that supports this microcontroller. It allows you to write, debug, and optimize your code efficiently. Pair it with the MPLAB XC16 Compiler to take full advantage of the microcontroller's 16-bit architecture.

For hardware debugging, the MPLAB ICD 4 In-Circuit Debugger is an excellent choice. It connects directly to your circuit and provides real-time debugging capabilities. You can also use the MPLAB PICkit 4 for programming and debugging, which is cost-effective and user-friendly. These tools ensure a smooth development experience, whether you're a beginner or an experienced developer.

Debugging Techniques for Efficient Development

Efficient debugging is crucial when working with the DSPIC30F2010-30I/SP. This microcontroller supports in-circuit serial programming (ICSP), which simplifies programming and debugging. You can use ICSP to program the microcontroller directly on your circuit board, saving time and effort.

Here are some ways debugging tools improve your development process:

• Quickly identify and resolve issues using advanced debugging features.

• Monitor real-time data to analyze system performance.

• Test and modify code without removing the microcontroller from the circuit.

By leveraging these techniques, you can enhance your development efficiency and ensure your system operates as intended.

Best Practices for Circuit Design and Integration

To achieve optimal performance with the DSPIC30F2010-30I/SP, follow these best practices for circuit design and integration:

When designing your circuit, ensure proper power supply decoupling to minimize noise. Use the microcontroller's configurable I/O pins to simplify your design and reduce external components. Additionally, take advantage of its integrated ADC modules for accurate sensor data acquisition. These practices will help you create efficient and reliable embedded systems.

The DSPIC30F2010-30I/SP microcontroller offers a unique combination of high performance, versatility, and cost-effectiveness. Its 16-bit modified Harvard architecture, operating speeds of up to 30 MIPS, and integrated peripherals make it a powerful tool for embedded systems. You can rely on its features to handle tasks like motor control, audio processing, and industrial automation with precision and efficiency.

Key Takeaways:

• High-performance CPU and memory capabilities for demanding applications.

• Versatile pin configuration and rich peripheral set for seamless integration.

• Advanced analog features like ADC modules for accurate data acquisition.

The DSPIC30F2010-30I/SP inspires innovation in embedded systems. Its robust design and advanced capabilities allow you to create reliable and efficient solutions for modern challenges. Explore its potential to bring your ideas to life and redefine what’s possible in embedded technology.

FAQ

What development tools can you use with the DSPIC30F2010-30I/SP?

You can use MPLAB X IDE for coding and debugging. Pair it with the MPLAB XC16 Compiler to optimize the microcontroller's 16-bit architecture. For hardware debugging, try the MPLAB ICD 4 or PICkit 4. These tools simplify development and testing.

How does the DSPIC30F2010-30I/SP support motor control applications?

The microcontroller offers advanced PWM modules and a quadrature encoder interface (QEI). These features enable precise motor speed and position control. You can use it for DC, stepper, or AC motors in robotics, HVAC systems, and industrial machinery.

Can you use the DSPIC30F2010-30I/SP for low-power communication systems?

Yes, the DSPIC30F2010-30I/SP supports low-power designs with its energy-efficient architecture. Its UART, SPI, and I2C interfaces enable seamless communication. Use its low-power modes to extend battery life in portable devices or IoT systems.

Tip: Combine its CAN FD support with low-power features for efficient communication in automotive applications.

What makes the DSPIC30F2010-30I/SP suitable for automation control?

Its high-speed 16-bit CPU and integrated peripherals make it ideal for automation. The ADC modules handle sensor data, while PWM and timers manage precise control tasks. Its robust design ensures reliability in industrial environments.

Where can you find resources to start with the DSPIC30F2010-30I/SP?

Microchip Technology provides detailed development guides, sample code, and circuit designs. These resources help you understand the microcontroller's features and simplify your project development. Visit their official website for documentation and tools.

Note: Explore application cases like "How to develop a low-power communication system using DSPIC30F2010" for practical insights.
