CYUSB3014-BZXI, CYPRESS, High Speed Data Transfer USB Data Conversion Interface Chip for Embedded Systems
The CYUSB3014-BZXI is a high-performance USB 3.0 peripheral controller designed to revolutionize data transfer in embedded systems. It achieves data rates of up to 5 Gbps, enabling seamless communication between devices. This controller integrates advanced features like low power consumption and versatile connectivity, making it ideal for compact and efficient designs. Its ability to handle high-speed data transfer ensures smooth operation in applications such as medical imaging, industrial automation, and consumer electronics. By bridging the gap between speed and efficiency, the CYUSB3014-BZXI plays a pivotal role in modern embedded applications.
Key Takeaways
The CYUSB3014-BZXI offers USB 3.0 compliance with data transfer rates up to 5 Gbps, making it ideal for applications requiring rapid data communication.
Its General Programmable Interface (GPIF II) allows for versatile connectivity, enabling seamless integration with various devices and reducing development time.
Designed for low power consumption, the CYUSB3014-BZXI is perfect for energy-efficient applications, extending battery life in portable devices.
The chip supports multiple communication protocols (I2C, SPI, UART, I2S), ensuring adaptability across diverse industries like medical, industrial, and consumer electronics.
With a compact 121-pin BGA package, the CYUSB3014-BZXI optimizes space in designs, making it suitable for compact and efficient embedded systems.
Its robust performance in harsh environments, with an operating temperature range of -40°C to 85°C, ensures reliability in industrial applications.
Utilizing the CYUSB3014-BZXI can lead to cost savings by reducing the need for additional components and enhancing overall system performance.
Key Features of the CYUSB3014-BZXI
USB 3.0 Compliance and High-Speed Data Transfer
The CYUSB3014-BZXI stands out with its full compliance to the USB 3.0 specification, ensuring seamless integration into modern systems. You can achieve data transfer rates of up to 5 Gbps, which is ten times faster than USB 2.0. This remarkable speed allows you to handle large data files, such as high-resolution images or videos, with ease. The backward compatibility with USB 2.0 and 1.1 ensures that your existing devices remain functional while benefiting from the enhanced performance of USB 3.0. Whether you work with industrial equipment or consumer electronics, this feature guarantees efficient and reliable data communication.
General Programmable Interface (GPIF II) for Versatile Connectivity
The CYUSB3014-BZXI incorporates the General Programmable Interface (GPIF II), a unique feature that enhances its adaptability. This interface enables you to connect the chip to a wide range of devices, including processors, sensors, and other peripherals. GPIF II supports custom configurations, allowing you to tailor the connectivity to meet specific application requirements. By using this feature, you can simplify the design process and reduce development time. Its versatility makes it an excellent choice for applications like medical imaging, factory automation, and external storage solutions.
Low Power Consumption for Embedded Systems
Power efficiency is a critical factor in embedded systems, and the CYUSB3014-BZXI excels in this area. Operating within a voltage range of 1.7 V to 3.6 V, this chip minimizes power consumption without compromising performance. You can rely on it for applications where energy efficiency is essential, such as portable devices or battery-operated systems. The low-power suspend and resume operations further enhance its suitability for energy-conscious designs. This feature not only extends the lifespan of your devices but also reduces overall energy costs, making it a sustainable choice for modern applications.
Compatibility with Multiple Interfaces (I2C, I2S, SPI, UART)
The CYUSB3014-BZXI excels in its ability to interface with multiple communication protocols, making it a versatile solution for embedded systems. This chip supports widely used interfaces such as I2C, I2S, SPI, and UART, enabling seamless integration into diverse applications. Each of these interfaces serves a specific purpose, allowing you to connect the chip to various devices and peripherals efficiently.
I2C (Inter-Integrated Circuit): This interface is ideal for connecting low-speed peripherals like sensors and microcontrollers. With its simplicity and two-wire design, I2C minimizes the number of connections required, reducing complexity in your designs.
I2S (Inter-IC Sound): If your application involves audio processing, the I2S interface ensures high-quality sound transmission. It supports digital audio data transfer, making it suitable for devices like digital audio players, microphones, and speakers.
SPI (Serial Peripheral Interface): For high-speed communication, SPI provides a reliable solution. It is perfect for connecting components like flash memory, displays, and ADCs (Analog-to-Digital Converters). Its full-duplex capability ensures efficient data exchange between the chip and other devices.
UART (Universal Asynchronous Receiver-Transmitter): UART simplifies serial communication, making it a popular choice for connecting devices like GPS modules, Bluetooth modules, and other serial peripherals. Its asynchronous nature eliminates the need for a shared clock, further enhancing its flexibility.
By supporting these interfaces, the CYUSB3014-BZXI allows you to design systems that cater to specific needs without compromising performance. Whether you are working on industrial automation, consumer electronics, or medical devices, this compatibility ensures that your designs remain adaptable and future-proof. The ability to integrate multiple protocols into a single chip reduces the need for additional components, saving both space and cost in your projects.
Technical Specifications of the CYUSB3014-BZXI
Data Rates and Performance
The CYUSB3014-BZXI delivers exceptional performance with its USB 3.0 compliance, achieving data transfer rates of up to 5 Gbps. This speed allows you to handle large volumes of data efficiently, whether you're working with high-resolution images, videos, or real-time data streams. The chip's high bandwidth ensures smooth and uninterrupted communication between devices, making it ideal for applications like medical imaging, industrial automation, and external storage solutions. Its ability to maintain consistent performance under demanding conditions sets it apart as a reliable choice for high-speed data transfer.
Operating Voltage and Temperature Range
The operating voltage range of the CYUSB3014-BZXI spans from 1.7 V to 3.6 V, ensuring compatibility with various power supply configurations. This flexibility makes it suitable for both low-power and high-performance applications. The chip operates efficiently across a wide temperature range, from -40°C to 85°C, allowing you to use it in diverse environments. Whether you're designing portable devices or industrial systems, this robust temperature tolerance ensures reliable operation even in challenging conditions.
Memory and Storage Capabilities
The CYUSB3014-BZXI features integrated memory that enhances its functionality and performance. It includes a 512 KB SRAM, which supports efficient data buffering and processing. This memory capacity allows you to manage high-speed data streams effectively, reducing latency and improving overall system performance. The chip's ability to handle large data sets makes it an excellent choice for applications requiring real-time data acquisition and processing, such as image processing and data logging systems.

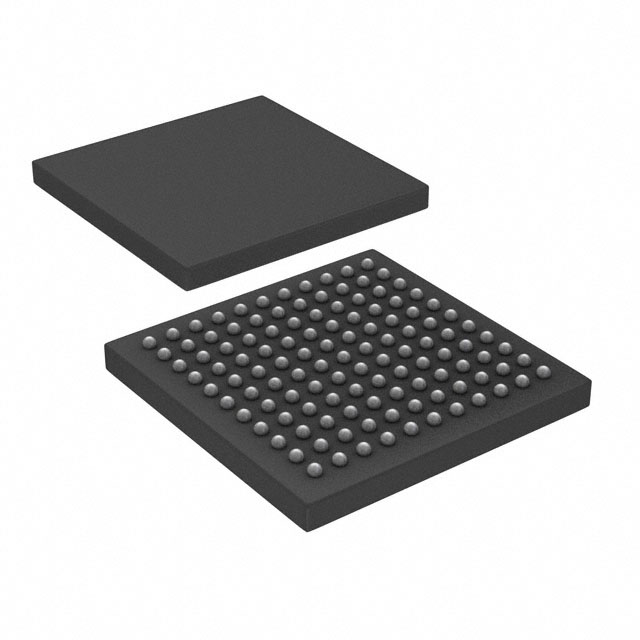

Compact 121-Pin BGA Package
The CYUSB3014-BZXI features a compact 121-pin Ball Grid Array (BGA) package, designed to optimize space in your electronic designs. This packaging format ensures efficient use of board real estate, making it ideal for applications where size constraints are critical. Whether you're working on portable devices or embedded systems, the small footprint of this chip allows you to create sleek and compact products without compromising functionality.
The BGA package enhances thermal performance by providing better heat dissipation. This ensures that your device operates reliably, even under demanding conditions. The arrangement of pins in a grid pattern also improves electrical performance by reducing signal interference and ensuring stable connections. These benefits make the CYUSB3014-BZXI a dependable choice for high-speed data transfer applications.
You can integrate this chip seamlessly into your designs due to its robust mechanical structure. The solder balls on the underside of the package provide strong and durable connections to the PCB, reducing the risk of mechanical failure. This reliability is especially important in industrial and medical applications, where consistent performance is essential.
By utilizing the 121-pin BGA package, you gain the flexibility to design advanced systems with multiple interfaces. The compact design supports connectivity options like USB 3.0, I2C, SPI, and UART, enabling you to create versatile and efficient solutions. This packaging not only saves space but also simplifies the assembly process, reducing production time and costs.
Applications of the CYUSB3014-BZXI in Various Industries
Medical Imaging and Diagnostic Equipment
The CYUSB3014-BZXI plays a vital role in advancing medical imaging and diagnostic technologies. You can rely on its high-speed data transfer capabilities to handle large volumes of data generated by devices like MRI scanners, CT machines, and ultrasound systems. These machines produce high-resolution images that require rapid and efficient transmission for real-time analysis. The chip’s compatibility with multiple interfaces, such as I2C and SPI, ensures seamless integration with sensors and processors used in medical equipment. Its low power consumption also makes it suitable for portable diagnostic devices, enabling healthcare professionals to deliver accurate results in remote or resource-limited settings.
"Leading companies invest in R&D to develop USB extenders that incorporate the latest technologies, such as USB 3.0, USB-C, and fiber optic solutions." This innovation aligns with the capabilities of the CYUSB3014-BZXI, ensuring compatibility with modern medical devices and enhancing their performance.
Factory Automation and Industrial Systems
In industrial environments, efficiency and reliability are paramount. The CYUSB3014-BZXI supports factory automation by enabling high-speed communication between sensors, controllers, and actuators. You can use its USB 3.0 compliance to achieve fast and stable data exchange, which is essential for real-time monitoring and control in automated systems. Its robust operating temperature range (-40°C to 85°C) ensures consistent performance in harsh industrial conditions. The chip’s GPIF II interface simplifies connectivity with various industrial components, reducing design complexity and development time. Whether you are working on robotics, assembly lines, or process control systems, this chip provides the speed and adaptability needed to optimize operations.
Security and Surveillance Systems
Security and surveillance systems demand reliable and high-speed data processing to ensure effective monitoring. The CYUSB3014-BZXI excels in this domain by facilitating the rapid transfer of high-definition video streams from cameras to storage or processing units. You can integrate it into IP cameras, DVRs, and NVRs to enhance their performance. Its compact 121-pin BGA package allows for space-efficient designs, making it ideal for modern, sleek surveillance devices. The chip’s ability to interface with multiple communication protocols, such as UART and I2S, ensures compatibility with various audio and video components. By leveraging its features, you can create advanced security systems that deliver real-time data with minimal latency.
Consumer Electronics and External Storage Devices
The CYUSB3014-BZXI enhances the performance of consumer electronics and external storage devices by enabling high-speed data transfer and seamless connectivity. You can rely on its USB 3.0 compliance to achieve data rates of up to 5 Gbps, which ensures quick and efficient communication between devices. This capability is essential for applications like external hard drives, SSDs, and multimedia devices where large data files need to be transferred or accessed rapidly.
In external storage devices, the chip’s high bandwidth supports smooth operation when handling tasks such as backing up data, transferring high-resolution videos, or accessing large databases. Its backward compatibility with USB 2.0 and 1.1 ensures that your older devices remain functional while benefiting from the advanced features of USB 3.0. This compatibility makes it a versatile choice for upgrading existing systems or designing new ones.
For multimedia devices like smart TVs, gaming consoles, and streaming boxes, the CYUSB3014-BZXI ensures uninterrupted data flow. You can enjoy high-definition video streaming or immersive gaming experiences without delays or buffering. The chip’s ability to interface with multiple communication protocols, such as I2S for audio and SPI for display modules, allows you to create feature-rich consumer electronics that meet modern demands.
"Leading companies invest in R&D to develop USB extenders that incorporate the latest technologies, such as USB 3.0, USB-C, and fiber optic solutions." This innovation aligns with the capabilities of the CYUSB3014-BZXI, ensuring compatibility with cutting-edge consumer electronics and enhancing their performance.
The compact 121-pin BGA package of the chip optimizes space in your designs, making it ideal for portable devices like external SSDs and USB flash drives. Its low power consumption further extends the battery life of these devices, providing a reliable and energy-efficient solution. By integrating the CYUSB3014-BZXI into your consumer electronics, you can deliver products that combine speed, efficiency, and adaptability, meeting the expectations of today’s tech-savvy users.
Development Resources and Tools for the CYUSB3014-BZXI
Evaluation Kits and Development Boards
To simplify your development process, evaluation kits and development boards for the CYUSB3014-BZXI provide a hands-on approach to testing and prototyping. These tools allow you to explore the chip's capabilities in real-world scenarios without the need for custom hardware. You can use these boards to evaluate performance, test connectivity, and optimize your designs before final implementation. The boards come pre-configured with essential components, ensuring you can focus on your application rather than hardware setup. Their compact size and user-friendly interfaces make them ideal for both beginners and experienced developers.
Cypress EZ-USB FX3 SDK and Software Tools
The *Cypress EZ-USB FX3 SDK* offers a comprehensive suite of software tools tailored for the CYUSB3014-BZXI. This SDK includes firmware libraries, example codes, and debugging utilities to streamline your development process. You can leverage these resources to create custom firmware that meets your specific application requirements. The intuitive interface of the SDK ensures you can quickly adapt to its environment, even if you are new to USB 3.0 development. Additionally, the software tools support seamless integration with popular development platforms, enabling you to accelerate your project timelines.
Documentation, Datasheets, and Technical Support
Access to detailed documentation and datasheets is crucial for successful development. The CYUSB3014-BZXI comes with an extensive library of technical resources, including user manuals, application notes, and design guidelines. These documents provide in-depth insights into the chip's features, specifications, and best practices for implementation. You can rely on these resources to troubleshoot issues, optimize performance, and ensure compliance with industry standards. Furthermore, dedicated technical support teams are available to assist you with any challenges you may encounter during development. Their expertise ensures you can overcome obstacles efficiently and achieve your project goals.
Why the CYUSB3014-BZXI is Significant for Embedded Systems
Enabling High-Speed Data Transfer in Modern Applications
The CYUSB3014-BZXI transforms how you handle data in modern applications. Its USB 3.0 compliance ensures data transfer rates of up to 5 Gbps, making it indispensable for systems requiring rapid communication. For instance, machine vision cameras rely on this chip to transmit large volumes of image data efficiently. This capability is crucial in industrial environments where precision and speed are non-negotiable. Similarly, data acquisition devices benefit from its high-speed interface, enabling seamless collection and transmission of sensor data. Whether you work with medical imaging systems or real-time monitoring devices, this chip guarantees smooth and reliable data flow.
"The high-speed USB interface makes it suitable for data acquisition devices that collect and transmit data from sensors, instruments, and other sources." - John Doe
By integrating this chip, you can ensure your applications meet the demands of modern technology, delivering exceptional performance and reliability.
Versatility and Adaptability Across Industries
The adaptability of the CYUSB3014-BZXI sets it apart in the embedded systems landscape. Its compatibility with multiple interfaces, such as I2C, SPI, and UART, allows you to use it across various industries. In medical devices, for example, it supports quick and efficient data transfer, essential for diagnostic equipment like MRI scanners and ultrasound machines. Industrial automation systems also leverage its versatility, connecting seamlessly with sensors and controllers to optimize operations.
"In medical imaging or monitoring devices that require quick and efficient data transfer." - Jane Smith
Additionally, the chip plays a pivotal role in consumer electronics, enhancing the performance of devices like external storage solutions and multimedia systems. Its ability to adapt to diverse applications ensures you can design systems that cater to specific needs without compromising functionality.
Cost-Effectiveness and Long-Term Reliability
The CYUSB3014-BZXI offers a cost-effective solution for high-performance embedded systems. Its compact 121-pin BGA package reduces the need for additional components, saving both space and production costs. You can rely on its robust design to deliver consistent performance over time, minimizing maintenance and replacement expenses. This reliability is particularly valuable in critical applications, such as medical and industrial systems, where downtime can lead to significant losses.
By choosing this chip, you invest in a solution that balances performance, adaptability, and affordability. Its long-term reliability ensures your systems remain operational and efficient, providing value for years to come.
The CYUSB3014-BZXI stands out as a powerful solution for high-speed data transfer in embedded systems. Its USB 3.0 compliance, versatile connectivity, and low power consumption make it an essential component for modern applications. You can leverage its capabilities across industries, from medical imaging to consumer electronics, ensuring efficient and reliable performance. This chip not only addresses the growing demand for faster data communication but also supports compact and energy-efficient designs. By integrating it into your projects, you contribute to advancing technologies that redefine data transfer standards.
FAQ
What is the CYUSB3014-BZXI, and how does it differ from other USB controllers?
The CYUSB3014-BZXI is a USB 3.0 peripheral controller designed for high-speed data transfer in embedded systems. It stands out due to its compliance with USB 3.0 standards, offering data rates of up to 5 Gbps. Unlike many other USB controllers, it features a programmable interface (GPIF II) that allows you to customize connectivity for various applications. Its low power consumption and compatibility with multiple interfaces, such as I2C, SPI, and UART, make it a versatile and efficient choice.
How can I start developing with the CYUSB3014-BZXI?
You can begin development using evaluation kits and development boards specifically designed for the CYUSB3014-BZXI. These tools provide a ready-to-use platform for testing and prototyping your USB-based applications. Additionally, the Cypress EZ-USB FX3 SDK offers firmware libraries, example codes, and debugging utilities to simplify your development process. These resources allow you to explore the chip's capabilities and optimize your designs efficiently.
What are the key applications of the CYUSB3014-BZXI?
The CYUSB3014-BZXI is widely used in applications requiring high-speed data transfer. Some of its key applications include:
Medical Imaging: Enables real-time data transfer in devices like MRI scanners and ultrasound machines.
Factory Automation: Supports seamless communication between sensors, controllers, and actuators.
Security Systems: Facilitates high-definition video streaming in IP cameras and DVRs.
Consumer Electronics: Enhances performance in external storage devices and multimedia systems.
Its versatility makes it suitable for a wide range of industries.
What development resources are available for the CYUSB3014-BZXI?
You have access to several development resources, including:
Evaluation Kits and Development Boards: These provide a hands-on approach to testing and prototyping.
Cypress EZ-USB FX3 SDK: A comprehensive software suite with firmware libraries and debugging tools.
Documentation and Datasheets: Detailed guides and technical support to assist you throughout the development process.
These resources ensure a smooth and efficient development experience.
How does the GPIF II interface enhance the functionality of the CYUSB3014-BZXI?
The GPIF II (General Programmable Interface) allows you to connect the chip to a variety of devices, such as processors and sensors. It supports custom configurations, enabling you to tailor the interface to meet specific application requirements. This flexibility simplifies the design process and reduces development time, making it ideal for applications like factory automation and medical imaging.
Is the CYUSB3014-BZXI compatible with older USB standards?
Yes, the CYUSB3014-BZXI is backward compatible with USB 2.0 and 1.1. This ensures that you can integrate it into existing systems without losing functionality. While it provides the advanced features of USB 3.0, it also maintains compatibility with older devices, offering a seamless upgrade path.
What makes the CYUSB3014-BZXI suitable for embedded systems?
The CYUSB3014-BZXI excels in embedded systems due to its low power consumption, compact 121-pin BGA package, and versatile connectivity options. Its operating voltage range of 1.7 V to 3.6 V ensures energy efficiency, while its compatibility with multiple interfaces allows for seamless integration into diverse applications. These features make it an ideal choice for portable and battery-operated devices.
Can the CYUSB3014-BZXI handle high-speed data acquisition?
Yes, the CYUSB3014-BZXI is designed for high-speed data acquisition. Its USB 3.0 compliance enables data rates of up to 5 Gbps, making it suitable for applications like real-time monitoring and image processing. The integrated 512 KB SRAM ensures efficient data buffering and processing, reducing latency and improving overall performance.
What industries benefit the most from the CYUSB3014-BZXI?
Industries that require high-speed data transfer and reliable performance benefit significantly from the CYUSB3014-BZXI. These include:
Healthcare: For diagnostic equipment and portable medical devices.
Industrial Automation: For real-time monitoring and control systems.
Consumer Electronics: For external storage solutions and multimedia devices.
Security: For advanced surveillance systems.
Its adaptability across these industries highlights its significance in modern technology.
Where can I purchase the CYUSB3014-BZXI and related components?
You can purchase the CYUSB3014-BZXI and related components from trusted distributors like Deirchip. They offer a wide range of electronic parts, including integrated circuits, sensors, and connectors, ensuring you find everything needed for your project.
