How ATMEGA88PA-AU Powers Modern Data Acquisition Systems
When you think about modern tech systems, two things matter most: working well and being dependable. The ATMEGA88PA-AU microcontroller excels in both areas, making it an ideal choice for an ATMEGA88PA-AU application case analysis for motor control and data acquisition systems. It operates smoothly, even in challenging conditions.
Here’s why it’s effective in its role:
It processes nearly 1 MIPS per MHz, which helps save energy while maintaining speed.
Its architecture executes instructions more quickly, outperforming older microcontrollers.
With 32 registers, it can utilize two simultaneously in a single cycle.
These features position the ATMEGA88PA-AU as a leading option for engineers looking to enhance their technology designs.
Key Takeaways
The ATMEGA88PA-AU microcontroller works fast, handling 1 MIPS per MHz.
It has an 8-channel, 10-bit ADC for accurate data collection. This makes it great for motor control and data systems.
Its low-power modes save energy, making it eco-friendly and cheaper to use.
With six PWM channels, it controls motor speed precisely. This improves how robots and machines work.
It has strong communication tools like I2C and SPI. These help it connect easily with sensors and devices.

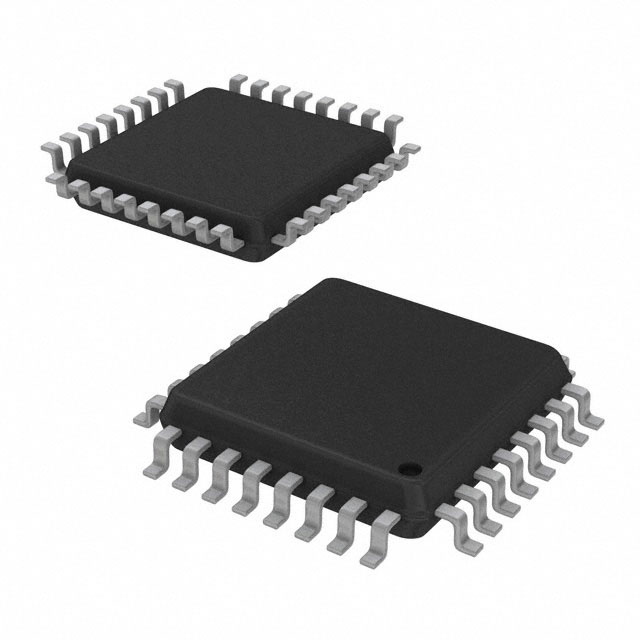

Overview of ATMEGA88PA-AU
Key Features of the Microcontroller
The ATMEGA88PA-AU is a flexible microcontroller for modern systems. It works well in projects needing accuracy, speed, and dependability. It has strong communication tools like I2C, SPI, and UART/USART. These tools make it easy to connect with other devices and share data smoothly.
One important feature is its 8-channel ADC with 10-bit resolution. This converts analog signals into digital ones with great precision. This is very useful for systems that collect data. It also has a low-power mode to save energy in your designs. A watchdog timer is included to keep the system stable by restarting it if something goes wrong.
Here’s a quick look at its main features:
Feature | Description |
|---|---|
Communication Interfaces | Works with I2C, SPI, UART/USART for easy device connections. |
Analog-to-Digital Converter | 8-channel ADC with 10-bit resolution for precise signal conversion. |
Power Management | Low power mode helps save energy. |
Watchdog Timer | Restarts the system if it detects a problem. |
Specifications Relevant to Motor Control and Data Acquisition
The ATMEGA88PA-AU has features perfect for motor control and data collection. For motor control, it offers six PWM channels. These channels help control motor speed and strength accurately. Its ADC, with 10-bit resolution, collects sensor data with high accuracy.
The ADC supports eight channels in TQFP/QFN/MLF packages or six in PDIP packages. This makes it work with different hardware setups. Compared to older microcontrollers, it performs better. For example, its GPIO toggle rate is faster than models like the 8051 and PIC16.
Here’s a comparison of its performance:
Microcontroller | Frequency | GPIO Toggle Rate |
|---|---|---|
8051 | 50 MHz | ~5 MHz |
PIC16 | 20 MHz | ~3 MHz |
PIC18 | 40 MHz | ~7 MHz |
And here’s a summary of its motor control and data collection features:
Specification | Details |
|---|---|
PWM Channels | |
ADC Resolution | 10-bit ADC for collecting accurate data |
ADC Channels | 8 channels in TQFP/QFN/MLF or 6 in PDIP |
These features show why engineers choose the ATMEGA88PA-AU for advanced projects.
ATMEGA88PA-AU Application Case Analysis for Motor Control
Controlling Motor Speed
The ATMEGA88PA-AU is great for controlling motor speed. It has six PWM channels to adjust speed accurately. This is helpful for conveyor belts or robotic arms. These systems need steady and precise speed. The microcontroller processes nearly 1 MIPS per MHz. This makes speed changes fast and smooth. Its ADC lets you check motor performance in real time. This ensures motors work well, even with changing loads.
Detecting Position for Better Control
Position sensing is key for CNC machines or assembly lines. The ATMEGA88PA-AU handles this with its ADC and GPIO. You can connect position sensors directly to it. This allows quick data processing with little delay. Its 10-bit ADC detects small position changes. This helps improve motor control and reduces mistakes. It makes systems more accurate and reliable.
Saving Energy in Motor Systems
Saving energy is important in motor systems today. The ATMEGA88PA-AU helps with its low-power modes. Its PWM channels manage motor power to avoid waste. The ADC monitors energy use and gives helpful data. This helps you design systems that save energy but stay powerful. These features make it a smart choice for efficient motor control.
ATMEGA88PA-AU Application Case Analysis for Data Acquisition Systems
Connecting Sensors and Collecting Data
The ATMEGA88PA-AU works well with many types of sensors. It can connect to ultrasonic sensors to measure distances. The microcontroller changes signals into voltage levels from 0 to 5 volts. This helps detect objects or changes in the environment accurately.
Its 8-channel ADC collects data from several sources at once. For example, in robots, it checks evidence to find obstacles. This feature makes sensor systems work better and handle changing situations smoothly.
Fast Data Processing in Real Time
Modern systems need to process data quickly. The ATMEGA88PA-AU does this with its fast design. It processes nearly 1 MIPS per MHz, so it analyzes data instantly. This speed helps systems react fast, like when checking weather or running machines.
Its real-time processing is great for weather stations or factories. It gives accurate results without delays. This ensures your system works at its best.
Watching and Controlling in Embedded Systems
Embedded systems need careful watching and control to work well. The ATMEGA88PA-AU makes this easy with its helpful features. Its ADC gathers sensor data, and GPIO pins control devices. This creates smooth teamwork between monitoring and control.
For example, in smart homes, it checks temperature sensors and adjusts HVAC systems. Its low-power mode saves energy, making it affordable for long-term use. With the ATMEGA88PA-AU, you can create systems that are reliable and efficient.
Advantages of Using ATMEGA88PA-AU in Applications
Saving Energy with Low Power Use
Saving energy is very important today. The ATMEGA88PA-AU microcontroller uses little power. It has special modes to save energy when needed. For example, in battery devices, it helps them last longer.
Its smart design processes tasks efficiently, wasting less energy. This makes it great for systems like automation, where saving energy saves money. With this microcontroller, you can build strong and eco-friendly systems.
Fast and Reliable for Embedded Systems
The ATMEGA88PA-AU works quickly and reliably. It processes almost 1 MIPS per MHz, making it fast. This speed is important for systems like motor control or data collection.
Its ADC converts signals accurately, improving system precision. The microcontroller’s strong design keeps it working well, even in tough conditions. You can trust it for stable and reliable performance in embedded systems.
Works Well for Motor Control and Data Collection
The ATMEGA88PA-AU is very flexible. It has six PWM channels to control motors precisely. This helps adjust speed and power in robots or machines.
For data collection, its 8-channel ADC gathers accurate sensor data. This is useful for things like tracking the environment or smart homes. Whether for motors or sensors, this microcontroller fits many needs easily.
Tip: The ATMEGA88PA-AU is a great choice for engineers creating modern tech.
The ATMEGA88PA-AU microcontroller has changed how we handle motor control and data systems. It offers accurate control, fast data processing, and saves energy. This makes it key for modern embedded designs.
What makes it special:
Six PWM channels to control motors precisely.
An 8-channel, 10-bit ADC for collecting exact data.
Low-power modes to improve energy use.
The ATMEGA88PA-AU is reliable and flexible. It helps engineers create smarter and more efficient systems. It’s a trusted tool for turning ideas into reality.
FAQ
Why is the ATMEGA88PA-AU great for embedded systems?
It uses little power and works very fast. Its ADC and PWM channels help with data collection and motor control. It is built to work well in many conditions.
How does the ATMEGA88PA-AU handle real-time data?
It processes almost 1 MIPS per MHz, making it quick. This speed helps check and control systems without waiting. Its ADC and GPIO pins work together for smooth and accurate results.
Can the ATMEGA88PA-AU manage many sensors at once?
Yes, it can. Its 8-channel ADC connects to many sensors at the same time. This makes it good for collecting lots of data, like in factories or weather systems.
Why is the ATMEGA88PA-AU good for motor control?
It has six PWM channels to control motor speed and power. Its ADC checks how motors are working and adjusts them quickly. These features make it dependable for motor systems.
Is the ATMEGA88PA-AU compatible with other AVR microcontrollers?
Yes, it is. It is part of the AVR family, so it works with other AVR microcontrollers. This makes it easy to use in old or new systems.
