The ADCLK846BCPZ, an ADI High Performance Clock Buffer Chip, is distinguished by its remarkable features and advantages. This chip is pivotal in enhancing performance across a wide range of electronic systems. Users depend on the ADCLK846BCPZ for its low jitter and strong output drive capability. Its flexibility in input and output configurations adds to its attractiveness. The industry acknowledges the ADCLK846BCPZ for its dependability and robust performance. For detailed specifications, visit https://www.alldatasheet.com/datasheet-pdf/pdf/300.

Key Features of ADCLK846BCPZ, ADI, High Performance Clock Buffer Chip

Low Jitter and Phase Noise

The ADCLK846BCPZ, ADI, High Performance Clock Buffer Chip excels in delivering low jitter and phase noise, which are critical for maintaining signal integrity in high-speed applications. This chip achieves an integrated random jitter of 54fs rms, making it ideal for environments where precision is paramount. By minimizing jitter, the ADCLK846BCPZ ensures that clock signals remain stable, reducing errors in data transmission and enhancing overall system performance. This feature is particularly beneficial in telecommunications and networking sectors, where reliable data integrity is essential.

High Output Drive Capability

The ADCLK846BCPZ offers impressive output drive capabilities, supporting up to 6 LVDS outputs at 1.2GHz or 12 CMOS outputs at 250MHz. This versatility allows it to cater to a wide range of applications, from industrial electronics to consumer devices. The ability to switch between LVDS and CMOS outputs provides flexibility in design, enabling engineers to optimize their systems for specific requirements. This high output drive capability ensures that the clock buffer can handle demanding tasks without compromising on performance.

Versatile Input and Output Configurations

Versatility stands out as a key feature of the ADCLK846BCPZ, ADI, High Performance Clock Buffer Chip. It supports multiple input and output configurations, allowing users to tailor the chip to their specific needs. The device's design includes two control lines that determine whether outputs are LVDS or CMOS, providing adaptability in various applications. This flexibility makes the ADCLK846BCPZ suitable for a broad spectrum of uses, from high-speed data transmission to precise clock recovery. Its adaptability ensures that it can meet the diverse demands of modern electronic systems.

For more detailed specifications, visit https://www.alldatasheet.com/datasheet-pdf/pdf/300.

Technical Specifications

The ADCLK846BCPZ, a high-performance clock buffer chip from Analog Devices, Inc., boasts impressive technical specifications that cater to various demanding applications. Understanding these specifications helps users appreciate the chip's capabilities and suitability for different environments.

Electrical Characteristics

The ADCLK846BCPZ operates within a voltage range of 1.71V to 1.89V, ensuring compatibility with a wide array of electronic systems. This voltage range supports efficient power management, which is crucial for maintaining system stability. The chip features an integrated random jitter of 54fs rms, a specification that highlights its ability to maintain signal integrity in high-speed applications. This low jitter level is essential for applications requiring precise timing, such as telecommunications and data centers.

Additionally, the ADCLK846BCPZ supports up to 6 LVDS outputs at 1.2GHz or 12 CMOS outputs at 250MHz. This capability allows the chip to handle various output configurations, making it versatile for different design requirements. The electrical characteristics of the ADCLK846BCPZ make it a reliable choice for engineers seeking high-performance clock distribution solutions.

Mechanical and Environmental Specifications

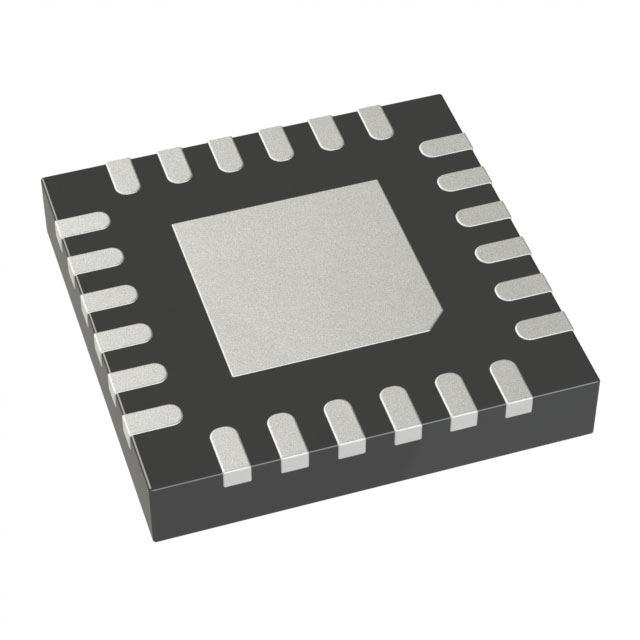

The ADCLK846BCPZ comes in a 24-pin LFCSP (Lead Frame Chip Scale Package) format. This packaging is advantageous for space-constrained designs, allowing for efficient use of board space. The compact size of the package ensures that the chip can be integrated into a variety of systems without compromising on performance.

In terms of environmental specifications, the ADCLK846BCPZ is designed to operate in a range of conditions, making it suitable for diverse applications. Its robust design ensures reliability even in challenging environments, providing users with confidence in its performance. The mechanical and environmental specifications of the ADCLK846BCPZ contribute to its reputation as a dependable component in high-performance electronic systems.

For more detailed specifications, visit https://www.alldatasheet.com/datasheet-pdf/pdf/300.

Applications of ADCLK846BCPZ, ADI, High Performance Clock Buffer Chip

Telecommunications

The ADCLK846BCPZ, ADI, High Performance Clock Buffer Chip plays a crucial role in telecommunications. It supports high-speed data transmission, which is essential for modern communication networks. The chip's low jitter performance ensures that signals remain clear and precise, reducing errors during data transfer. Telecommunications systems rely on this chip to maintain signal integrity across long distances. Its ability to handle a wide range of input frequencies makes it adaptable to various telecommunication standards. This versatility allows engineers to integrate the chip into different network architectures, enhancing overall system performance.

Data Centers

Data centers demand reliable and efficient clock distribution systems. The ADCLK846BCPZ excels in this environment by providing stable clock signals necessary for synchronizing operations across multiple servers. Its high output drive capability supports numerous outputs, making it ideal for large-scale data center applications. The chip's design optimizes it for low jitter performance, which is critical in maintaining data integrity and reducing latency. By integrating the ADCLK846BCPZ, data centers can achieve higher efficiency and reliability, ensuring seamless data processing and storage.

Consumer Electronics

In consumer electronics, the ADCLK846BCPZ, ADI, High Performance Clock Buffer Chip enhances device performance by providing precise timing solutions. Devices such as smartphones, tablets, and gaming consoles benefit from its low jitter and versatile output configurations. The chip supports both LVDS and CMOS outputs, allowing manufacturers to design products that meet specific performance requirements. Its compact packaging makes it suitable for space-constrained designs, enabling the development of sleek and efficient consumer devices. By using this chip, manufacturers can deliver products with improved functionality and user experience.

Benefits of Using ADCLK846BCPZ

Improved System Performance

The ADCLK846BCPZ, ADI, High Performance Clock Buffer Chip significantly enhances system performance. It excels in high-speed digital signal processing systems, ensuring precise timing and synchronization. This chip's low jitter and phase noise contribute to maintaining signal integrity, which is crucial for applications like telecommunications equipment for 5G and 4G networks. By providing stable clock signals, the ADCLK846BCPZ reduces errors in data transmission, leading to improved reliability and efficiency in electronic systems. Its ability to support multiple output configurations allows it to adapt to various system requirements, making it a versatile choice for engineers seeking to optimize performance.

Cost-Effectiveness

The ADCLK846BCPZ offers a cost-effective solution for high-performance clock distribution. Its design supports a wide range of applications, reducing the need for multiple specialized components. This versatility translates into cost savings for manufacturers and designers. The chip's efficient power management further enhances its cost-effectiveness by minimizing energy consumption, which is particularly beneficial in large-scale operations like data centers. Additionally, the ADCLK846BCPZ's robust performance and reliability reduce maintenance costs and downtime, providing long-term financial benefits. By choosing this clock buffer, users can achieve high performance without incurring excessive expenses.

Comparison with Other Clock Buffers

Performance Metrics

The ADCLK846BCPZ stands out in the realm of clock buffers due to its superior performance metrics. When compared to other clock buffers, it consistently delivers lower jitter and phase noise. This feature ensures that signals remain stable and precise, which is crucial for high-speed applications. Many competing clock buffers struggle to achieve the same level of signal integrity, often resulting in higher error rates during data transmission.

Low Jitter: The ADCLK846BCPZ achieves an integrated random jitter of 54fs rms, a benchmark that many other clock buffers fail to meet.
High Output Drive Capability: It supports up to 6 LVDS outputs at 1.2GHz or 12 CMOS outputs at 250MHz, providing versatility that is unmatched by many alternatives.
Versatile Configurations: Its ability to switch between LVDS and CMOS outputs offers flexibility in design, a feature not commonly found in other clock buffers.

These performance metrics highlight the ADCLK846BCPZ's ability to maintain signal integrity and reliability, setting it apart from its competitors.

Market Position

In the market, the ADCLK846BCPZ holds a strong position due to its emphasis on product innovations. Analog Devices, Inc., the manufacturer, has a reputation for producing high-performance analog and mixed-signal integrated circuits. This reputation enhances the market appeal of the ADCLK846BCPZ.

Reputation for Innovation: Analog Devices consistently introduces cutting-edge technology, ensuring that their products, including the ADCLK846BCPZ, remain at the forefront of the industry.
Reliability and Trust: The ADCLK846BCPZ is known for its dependability, making it a preferred choice among engineers and designers who require robust performance.
Wide Range of Applications: Its versatility allows it to be used in various sectors, from telecommunications to consumer electronics, broadening its market reach.

The ADCLK846BCPZ's market position reflects its ability to meet the diverse needs of modern electronic systems, reinforcing its status as a top choice for high-performance clock buffers.

Future Prospects and Developments

Innovations in Clock Buffer Technology

The clock buffer technology landscape is rapidly evolving, driven by the demand for faster and more efficient electronic systems. Renesas Electronics Corporation, a leader in this field, has made significant strides with their Gen 3 RCD, which features DDR5 memory interfaces. These interfaces cater to dual inline memory modules (DIMMs), motherboards, and embedded applications. The DDR5 RCD and DDR5 CKD ICs offer remarkable speed enhancements, reaching up to 7200 mega transfers per second (MT/s). This development underscores Renesas' commitment to innovation in clock buffer technology.

"Major market players are actively engaged in developing innovative clock buffers, including low-jitter clock buffers and those adhering to PCIe Gen6 specifications." - Renesas Electronics Corporation

The market is witnessing a surge in product innovations, with companies focusing on low-jitter clock buffers and those meeting PCIe Gen6 specifications. These advancements ensure that clock buffers remain relevant and competitive in the market. The increasing number of Internet of Things (IoT)-linked devices further boosts the clock buffer market. IoT devices, characterized by wireless connectivity and data transmission capabilities, require seamless clock buffer solutions for efficient operation within interconnected ecosystems.

ADI's Roadmap for Clock Buffers

Analog Devices, Inc. (ADI) continues to lead the charge in clock buffer technology with a clear roadmap for future developments. ADI focuses on enhancing the performance and versatility of their clock buffers to meet the growing demands of modern electronic systems. Their commitment to innovation ensures that their products remain at the forefront of the industry.

Key Focus Areas:

Low Jitter Performance: ADI aims to further reduce jitter levels in their clock buffers, ensuring precise timing and synchronization in high-speed applications.
Versatile Configurations: ADI plans to expand the versatility of their clock buffers, allowing for more flexible input and output configurations to cater to diverse design requirements.
Energy Efficiency: ADI is committed to improving the energy efficiency of their clock buffers, reducing power consumption without compromising performance.

The future of clock buffer technology looks promising, with ongoing innovations and strategic roadmaps from leading companies like ADI and Renesas. These advancements will continue to drive the growth and development of high-performance electronic systems across various industries.

The ADCLK846BCPZ stands out with its exceptional features and benefits, making it a top choice for high-performance clock buffers. Its low jitter and versatile configurations enhance system performance across various industries. Telecommunications and networking systems benefit significantly from its precise clocking capabilities. The ADCLK846BCPZ's impact extends to data centers and consumer electronics, where it ensures reliable and efficient operations. As technology advances, this clock buffer's potential continues to grow, reinforcing its position as a leading solution in high-speed data applications.
