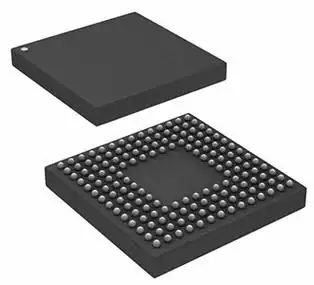

AD9739BBCZ: Discover ADI's High-Performance DAC Chips — Image Source: https://deirchip.com/

The AD9739BBCZ, a product of Analog Devices, Inc. (ADI), exemplifies excellence in high-performance digital-to-analog converter chips. This 14-bit DAC features an impressive sampling rate of up to 2.5 GSPS, positioning it as a leader in both speed and resolution. Its low power consumption combined with outstanding linearity enhances its efficiency, distinguishing it in the digital-to-analog converter market. The AD9739BBCZ's capability to synthesize wideband signals from DC up to 3.0 GHz further solidifies its reputation for superior performance. For more detailed specifications, visit https://www.alldatasheet.com/datasheet-pdf/view/54.

Key Features of the AD9739BBCZ

Resolution and Speed

The AD9739BBCZ stands out with its remarkable 14-bit resolution, ensuring precise digital-to-analog conversion. This high resolution is crucial for applications demanding accuracy and detail. Operating at a maximum sampling rate of 2.5 GSPS, this DAC chip delivers exceptional speed. Such speed allows it to handle wideband signals efficiently, making it ideal for high-speed communication systems and radar applications. The quad-switch architecture enhances its performance by minimizing distortion, thus providing clear and accurate signal synthesis. Users can explore multicarrier generation up to the Nyquist frequency in baseband mode, as well as in the second and third Nyquist zones in mix mode. This versatility makes the AD9739BBCZ a preferred choice for professionals seeking high-speed and high-resolution solutions.

Power Efficiency

Power efficiency remains a critical feature of the AD9739BBCZ. With a power consumption of just 1.16 W at 2.5 GSPS, it offers a balance between performance and energy use. This low power requirement makes it suitable for applications where energy efficiency is paramount, such as portable and battery-operated devices. The DAC also includes various power-down modes, allowing users to optimize power usage based on specific needs. Additionally, the programmable output current, ranging from 8.66 mA to 31.66 mA, provides flexibility in power management. This adaptability ensures that the AD9739BBCZ can meet diverse application requirements while maintaining energy efficiency. For more detailed specifications,

Performance Specifications

Technical Specifications

The AD9739BBCZ stands as a pinnacle of technical prowess in the realm of digital-to-analog converters. It boasts a 14-bit resolution, which ensures precise and accurate signal conversion. This high resolution is crucial for applications that demand meticulous detail and accuracy. The DAC operates at a maximum sampling rate of 2.5 GSPS, enabling it to handle wideband signals with ease. This capability makes it ideal for high-speed communication systems and radar applications.

The chip's quad-switch architecture minimizes distortion, providing clear and accurate signal synthesis. This architecture allows users to explore multicarrier generation up to the Nyquist frequency in baseband mode, as well as in the second and third Nyquist zones in mix mode. Such versatility makes the AD9739BBCZ a preferred choice for professionals seeking high-speed and high-resolution solutions.

Performance Benchmarks

In terms of performance benchmarks, the AD9739BBCZ excels in various demanding applications. Its low power consumption of just 1.16 W at 2.5 GSPS offers a balance between performance and energy use. This efficiency makes it suitable for applications where energy conservation is paramount, such as portable and battery-operated devices. The DAC also includes various power-down modes, allowing users to optimize power usage based on specific needs.

The programmable output current, ranging from 8.66 mA to 31.66 mA, provides flexibility in power management. This adaptability ensures that the AD9739BBCZ can meet diverse application requirements while maintaining energy efficiency. For more detailed specifications,

Applications of the AD9739BBCZ

Telecommunications

The AD9739BBCZ plays a pivotal role in telecommunications. Its high-speed digital-to-analog conversion capabilities make it indispensable for modern communication systems. With a 14-bit resolution and a maximum sampling rate of 2.5 GSPS, this DAC chip ensures precise signal processing. Telecommunications infrastructure relies on such precision to handle vast amounts of data efficiently. The AD9739BBCZ's ability to synthesize wideband signals from DC up to 3.0 GHz allows it to support various communication protocols. This versatility makes it a preferred choice for network providers aiming to enhance their service quality and reliability.

Instrumentation

In the field of instrumentation, the AD9739BBCZ stands out for its exceptional performance. Test and measurement equipment demand high accuracy and speed, which this DAC chip delivers. Its low power consumption, combined with outstanding linearity, ensures that instruments can operate efficiently without compromising on performance. The AD9739BBCZ's quad-switch architecture minimizes distortion, providing clear and accurate signal synthesis. This feature is crucial for applications requiring detailed analysis and precise measurements. As a result, industries that rely on instrumentation, such as aerospace and defense, benefit significantly from integrating this high-performance digital-to-analog converter chip into their systems.

Benefits of Using the AD9739BBCZ

System Performance

The AD9739BBCZ, a high-performance digital-to-analog converter chip from ADI, significantly enhances system performance. Its 14-bit resolution ensures precise signal conversion, which is crucial for applications requiring high accuracy. The DAC's ability to operate at a maximum sampling rate of 2.5 GSPS allows it to handle wideband signals efficiently. This capability makes it ideal for high-speed communication systems and radar applications. Users benefit from its quad-switch architecture, which minimizes distortion and provides clear signal synthesis. This feature ensures that systems can deliver superior performance without compromising on quality.

Reliability and Longevity

Reliability and longevity stand as key advantages of the AD9739BBCZ. ADI has designed this high-performance digital-to-analog converter chip to withstand demanding environments. Its robust construction ensures consistent performance over time, making it a reliable choice for critical applications. The DAC's low power consumption contributes to its longevity by reducing thermal stress on components. This efficiency not only extends the lifespan of the chip but also enhances the overall reliability of the systems in which it is integrated. Industries that rely on long-term performance, such as telecommunications and instrumentation, find the AD9739BBCZ to be an invaluable asset.

Comparison with Other DACs

Unique Selling Points

The AD9739BBCZ distinguishes itself in the digital-to-analog converter market with several unique selling points. Its quad-switch architecture sets it apart, offering exceptional distortion performance and enabling direct RF synthesis capabilities. This feature allows the chip to synthesize wideband signals up to 3.0 GHz, making it highly versatile for various applications. The DAC's ability to operate at a speed of 2.5 GSPS further enhances its appeal, providing high-speed performance that is crucial for demanding environments.

Moreover, the AD9739BBCZ offers flexible programming options for output current, ranging from 8.66 mA to 31.66 mA. This adaptability ensures that users can tailor the DAC's performance to meet specific application requirements, enhancing its utility across different sectors. Compared to equivalent products like the AD9739A, AD9739B, and AD9737A, the AD9739BBCZ stands out with its superior resolution and dynamic range, making it a preferred choice for professionals seeking high-performance solutions.

Market Position

In the competitive landscape of digital-to-analog converters, the AD9739BBCZ holds a strong market position. It is part of the renowned AD9739 series from Analog Devices, which is designed for high-performance applications such as communications, instrumentation, and radar systems. The series is known for delivering superior performance and reliability, attributes that are critical in industries where precision and consistency are paramount.

The AD9739BBCZ's low power consumption, combined with its robust construction, contributes to its longevity and reliability. These features make it an invaluable asset for industries that demand long-term performance. Its ability to deliver a sampling rate of 2.5 GSPS, coupled with its exceptional resolution, positions it as a leader in the DAC market. This strong market position is further reinforced by its reputation for speed, efficiency, and versatility, making it a top choice for professionals across various sectors.

The AD9739BBCZ from ADI stands as a testament to the advancements in high-performance digital-to-analog converter chips. Its key features, such as 14-bit resolution and a 2.5 GSPS sampling rate, highlight its capability to deliver precise and efficient signal processing. These attributes make it indispensable in high-performance applications like telecommunications and instrumentation. Professionals seeking reliable and versatile DAC solutions should consider the AD9739BBCZ for their needs. For more detailed specifications,
