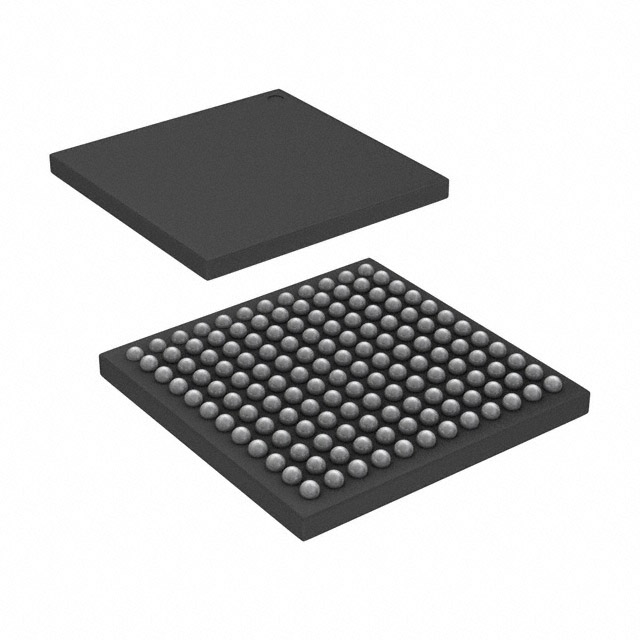

AD9361BBCZ,ADI,RF chip for wireless communication

The AD9361BBCZ is a highly versatile RF chip designed for wireless communication systems. Its advanced capabilities make it a cornerstone in modern communication technologies. This chip supports a wide range of applications, including automotive radar systems for collision avoidance, software-defined radios for military use, and portable medical devices like ultrasound machines. It also plays a critical role in LTE, Wi-Fi, and 5G base stations, ensuring robust infrastructure. By enabling efficient signal transmission in satellite communications, it addresses connectivity challenges in remote areas. The AD9361BBCZ exemplifies innovation, offering unmatched performance and adaptability in diverse communication scenarios.

Key Takeaways

• The AD9361BBCZ works with frequencies from 70 MHz to 6 GHz. This makes it useful for many systems like LTE and 5G.

• It has many built-in parts, so fewer extra parts are needed. This makes designs simpler and more reliable for wireless systems.

• It uses little power, helping battery devices last longer. This keeps performance good without losing quality.

• Engineers can change settings while it runs. This helps improve performance for different uses without changing the hardware.

• The chip has two channels for sending and receiving signals. This allows it to send and get signals at the same time, which is important for some tasks.

Key Features and Specifications of the AD9361BBCZ

Wideband RF Coverage

The AD9361 offers exceptional wideband RF coverage, making it a standout choice for modern communication systems. Its frequency range spans from 70 MHz to 6 GHz, enabling compatibility with diverse communication standards. This versatility allows engineers to deploy the chip across multiple applications without requiring hardware modifications.

Tip: Wideband coverage reduces development time and accelerates time-to-market for new communication solutions.

The chip supports advanced modulation schemes such as QPSK, 16QAM, and 64QAM, ensuring high-quality signal transmission and reception. This capability is crucial for maintaining performance in environments with significant noise or interference.

High Integration and Programmability

The AD9361 integrates transceiver modules, minimizing the need for external components. This high level of integration simplifies system design, reduces potential points of failure, and enhances reliability. The chip's compact 144-CSPBGA package (10x10) further streamlines its integration into various systems.

The chip's programmability enables dynamic adaptation to changing conditions. Engineers can configure it for optimal performance in different use cases, ensuring it meets the demands of evolving communication technologies.

Low Power Consumption

Energy efficiency is a critical factor in modern RF ICs, and the AD9361 excels in this area. Its advanced dynamic power management adjusts power usage based on operational needs, significantly reducing energy consumption. This feature is particularly beneficial for battery-powered devices, extending their operational life.

The chip's low power consumption does not compromise its performance. It ensures robust signal transmission and reception, making it ideal for applications requiring high efficiency and reliability.

Frequency Range and Bandwidth

The ad9361 offers an impressive frequency range that spans from 70 MHz to 6 GHz. This extensive range allows the chip to support a variety of communication standards, including LTE, Wi-Fi, and emerging 5G technologies. Engineers can leverage this flexibility to design systems that operate across multiple bands without requiring additional hardware. The wide frequency coverage ensures compatibility with both legacy and modern communication protocols, making the ad9361 a versatile choice for diverse applications.

The chip also delivers exceptional bandwidth capabilities, supporting channel bandwidths from 200 kHz to 56 MHz. This range provides the adaptability needed for applications requiring high data rates or narrowband communication. For example, in software-defined radio (SDR) systems, the ad9361's bandwidth flexibility enables seamless operation across different use cases, from high-speed data transmission to low-power IoT devices.

Note: The combination of wide frequency range and adjustable bandwidth simplifies system design, reducing development time and costs.

Transmit and Receive Channels

The ad9361 features dual transmit and receive channels, offering full-duplex operation. This configuration allows simultaneous transmission and reception of signals, which is essential for time-sensitive applications like cellular base stations and satellite communication. Each channel supports independent tuning, enabling engineers to optimize performance for specific frequency bands.

The chip's advanced architecture ensures minimal signal distortion during transmission and reception. Its integrated digital filters enhance signal quality, even in environments with high interference. These features make the ad9361 a reliable solution for applications demanding robust and efficient communication.

The dual-channel design also supports multiple-input, multiple-output (MIMO) systems, which improve data throughput and reliability. This capability is particularly valuable in 5G networks, where MIMO technology plays a critical role in achieving high-speed connectivity.

Applications of the AD9361BBCZ in Wireless Communication

Software-Defined Radio (SDR)

The AD9361BBCZ plays a pivotal role in software-defined radio (SDR) applications. Its ability to adapt rapidly to various communication protocols and standards makes it indispensable in dynamic environments. Engineers utilize this transceiver in military communication systems to switch between frequency bands and modulation schemes seamlessly. This adaptability ensures robust and secure communication, even in hostile conditions.

• Key benefits of the AD9361 in SDR include:

  • Rapid adaptation to diverse communication protocols.

  • Enhanced performance in dynamic and challenging environments.

  • Reliable operation across multiple frequency bands.

The AD9361's programmability and wideband RF coverage further enhance its utility in SDR, enabling engineers to design versatile and future-proof wireless communication systems.

TDD and FDD Systems

The AD9361BBCZ supports both Time Division Duplex (TDD) and Frequency Division Duplex (FDD) operations, offering dual-mode capability. This versatility allows it to adapt to various communication systems, enhancing its applicability in diverse scenarios. The chip's ability to handle both duplexing methods ensures efficient utilization of available bandwidth, improving overall system performance.

In TDD systems, the AD9361 enables time-sharing of transmission and reception, making it ideal for applications with limited frequency resources. For FDD systems, its dual-channel architecture ensures simultaneous transmission and reception, crucial for high-speed communication. This dual-mode capability makes the AD9361 a reliable choice for modern wireless communication systems.

IoT and 5G Networks

The AD9361BBCZ significantly contributes to the development of IoT and 5G networks. Its wide frequency range and reconfigurable nature allow it to support multiple communication standards, including LTE, Wi-Fi, and 5G. This versatility simplifies the design process, reducing costs and accelerating time-to-market for new applications.

• Key roles of the AD9361 in IoT and 5G networks:

  • Adaptability to changing network demands.

  • Reliable infrastructure for future-proof communication.

  • High-quality signal processing for effective communication in noisy environments.

The AD9361's robust signal processing capabilities ensure seamless operation in IoT devices and 5G networks, enhancing service quality for end-users. Its broad bandwidth capability also supports high-speed data transmission, making it an essential component in next-generation wireless communication systems.

Cellular Base Stations

The ad9361 plays a critical role in the development and operation of cellular base stations. Its wide frequency range and dual-channel architecture enable seamless communication across multiple bands. Engineers rely on this RF transceiver to design systems that support both legacy and modern wireless standards, including LTE and 5G. The chip's ability to handle high data rates ensures efficient signal transmission, even in densely populated urban environments.

Cellular base stations require robust and reliable components to maintain uninterrupted service. The ad9361 meets these demands by offering high integration and programmability. Its compact design reduces the need for additional hardware, simplifying system architecture. This feature not only minimizes costs but also enhances the overall reliability of the base station.

The chip's support for MIMO technology further strengthens its utility in cellular applications. MIMO systems improve data throughput and network reliability, which are essential for meeting the growing demand for high-speed connectivity. The ad9361's advanced signal processing capabilities ensure optimal performance, even in challenging conditions with high interference.

Note: The ad9361's adaptability makes it a future-proof solution for cellular base stations, capable of evolving alongside emerging wireless technologies.

Satellite Communication and Defense

The ad9361 excels in satellite communication and defense applications, where reliability and precision are paramount. Its wideband RF coverage and programmability allow it to adapt to various frequency bands and modulation schemes. Engineers use this chip to design systems that operate efficiently in harsh environments, such as space or military settings.

Satellite communication systems benefit from the ad9361's ability to handle high-frequency signals with minimal distortion. Its dual transmit and receive channels enable simultaneous communication, which is crucial for real-time data transmission. The chip's low power consumption also makes it ideal for satellite systems, where energy efficiency is a critical factor.

In defense applications, the ad9361 supports secure and robust communication. Its programmability allows rapid adaptation to changing conditions, ensuring reliable performance in dynamic scenarios. The chip's advanced architecture enhances signal quality, even in environments with significant interference.

The ad9361's versatility and reliability make it a preferred choice for engineers working on satellite and defense systems. Its ability to meet stringent performance requirements ensures its continued relevance in these demanding fields.

Advantages of the AD9361BBCZ RF Transceiver

High Integration for Simplified Design

The AD9361BBCZ integrates multiple transceiver function modules into a single compact package. This high level of integration minimizes the need for external components, streamlining system architecture and reducing potential points of failure. Engineers benefit from improved reliability and operational efficiency, as the chip simplifies the design process while maintaining robust performance. Its compact design also allows for smaller, more portable wireless systems, making it ideal for applications where space is limited.

Tip: High integration not only enhances reliability but also reduces development time, enabling faster deployment of communication systems.

Wideband Performance for Versatility

The AD9361BBCZ delivers exceptional wideband performance, supporting frequencies from 70 MHz to 6 GHz. This capability makes it compatible with a variety of communication standards, including LTE, Wi-Fi, and 5G. Its broad bandwidth allows developers to use the same hardware across multiple applications, such as cellular networks, satellite communications, and IoT devices.

• Key benefits of wideband performance:

  • Compatibility with diverse communication standards.

  • Simplified design process, reducing costs and time-to-market.

  • Versatility for deployment in various wireless systems.

This wideband capability ensures that the AD9361BBCZ remains a future-proof solution, adaptable to evolving communication technologies.

Flexibility and Programmability

The AD9361BBCZ offers unmatched flexibility and programmability, setting it apart from other RF chips. Its wide frequency range and advanced modulation support enable seamless operation across different communication protocols. Engineers can dynamically adjust parameters through software, optimizing performance for specific use cases without requiring hardware modifications.

• Features enhancing flexibility:

  • Wide frequency range from 70 MHz to 6 GHz.

  • Support for advanced modulation schemes like QPSK and 64QAM.

  • Software-defined parameter adjustment for real-time optimization.

This level of programmability ensures that the AD9361BBCZ can adapt to changing conditions, making it a reliable choice for modern wireless communication systems.

Competitive Edge Over Other RF Chips

The AD9361BBCZ stands out in the competitive landscape of RF chips due to its unmatched combination of features and performance. Its high level of integration reduces the need for external components, simplifying system design and minimizing potential points of failure. This compact design not only saves space but also enhances reliability, making it a preferred choice for engineers working on advanced wireless communication systems.

The chip's programmability offers a significant advantage over other RF chips. Engineers can dynamically adjust its parameters through software, enabling real-time optimization for various applications. This flexibility eliminates the need for frequent hardware modifications, reducing development time and costs. The AD9361BBCZ's ability to adapt to evolving communication standards ensures its relevance in future technologies.

Wideband performance further strengthens the AD9361BBCZ's competitive edge. Supporting frequencies from 70 MHz to 6 GHz, it accommodates a broad range of communication protocols, including LTE, Wi-Fi, and 5G. This versatility allows engineers to use the same transceiver across multiple applications, streamlining the design process and reducing inventory requirements.

The AD9361BBCZ also excels in energy efficiency. Its advanced power management system adjusts power consumption based on operational needs, making it ideal for battery-powered devices. This feature, combined with its robust signal processing capabilities, ensures high performance without compromising energy efficiency.

Practical Considerations for Using the AD9361BBCZ

Design and Integration Tips

Effective design and integration of the AD9361BBCZ ensure optimal performance in wireless communication systems. Engineers should consider several critical factors during implementation:

• Power Supply: A stable power source is essential. Voltage regulators and filtering capacitors help prevent fluctuations that could impact performance.

• Thermal Management: Heat sinks and temperature sensors are necessary to monitor and manage device temperature, ensuring reliable operation.

• Environmental Conditions: A clean, dry environment minimizes interference from dust and moisture. Enclosures with appropriate ingress protection (IP) ratings safeguard the chip from contaminants.

• Interface Stability: Proper signal routing and differential signaling enhance communication reliability, reducing the risk of signal degradation.

Tip: Addressing these factors during the design phase reduces potential issues and enhances system longevity.

Compatibility with Other Technologies

The AD9361BBCZ's design ensures seamless compatibility with existing wireless communication technologies. Its features simplify integration and enhance adaptability:

These capabilities make the AD9361BBCZ a versatile choice for engineers working on diverse applications, from IoT devices to 5G networks.

Availability and Support Resources

Engineers can access a range of resources to support the implementation of the AD9361BBCZ:

• Regular firmware updates improve performance and reliability.

• Temperature sensors and thermal monitoring tools prevent overheating.

• Enclosures with IP ratings protect against environmental hazards.

• Proper signal routing and impedance matching ensure stable communication.

• A supply voltage range of 1.27 V to 1.33 V enhances efficiency and stability.

Note: Leveraging these resources ensures smooth integration and long-term reliability of the AD9361BBCZ in wireless systems.

The AD9361BBCZ has revolutionized wireless communication by offering unmatched versatility and performance. Its wide frequency range, high integration, and low power consumption make it indispensable in applications like radar systems, software-defined radios, and medical devices. Engineers rely on its adaptability to design future-proof communication systems, including cellular base stations and satellite networks.

This RF chip excels in signal processing, ensuring high-quality transmission even in challenging environments. Its programmability and dynamic power management enhance efficiency, aligning with the demands of modern wireless technologies. The AD9361BBCZ continues to shape the future of communication by enabling robust, reliable, and innovative solutions.

FAQ

What makes the AD9361BBCZ unique compared to other RF chips?

The AD9361BBCZ stands out due to its wide frequency range (70 MHz to 6 GHz), high integration, and programmability. These features allow engineers to design versatile systems compatible with multiple communication standards, reducing development time and costs.

Can the AD9361BBCZ support both TDD and FDD systems?

Yes, the AD9361BBCZ supports both Time Division Duplex (TDD) and Frequency Division Duplex (FDD) systems. Its dual-mode capability ensures efficient bandwidth utilization and seamless operation in diverse wireless communication scenarios.

How does the AD9361BBCZ contribute to IoT and 5G networks?

The AD9361BBCZ enhances IoT and 5G networks by offering wideband RF coverage and reconfigurable architecture. These features enable compatibility with multiple standards, ensuring reliable infrastructure and high-speed data transmission for next-generation communication systems.

What are the power requirements for the AD9361BBCZ?

The AD9361BBCZ operates with a supply voltage range of 1.27 V to 1.33 V. Its dynamic power management system optimizes energy consumption, making it suitable for battery-powered devices and energy-efficient applications.

Is the AD9361BBCZ suitable for satellite communication?

The AD9361BBCZ is ideal for satellite communication due to its wideband RF coverage, dual transmit and receive channels, and low power consumption. These features ensure reliable performance in harsh environments and support real-time data transmission.

Tip: For optimal performance, engineers should ensure proper thermal management and signal routing during system design.
