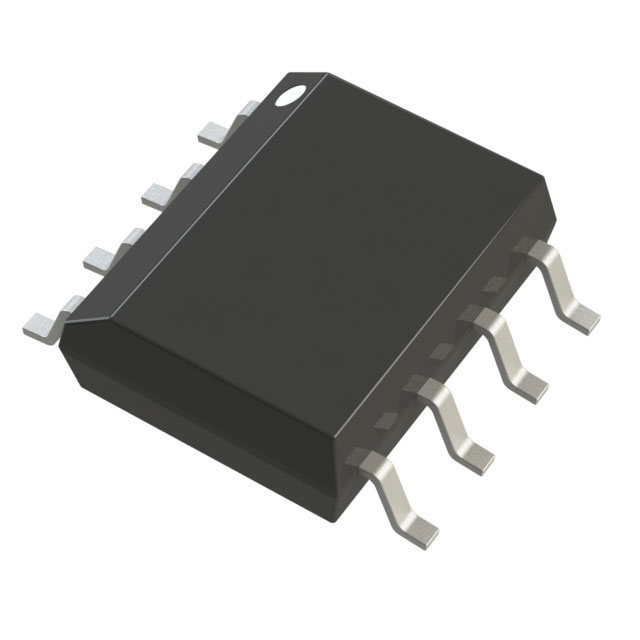

AD780BRZ Voltage Reference: Always Accurate, Never Failing — Image Source: deirchip

The AD780BRZ Sensor Interface Data Logger High Precision Voltage Reference is known for its exceptional accuracy and stability. It exhibits a minimal error, varying only 0.9 mV from −40°C to +85°C. With a low noise level of approximately 4 μV p-p between 0.1 Hz and 10 Hz, the AD780BRZ ensures a steady output even in challenging conditions. Additionally, its noise density of 100 nV/√Hz indicates that it performs excellently for precise applications.

Key Takeaways

The AD780BRZ is very accurate, changing only 0.9 mV from −40°C to +85°C. This makes it great for precise tasks.
It has low noise, about 4 μV p-p, giving a clean output. This is important for delicate systems like data recorders.
Its strong design and small size help engineers use it easily in many projects while staying dependable.
The AD780BRZ works well even in tough conditions because its performance stays steady with temperature changes.
Using the AD780BRZ makes designs simpler by needing fewer extra parts. This saves time and effort for engineers.

Core Features of the AD780BRZ Sensor Interface Data Logger High Precision Voltage Reference

Exceptional Accuracy

The AD780BRZ is built for accuracy. Its laser-trimmed design keeps changes small, with only a 0.9 mV difference from −40°C to +85°C. This means it works well even when tiny errors could cause problems.

Tip: If you need high accuracy, the AD780BRZ lets you pick between 2.5 V or 3.0 V output, making it flexible for your projects.

Here’s a simple look at its key features:

Feature	Description
Output Voltage	Choose 2.5 V or 3.0 V from a 4 V to 36 V input.
Accuracy	Only 0.9 mV variation from −40°C to +85°C due to laser trimming.
Stability	Stays steady with a 1 µF bypass capacitor under any load.

This accuracy makes it perfect for sensor interfaces and data loggers where precision matters most.

Low Temperature Coefficient

Temperature changes can mess up voltage references, but not the AD780BRZ. Its design reduces errors and keeps performance steady, even when temperatures change a lot.

This feature is great for tools like analog-to-digital converters, where stable temperature control improves results. The AD780BRZ also adjusts its output voltage smoothly with temperature, making it even more useful.

Note: Technical papers and data sheets confirm the AD780BRZ’s low temperature coefficient, proving it’s ideal for precise systems.

Low Noise Performance

Noise can ruin your system, but the AD780BRZ keeps it low. It has a typical noise level of 4 μV p-p between 0.1 Hz and 10 Hz and a noise density of 100 nV/√Hz. This ensures clean and steady output.

Low noise is important for systems needing clear signals, like sensor interfaces and data loggers. Adding a 1 µF bypass capacitor helps it stay stable and reduces noise further.

Callout: Engineers love the AD780BRZ for its low noise, which makes designing systems easier and boosts performance.

Design and Build Quality of the AD780BRZ

Internal Architecture

The AD780BRZ is special because of its smart internal design. It uses a bandgap reference, which keeps it working well in many conditions. This design helps it stay accurate and steady over time. It gives stable output voltages, even if the input voltage changes.

Inside, it also uses laser trimming. This process adjusts parts to make them very precise. It lowers errors and ensures the voltage reference works well in tough tasks.

Another important feature is its low dropout voltage. This means it works well even with low input power. You can use it in systems where saving power is important.

Strong Packaging

The AD780BRZ is made to last long. Its strong packaging protects it from things like heat, moisture, and physical damage. This keeps it working well in tough environments.

The package design also helps get rid of heat easily. This keeps it steady and working well for a long time. You can trust it to stay reliable, even with heavy use.

Its small size makes it easy to fit into your projects. Whether you’re building sensor systems or data loggers, the AD780BRZ fits perfectly.

The AD780BRZ combines smart design with strong packaging. This makes it a great choice for engineers who need accuracy and dependability in their work.

Practical Applications of the AD780BRZ in Precision Systems

Uses in Sensor Interfaces and Data Loggers

The AD780BRZ is important for sensor interfaces and data loggers. Its high precision helps get accurate readings every time. It keeps voltage steady in sensor circuits, even when conditions change. This ensures measurements stay reliable.

Data loggers gain a lot from the AD780BRZ. It gives a stable reference voltage, which is key for recording correct data over long periods. Whether tracking weather or factory processes, this voltage reference keeps your data accurate.

Tip: Use the AD780BRZ with analog-to-digital converters. This pairing reduces errors and boosts your system's performance.

Advantages for Engineers and Designers

Engineers and designers like the AD780BRZ for its dependability and easy use. Its small size fits into many projects, saving space while working well. Its strong build handles tough conditions, making it great for challenging tasks.

The AD780BRZ makes designing easier. Its low noise and temperature stability mean fewer extra parts are needed. This simplifies your work and saves time. You can focus on creating while trusting it to stay consistent.

Callout: The AD780BRZ Sensor Interface Data Logger High Precision Voltage Reference changes the game for precision systems. Its features help you design efficient and reliable projects.

The AD780BRZ offers top-notch precision, stability, and dependability. Its laser-trimmed design ensures accurate results and low noise output. This makes your projects simpler and boosts system performance.

Why pick the AD780BRZ?
- It works well in different conditions.
- Its strong build means fewer extra parts are needed.

Tip: Use the AD780BRZ to make your designs easier and reliable. Its features are perfect for engineers and designers who need trusted tools.

FAQ

What makes the AD780BRZ good for precise systems?

The AD780BRZ is very accurate, quiet, and stable with temperature. Its laser-trimmed design keeps errors small, even in tough conditions. These qualities make it great for systems like sensor interfaces and data loggers needing exact measurements.

Can the AD780BRZ work in extreme temperatures?

Yes, it works well from −40°C to +85°C. Its low temperature coefficient keeps the output steady, even with big temperature changes. This makes it a reliable choice for places with changing conditions.

How does the AD780BRZ keep noise low?

The AD780BRZ has very low noise, about 4 μV p-p between 0.1 Hz and 10 Hz. Adding a 1 µF bypass capacitor lowers noise even more. This helps give clean and steady output for sensitive systems.

Tip: Use the AD780BRZ in systems needing clear signals, like analog-to-digital converters.

Is the AD780BRZ simple to use in designs?

Yes! Its small size and strong build make it easy to fit into many projects. You can trust its durable design and steady performance, which makes designing easier.

Why pick the AD780BRZ over other voltage references?

The AD780BRZ is precise, stable, and strong. Its low dropout voltage, laser-trimmed accuracy, and temperature stability make it stand out. It reduces errors, improves performance, and simplifies designs, making it a favorite for engineers and designers.

Callout: The AD780BRZ is a reliable choice for building accurate and efficient systems.
