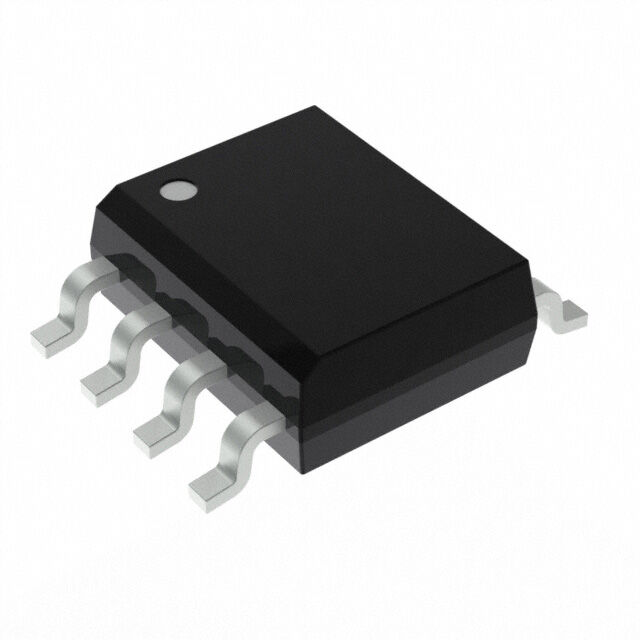

Unlock the Power of 24AA16-I/SN EEPROM Memory Today — Image Source: https://deirchip.com/

The 24AA16-I/SN by MICROCHIP stands out as one of the premier Industrial Grade High Reliability EEPROM Memory Chips for Embedded Systems. This advanced 16Kb EEPROM memory chip is engineered to excel in demanding environments, ensuring consistent and reliable performance for critical applications. Its non-volatile nature guarantees data retention even during power interruptions, making it a durable and dependable solution. Designed for seamless integration, the 24AA16-I/SN simplifies development in embedded systems, allowing you to focus on innovation. Ideal for automotive systems, industrial automation, and IoT devices, this chip delivers the efficiency and reliability required for success. For more details, visit here.

Key Takeaways

The 24AA16-I/SN EEPROM chip offers 16Kb of non-volatile memory, ensuring data retention even during power interruptions, making it ideal for critical applications.
Designed for industrial-grade reliability, this chip operates across a wide voltage range (1.7V to 5.5V) and temperature range, ensuring consistent performance in harsh environments.
Its I2C interface simplifies integration with microcontrollers, supporting efficient data transfer rates and low power consumption, perfect for energy-sensitive applications.
With a data retention capability of up to 200 years and support for 1 million write/erase cycles, the 24AA16-I/SN is built for long-term reliability and frequent data updates.
Implement best practices such as using pull-up resistors and optimizing write operations to enhance the performance and longevity of your embedded systems.
Utilize Microchip's evaluation kit and comprehensive documentation to streamline your development process and ensure optimal integration of the EEPROM chip.
Engage with Microchip's community and technical support for troubleshooting and expert guidance, helping you overcome challenges in your projects.

Key Features of the 24AA16-I/SN, MICROCHIP, Industrial Grade High Reliability EEPROM Memory Chips for Embedded Systems

Memory Capacity and Organization

The 24AA16-I/SN offers a memory capacity of 16Kb, structured into eight blocks of 256 x 8-bit memory. This organization provides you with flexibility in managing data, making it suitable for diverse embedded applications. The chip supports page write functionality, allowing you to write up to 16 bytes of data at once. This feature enhances efficiency by reducing the time required for data storage operations. Whether you need to store configuration settings, calibration data, or other critical information, this memory structure ensures seamless and reliable performance.

Industrial-Grade Reliability and Temperature Range

Designed for industrial-grade applications, the 24AA16-I/SN excels in demanding environments. Its wide operating voltage range of 1.7V to 5.5V ensures compatibility with various power supply configurations. The chip operates reliably across a broad temperature range, making it ideal for applications in harsh conditions such as automotive systems and industrial automation. You can trust its durability and consistent performance, even in extreme temperatures. Additionally, the non-volatile nature of this EEPROM guarantees data retention during power interruptions, ensuring your critical data remains intact.

I2C Interface and Compatibility

The 24AA16-I/SN utilizes a standard two-wire I2C interface, simplifying integration into your embedded systems. This interface supports clock frequencies of up to 400kHz, enabling efficient data transfer rates. The chip's compatibility with I2C protocols ensures seamless communication with microcontrollers and other devices. Its low-power design, with standby and active currents as low as 1 µA and 1 mA respectively, makes it an excellent choice for energy-efficient applications. Whether you're working on IoT devices or other embedded systems, this interface ensures smooth and reliable operation.

Benefits of Using the 24AA16-I/SN in Embedded Systems

High Reliability for Critical Applications

The 24AA16-I/SN ensures dependable performance in critical applications. Its non-volatile memory retains data even during power interruptions, making it ideal for storing essential information like configuration settings and calibration parameters. You can rely on this chip for industrial control systems, medical devices, and automotive systems where consistent data storage is vital. Its robust design guarantees durability, even in demanding environments, ensuring your embedded systems operate without interruptions.

Low Power Consumption and Efficiency

Efficiency plays a crucial role in embedded systems, and the 24AA16-I/SN excels in this area. The chip consumes minimal power, with standby current as low as 1 µA and active current at just 1 mA. This low power consumption extends the battery life of your devices, making it perfect for energy-sensitive applications like IoT devices and portable electronics. By integrating this chip, you can optimize your system's energy usage while maintaining high performance.

Long Data Retention and Endurance

The 24AA16-I/SN offers exceptional data retention and endurance, ensuring your data remains intact for extended periods. Its non-volatile memory can retain information for up to 200 years, providing unmatched reliability for long-term applications. Additionally, the chip supports up to 1 million write/erase cycles, making it suitable for frequent data updates. Whether you're working on communication equipment or consumer electronics, this endurance ensures your system's longevity and reliability.

Step-by-Step Guide to Utilizing the 24AA16-I/SN, MICROCHIP, Industrial Grade High Reliability EEPROM Memory Chips for Embedded Systems

Hardware Setup and Connection to Microcontrollers

To begin using the 24AA16-I/SN, you need to establish a proper hardware connection with your microcontroller. This chip uses an I2C interface, which requires two main connections: the Serial Data Line (SDA) and the Serial Clock Line (SCL). Connect the SDA and SCL pins of the EEPROM to the corresponding I2C bus pins on your microcontroller. Ensure that pull-up resistors are added to these lines to maintain signal integrity.

The chip also includes three address pins (A0, A1, A2) that allow you to configure the device address. Set these pins to either high or low, depending on your system's requirements. This configuration enables multiple devices to share the same I2C bus without conflicts. For power, connect the VCC pin to a voltage source within the operating range of 1.7V to 5.5V, and ground the GND pin. If you want to enable write protection, connect the WP pin to a high logic level. This setup ensures reliable communication and protects your data from accidental overwrites.

Writing and Reading Data Using the I2C Protocol

Once the hardware is set up, you can start writing and reading data using the I2C protocol. To write data, send a start condition followed by the device address and the write command. Specify the memory location where you want to store the data, then transmit the data bytes. The 24AA16-I/SN supports page write functionality, allowing you to write up to 16 bytes in a single operation. After sending the data, issue a stop condition to complete the process.

For reading data, initiate communication by sending a start condition and the device address with the read command. Specify the memory location you want to access, then read the data bytes sequentially. The chip automatically increments the memory address after each byte, simplifying the process. Use a stop condition to end the communication. This efficient read/write mechanism ensures smooth data transfer and simplifies integration into your embedded systems.

Error Handling and Data Integrity Checks

Maintaining data integrity is crucial when working with EEPROMs. The 24AA16-I/SN includes features to help you handle errors and ensure reliable operation. During data transmission, monitor the acknowledgment (ACK) signals sent by the chip. If the chip fails to acknowledge, check your connections and ensure the device address is correct.

Implement error detection mechanisms in your software to identify and correct issues during data transfer. For example, use checksums or cyclic redundancy checks (CRC) to verify the accuracy of the data. If you encounter write errors, ensure the WP pin is not enabled and verify that the write cycle time of 5ms has elapsed before initiating another write operation. These practices help you maintain data reliability and prevent corruption in critical applications.

Best Practices for Implementing the 24AA16-I/SN in Embedded Systems

Optimizing Performance in Embedded Systems

To maximize the performance of the 24AA16-I/SN, you should focus on efficient system design. Start by ensuring proper hardware connections, including the use of pull-up resistors on the I2C lines. These resistors maintain signal integrity and prevent communication errors. Use the chip's page write functionality to store multiple bytes of data in a single operation. This approach reduces write cycle times and enhances overall efficiency.

Minimize power consumption by leveraging the chip's low standby and active current features. For energy-sensitive applications, such as IoT devices, configure your system to enter standby mode when the EEPROM is not in use. Additionally, monitor the clock frequency of the I2C interface. Operating at the recommended 400kHz ensures faster data transfer without compromising reliability. By implementing these strategies, you can optimize the chip's performance and extend the lifespan of your embedded systems.

Ensuring Data Security and Reliability

Data security is critical when using EEPROM in embedded systems. The 24AA16-I/SN can store sensitive information, such as encryption keys or user credentials. To protect this data, implement security measures like encryption algorithms. Encrypting stored data prevents unauthorized access and ensures confidentiality.

Reliability is equally important. Monitor failure mechanisms to predict potential data loss and take preventive measures. For example, use error detection techniques, such as checksums or cyclic redundancy checks (CRC), to verify data accuracy during read and write operations. Regularly test the endurance of the chip by simulating frequent write/erase cycles. This practice helps you identify potential wear and ensures the chip's longevity. By prioritizing both security and reliability, you can safeguard your system's critical data and maintain consistent performance.

Troubleshooting Common Issues

When working with the 24AA16-I/SN, you may encounter common issues that affect functionality. Address these problems promptly to ensure smooth operation. If the chip fails to acknowledge commands during I2C communication, check the connections of the SDA and SCL lines. Verify that the pull-up resistors are correctly installed and that the device address matches your configuration.

Write errors can occur if the write protection (WP) pin is enabled. Ensure this pin is set to a low logic level when writing data. Additionally, confirm that the required write cycle time of 5ms has elapsed before initiating another write operation. For data corruption issues, implement robust error-handling mechanisms in your software. These mechanisms detect and correct errors, preserving data integrity. By troubleshooting effectively, you can resolve issues quickly and maintain the reliability of your embedded systems.

Application Scenarios for the 24AA16-I/SN in Embedded Systems

Automotive Systems

The 24AA16-I/SN plays a vital role in modern automotive systems. You can use this EEPROM chip to store configuration data, calibration parameters, and user settings. Its non-volatile memory ensures that critical information remains intact even during power interruptions. This reliability makes it ideal for applications such as engine control units, infotainment systems, and advanced driver-assistance systems (ADAS).

With its I2C interface, the chip simplifies integration into automotive designs. You can connect it seamlessly with microcontrollers and other components, ensuring smooth communication. Its industrial-grade reliability and wide operating temperature range allow it to perform consistently in harsh automotive environments. Whether you're designing systems for extreme heat or cold, this chip ensures dependable operation.

Industrial Automation

In industrial automation, precision and reliability are essential. The 24AA16-I/SN excels in this domain by providing robust data storage for programmable logic controllers (PLCs), sensors, and motor controllers. You can rely on its non-volatile memory to store operational parameters, system configurations, and error logs. This ensures that your systems maintain their functionality even after power cycles or unexpected shutdowns.

The chip's compatibility with various power supply configurations and its ability to operate across a broad temperature range make it suitable for demanding industrial environments. Its low power consumption also helps you optimize energy usage in automated systems. By integrating this EEPROM into your designs, you can enhance the efficiency and reliability of your industrial applications.

IoT Devices

The rise of IoT devices has created a demand for compact, energy-efficient, and reliable memory solutions. The 24AA16-I/SN meets these requirements perfectly. You can use it to store device settings, firmware updates, and user preferences in smart home devices, wearable technology, and connected appliances. Its small size and low power consumption make it an excellent choice for battery-operated IoT devices.

The chip's I2C interface ensures easy integration with IoT platforms, enabling seamless communication between devices. Its long data retention and high endurance allow you to update and retrieve data frequently without compromising reliability. Whether you're developing smart thermostats, fitness trackers, or industrial IoT sensors, this EEPROM chip provides the durability and efficiency you need.

Tools and Resources for Working with the 24AA16-I/SN

Microchip's Serial Memory I2C Evaluation Kit

To simplify your development process, Microchip offers the Serial Memory I2C Evaluation Kit. This kit provides a hands-on approach to testing and integrating the 24AA16-I/SN into your embedded systems. It includes all the essential components you need to evaluate the chip's performance and functionality. By using this kit, you can quickly prototype your designs and verify compatibility with your microcontroller.

The evaluation kit features an intuitive interface, allowing you to experiment with the I2C communication protocol. You can test read and write operations, explore the chip's memory organization, and assess its low power consumption. This tool is especially useful for developers working on applications like IoT devices, automotive systems, or industrial automation. With this kit, you can streamline your design process and ensure optimal performance.

Documentation and Application Notes

Microchip provides comprehensive documentation and application notes to support your work with the 24AA16-I/SN. These resources include detailed datasheets, user guides, and technical specifications. The datasheet outlines the chip's features, electrical characteristics, and memory organization, giving you a clear understanding of its capabilities.

Application notes offer practical insights into implementing the chip in real-world scenarios. They cover topics such as I2C communication, error handling, and power optimization. By studying these documents, you can learn best practices for integrating the chip into your system. These resources help you avoid common pitfalls and maximize the efficiency of your design.

Community and Technical Support

When working with the 24AA16-I/SN, you can rely on Microchip's active community and technical support. The community includes engineers, developers, and enthusiasts who share their experiences and solutions. You can participate in forums, ask questions, and exchange ideas with others who use the same chip.

Microchip's technical support team provides expert assistance for troubleshooting and resolving issues. Whether you need help with hardware setup, software implementation, or performance optimization, their team is ready to guide you. Accessing this support ensures that you can overcome challenges and achieve your project goals efficiently.

The 24AA16-I/SN, MICROCHIP, Industrial Grade High Reliability EEPROM Memory Chips for Embedded Systems offers unmatched reliability and versatility. Its key features, such as non-volatile memory, low power consumption, and robust endurance, make it indispensable for embedded systems. You can leverage its benefits to enhance performance in automotive systems, industrial automation, and IoT devices. Its seamless integration simplifies your development process, allowing you to focus on innovation. Explore the potential of this EEPROM chip in your projects to achieve efficient, durable, and reliable solutions tailored to your needs.
